PCT190-LA/LA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PCT190-LA/LA

PCT190-LA/LA: DescriptionSingle Color LED Array, Amber, Diffused, T-1 3/4, 4.8mm, 4PIN; CategoryLED optoelectronic/LED photoelectric; File Size630KB，2 Pages; ManufacturerDDP Engineered LED Solutions

Download Datasheet Parametric View All

PCT190-LA/LA Overview

Single Color LED Array, Amber, Diffused, T-1 3/4, 4.8mm, 4PIN

PCT190-LA/LA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DDP Engineered LED Solutions
package instruction	4PIN
Reach Compliance Code	unknown
color	AMBER
color@wavelength	Amber
Configuration	SEPARATE, 2 ELEMENTS
JESD-609 code	e0
Lens type	DIFFUSED
Nominal luminous intensity	12.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of LEDs in the array	2
Number of terminals	4
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	12.4 mm
method of packing	BULK
peak wavelength	585 nm
shape	ROUND
size	4.8 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

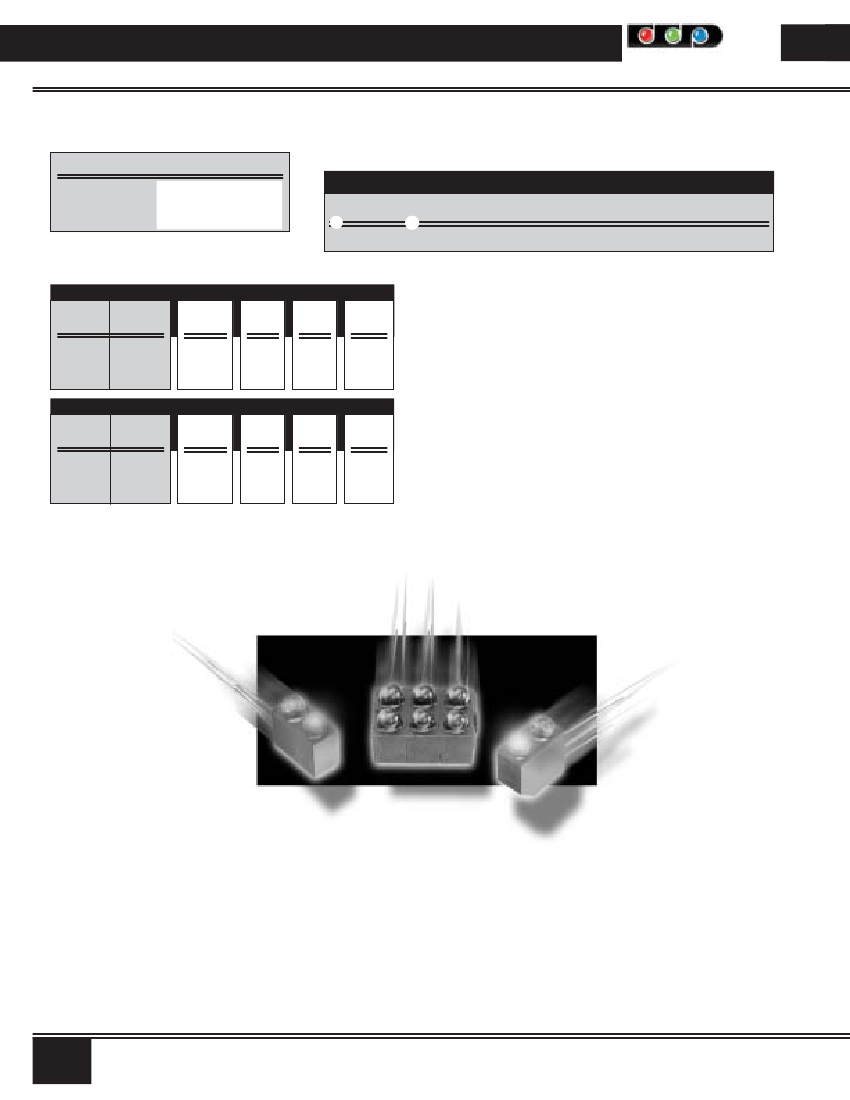

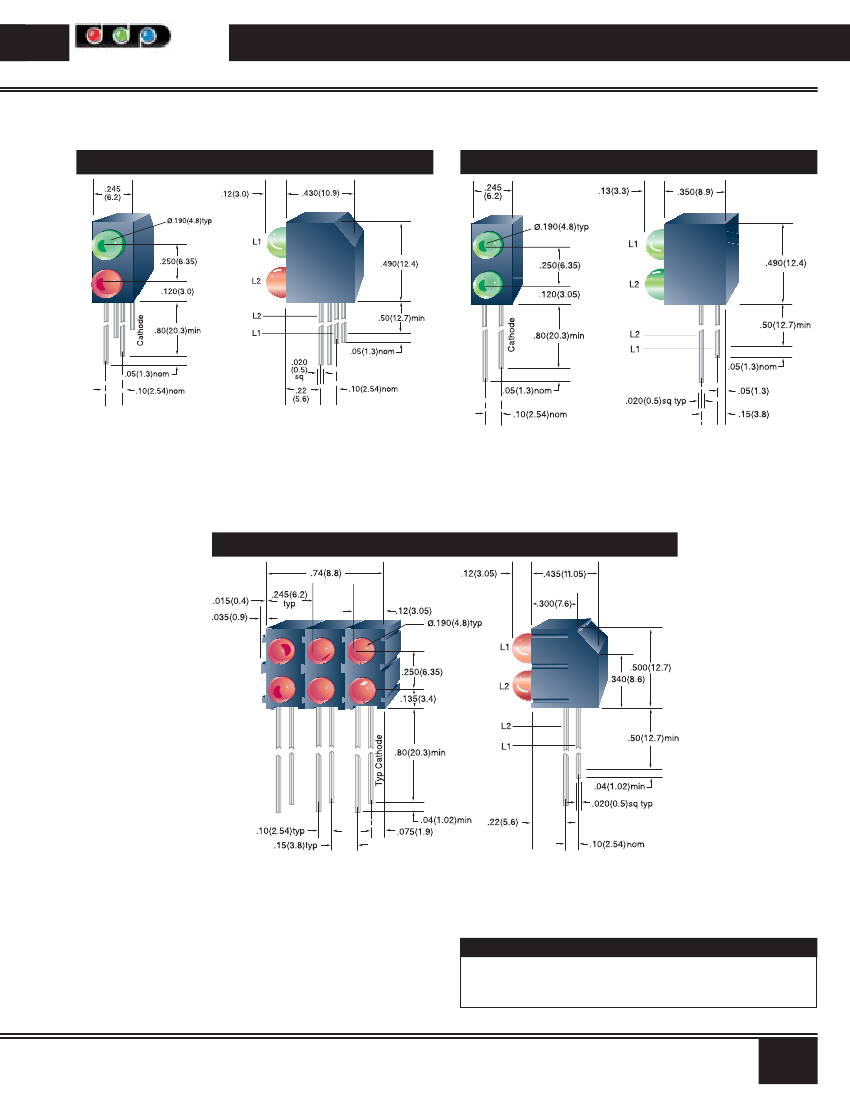

T-1

PCB MOUNT LEDs

Medium Profile, Dual Stacked

- For Detailed LED Data, See Discrete Section, MODEL 190

Data Display Products

Model

PCLT195

PCT190

PCLT195N

[1]

Right Angle Mount

Right Angle Array

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each SHADED column in the tables below.

Top

Bottom

PCT195

Model

LED

-LG

LED

/LA

➜

Part Number

PCLT195-LG/LA

LED

Top

STANDARD INTENSITY - DIFFUSED ENCAPSULATION

Bottom

LED

/LR

/LA

/LG

λpk

Color

RED

AMB

GRN

(nm)

[2]

(mcd)

Viewing

Angle

-LR

-LA

-LG

635

585

565

MEDIUM INTENSITY - TINTED ENCAPSULATION

Top

Bottom

LED

-LCR

-LCA

-LCG

LED

/LCR

/LCA

/LCG

λpk

Color

RED

AMB

GRN

(nm)

[2]

(mcd)

Viewing

Angle

635

585

565

[1] Replace “N” with the number of LEDs in the array, 2 – 8 (e.g. PCLT1953).

[2] Iv = typical luminous intensity @ If = 20mA (Ta=25°C).
