SN54S181W datasheet, PDF - EEWORLD Datasheet

SN54S181W: DescriptionArithmetic Logic Unit, S Series, 4-Bit, True Output, TTL, CDFP24, HERMETIC, FP-24; Categorylogic logic; File Size212KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

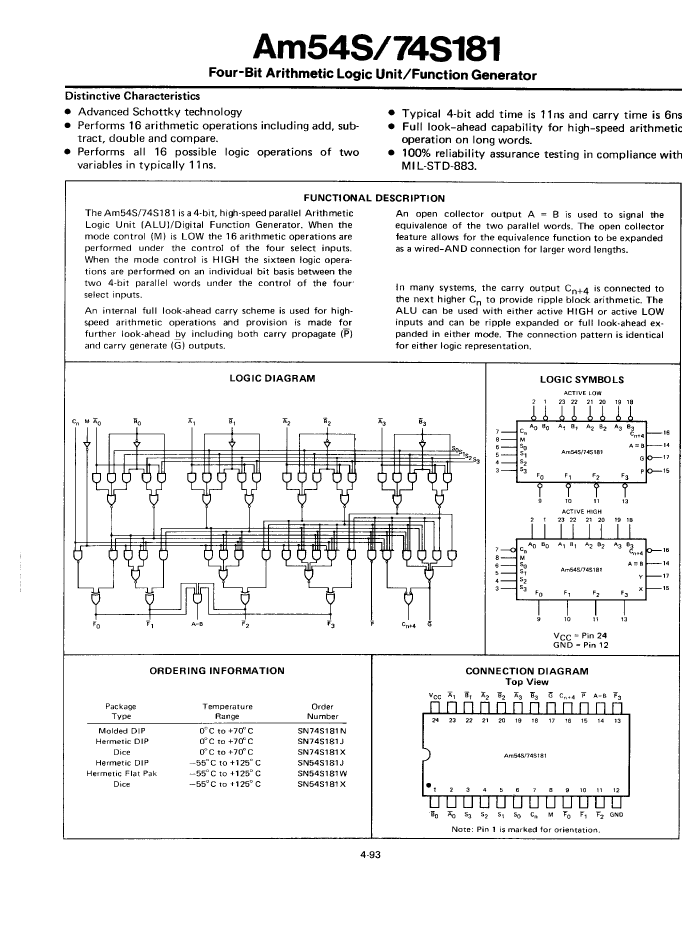

SN54S181W Overview

Arithmetic Logic Unit, S Series, 4-Bit, True Output, TTL, CDFP24, HERMETIC, FP-24

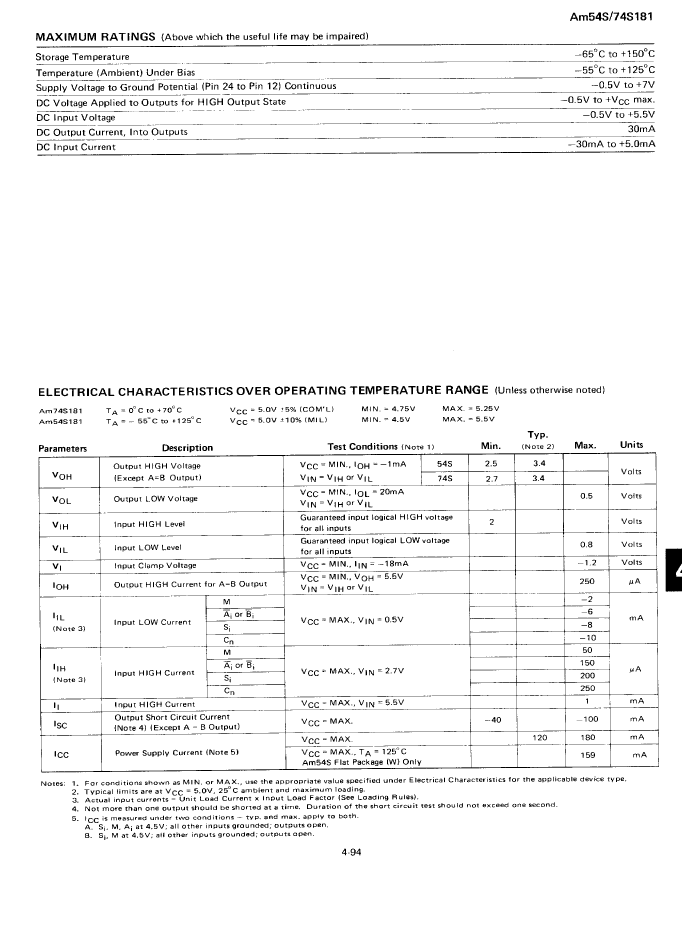

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DFP,
Reach Compliance Code	unknown
series	S
JESD-30 code	R-CDFP-F24
Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of digits	4
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK

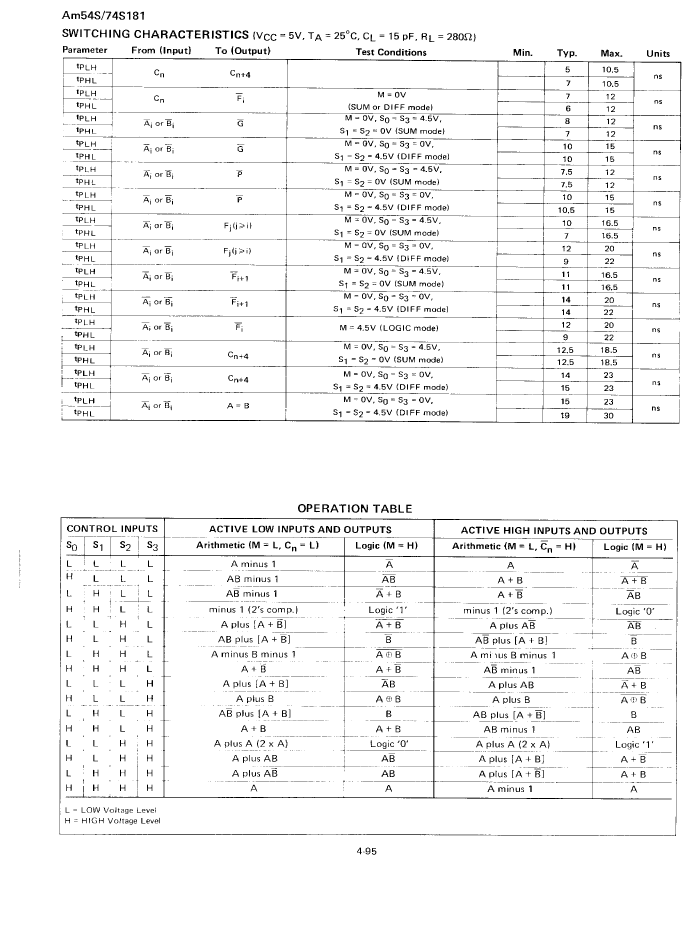

propagation delay (tpd)	30 ns
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL

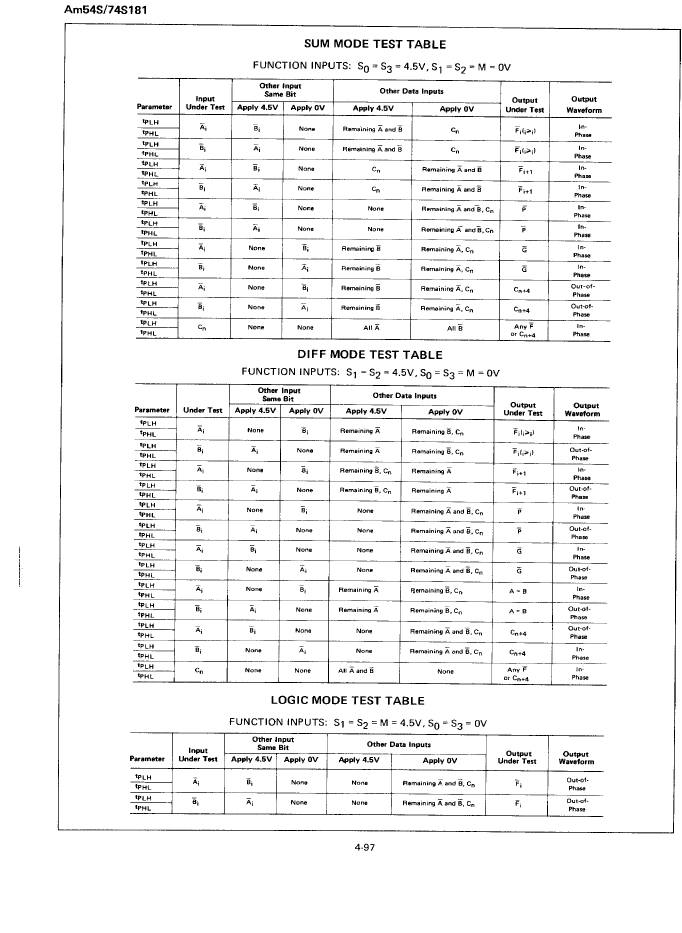

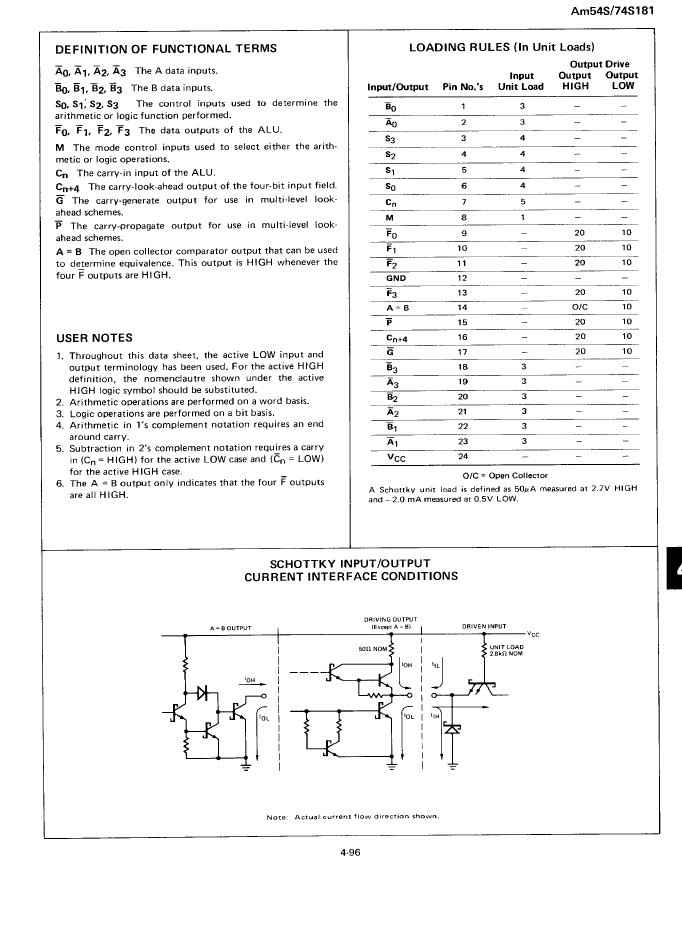

This Material Copyrighted By Its Respective Manufacturer

	SN54S181W	SN54S181J
Description	Arithmetic Logic Unit, S Series, 4-Bit, True Output, TTL, CDFP24, HERMETIC, FP-24	Arithmetic Logic Unit, S Series, 4-Bit, True Output, TTL, CDIP24, HERMETIC, DIP-24
Maker	Rochester Electronics	Rochester Electronics
package instruction	DFP,	HERMETIC, DIP-24
Reach Compliance Code	unknown	unknown
series	S	S
JESD-30 code	R-CDFP-F24	R-GDIP-T24
Logic integrated circuit type	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT
Number of digits	4	4
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
propagation delay (tpd)	30 ns	30 ns
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL
