AB310-FREQ-16-M-T: DescriptionParallel - Fundamental Quartz Crystal, 3.5MHz Min, 3.99MHz Max, ROHS COMPLIANT, MINIATURE PACKAGE-2; CategoryPassive components Crystal/resonator; File Size641KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AB310-FREQ-16-M-T Overview

Parallel - Fundamental Quartz Crystal, 3.5MHz Min, 3.99MHz Max, ROHS COMPLIANT, MINIATURE PACKAGE-2

AB310-FREQ-16-M-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, MINIATURE PACKAGE-2
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	16 pF
Manufacturer's serial number	AB310
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	3.99 MHz
Minimum operating frequency	3.5 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	D3.2XH9.8 (mm)/D0.126XH0.386 (inch)
Series resistance	200 Ω
surface mount	NO

Preview

Download Datasheet

View All

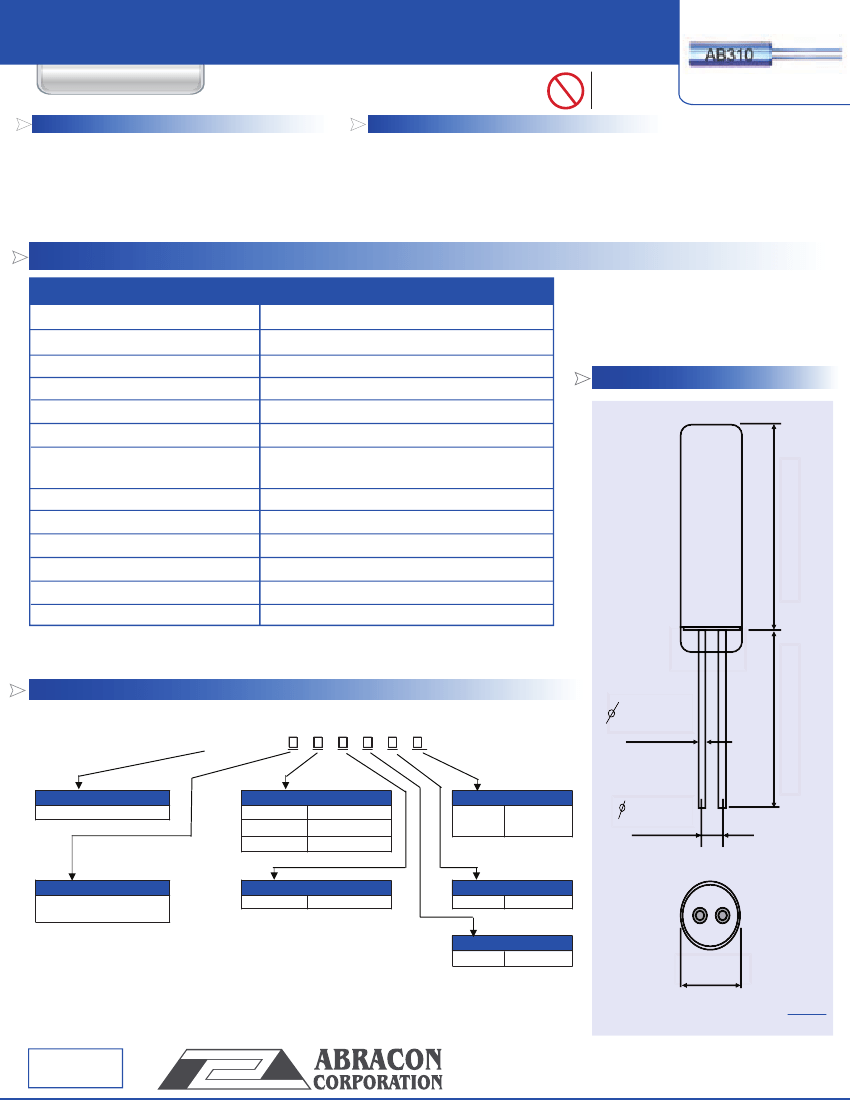

LOW FREQUENCY CYLINDRICAL TYPE

MICROPROCESSOR CRYSTAL

AB310

Pb

RoHS

Compliant

APPLICATIONS:

• Suitable for wide range of application

• Clocks for microprocessor

• Consumer electronics

• Test equipment

• Computer peripherals

9.8 x 3.2 x 0.8 mm

| | | | | | | | | | | | | | |

FEATURES:

• High stability by tight vacuum sealing

• Excellent resistant to vibration and shock

• Miniature high frequency cylinder type crystal

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance

Frequency Stability over the

Operating Temp. (Ref to +25°C)

AB310 Series

3.50 MHz to 3.99 MHz

Fundamental

-10°C to + 60°C (see options)

- 40°C to + 85°C

± 30 ppm max. (see options)

OUTLINE DRAWING:

± 50 ppm max. (see options)

Equivalent Series Resistance (R1)

200

Ω

max.

Shunt Capacitance C

0

5pF max.

Load Capacitance C

L

16pF (see options)

Drive Level

100µW max.

Aging at 25°C Per Year

± 5ppm max.

500 M

Ω

min at 100Vdc ± 15V

Insulation Resistance

9.8max.

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

8.0Min

0.38±0.05

AB310 - Frequency -

-

Frequency

XX.XXXX MHz

Operating Temp.

E

-0°C to +70°C

B

-20°C to +70°C

D

-40°C to +85°C

Packaging

T

Tape and Reel

0.8±0.2

Load Capacitance

Please specify CL in pF or S for

Series

Freq. Tolerance

5

± 50 ppm

Value Added

M

Leads

Freq. Stability

Y

± 30 ppm

3.2 max.

Dimensions: Inches

(mm)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised:

02.25.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
