All numerical values are in metric units [with U.S. customary units in brackets]. Dimensions are in millimeters [and
inches]. Unless otherwise specified, dimensions have a tolerance of +0.13 [+.005] and angles have a tolerance of +2_.
Figures and illustrations are for identification only and are not drawn to scale.
1. INTRODUCTION
This specification covers the requirements for application of AMPLIMITE HD 22 Right--Angle Front Metal Shell
Series 350 Connectors. The series designator is the dimension from the front of the connector flange to the
center of the first solder--tail. The connectors are available with boardlocks in the mounting legs and 4--40
threaded inserts or 4--40 female screwlocks in the mounting flanges.
The connectors are available in 15, 26, 44, 62, and 78 positions, with shell sizes of 1 through 5 respectively.
Each connector is marked with position numbers on the mating faces for circuit identification. The connector
plugs contain pin contacts and the receptacles contain socket contacts. These pre--installed right--angle
contacts have precision formed solder--tails. This document supercedes Application Specification 114--40021.

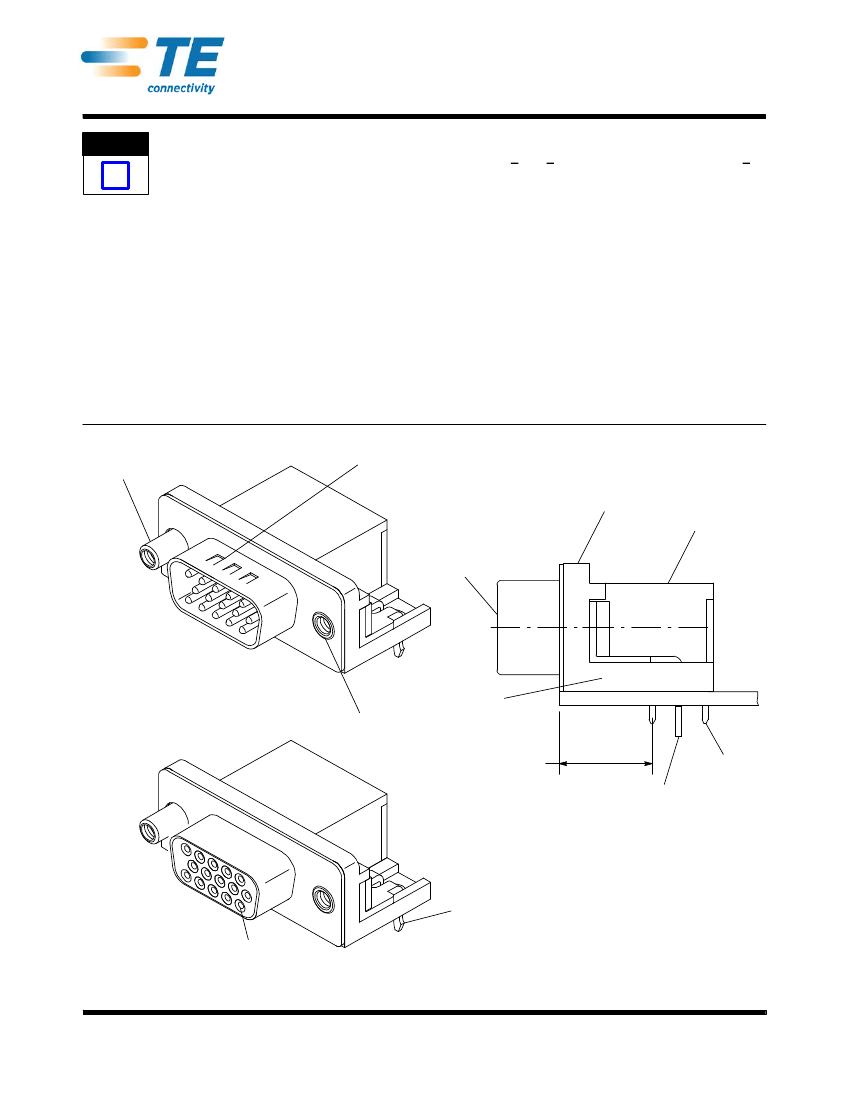

Figure 1 provides connector features and terms used throughout this specification. Use these terms when
corresponding with TE Connectivity Representatives to facilitate assistance.
Nonremovable
Screwlock (Ref)
Grounding Indents
Mounting
Flange
Housing
Mating Face
Plug
Mounting Leg
Threaded Insert
Series
Designator
Dimension
Solder-- Tails
Boardlock
Receptacle
Recessed Cavity
Position Identification
Boardlock
(Ref)
Figure 1
TOOLING ASSISTANCE CENTER 1--800--722--1111
PRODUCT INFORMATION 1--800--522--6752
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
www.te.com
E2011
Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
1
of 11
LOC B
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
114- 13198
2. REFERENCE MATERIAL
2.1. Revision Summary
This paragraph is reserved for a revision summary covering the most recent additions and changes made to
this specification which include the following:
S
Updated document to corporate requirements.
2.2. Customer Assistance
Reference Base Part Number 5749771 and Product Code 4519 are representative numbers of AMPLIMITE
HD 22 Right--Angle Front Metal Shell Connectors. Use of these numbers will identify the product line and
expedite your inquiries through a service network established to help you obtain product and tooling
information. Such information can be obtained through a local TE Representative or, after purchase, by calling
the Tooling Assistance Center or the Product Information number at the bottom of page 1.
2.3. Drawings
Customer Drawings for each product part number are available from the service network. The information
contained in Customer Drawings takes priority if there is a conflict with this specification or with any technical
documentation supplied by TE.
2.4. Manuals
Manual 402--40 is available upon request and can be used as a guide in soldering. This manual provides
information on various flux types and characteristics along with the commercial designation and flux removal
procedures. A checklist is included in the manual as a guide for information on soldering problems.
2.5. Specifications
Product Specification 108--1092 provides test information and performance requirements.
3. REQUIREMENTS
3.1. Storage
A. Ultraviolet Light
Prolonged exposure to ultraviolet light may deteriorate the chemical composition used in connectors.
B. Shelf Life
The connectors should remain in the shipping containers until ready for use to prevent damage. The
products should be used on a first in, first out basis to avoid storage contamination that could adversely
affect signal transmissions.
C. Chemical Exposure
Do not store connectors near any chemicals listed below, as they may cause stress corrosion cracking in
the components.
Alkalies
Amines
NOTE
Ammonia
Carbonates
Citrates
Nitrites
Phosphates Citrates
Sulfur Nitrites
Sulfur Compounds
Tartrates
i
Where the above environmental conditions exist, phosphor--bronze contacts are recommended instead of brass if
available.
3.2. Connector Shell Size
The AMPLIMITE Metal Shell Connectors shell sizes conform to industry standard sizes. A composite of
comparable receptacle configurations is provided in Figure 2.
2
of 11
Rev
B
114- 13198
54.84
[2.159]
52.43
[2.064]
24.66
[.971]
16.33
[.643]
Receptacle Shell Sizes:
38.38
[1.511]
Figure 2

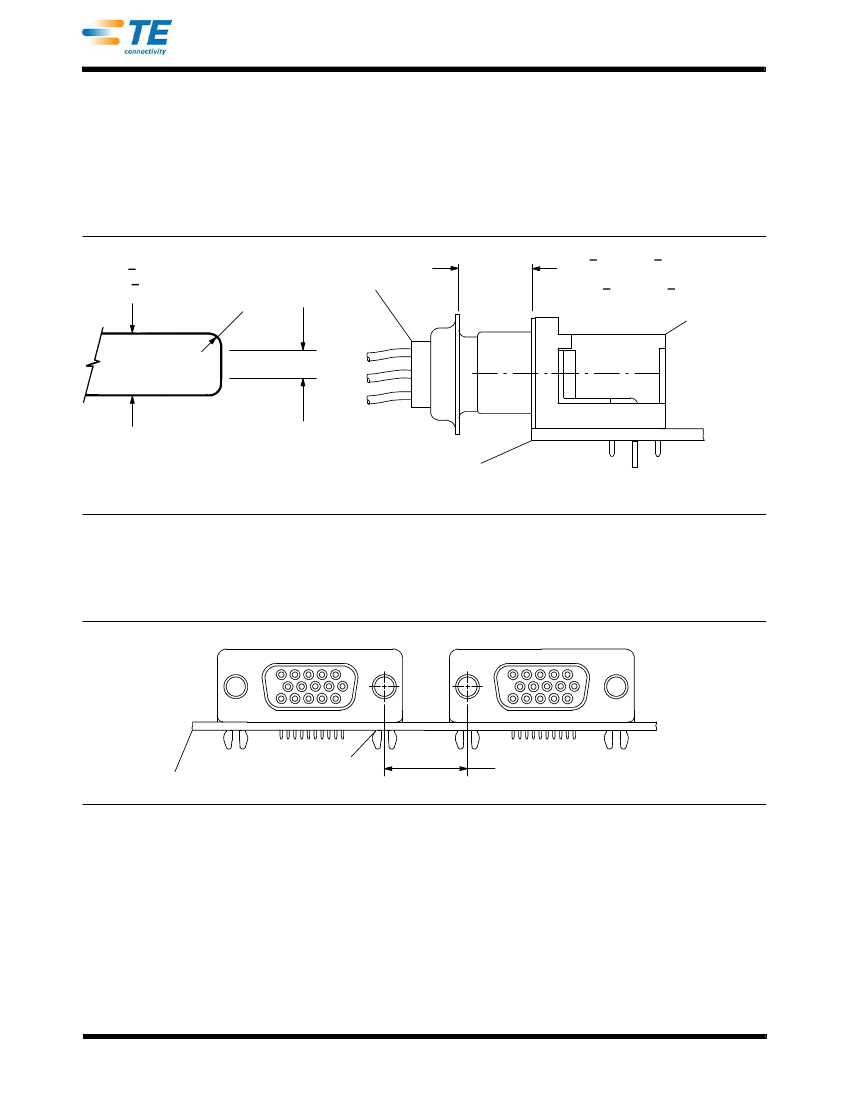

3.3. Mounting Panel Cutout
Panel mounting is optional for AMPLIMITE HD 22 Right--Angle Front Metal Shell Connectors. For pc board
connectors, it will provide additional support for the solder joints during mating and unmating. PC board
connectors can ONLY be rear mounted. Either front or rear mounting is acceptable for the cable connector.
The connector mounting flanges may have 4--40 internal threads that will accept screwlocks or panel mounting
hardware. Hardware attached to the connector flange shall be tightened to 0.45 N
D
m (4 in--lb) maximum. See

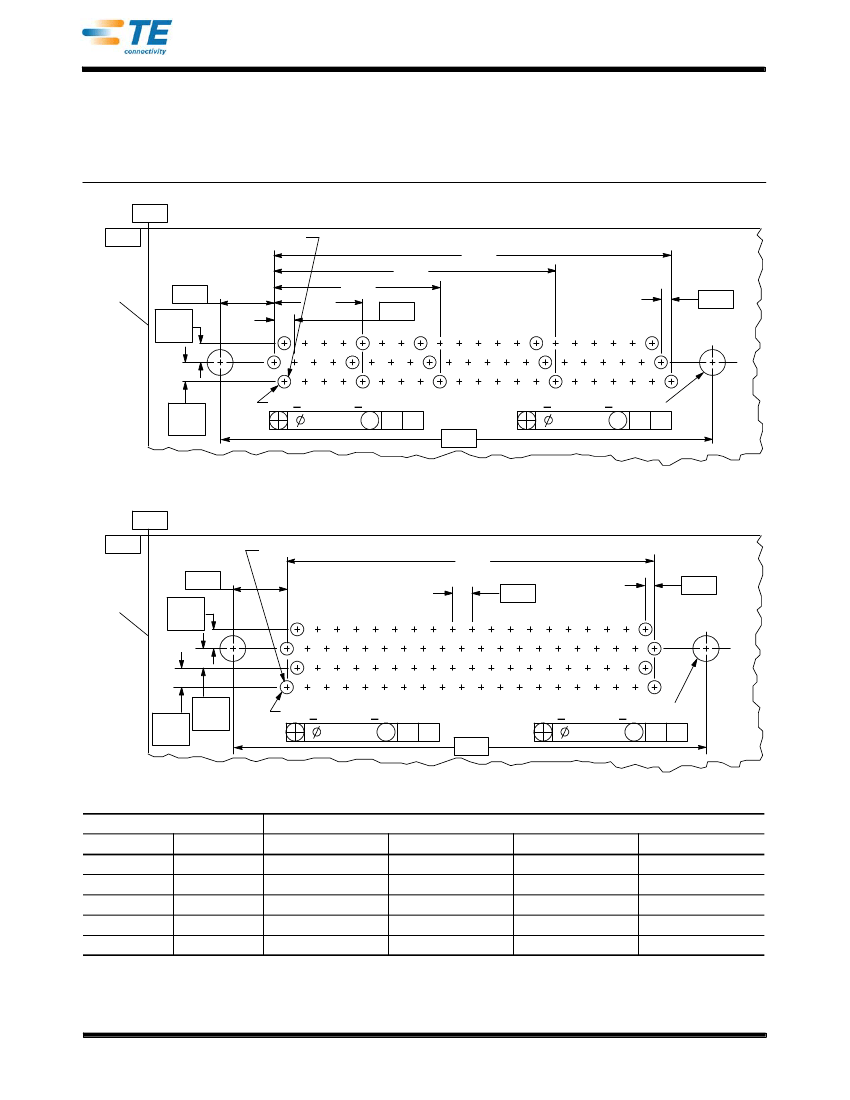

Figure 3 for panel cutout dimensions.
Screwlocks are designed to secure a connector to a panel 1.58 mm [.062 in.] thick. They can be used with
thinner panels; however, washers are recommended to make up the thickness difference and provide a
bottoming surface for the mating connector flange. Screwlocks should be tightened to a torque of 0.45 N
D
m (4
in--lb) maximum. The 4--40 internal threads in the screwlocks will accept commercially available screws and
