LTC1776CN8#PBF datasheet, PDF - EEWORLD Datasheet

LTC1776CN8#PBF: DescriptionIC 0.7 A SWITCHING REGULATOR, 200 kHz SWITCHING FREQ-MAX, PDIP8, PLASTIC, DIP-8, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size76KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html; Environmental Compliance

Download Datasheet Parametric View All

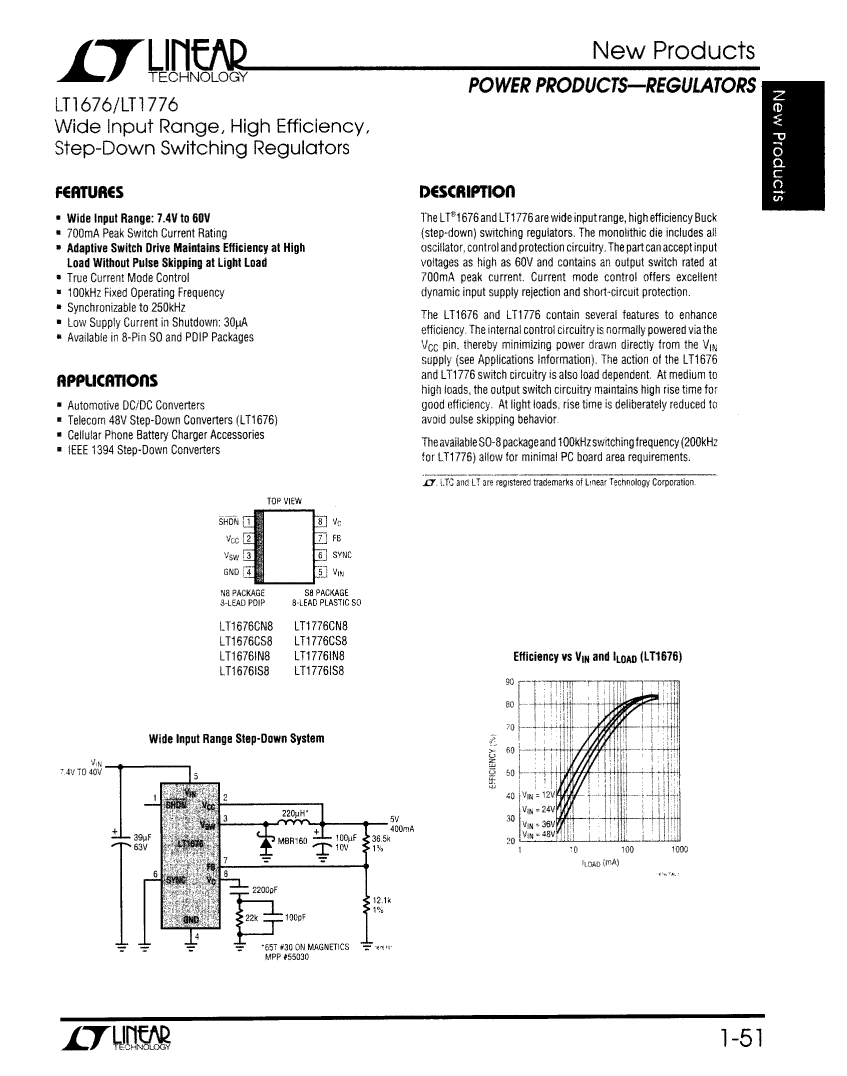

LTC1776CN8#PBF Overview

IC 0.7 A SWITCHING REGULATOR, 200 kHz SWITCHING FREQ-MAX, PDIP8, PLASTIC, DIP-8, Switching Regulator or Controller

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Maximum input voltage	60 V
Minimum input voltage	7.4 V
JESD-30 code	R-PDIP-T8
JESD-609 code	e3
Number of functions	1
Number of terminals	8
Maximum output current	0.7 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
Certification status	Not Qualified
Maximum seat height	3.937 mm
surface mount	NO
Switch configuration	BUCK
Maximum switching frequency	200 kHz
technology	CMOS
Terminal surface	MATTE TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
