CONNECTORS FOR
SD MEMORY CARDS
Quick Reference Guide: Connectors for
Secure Digital (SD) Memory Cards
By linking assorted forms of digital equipment, the SD memory card stores digital files without requiring a computer.
Tyco Electronics, an Executive Board member of the SD Association (SDA) standards committee, has kept pace with
developments in secure digital technology and is equipped to offer connector solutions to meet customer needs.
FEATURES AND BENEFITS
YOU ARE HERE (E-CATALOG)
Link:
http://tycoelectronics.com/products/securedigital
Breakdown From Main Page
TYCOELECTRONICS.COM
•
Different connector configuration sizes: Standard and
•
•
•
•
Micro
High-Speed data transfer rate
Designed for ease of customer use with available
push/push and push/pull mating
Manufactured to meet existing SD memory card
standards
Available in top and bottom mounting configurations
CONNECTORS
PRODUCT APPLICATIONS
SOCKET / CARD
PRODUICTS
•
Digital Cameras and Camcorders
•
Cell Phones
•
MP3 Players
•
Computers
QUESTIONS TO ASK AT DESIGN IN
CARD PRODUCTS
REMOVABLE MEMORY
PRODUCTS
• What is the difference between push/push
and push/pull?
Push/Push = Push SD card in to insert/Push SD card in to eject
Push/Pull = Push SD card in to insert/Pull SD card out to remove
SD is a trademark of The Toshiba Corporation.
SECURE DIGITAL
CONNECTORS
http://www.tycoelectronics.com/products/securedigital
Connectors for SD Memory Cards
SIZE CHART
STANDARD
SD CARD
CONNECTOR
A
B
MICRO
SD CARD
CONNECTOR
A
B

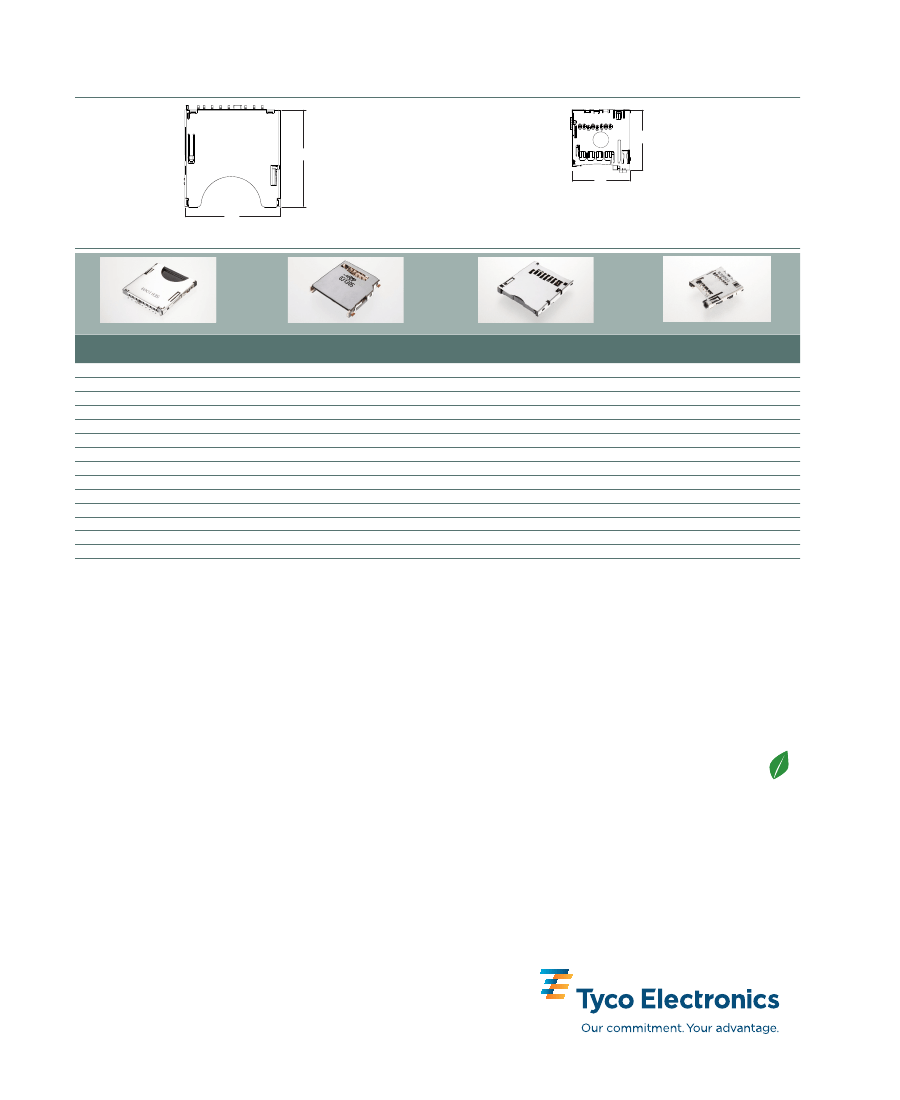

SD CARD CONNECTOR SELECTION CHART
2057184
PART
2057184-1
2057184-2
2057184-3
2057184-4
2041021-1
2041021-2
2041021-3
2041021-4
1775059-1
1775059-2
1903572-1
1871602-1
1871602-2
368637-3
SIZE
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Micro
Micro
Micro/SIM
INSERTION /
REMOVAL
Push/Push
Push/Push
Push/Push
Push/Push
Push/Pull
Push/Pull
Push/Pull
Push/Pull
Push/Push
Push/Push
Push/Push
Push/Push
Push/Push
Push/Push
2041021
MOUNTING
Top Mount
Top Mount
Top Mount
Top Mount
Top Mount
Top Mount
Top Mount
Top Mount
Bottom Mount
Bottom Mount
Top Mount
Top Mount
Top Mount
Top Mount
PLATING
30 Au
30 Au
10 Au
10 Au
30 Au
30 Au
10 Au
10 Au
5 Au
5 Au
8 Au
20 Au
20 Au
20 Au
DIM. A
29.00
29.00
29.00
29.00
25.00
25.00
25.00
25.00
30.60
30.60
29.70
15.30
15.30
17.60
DIM. B
28.50
28.50
28.50
28.50
26.60
26.60
26.60
26.60
29.25
29.25
28.50
14.60
14.60
16.30
1775059
PACKAGING
Tray
Tape and Reel
Tray
Tape and Reel
Tray
Tape and Reel
Tray
Tape and Reel
Tape and Reel
Tape and Reel
Tray
Tape and Reel
Tape and Reel
Tape and Reel
1871602
FEATURES
With Locating Posts
With Locating Posts
With Locating Posts
With Locating Posts
With Locating Posts
With Locating Posts
With Locating Posts
With Locating Posts
Half Insertion Indicator / Short Hold Downs
Half Insertion Indicator / Long Hold Downs
Through Hole Mounting Style
Without Locating Posts
With Locating Posts
Micro SD / SIM Combi Connector
Note: All part numbers are RoHS compliant.
