3-215876-1: Description6 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK; CategoryThe connector The connector; File Size878KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-215876-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-215876-1	-	-	View	Buy Now

3-215876-1 Overview

6 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK

3-215876-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1511885185
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2017-10-16 19:06:30
YTEOL	0
Board mount options	PEG
body width	0.453 inch
subject depth	0.713 inch
body length	0.52 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2000

LOC

DIST

2000

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

SEE SHEET 2 FOR MODULAR JACK 6 POS./4 CONTACTS

FOR APPLICATION INFORMATION SEE SPEC. 114-19019.

FOR PERFORMANCE REQUIREMENTS SEE SPEC. 108-19064.

TOLERANCES UNLESS OTHERWISE SPECIFIED:

0,15mm.

AA2

AA1

ECR-10-020218

ECR-10-026537

ECR-13-013525

REVISE PER ECO-12-008315

28DEC2010

08AUG11

29AUG2013

11MAY2015

RRP

HMR

AA3

TRUE POSITIONING WILL NOT BE GUARANTEED USING THIS

PACKAGING TYPE.

13.2

18.1

TAPE MOUNTED

800 PCS/REEL

11.5

6 POS./ 6

CONTACTS

HOUSING COLOR BLACK 2-215876-3

HOUSING AND

CONTACT INSERT:

UL 94-V0

HOUSING PA 4.6

CONTACT INSERT: PCT

OVERALL:Ni 1.27µm MIN.

ALL OVER THE CONTACTS

CONTACTS:

PH-BRONZE

BULK PACKED 1000

PCS IN A BOX

SUPERSEDED BY

215876-3

3.1

2-215876-1

10.16

2.54

8.9

7.9

1.27 TYP.

2.54

6.35

240 PIECES IN A

TRAY

6 POS./ 6

CONTACTS

OBSOLETE

2-215876-0

8.9

1.27 TYP.

2.54 TYP.

BULK PACKED 1000

PCS IN A BOX

SOLDER ZONE: Sn 2.5µm MIN.

ON THE SOLDER ZONE

SUPERSEDED BY

OF THE CONTACT

215876-1

MATING ZONE: PLATING

CONFIRMS TO PRODUCT

REQUIREMENTS AS PER

SPECIFICATION 108-19064

HOUSING COLOR BLACK

PBT, UL 94 V-0

CONTACT INSERT:

PBT, UL 94 V-0

CONTACTS:

Ph-BRONZE

3-215876-1

2.54

240 PIECES IN A

TRAY

108 PCS IN A

MULTI-TUBE

6 POS./ 6

CONTACTS

SUPERSEDED BY

1-215876-3

1-215876-1

215876-1

6.35

10.16

4.45

TAPE MOUNTED

800 PCS/REEL

PACKAGING

6 POS./ 6

CONTACTS

REMARKS

FINISH

MATERIAL

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

G.CONSTANT

24 SEP 96

NAME

P/N

TE Connectivity

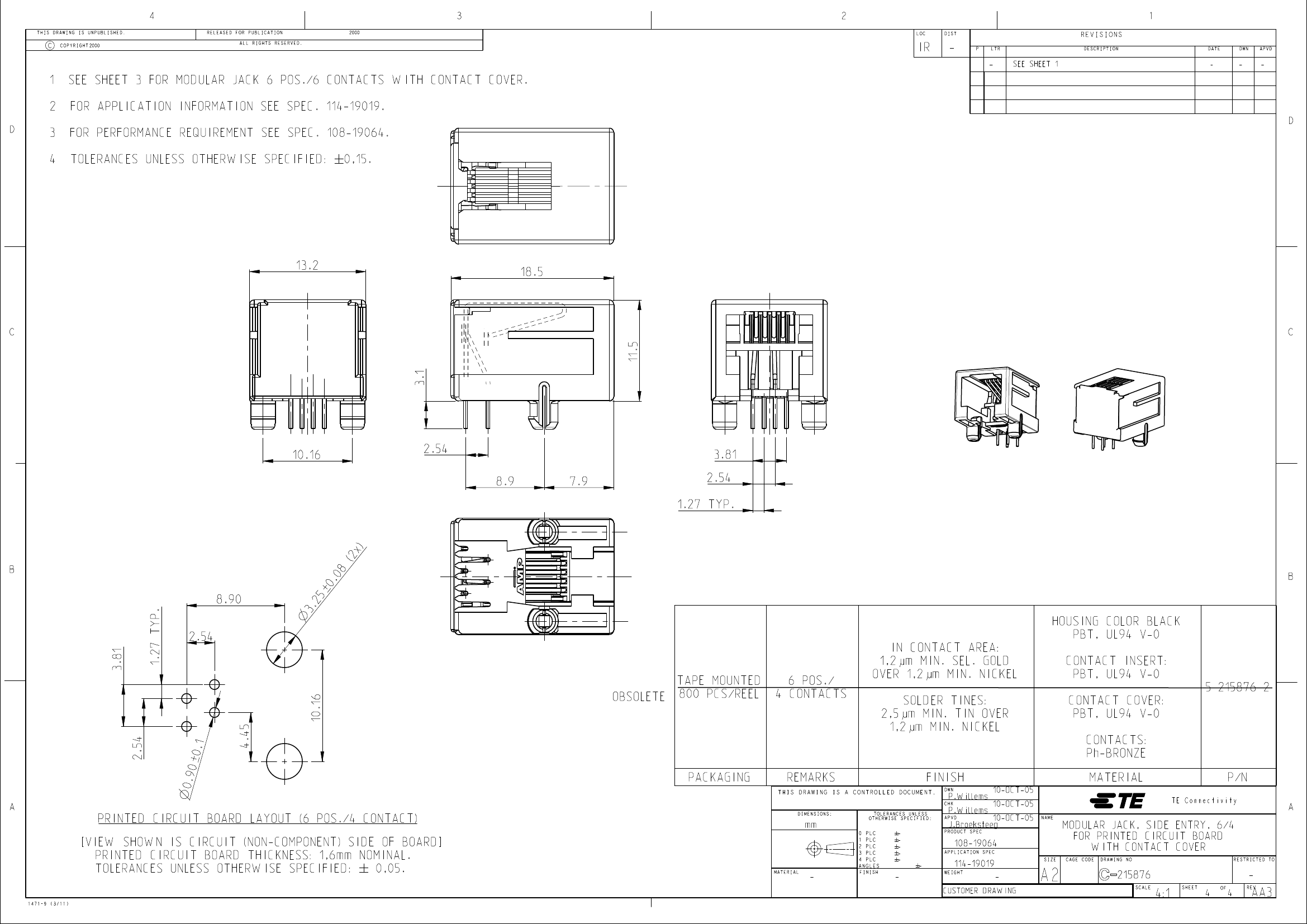

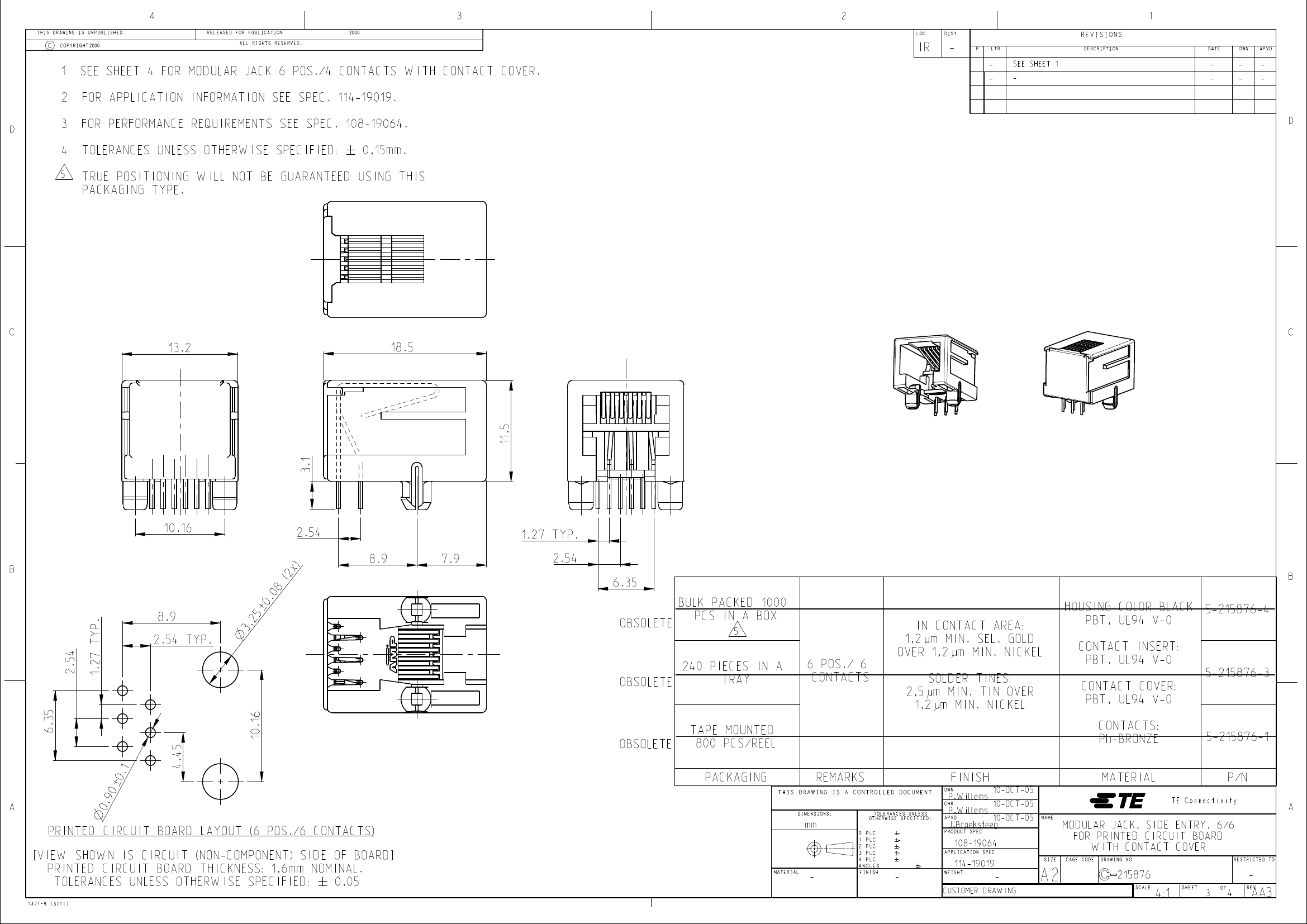

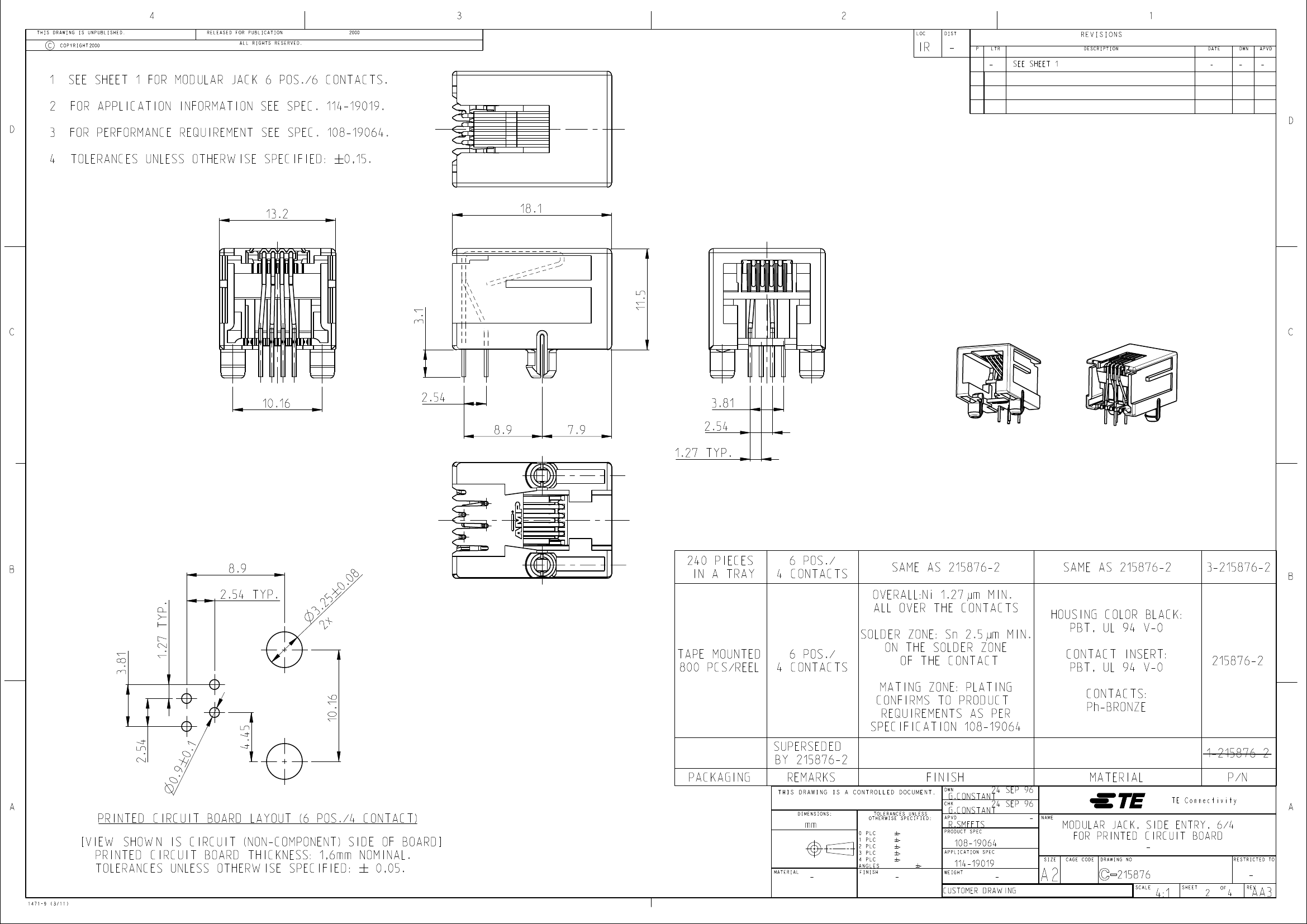

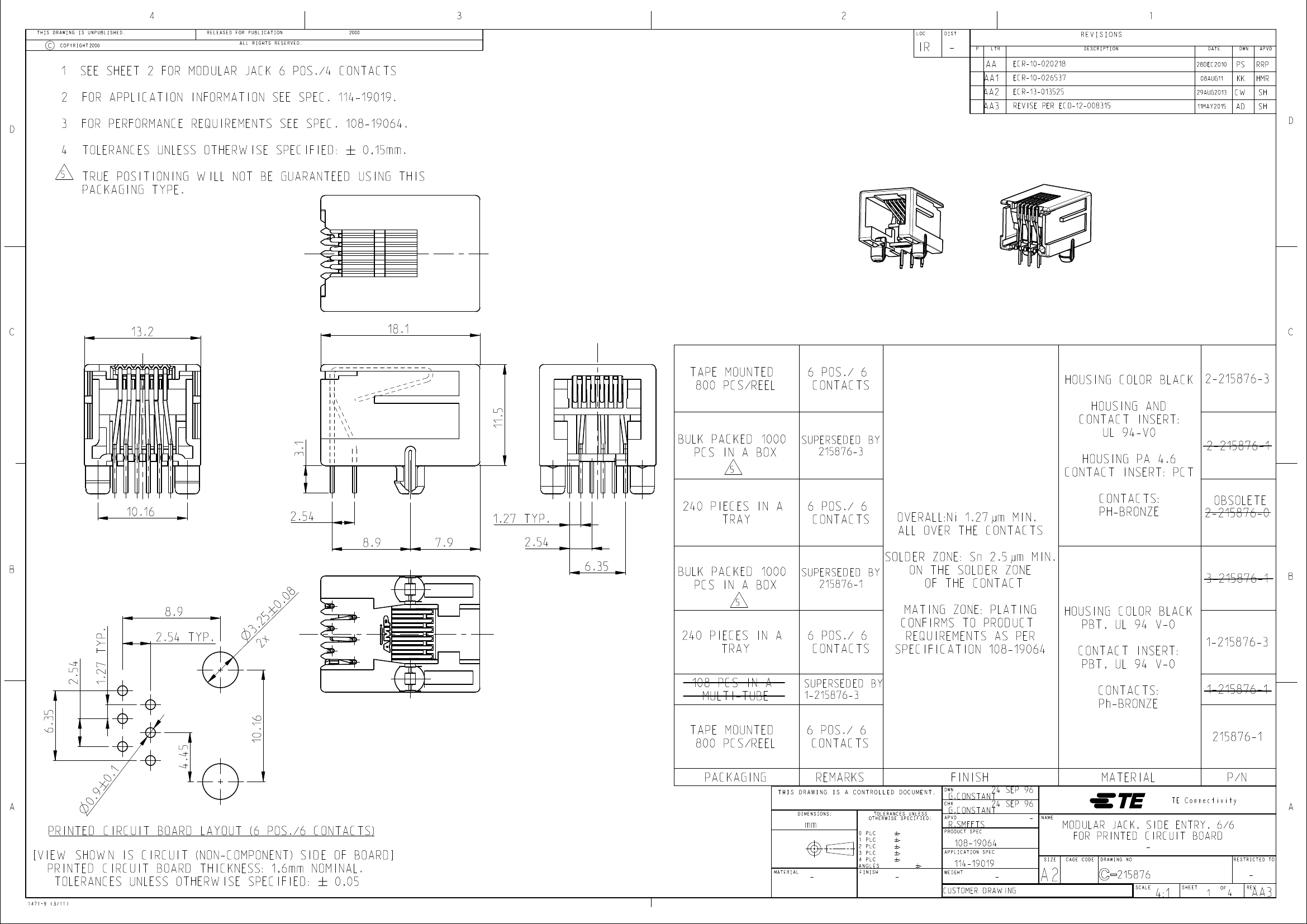

PRINTED CIRCUIT BOARD LAYOUT (6 POS./6 CONTACTS)

[VIEW SHOWN IS CIRCUIT (NON-COMPONENT) SIDE OF BOARD]

PRINTED CIRCUIT BOARD THICKNESS: 1,6mm NOMINAL.

TOLERANCES UNLESS OTHERWISE SPECIFIED: # 0,05

1471-9 (3/11)

MATERIAL

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

R.SMEETS

APPLICATION SPEC

108-19064

114-19019

WEIGHT

CUSTOMER DRAWING

SIZE

MODULAR JACK, SIDE ENTRY, 6/6

FOR PRINTED CIRCUIT BOARD

CAGE CODE

DRAWING NO

RESTRICTED TO

215876

SCALE

4:1

SHEET

REV

AA3
