311-020302

Description
Board Connector, 20 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket
CategoryThe connector    The connector
File Size31KB，1 Pages
ManufacturerThomas & Betts Corporation
Websitehttp://www.tnb.com/
Download Datasheet Parametric Compare View All

311-020302 Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket

311-020302 Parametric

Parameter NameAttribute value
MakerThomas & Betts Corporation
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresNONE
body width0.254 inch
subject depth0.515 inch
body length0.762 inch
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VDC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Plug contact pitch0.05 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
polarization keyPOLARIZED KEY
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts20
UL Flammability Code94V-0
Maximum wire diameter30 AWG
Minimum wire diameter32 AWG

Preview

Download Datasheet
IDC Systems
Female Sockets
FINE PITCH
FEMALE SOCKET
CONNECTORS

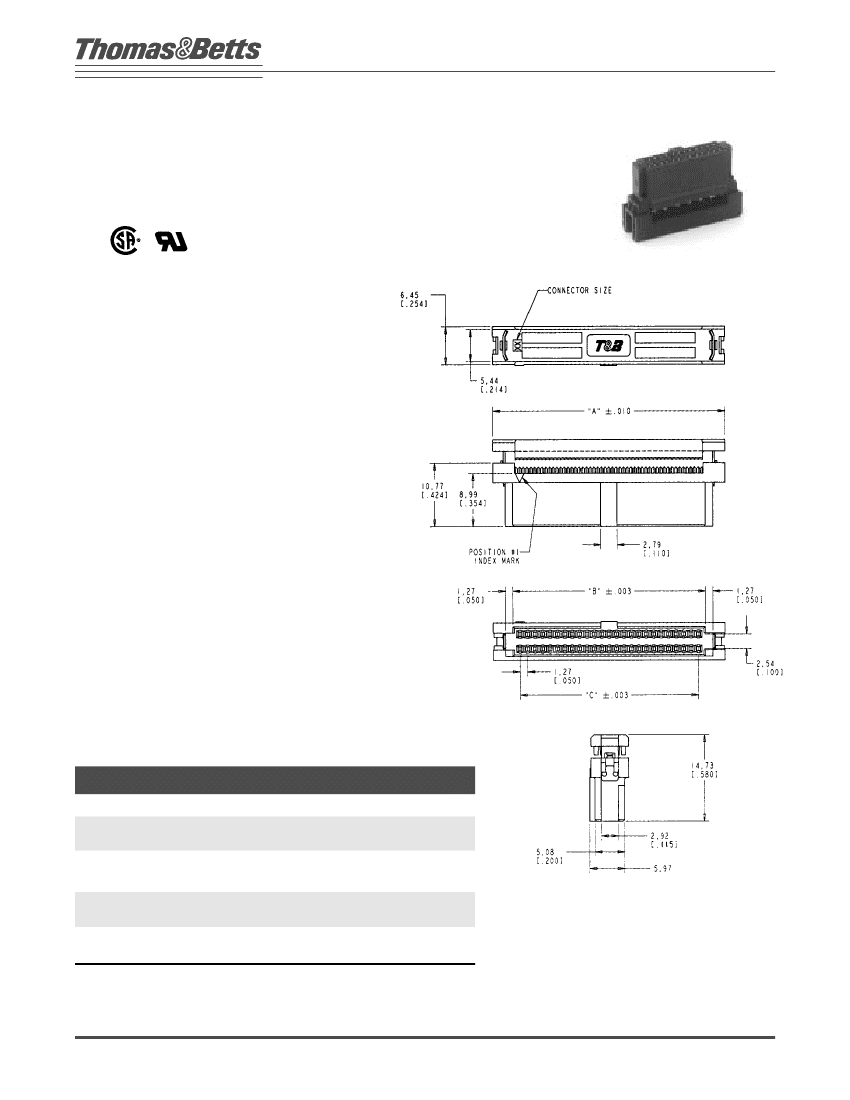

.050" x .100" CENTERS
LR92984
E60980
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
: Glass reinforced thermoplastic,
rated UL 94V-0
C
OLOR
:
Black
C
ONTACT
M
ATERIAL
:
Beryllium copper with 30µ
inches min. gold over 50µ inches min. nickel plating.
E
LECTRICAL
P
ROPERTIES
C
URRENT
R
ATING
:
1 Amp
I
NSULATION
R
ESISTANCE
:
> 1 x10
9
Ohms
D
IELECTRIC
S
TRENGTH
:
> 1000 VDC (Sea Level)
E
NVIRONMENTAL
P
ROPERTIES
T
EMPERATURE
R
ATING
:
- 55˚ C to 125˚ C
C
ABLE
R
EQUIREMENTS
See Pages 97-104. Use with 0.025 flat ribbon cable.
M
ATING
C
ONNECTORS
H
EADERS
:
See pages 16-23
A
PPLICATION
T
OOLING
H
AND
T
OOL
:
use Die
B
ENCH
P
RESS
(
MANUAL
):
use Platen
use Base Plate
B
ENCH
P
RESS
(
PNEUMATIC
):
use Platen
use Base Plate
779-2100
779-3112151
779-3200
779-3130
779-3113151
779-3500XT
779-3130
779-3113151
Ordering Information
CATALOG NUMBER
311-020302
311-026302
311-030302
311-034302
311-040302
311-050302
311-068302
311-080302
311-100302
NO. OF POS.
20
26
30
34
40
50
68
80
100
A
19.35 (.762)
23.16 (.912)
DIMENSIONS IN MM (INCHES)
B
13.82 (.544)
17.63 (.694)
20.17 (.794)
22.71 (.894)
26.52 (1.044)
32.87 (1.294)
44.30 (1.744)
51.92 (2.044)
64.62 (2.544)
C
11.43 (.450)
15.24 (.600)
17.78 (.700)
20.32 (.800)
24.13 (.950)
30.48 (1.200)
41.91 (1.650)
49.53 (1.950)
62.23 (2.450)
25.70 (1.012)
28.24 (1.112)
32.05 (1.262)
38.40 (1.512)
49.83 (1.962)
57.45 (2.262)
70.15 (2.762)
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters (inches).
8

311-020302 Related Products

311-020302 311-050302 311-030302 311-026302 311-034302 311-040302 311-100302 311-068302 311-080302
Description Board Connector, 20 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket Board Connector, 50 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket Board Connector, 30 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket Board Connector, 26 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket Board Connector, 34 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket Board Connector, 40 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket Board Connector, 100 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket Board Connector, 68 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket Board Connector, 80 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Black Insulator, Socket
Maker Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation Thomas & Betts Corporation
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features NONE NONE NONE NONE NONE NONE NONE NONE NONE
body width 0.254 inch 0.254 inch 0.254 inch 0.254 inch 0.254 inch 0.254 inch 0.254 inch 0.254 inch 0.254 inch
subject depth 0.515 inch 0.515 inch 0.515 inch 0.515 inch 0.515 inch 0.515 inch 0.515 inch 0.515 inch 0.515 inch
body length 0.762 inch 1.512 inch 1.012 inch 0.912 inch 1.112 inch 1.262 inch 2.762 inch 1.962 inch 2.262 inch
Body/casing type SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET SOCKET
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED AU ON NI AU ON NI NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED AU ON NI NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED BERYLLIUM COPPER BERYLLIUM COPPER NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED BERYLLIUM COPPER NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO NO NO NO NO NO NO NO
Dielectric withstand voltage 1000VDC V 1000VDC V 1000VDC V 1000VDC V 1000VDC V 1000VDC V 1000VDC V 1000VDC V 1000VDC V
Filter function NO NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO NO
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
MIL compliance NO NO NO NO NO NO NO NO NO
Plug contact pitch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO NO NO NO NO
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Number of rows loaded 2 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch
polarization key POLARIZED KEY POLARIZED KEY POLARIZED KEY POLARIZED KEY POLARIZED KEY POLARIZED KEY POLARIZED KEY POLARIZED KEY POLARIZED KEY
Rated current (signal) 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Guideline UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Termination type IDC IDC IDC IDC IDC IDC IDC IDC IDC
Total number of contacts 20 50 30 26 34 40 100 68 80
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Maximum wire diameter 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG 30 AWG
Minimum wire diameter 32 AWG 32 AWG 32 AWG 32 AWG 32 AWG 32 AWG 32 AWG 32 AWG 32 AWG
