BPX90 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BPX90

BPX90: DescriptionPHOTO DIODE, PLASTIC, DIL-2; CategoryLED optoelectronic/LED photoelectric; File Size186KB，6 Pages; ManufacturerOsram Opto Semiconductor; Websitehttps://www.osram.com/index-2.jsp

Download Datasheet Parametric View All

BPX90 Overview

PHOTO DIODE, PLASTIC, DIL-2

BPX90 Parametric

Parameter Name	Attribute value
Maker	Osram Opto Semiconductor
package instruction	PLASTIC, DIL-2
Reach Compliance Code	unknown
Configuration	SINGLE
Maximum dark power	180 nA
Infrared range	YES
Nominal photocurrent	0.032 mA
Installation features	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
peak wavelength	830 nm
Maximum response time	0.0000013 s
Minimum reverse breakdown voltage	32 V
Maximum reverse voltage	32 V
Semiconductor material	Silicon
shape	RECTANGULAR
size	3.15 mm
surface mount	NO

BPX90 Preview

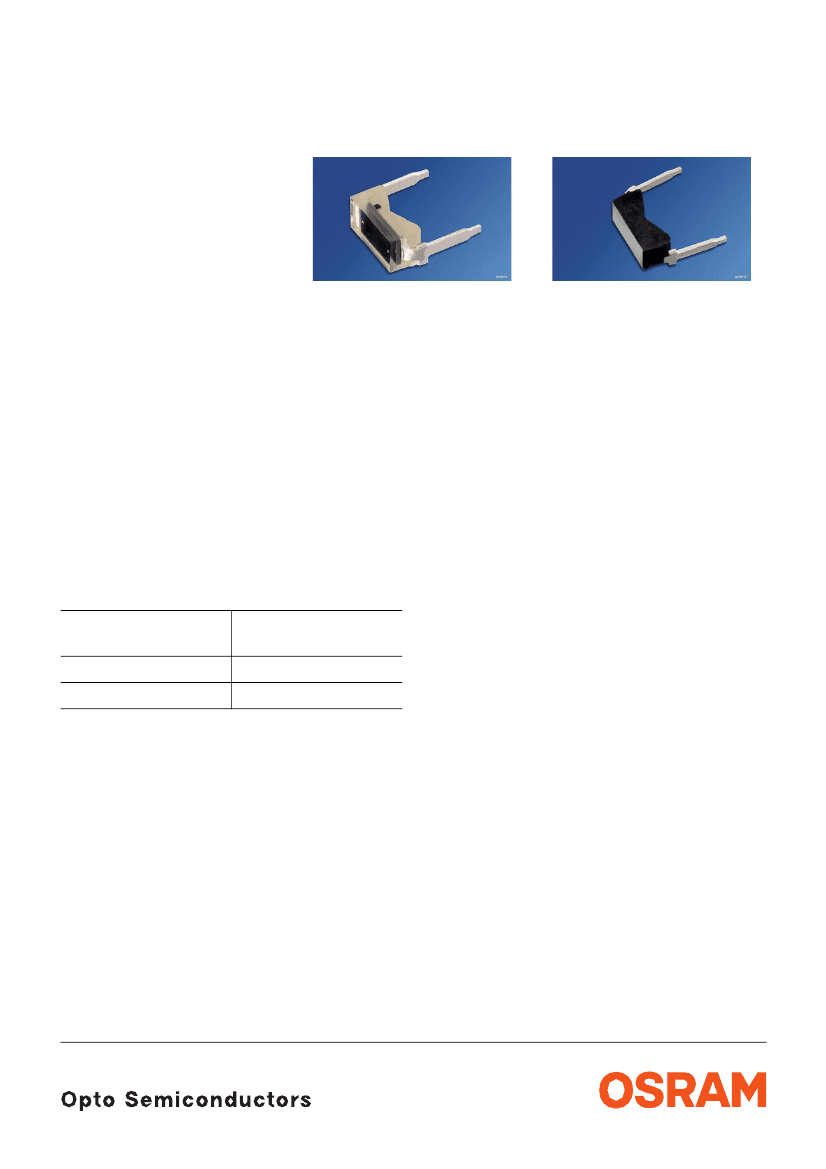

Silizium-Fotodiode

Silicon Photodiode

BPX 90

BPX 90 F

BPX 90

BPX 90 F

Wesentliche Merkmale

• Speziell geeignet für Anwendungen im Bereich

von 400 nm bis 1100 nm (BPX 90) und bei

950 nm (BPX 90 F)

• Hohe Fotoempfindlichkeit

• DIL-Plastikbauform mit hoher Packungsdichte

Anwendungen

• Industrieelektronik

• „Messen/Steuern/Regeln“

Typ

Type

BPX 90

BPX 90 F

Bestellnummer

Ordering Code

Q62702-P47

Q62702-P928

Features

• Especially suitable for applications from

400 nm to 1100 nm (BPX 90) and of 950 nm

(BPX 90 F)

• High photosensitivity

• DIL plastic package with high packing density

Applications

• Industrial electronics

• For control and drive circuits

2001-02-21

BPX 90, BPX 90 F

Grenzwerte

Maximum Ratings

Bezeichnung

Parameter

Betriebs- und Lagertemperatur

Operating and storage temperature range

Löttemperatur (Lötstelle 2 mm vom Gehäuse

entfernt bei Lötzeit

≤

3 s)

Soldering temperature in 2 mm distance from case

bottom (

≤

3 s)

Sperrspannung

Reverse voltage

Verlustleistung,

= 25

°C

Total power dissipation

Kennwerte

= 25

°C

Characteristics

Bezeichnung

Parameter

Fotostrom

Photocurrent

= 5 V, Normlicht/standard light A,

= 2856 K,

= 1000 lx

= 5 V,

= 950 nm,

= 1 mW/cm

Wellenlänge der max. Fotoempfindlichkeit

Wavelength of max. sensitivity

Spektraler Bereich der Fotoempfindlichkeit

= 10% von

max

Spectral range of sensitivity

= 10% of

max

Bestrahlungsempfindliche Fläche

Radiant sensitive area

Symbol

BPX 90

Wert

Value

BPX 90 F

Einheit

Unit

Symbol

Wert

Value

– 40 … + 80

230

Einheit

Unit

°C

;

stg

tot

100

S max

45 (≥ 32)

–

830

–

26 (≥ 16)

950

µA

400 … 1150 800 … 1150 nm

5.5

1.75

3.15

0.5

5.5

1.75

3.15

0.5

Grad

deg.

Abmessung der bestrahlungsempfindlichen Fläche

Dimensions of radiant sensitive area

Abstand Chipoberfläche zu Gehäuseoberfläche

Distance chip front to case surface

Halbwinkel

Half angle

2001-02-21

BPX 90, BPX 90 F

Kennwerte

= 25

°C

Characteristics

(cont’d)

Bezeichnung

Parameter

Dunkelstrom,

= 10 V

Dark current

Spektrale Fotoempfindlichkeit,

= 950 nm

Spectral sensitivity

Quantenausbeute,

= 950 nm

Quantum yield

Leerlaufspannung

Open-circuit voltage

= 1000 Ix, Normlicht/standard light A,

= 2856 K

= 0.5 mW/cm

= 950 nm

Kurzschlußstrom

Short-circuit current

= 1000 Ix, Normlicht/standard light A,

= 2856 K

= 0.5 mW/cm

= 950 nm

Anstiegs- und Abfallzeit des Fotostromes

Rise and fall time of the photocurrent

= 1 kΩ;

= 5 V;

= 850 nm;

= 30

µA

Durchlaßspannung,

= 80 mA,

= 0

Forward voltage

Kapazität,

= 0 V,

= 1 MHz,

= 0

Capacitance

Symbol

BPX 90

Wert

Value

BPX 90 F

5 (≤ 180)

0.48

0.62

A/W

Electrons

Photon

5 (≤ 180)

0.48

0.62

Einheit

Unit

450 (≥ 380)

–

400 (≥ 340)

–

1.3

–

1.3

µA

µs

1.3

430

1.3

430

2001-02-21

BPX 90, BPX 90 F

Kennwerte

= 25

°C

Characteristics

(cont’d)

Bezeichnung

Parameter

Temperaturkoeffizient von

Temperature coefficient of

Temperaturkoeffizient von

Temperature coefficient of

Normlicht/standard light A

= 950 nm

Rauschäquivalente Strahlungsleistung

Noise equivalent power

= 10 V,

= 950 nm

Nachweisgrenze,

= 10 V,

= 950 nm

Detection limit

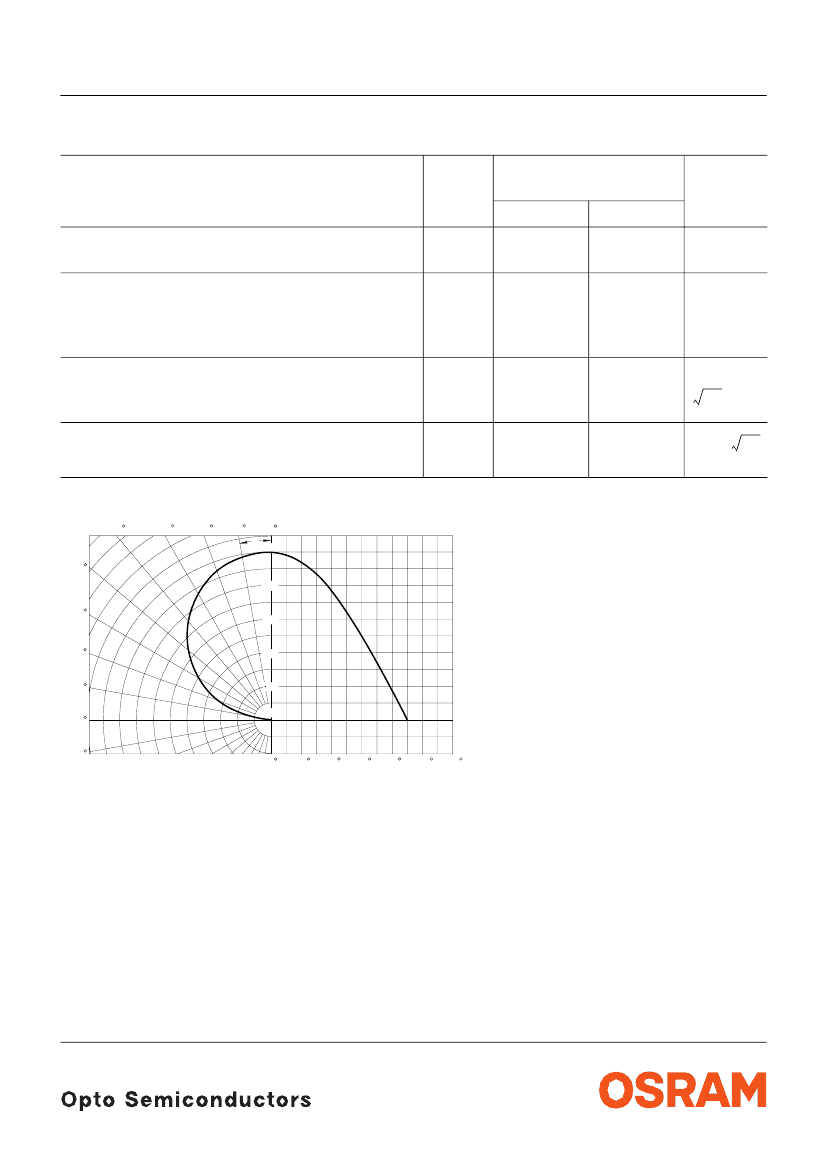

Directional Characteristics

rel

(ϕ)

Symbol

BPX 90

Wert

Value

BPX 90 F

– 2.6

Einheit

Unit

mV/K

NEP

0.18

–

– 14

–

0.2

– 14

%/K

-----------

-------------------------

2.9

1.0

OHF01402

0.8

0.6

0.4

0.2

100

1.0

0.8

0.6

0.4

100

120

2001-02-21

BPX 90, BPX 90 F

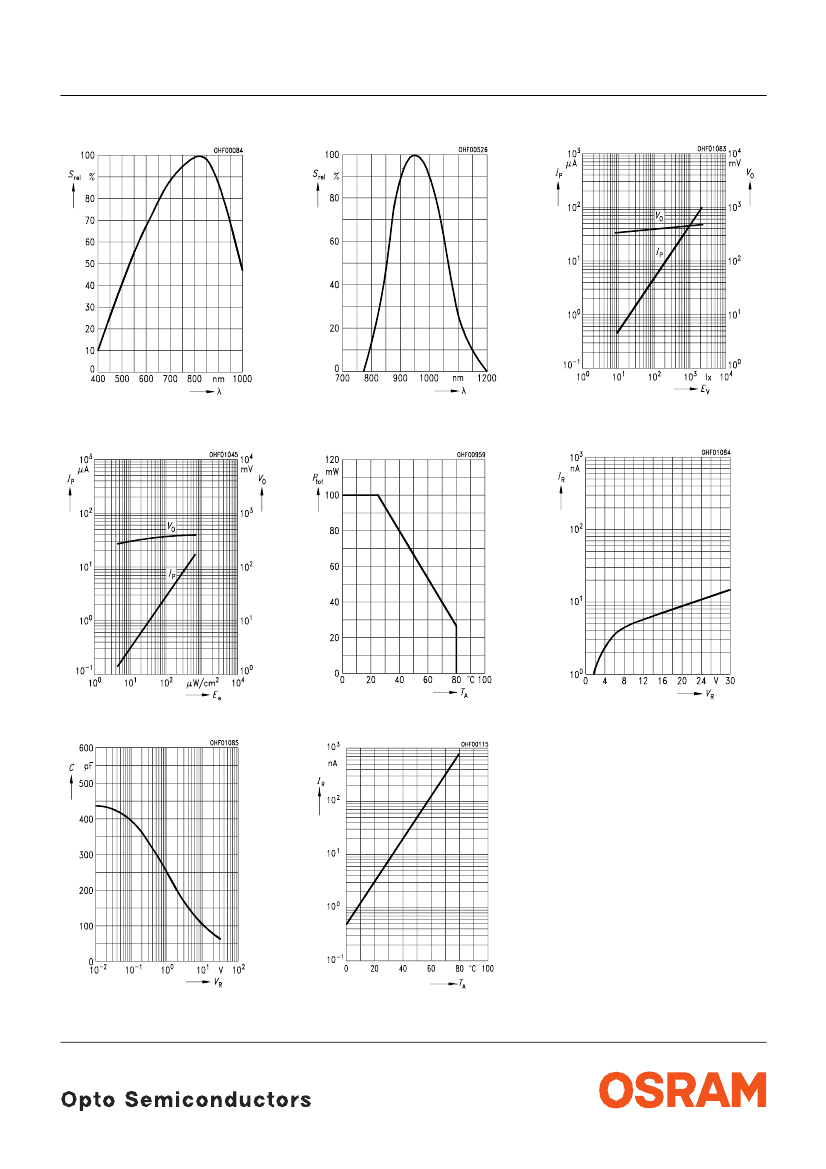

Relative Spectral Sensitivity

BPX 90

rel

(λ)

Relative Spectral Sensitivity

BPX 90 F

rel

(λ)

Photocurrent

(

= 5 V

Open-Circuit Volt. BPX 90

(

)

Photocurrent

(

= 5 V

Open-Circuit Voltage

(

)

BPX 90 F

Total Power Dissipation

tot

(

)

Dark Current

(

= 0

Capacitance

(

= 1 MHz,

= 0

Dark Current

(

= 10 V,

= 0

2001-02-21
