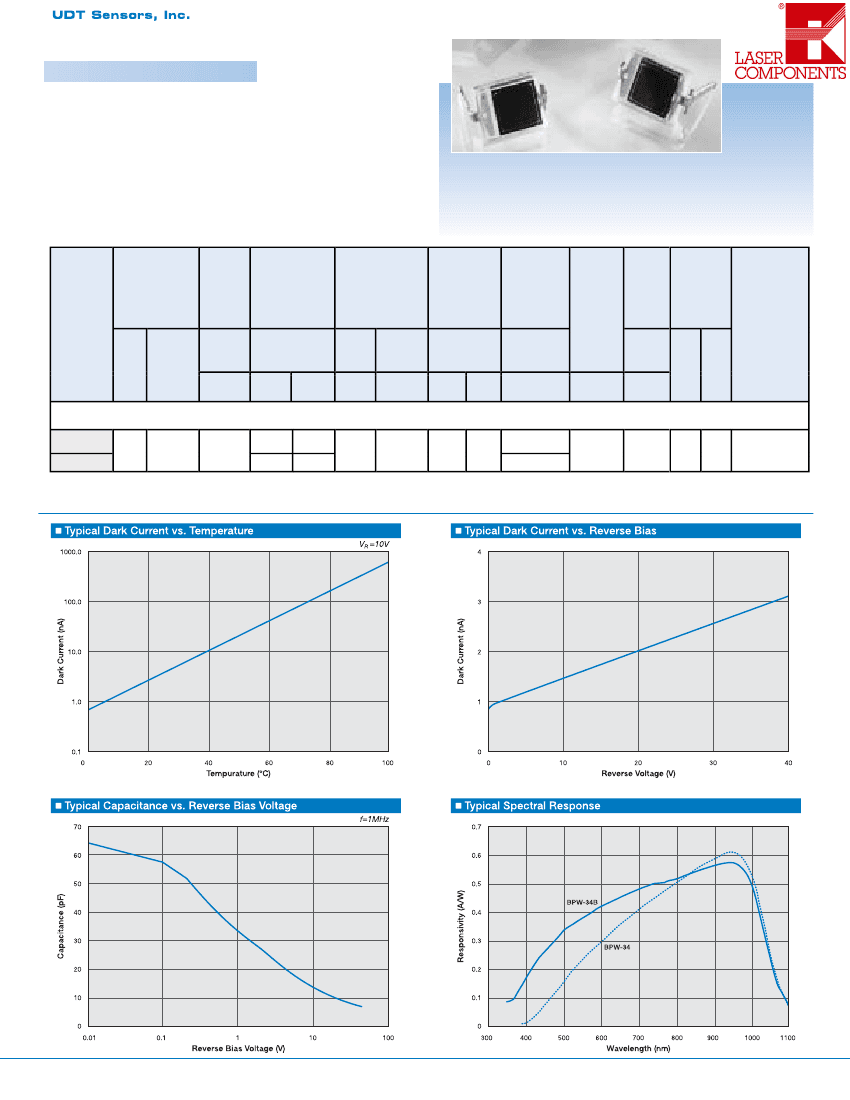

BPW-34
Plastic Molded - Industry Standard
BPW-34 series are a family of high quality and reliability plastic
encapsulated photodiodes. The devices in this series, exhibit similar
electrical characteristics, but vary in optical response. BPW-34B has an
excellent response in the blue region of the spectrum. They are excellent
for mounting on PCB and hand held devices in harsh environments.
"
APPLICATIONS
• IR Sensors
• Bar Code Scanners
• Color Analysis
• Smoke Detectors
"
FEATURES
• High Reliability
• High Density Package
• Rugged Resin Mold
• High Speed and Low Dark Current
Peak
Responsiviy
Wavelength
Model Number
Active Area
Responsivity
at
λ
p
Capacitance
(pF)
Dark
Current
(nA)
NEP
√
(W/√Hz)
Reverse
Voltage
(V)
Rise
Time
(ns)
Temp.*
Range
(°C)
Package
Style ¶
Area (mm
2
)
Dimension
(mm)
typ.
min.
typ.
typ.
typ.
typ.
max.
typ.
max.
typ.
BPW 34 Series
-25 ~
+85
-40 ~
+100
BPW-34
BPW-34B
7.25
2.69 sq.
970
0.55
0.15**
0.60
0.20**
65
12
2
30
4.2 e -14
1.3 e –13**
40
20
19 / Plastic
Molded
¶ For mechanical drawings please refer to pages 55 thru 66.
* Non-condensing temperature and storage range, Non-condensing environment.
** Responsivity and NEP values for the BPW-34B are given at 410nm.
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk
Storage
(A/W)
-10 V
Operating
λ
p
(nm)
0V
1 MHz
-10V
1MHz
-10V
970 nm
-10 V
830 nm
50
Ω

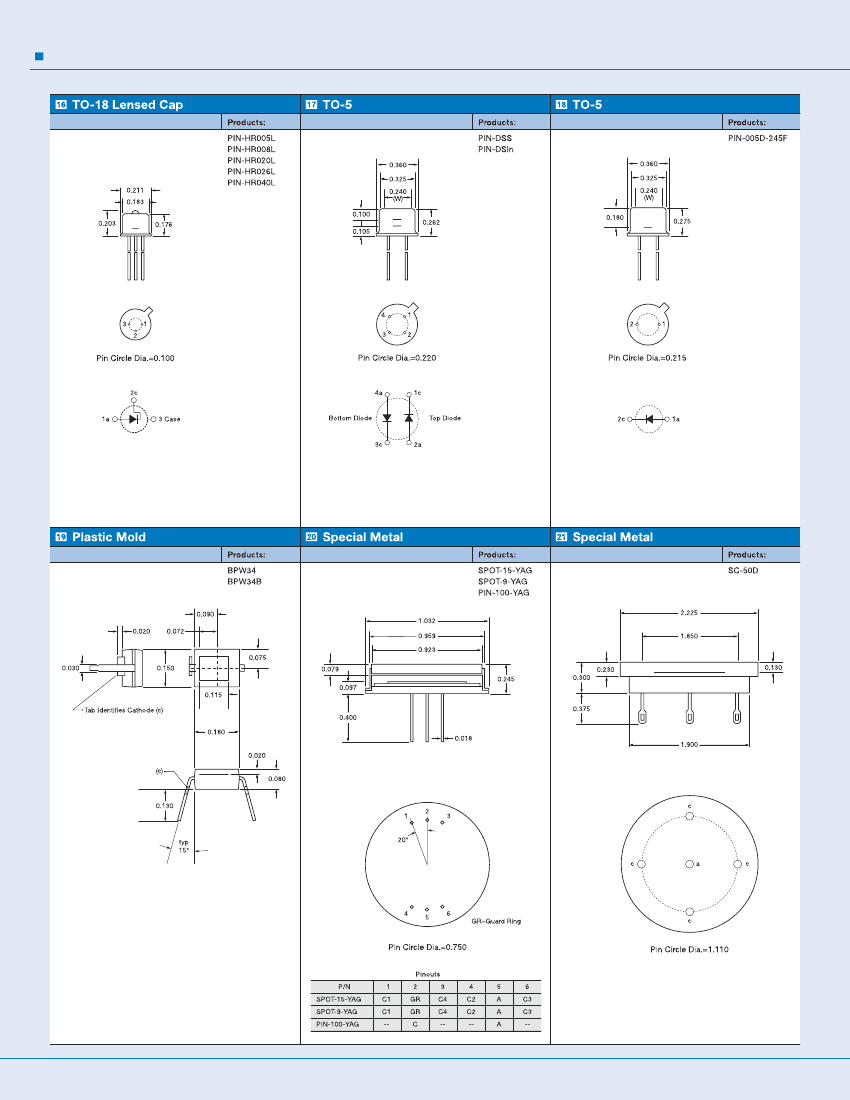

Mechanical Specifications
All units in inches. Pinouts are bottom view.
Great Britain: LASER COMPONENTS (UK) Ltd., Phone: +44 1245 491 499, Fax: +44 1245 491 801, info@lasercomponents.co.uk

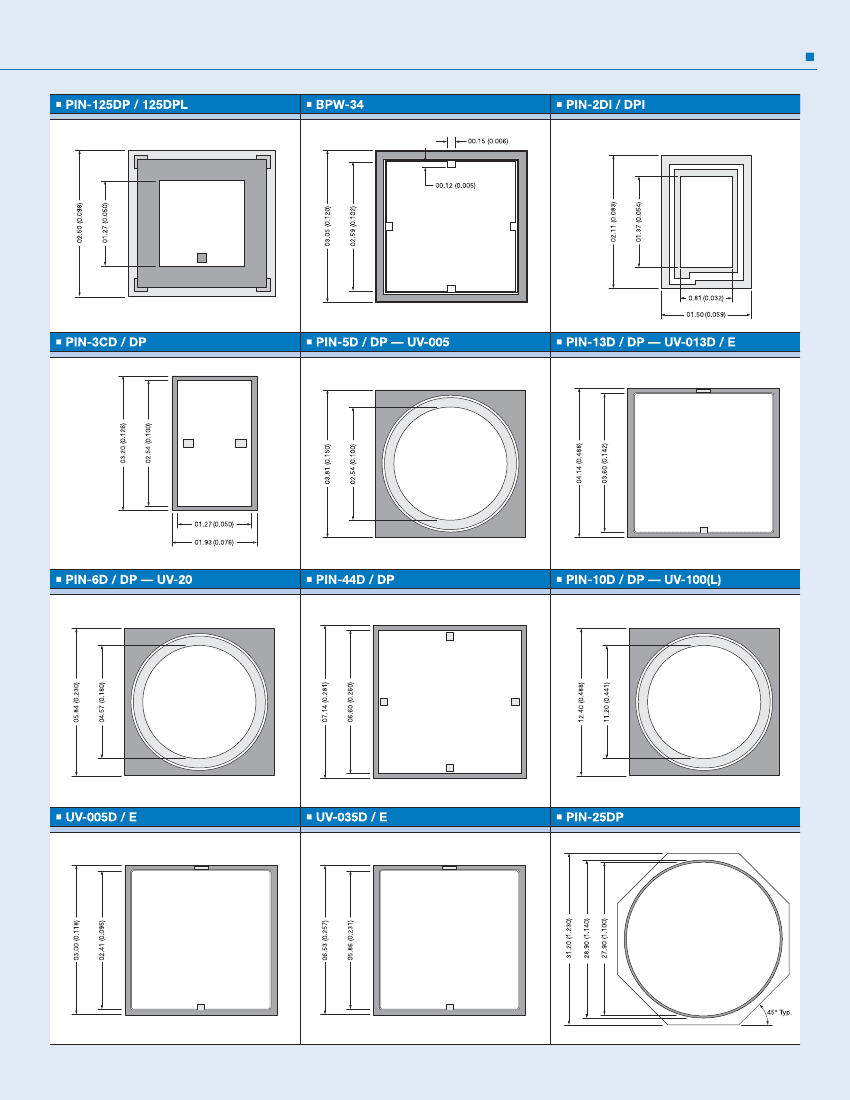

The following die topographies are for reference only. They shall not be used for any design
