EDI8F32256C15MMC-G datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> EDI8F32256C15MMC-G

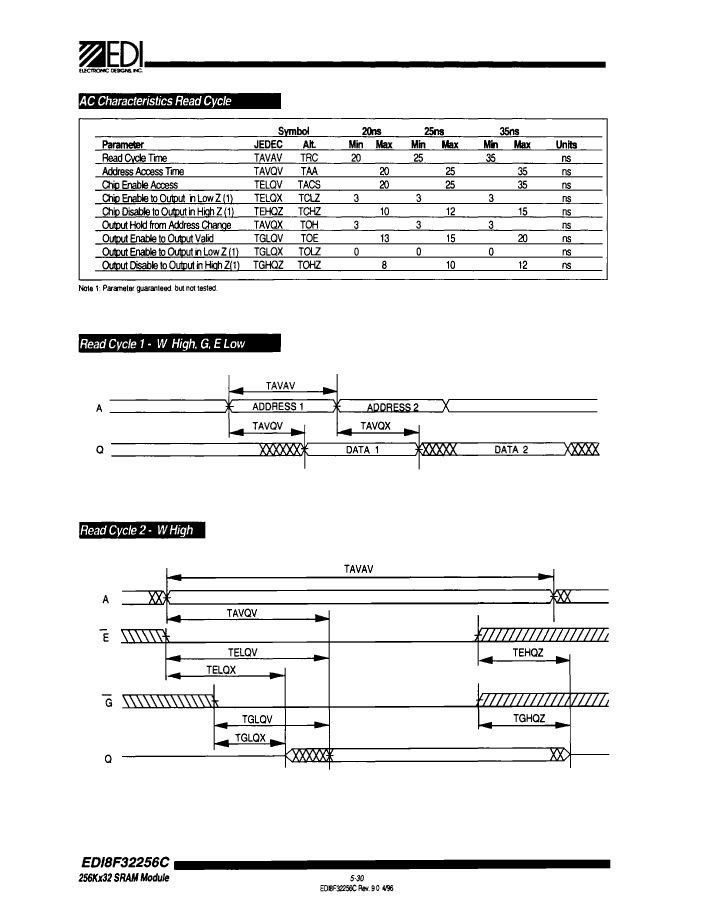

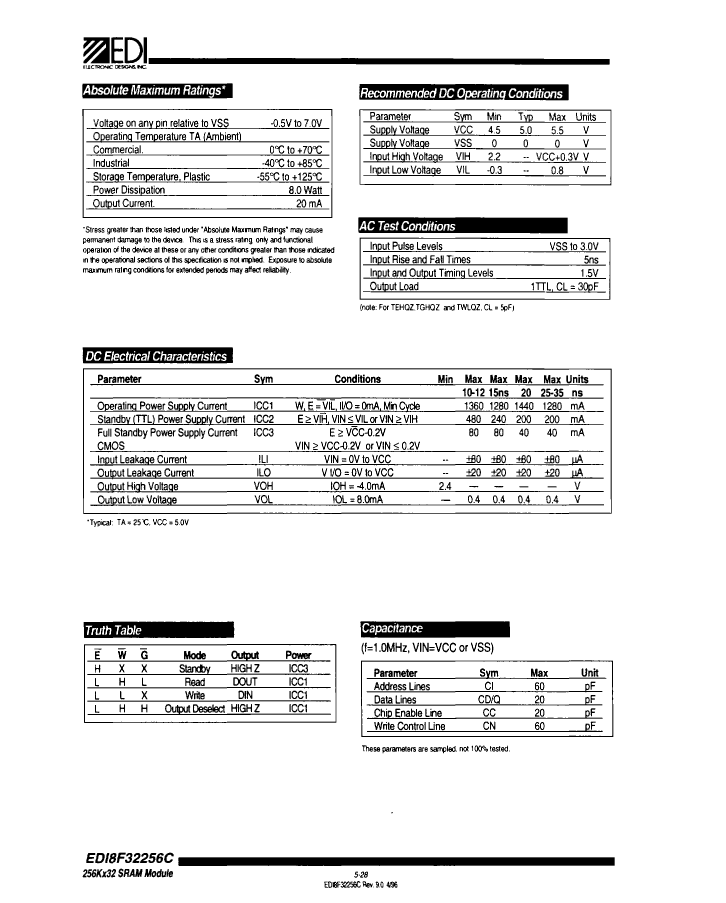

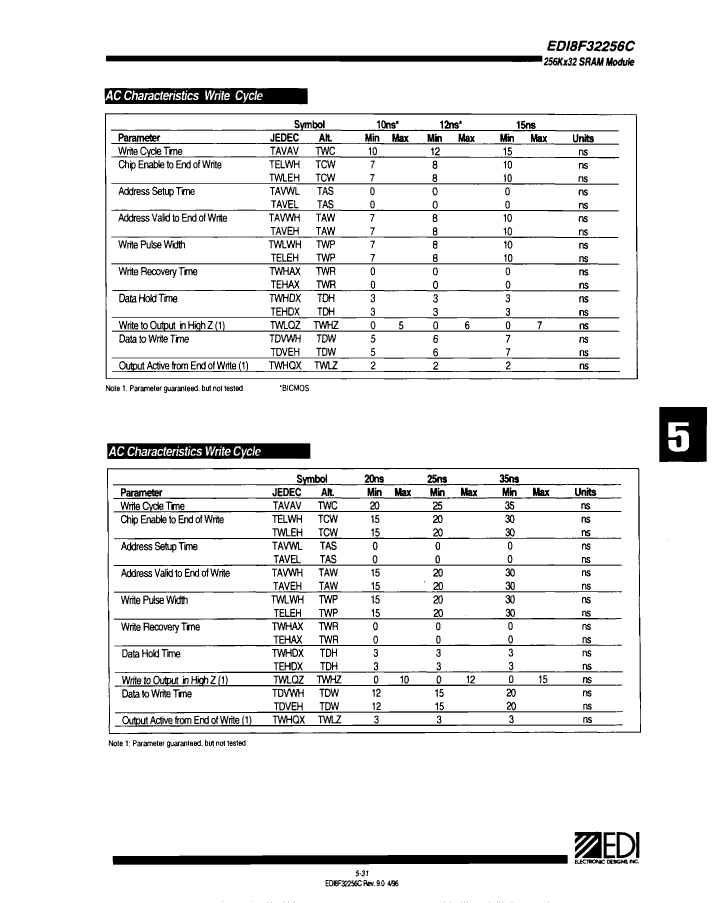

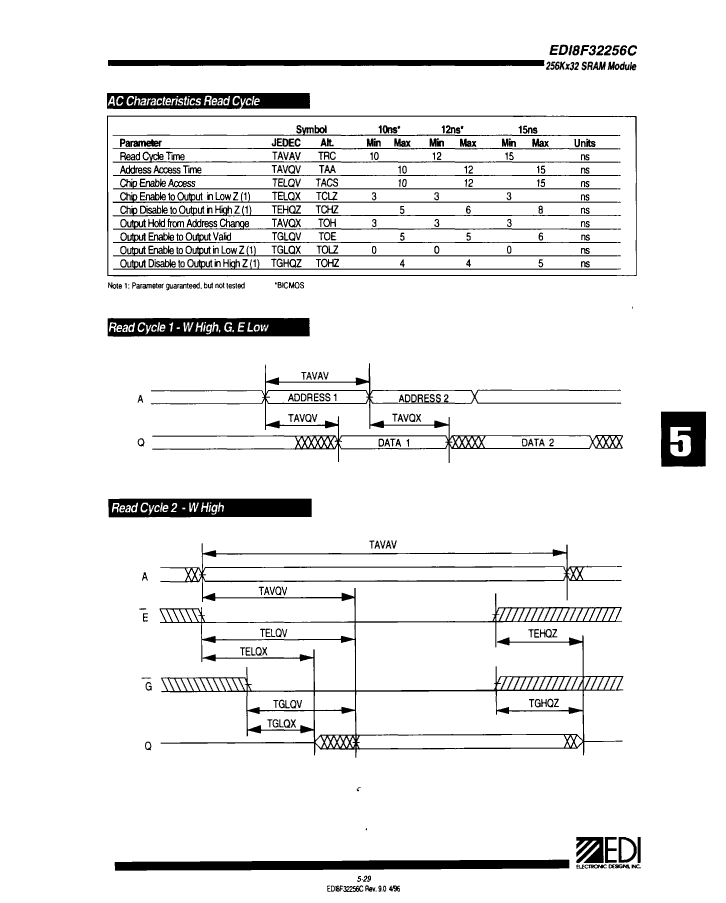

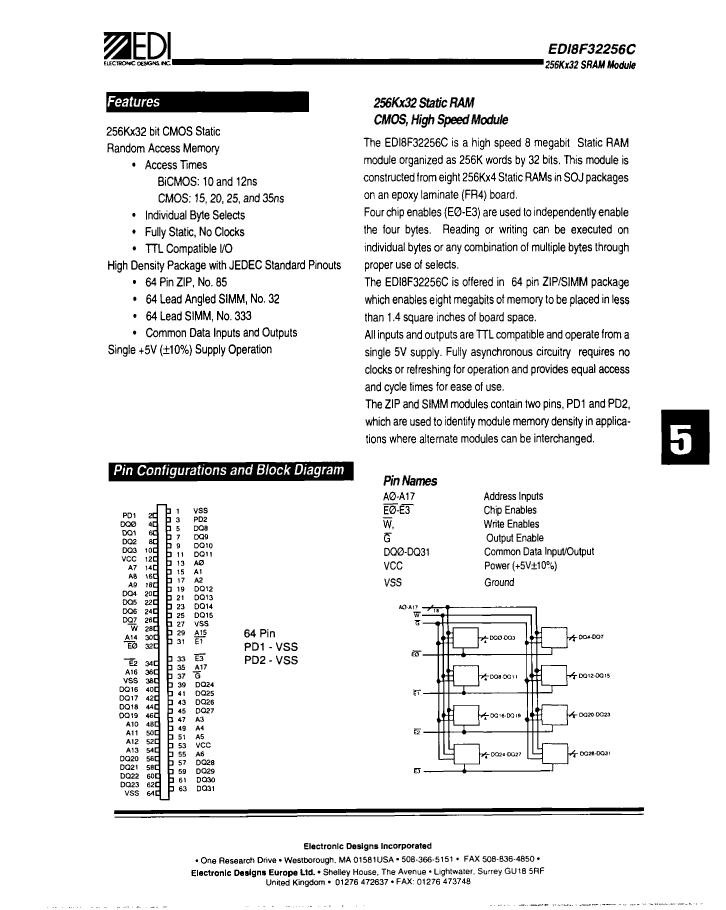

Preview

EDI8F32256C15MMC-G: DescriptionSRAM Module, 1MX8, 15ns, CMOS,; Categorystorage storage; File Size177KB，7 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

EDI8F32256C15MMC-G Overview

SRAM Module, 1MX8, 15ns, CMOS,

EDI8F32256C15MMC-G Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
Reach Compliance Code	unknown
Maximum access time	15 ns
Other features	CONFIGURABLE AS 256K X 32
Spare memory width	16
JESD-30 code	R-XSMA-N64
memory density	8388608 bit
Memory IC Type	SRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	64
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE

Preview

Download Datasheet

View All

EDI8F32256C15MMC-G Related Products

	EDI8F32256C15MMC-G	EDI8F32256C20MMC-G	EDI8F32256C35MMC-G	EDI8F32256C15MNC-G	EDI8F32256C25MMC-G
Description	SRAM Module, 1MX8, 15ns, CMOS,	SRAM Module, 1MX8, 20ns, CMOS,	SRAM Module, 1MX8, 35ns, CMOS,	SRAM Module, 1MX8, 15ns, CMOS,	SRAM Module, 1MX8, 25ns, CMOS,
Maker	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]	EDI [Electronic devices inc.]
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum access time	15 ns	20 ns	35 ns	15 ns	25 ns
Other features	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32	CONFIGURABLE AS 256K X 32
Spare memory width	16	16	16	16	16
JESD-30 code	R-XSMA-N64	R-XSMA-N64	R-XSMA-N64	R-XSMA-N64	R-XSMA-N64
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	64	64	64	64	64
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX8	1MX8	1MX8	1MX8	1MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
