LM7332MA/NOPB

Description
DUAL OP-AMP, 5000 uV OFFSET-MAX, 19.9 MHz BAND WIDTH, PDSO8, SOIC-8
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size1MB，21 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

LM7332MA/NOPB Overview

DUAL OP-AMP, 5000 uV OFFSET-MAX, 19.9 MHz BAND WIDTH, PDSO8, SOIC-8

LM7332MA/NOPB Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRochester Electronics
Parts packaging codeSOIC
package instructionSOP,
Contacts8
Reach Compliance Codeunknown
Amplifier typeOPERATIONAL AMPLIFIER
Maximum average bias current (IIB)2.5 µA
Nominal Common Mode Rejection Ratio74 dB
Maximum input offset voltage5000 µV
JESD-30 codeR-PDSO-G8
length4.9 mm
Humidity sensitivity levelNOT SPECIFIED
Nominal Negative Supply Voltage (Vsup)-5 V
Number of functions2
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Nominal slew rate13.2 V/us
Supply voltage upper limit35 V
Nominal supply voltage (Vsup)5 V
surface mountYES
Temperature levelAUTOMOTIVE
Terminal surfaceNOT SPECIFIED
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Nominal Uniform Gain Bandwidth19900 kHz
width3.9 mm

LM7332MA/NOPB Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu r xmu ai s
o
a
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
LM7332 Dual Rail-to-Rail Input/Output, 30V, Wide Voltage, Range High Output Operational
Amplifier
April 16, 2008
LM7332 Dual Rail-to-Rail Input/Output
30V, Wide Voltage Range, High Output Operational
Amplifier
General Description
The LM7332 is a dual rail-to-rail input and output amplifier with
a wide operating temperature range (−40°C to +125°C) which
meets the needs of automotive, industrial and power supply
applications. The LM7332 has the output current of 100 mA
which is higher than that of most monolithic op amps. Circuit
designs with high output current requirements often need to
use discrete transistors because many op amps have low
current output. The LM7332 has enough current output to
drive many loads directly, saving the cost and space of the
discrete transistors.
The exceptionally wide operating supply voltage range of
2.5V to 32V alleviates any concerns over functionality under
extreme conditions and offers flexibility of use in a multitude
of applications. Most of this device's parameters are insensi-
tive to power supply variations; this design enhancement is
another step in simplifying usage. Greater than rail-to-rail in-
put common mode voltage range allows operation in many
applications, including high side and low side sensing, without
exceeding the input range.
The LM7332 can drive unlimited capacitive loads without os-
cillations.
The LM7332 is offered in the 8-pin MSOP and SOIC pack-
ages.
Features
(V
S
= ±15V, T
A
= 25°C, typical values unless specified.)
2.5V to 32V
■
Wide supply voltage range
0.3V beyond rails
■
Wide input common mode voltage
Output short circuit current
>100 mA
■
±70 mA
■
High output current (1V from rails)
21 MHz
■
GBWP
15.2 V/µs
■
Slew rate
Unlimited
■
Capacitive load tolerance
Total supply current
2.0 mA
■
−40°C to +125°C
■
Temperature range
■
Tested at −40°C, +125°C, and 25°C at 5V, ±5V, ±15V
Applications
■
■
■
■
■
■
■
■
MOSFET and power transistor driver
Replaces discrete transistors in high current output circuits
Instrumentation 4-20 mA current loops
Analog data transmission
Multiple voltage power supplies and battery chargers
High and low side current sensing
Bridge and sensor driving
Digital to analog converter output

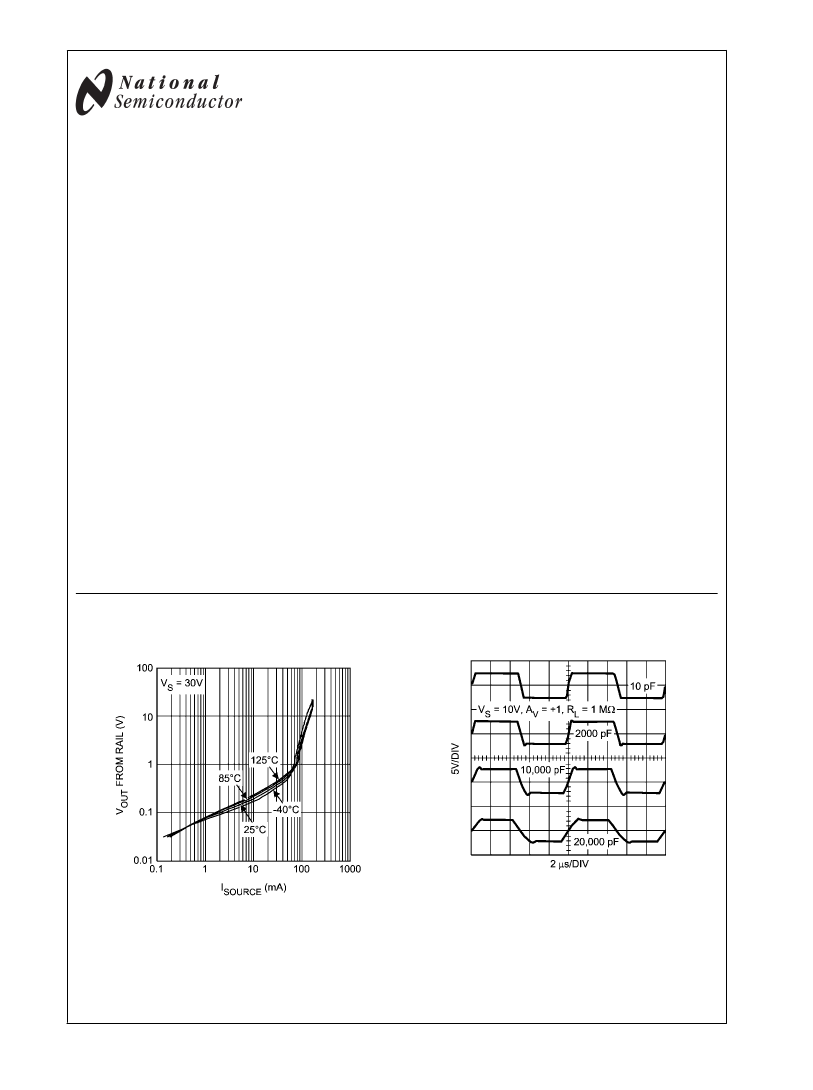

Key Graphs
Output Swing vs. Sourcing Current
Large Signal Step Response for Various Capacitive Loads
20187534
20187518
© 2008 National Semiconductor Corporation
201875
www.national.com
LM7332
Absolute Maximum Ratings
(Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
ESD Tolerance (Note 2)
Human Body Model
Machine Model
V
IN
Differential
Output Short Circuit Duration
Supply Voltage (V
S
= V
+
- V
−
)
Voltage at Input/Output pins
Storage Temperature Range
2 kV
200V
±10V
(Notes 3, 9)
35V
V
+
+0.3V, V
−
−0.3V
−65°C to +150°C
Junction Temperature (Note 4)
Soldering Information:
+150°C
235°C
260°C
 
Infrared or Convection (20 sec.)
 
Wave Soldering (10 sec.)
Operating Ratings
Supply Voltage (V
S
= V
+
- V
−
)
Temperature Range(Note 4)
Package Thermal Resistance,
θ
