3.4mm SURFACE MOUNT LED
AT T E N T I O N
L-1387QMP/1SGMBW
SUPER BRIGHT GREEN
BLUE
Features
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
l
SURFACE MOUNT TYPE.
l
I.C. COMPATIBLE.
l
BLACK CASE ENHANCES CONTRAST
l
WIDE VIEWING ANGLE.
l
PACKAGE:
l
HOUSING
l
HIGH
l
HIGH RELIABILITY LIFE MEASURED IN YEARS.
Description
The Super Bright Green source color devices are made
with Gallium Phosphide Green Light Emitting Diode.
Light Emitting Diode.
The Blue source color devices are made with GaN on SiC
Static electricity and surge damage the LEDS. It is
glove when handling the LEDs.
electrically grounded.
TEMPERATURE RESISTANT HOUSING.
MATERIAL: PPA
1000PCS / REEL.
recommended to use a wrist band or anti-electrostatic
All devices, equipment and machinery must be
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO:DSAD0324
APPROVED: J. Lu
REV NO: V.2
CHECKED : Allen Liu
DATE:MAY/29/2003
DRAWN:S.J.HOU
PAGE: 1 OF 5
Selection Guide
P ar t N o .
L-1387QMP/1SGMBW
Dic e
SUPER BRIGHT GREEN (GaP)
L en s Ty p e
WHITE D IFFUSED
Mi n .
4
7
Iv (m c d )
@ 20 m A
Ty p .
20
15
V i ew i n g
An g le
2 θ1 / 2
60°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
BLUE (GaN)
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
peak
λ
D
∆λ
1/2
C
V
F
P ar am et er
Peak Wavelength
D omi nate Wavelength
Super Bri ght Green
Blue
D ev i c e
Ty p .
565
430
30
60
Max .
Un its
nm
nm
nm
pF
V
Tes t C o n d i t i o n s
I
F
= 2 0 m A
I
F
= 2 0 m A
I
F
= 2 0 m A
V
F
=0 V ;f=1 MHz
I
F
= 2 0 m A
Spectral Li ne Half-wi dth Super Bri ght Green
Blue
C apaci tance
Super Bri ght Green
Blue
Super Bri ght Green
Blue
568
466
Forward Voltage
Super Bri ght Green
Blue
15
100
2.2
3.8
2.5
4.5
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power di ssi pati on
D C Forward C urrent
Peak Forward C urrent [1]
Operati ng/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Su p er B r i g h t Gr een
105
25
140
-40
°
C To +85
°
C
B lu e
105
30
150
Un its
mW
mA
mA
SPEC NO:DSAD0324
APPROVED: J. Lu
REV NO: V.2
CHECKED : Allen Liu
DATE:MAY/29/2003
DRAWN:S.J.HOU
PAGE: 2 OF 5
L-1387QMP/1SGMBW

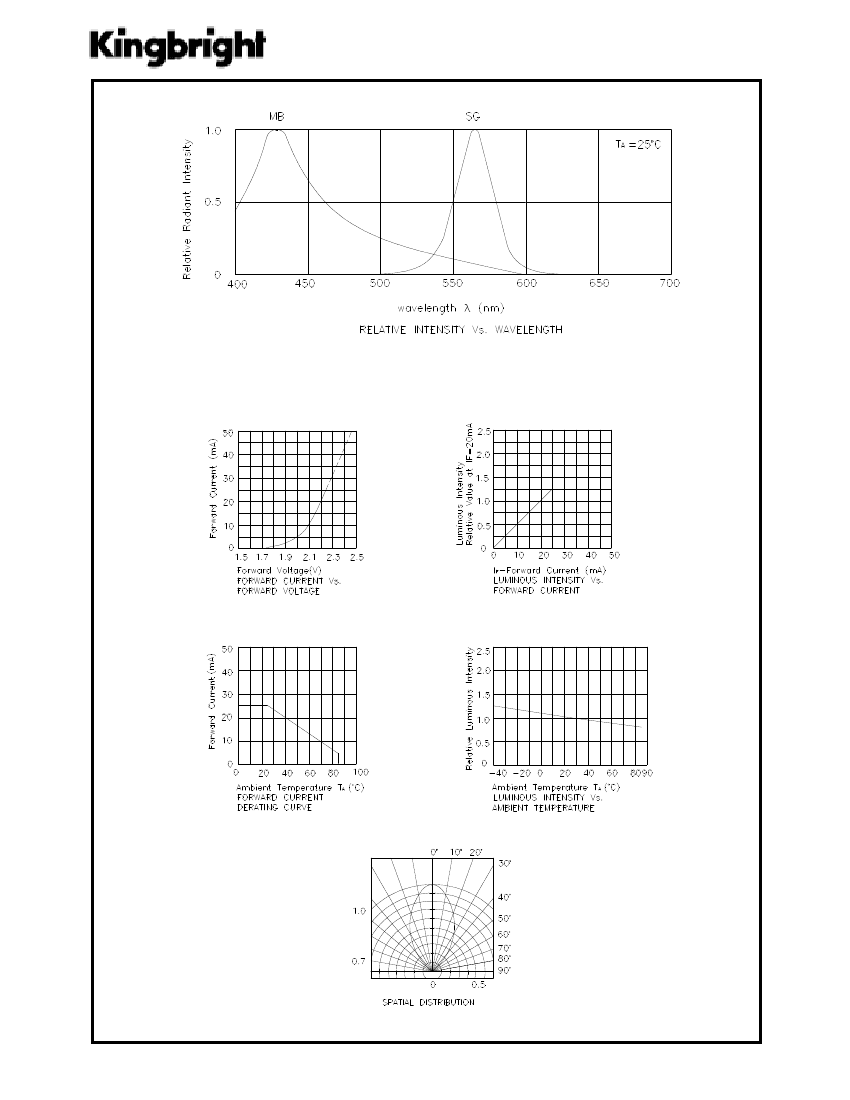

Super Bright Green
SPEC NO:DSAD0324
APPROVED: J. Lu
REV NO: V.2
CHECKED : Allen Liu
DATE:MAY/29/2003
DRAWN:S.J.HOU
PAGE: 3 OF 5

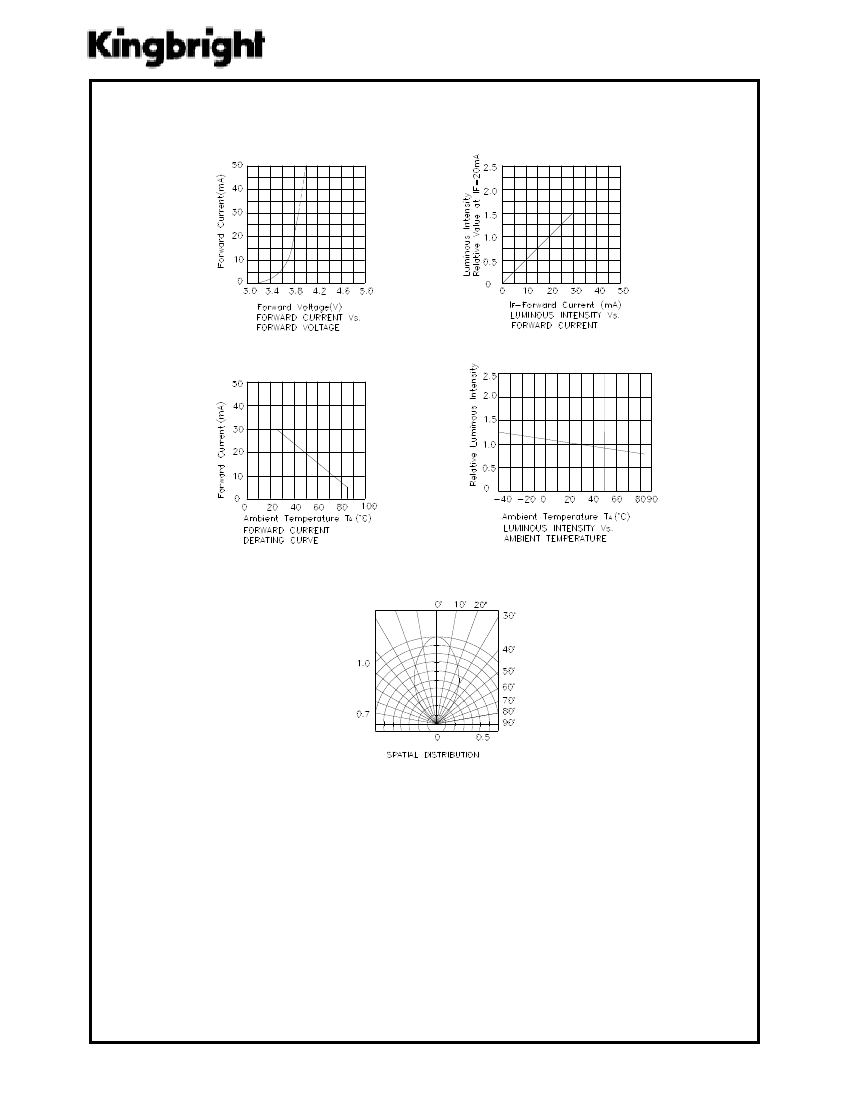

Blue
SPEC NO:DSAD0324
APPROVED: J. Lu
REV NO: V.2
CHECKED : Allen Liu
DATE:MAY/29/2003
DRAWN:S.J.HOU
PAGE: 4 OF 5
L-1387QMP/1SGMBW
SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process.
Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
SPEC NO:DSAD0324
APPROVED: J. Lu
REV NO: V.2
CHECKED : Allen Liu
DATE:MAY/29/2003
DRAWN:S.J.HOU
PAGE: 5 OF 5
