MF1/4DLT52R4422F datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> MF1/4DLT52R4422F

MF1/4DLT52R4422F: DescriptionFixed Resistor, Metal Film, 0.25W, 44200ohm, 250V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size106KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

MF1/4DLT52R4422F Overview

Fixed Resistor, Metal Film, 0.25W, 44200ohm, 250V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED

MF1/4DLT52R4422F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KOA Speer
package instruction	AXIAL LEADED
Reach Compliance Code	not_compliant
ECCN code	EAR99
structure	Cylindrical
JESD-609 code	e0
Lead diameter	0.6 mm
Lead length	30 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	2.3 mm
Package length	6.3 mm
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	TR
Rated power dissipation(P)	0.25 W
Rated temperature	70 °C
Guideline	MIL-R-10509
resistance	44200 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	1%
Operating Voltage	250 V

Preview

Download Datasheet

View All

MF, MFS, RK

general purpose metal film leaded resistor

features

•

Semi-precision metal film resistors

•

The discharge path resistor is recognized by UL 1676 and

c-UL (CAS-C22.2 No.1-M94). (File No. E159326) (RK only)

•

Meets requirements of MIL-R-22684

•

Suitable for automatic machine insertion

•

MFS two times the power rating of the standard body type

•

Marking: Blue-gray body color with color-coded bands

•

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

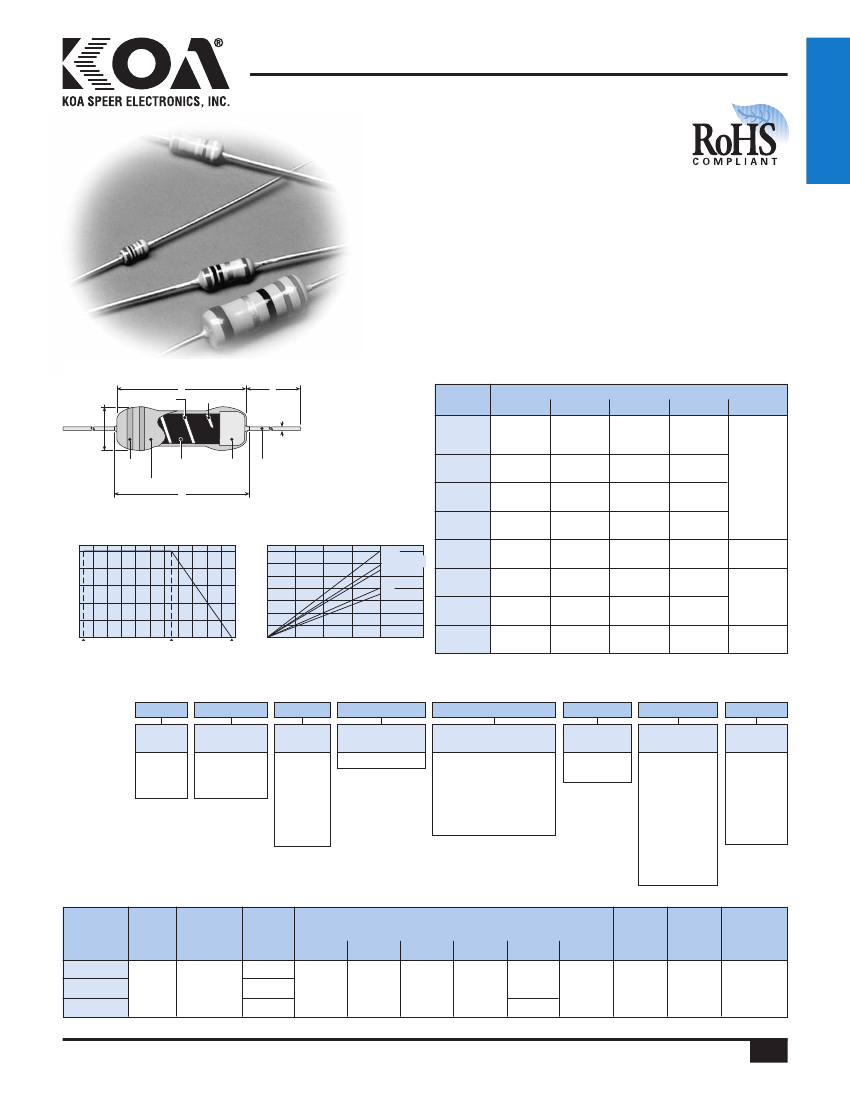

dimensions and construction

Trimming Line

Ceramic Core

Type

MFS1/4

L (ref.)

.126±.008

(3.2±0.2)

.248±.02

(6.3±0.5)

.248±.02

(6.3±0.5)

.374±.04

(9.5±1.0)

.610±.02

(15.5±0.5)

.248±.02

(6.3±0.5)

.374±.04

(9.5±1.0)

.610±.04

(15.5±1.0)

Dimensions

inches

(mm)

C (max.)

d (nom.)

.133

(3.4)

.280

(7.1)

.280

(7.1)

.437

(11.1)

.721

(18.3)

.280

(7.1)

.437

(11.1)

.720

(18.3)

.066

(1.7

+.007

-.004

+0.2

)

-0.1

.018

(0.45)

.024

(0.6)

.024

(0.6)

.024

(0.6)

.031

(0.8)

.024

(0.6)

.031

(0.8)

.031

(0.8)

1.50±.118

(38.0±3.0)

0.94 min.

(24.0 min.)

1.50±.118

(38.0±3.0)

1.18±.118

(30.0±3.0)

Marking

Resistive

Film

End

Cap

Lead

Wire

MF1/4

MFS1/2

Insulation Coating

.091±.012

(2.3±0.3)

.091±.012

(2.3±0.3)

.138±.016

(3.5±0.4)

.217±.02

(5.5±0.5)

.091±.012

(2.3±0.3)

.138±.016

(3.5±0.4)

.217±.02

(5.5±0.5)

Derating Curve

100

% Rated Power

-60 -40 -20

-55

Surface Temperature Rise

Temperature Rise (°C)

100

MF1/2

MFS1/2,MF1/4,

MF1/2

(+2%&+5%)

MF1/4

MF1

MFS1/4

MF1/2

MF1

RK1/4

RK1/2

RK1

80 100 120 140 160

155

Ambient Temperature

(°C)

% Rated Power

ordering information

New Part #

Type

MFS

1/4

Power

Rating

1/4: 0.25W

1/2: 0.50W

1: 1W

T.C.R.

E: ±25

C: ±50

D: ±100

L: ±200

G: ±250

B: ±350

Termination

Material

C: SnCu

T52

Taping and Forming

1/4: T26, T52, VT, VTP,

VTE, MT, M, U,

M10, M25

1/2: T26, T52, VTP,

VTE, M12.5, M15

1: T521

Packaging

A: Ammo

R: Reel

R20

Nominal

Resistance

+2%: 2 signifi-

cant figures +

1 multiplier

+0.5%,+1%:

3 significant

figures + 1

multiplier

“R” indicates

decimal on

value <100Ω

Tolerance

B: ±0.1%

C: ±0.25%

D: ±0.5%

F: ±1%

G: ±2%

J: ±5%

For further information on packaging,

please refer to Appendix C.

applications and ratings

Minimum

Absolute Absolute

Resistance Range (Ω)

Power

Operating

Part

Dielectric

T.C.R.

Maximum Maximum

Rating

Temperature

Designation

Withstanding (ppm/°C)

(B±0.1%) (C±0.25%) (D±0.5%) (F±1.0%) (G±2.0%) (J±5.0%)

Working Overload

@ 70°C

Range

Voltage

E-24

E-96

E-24 E-96 E-24 E-96

E-24

MFS1/4C

MFS1/4D

MFS1/4L

0.25W

300V

C: ±50

D: ±100

L: ±200

—

49.9 - 562k

10 - 1M

—

2.2 - 2.2M

—

250V

300V

-55°C

+155°C

1/13/09

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
