747835-6 datasheet, PDF - EEWORLD Datasheet

747835-6: DescriptionCONNECTOR,D-SHELL,PCB MNT,RECEPT,37 CONTACTS,PIN,0.109 PITCH,PC TAIL TERMINAL,#4-40; CategoryThe connector The connector; File Size36KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

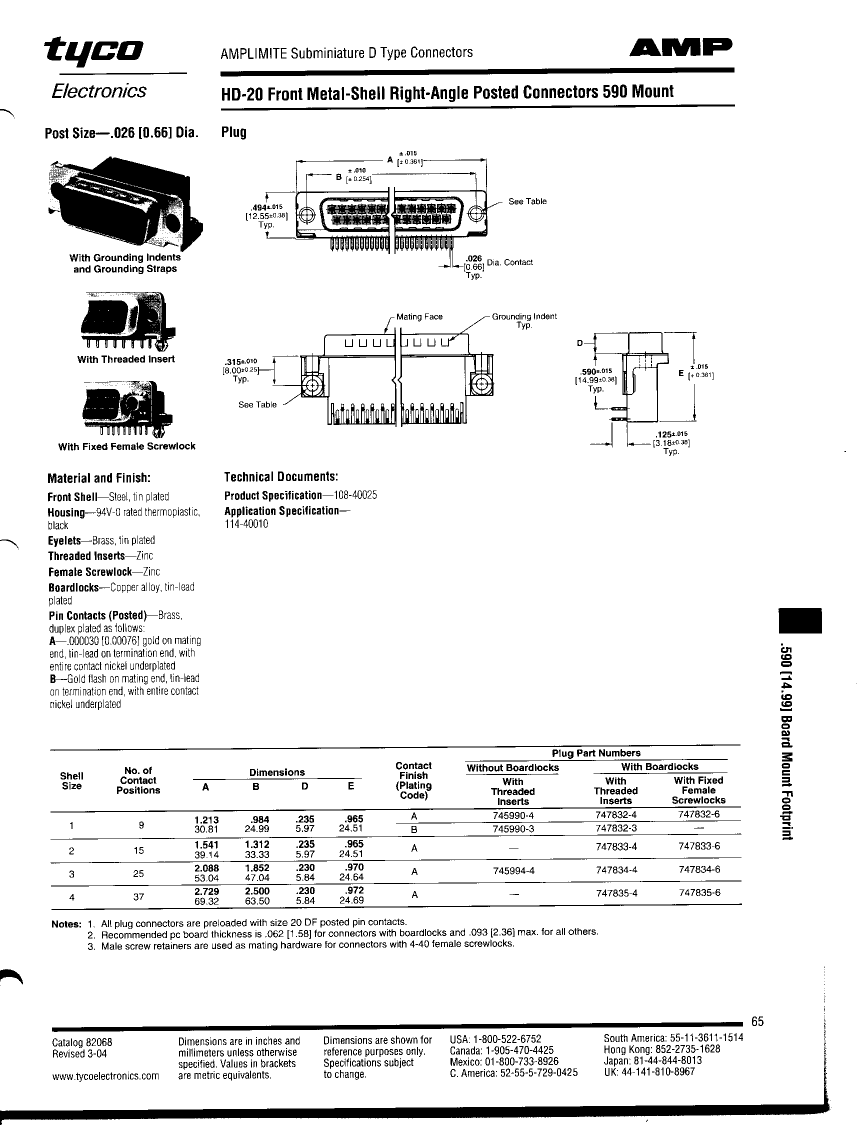

Download Datasheet Parametric View All

747835-6 Overview

CONNECTOR,D-SHELL,PCB MNT,RECEPT,37 CONTACTS,PIN,0.109 PITCH,PC TAIL TERMINAL,#4-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	AMPLIMITE
body width	0.494 inch
subject depth	0.74 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	SQ PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	THERMOPLASTIC
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	SCREWLOCKS
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Options	GENERAL PURPOSE
Plating thickness	30u inch
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.125 inch
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0
