Part Number

Search

MPN-7454-C22

Description
Pin Diode, 400V V(BR), Silicon, DIE-1
CategoryDiscrete semiconductor    diode

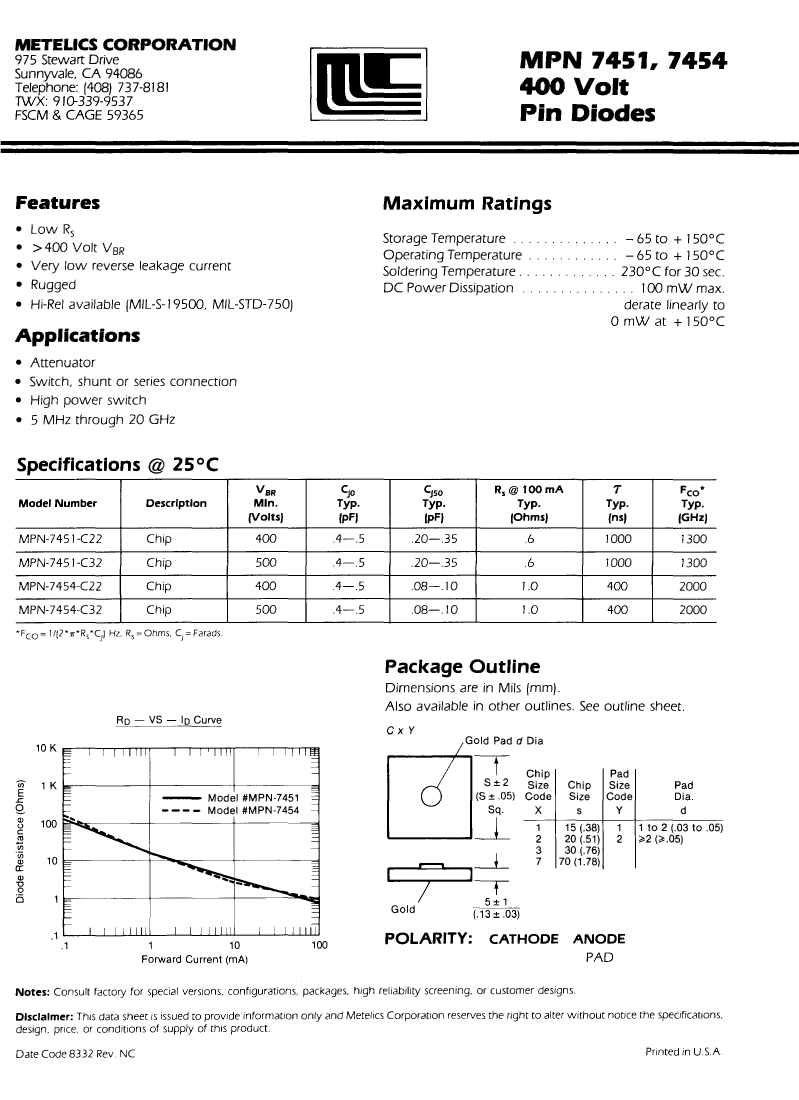

File Size49KB,1 Pages
ManufacturerCobham PLC
Download Datasheet Parametric Compare View All

MPN-7454-C22 Overview

Pin Diode, 400V V(BR), Silicon, DIE-1

MPN-7454-C22 Parametric

Parameter NameAttribute value
MakerCobham PLC
package instructionDIE-1
Reach Compliance Codeunknown
Other featuresLOW LEAKAGE
applicationATTENUATOR; SWITCHING
Minimum breakdown voltage400 V
ConfigurationSINGLE
Maximum diode capacitance0.5 pF
Diode component materialsSILICON
Diode typePIN DIODE
frequency bandHIGH FREQUENCY TO K BAND
JESD-30 codeS-XUUC-N1
Minority carrier nominal lifetime0.4 µs
Number of components1
Number of terminals1
Package body materialUNSPECIFIED
Package shapeSQUARE
Package formUNCASED CHIP
Maximum power dissipation0.1 W
Certification statusNot Qualified
surface mountYES
technologyPOSITIVE-INTRINSIC-NEGATIVE
Terminal formNO LEAD
Terminal locationUPPER

MPN-7454-C22 Related Products

MPN-7454-C22 MPN-7451-C22
Description Pin Diode, 400V V(BR), Silicon, DIE-1 Pin Diode, 400V V(BR), Silicon, DIE-1
Maker Cobham PLC Cobham PLC
package instruction DIE-1 S-XUUC-N1
Reach Compliance Code unknown unknown
Other features LOW LEAKAGE LOW LEAKAGE
application ATTENUATOR; SWITCHING ATTENUATOR; SWITCHING
Minimum breakdown voltage 400 V 400 V
Configuration SINGLE SINGLE
Maximum diode capacitance 0.5 pF 0.5 pF
Diode component materials SILICON SILICON
Diode type PIN DIODE PIN DIODE
frequency band HIGH FREQUENCY TO K BAND HIGH FREQUENCY TO K BAND
JESD-30 code S-XUUC-N1 S-XUUC-N1
Minority carrier nominal lifetime 0.4 µs 1 µs
Number of components 1 1
Number of terminals 1 1
Package body material UNSPECIFIED UNSPECIFIED
Package shape SQUARE SQUARE
Package form UNCASED CHIP UNCASED CHIP
Maximum power dissipation 0.1 W 0.1 W
Certification status Not Qualified Not Qualified
surface mount YES YES
technology POSITIVE-INTRINSIC-NEGATIVE POSITIVE-INTRINSIC-NEGATIVE
Terminal form NO LEAD NO LEAD
Terminal location UPPER UPPER
