2.0mm pitch/Disconnectable Crimp style connectors
PBV
CONNECTOR
• Secure locking structure
• Sucking area on header
• Prevention of deformation of contact
Specifications
–––––––––––––––––––
• Current rating: 3A AC, DC (AWG #22)
• Voltage rating: 100V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10mΩ max.
After environmental testing/ 20mΩ max.
• Insulation resistance: lnitial/ 1,000MΩ min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: Conductor size/ AWG#28 to #22
insulation O.D./ 0.9 to 1.5mm
This PBV connector, which is mainly used for
connecting PCB of flat television, is a crimping
type connector and is designed to have a
secure locking structure and a sucking area.
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.

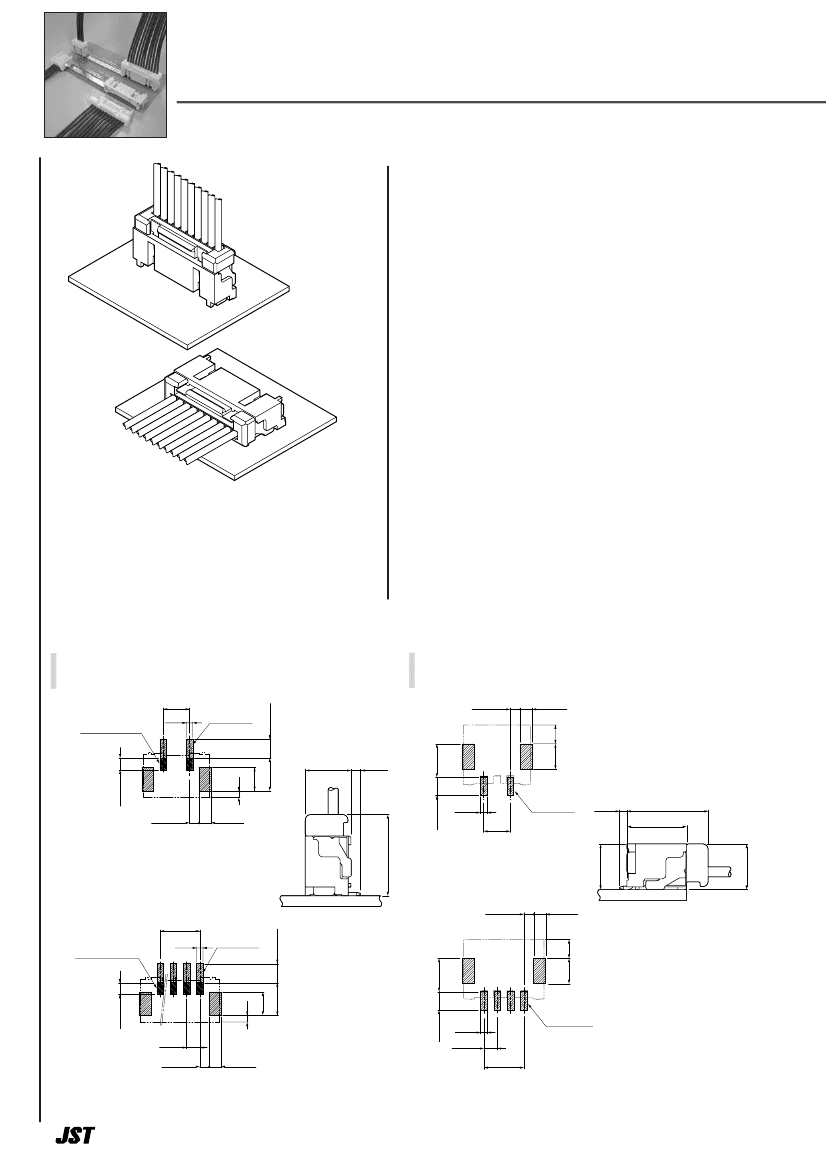

Top entry type
< 2 circuits >
Pattern
prohibition area
Side entry type
< 2 circuits >
1
MIN
Circuit No.1
2.9
MIN
A
±0.1
1.45
±0.1
1.8
±0.1
3.8
±0.1
2.8
1.85
＋0.1
0
3.6
±0.1
1
5
±0.1
（6.8）
（1.4）
5
±0.1
1.45
±0.1
1.8
±0.1
2.7
MIN
1
MIN
A
±0.1
Circuit No.1
（1.1）
（12.1）
8.9
（12.1）
< 3 to 15 circuits >
< 3 to 15 circuits >
1.45
±0.1
A
±0.1
2.9
MIN
1.8
±0.1
Pattern
prohibition area
5
±0.1
1.85
＋0.1
0
3.6
±0.1
1
5
±0.1
2.7
MIN
1
MIN
Circuit No.1
2
±0.05
1.45
±0.1
1.8
±0.1
2
±0.05
A
±0.1
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative: ±0.03mm for all centers. The dimensions above should serve as a guideline. Contact JST for details.
1
3.8
±0.1
2.8
1
MIN
Circuit No.1
（6.8）
6.8
PBV CONNECTOR
Contact
Model No.
SPHD-001T-P0.5
SPHD-002T-P0.5
1.5
Applicable wire
mm
2
AWG#
0.13∼0.33
0.08∼0.21
26∼22
28∼24
Insulation O.D. (mm) Q'ty / reel
1.0∼1.5
0.9∼1.5
8,000
8,000
Material and Finish
Phosphor bronze, tin-plated (reflow treatment)
RoHS compliance
6.5
2.85
1.3
Contact
SPHD-001T-P0.5
Crimping
machine Crimp applicator
MKS-L-10
AP-K2N
*MKS-SC-10
MKS-L-10
*MKS-SC-10
Applicator
Dies
SC/SPHD-001-05
Crimp applicator with dies
APLSC SPHD001-05
MK/SPHD-001-05 APLMK SPHD001-05
SPHD-002T-P0.5
MK/SPHD-002-05 APLMK SPHD002-05
SC/SPHD-002-05
APLSC SPHD002-05
Note: *Strip-crimp applicator
Housing
< 3 (2 circuits in common use ) to 8 circuits >
B
A
2
（3）
6.4
Circuits
*3
4
6
8
10
Model No.
PBVP-03V-S
PBVP-04V-S
PBVP-06V-S
PBVP-08V-S
PBVP-10V-S
PBVP-12V-S
PBVP-15V-S
Material
Dimensions (mm)
A
B
4.0
6.0
10.0
14.0
18.0
22.0
28.0
10.0
12.0
16.0
20.0
24.0
28.0
34.0
Q'ty /
bag
2,000
2,000
1,000
1,000
1,000
500
500
9
5.8
12
15
Circuit No.1
< 9 to 12 circuits >
B
A
2
（3）
6.4
PA 66, UL94V-0, natural (white)
RoHS compliance
Note*: 2 circuits in common use.
Circuit No.1
< 13 to 15 circuits >
B
A
2
（3）
6.4
5.8
9
Circuit No.1
5.8
9
2
PBV CONNECTOR
Shrouded header
Top entry type
< 2 circuits >
B
6.8
Circuits
Model No.
Side entry type
Top entry type
BM02(4.0)B-PBVSS-TF SM02(4.0)B-PBVSS-TB
BM03B-PBVSS-TF SM03B-PBVSS-TB
BM04B-PBVSS-TF SM04B-PBVSS-TB
BM06B-PBVSS-TF SM06B-PBVSS-TB
BM08B-PBVSS-TF SM08B-PBVSS-TB
BM10B-PBVSS-TF SM10B-PBVSS-TB
BM12B-PBVSS-TF SM12B-PBVSS-TB
BM15B-PBVSS-TF SM15B-PBVSS-TB
Material and Finish
Dimensions (mm) Q'ty / reel
A
B Top type Side type
4.0
4.0
6.0
10.0
14.0
18.0
22.0
28.0
10.0
10.0
12.0
16.0
20.0
24.0
28.0
34.0
700
700
700
700
700
700
700
700
800
800
800
800
800
800
800
800
< 3 to 8 circuits >
B
6.8
*2
3
4
8.9
8.9
6
8
10
4
Circuit No.1
2
A
Circuit No.1
12
15
< 9 to 12 circuits >
B
6.8
Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Wafer: Polyamide resin, UL94V-0, natural (ivory)
Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
8.9
2
A
Circuit No.1
RoHS compliance
This product displays (LF)(SN) on a label.
Note: 1. This products listed above are supplied on embossed-tape.
2. *2 circuits product: Removing center pin from 3 circuits product
< 13 to 15 circuits >
B
6.8
2
A
Circuit No.1
Side entry type
< 2 circuits >
B
6.8
< 3 to 8 circuits >
B
6.8
8.9
4
Circuit No.1
8.9
2
A
Circuit No.1
< 9 to 12 circuits >
B
6.8
2
A
Circuit No.1
< 13 to 15 circuits >
B
6.8
8.9
2
A
Circuit No.1
3
8.9
8.9
