N74LS83AN datasheet, PDF - EEWORLD Datasheet

N74LS83AN: DescriptionAdder/Subtractor, LS Series, 4-Bit, TTL, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size898KB，27 Pages; ManufacturerSignetics

Download Datasheet Parametric View All

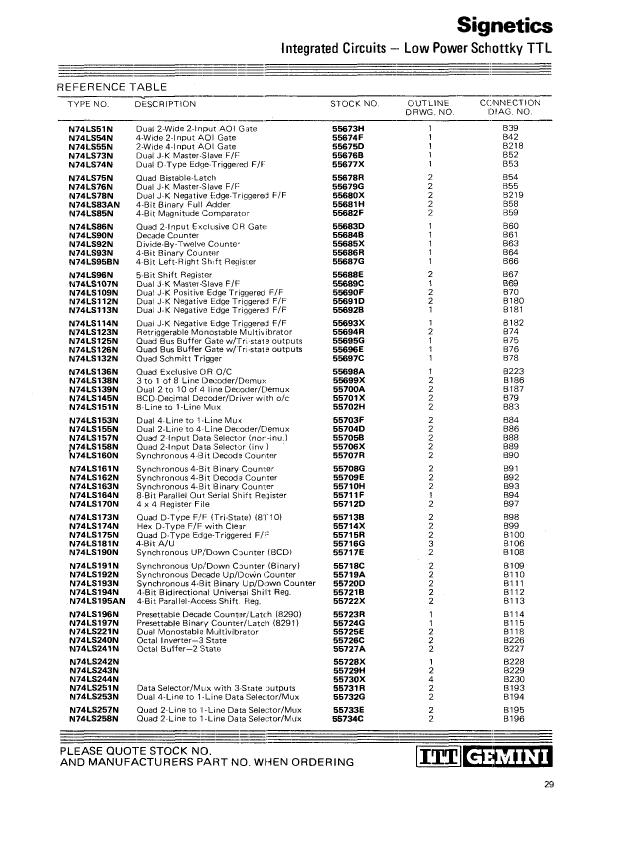

N74LS83AN Overview

Adder/Subtractor, LS Series, 4-Bit, TTL, PDIP16, PLASTIC, DIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.09 mm
Logic integrated circuit type	ADDER/SUBTRACTOR
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
propagation delay (tpd)	24 ns
Certification status	Not Qualified
Maximum seat height	4.06 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
