822-A060P-AF100

Description
Board Connector, 60 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug
CategoryThe connector    The connector
File Size158KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

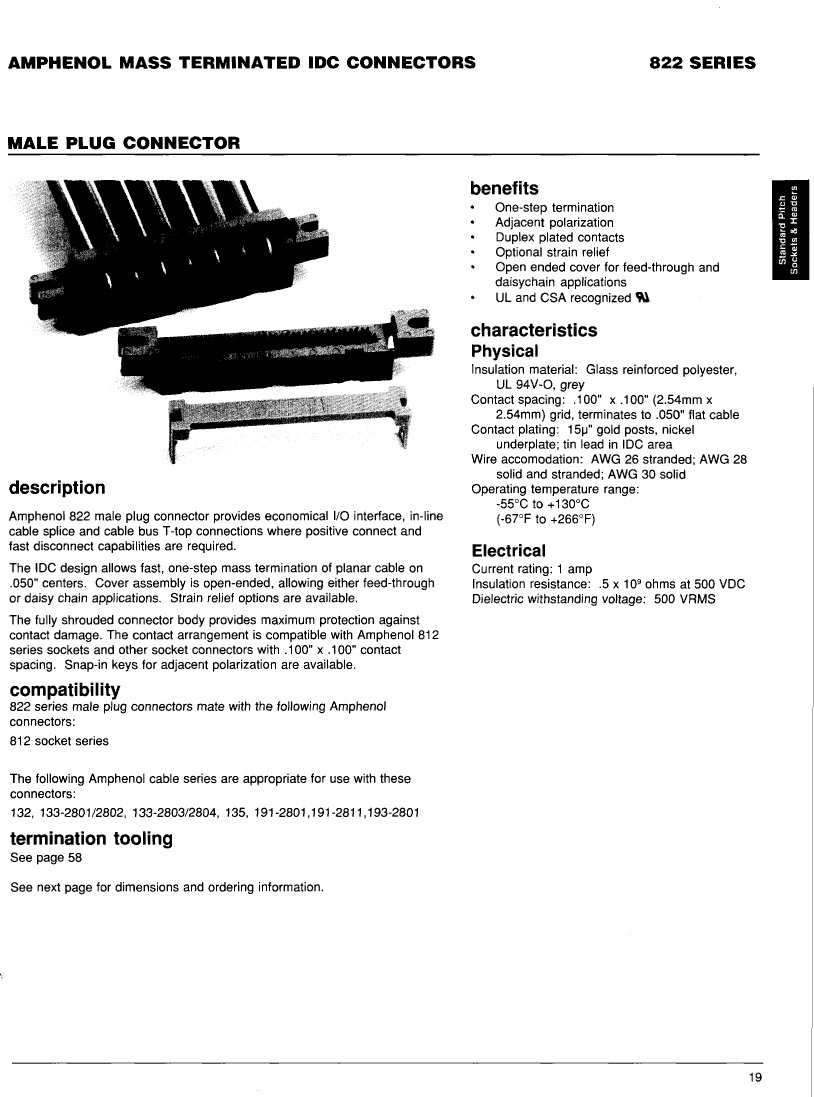

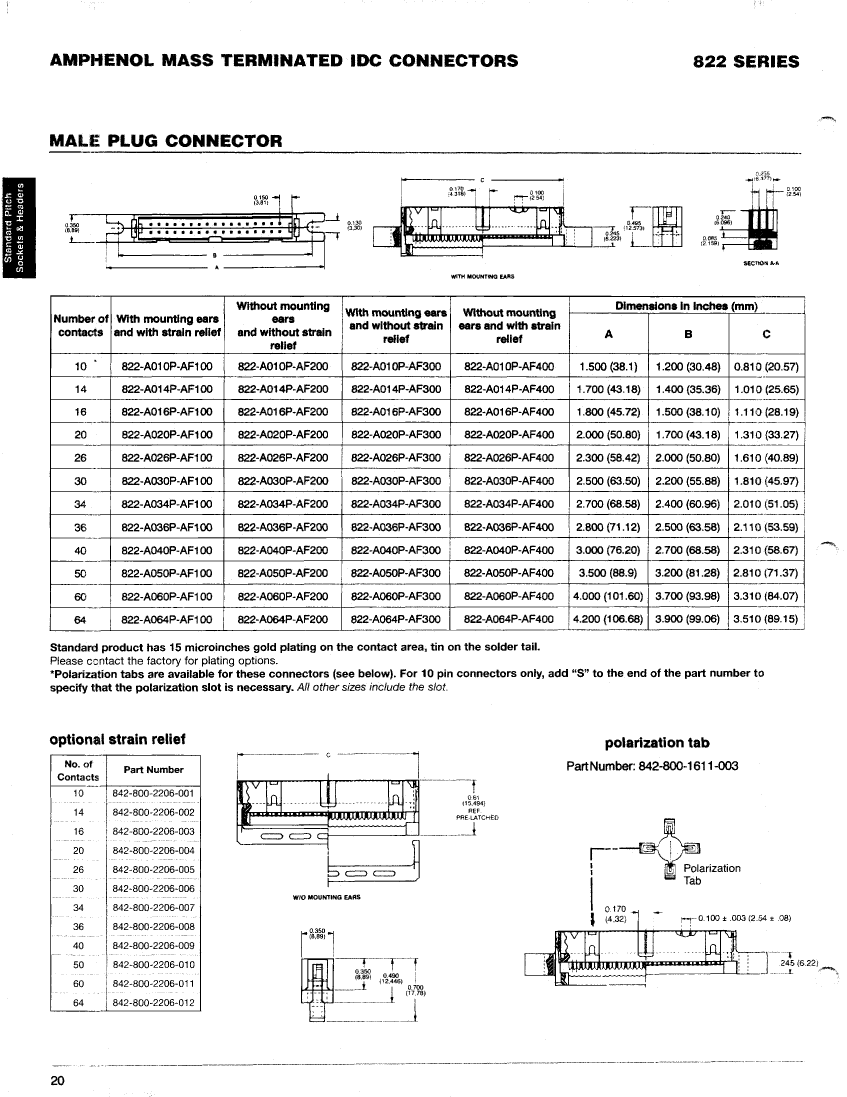

822-A060P-AF100 Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Gray Insulator, Plug

822-A060P-AF100 Parametric

Parameter NameAttribute value
Objectid1440863119
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL7.2
Other featuresPOLARIZED
Board mount optionsMOUNTING FLANGE
body width0.35 inch
subject depth0.495 inch
body length4 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
Number of connectorsONE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness15u inch
polarization keySHRD CENTER
Rated current (signal)1 A
GuidelineUL
Termination typeIDC
Total number of contacts60
UL Flammability Code94V-0
Maximum wire diameter26 AWG
Minimum wire diameter30 AWG
