BC307CRL1

Description
TRANSISTOR 100 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC, TO-226AA, 3 PIN, BIP General Purpose Small Signal
CategoryDiscrete semiconductor    The transistor
File Size86KB,4 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

BC307CRL1 Overview

TRANSISTOR 100 mA, 45 V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92, PLASTIC, TO-226AA, 3 PIN, BIP General Purpose Small Signal

BC307CRL1 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerON Semiconductor
Parts packaging codeTO-92
package instructionPLASTIC, TO-226AA, 3 PIN
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresEUROPEAN PART NUMBER
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage45 V
ConfigurationSINGLE
Minimum DC current gain (hFE)420
JEDEC-95 codeTO-92
JESD-30 codeO-PBCY-T3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)225
Polarity/channel typePNP
Certification statusNot Qualified
surface mountNO
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal locationBOTTOM
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)280 MHz

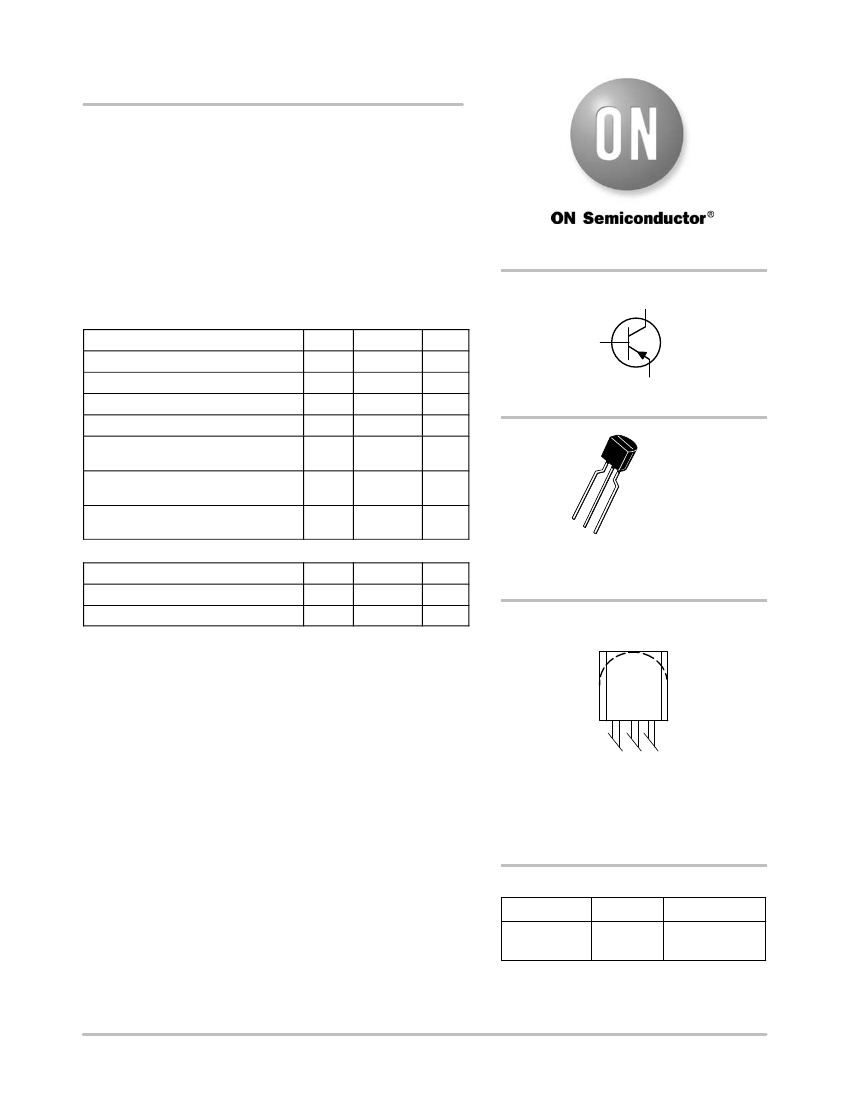

BC307B
Amplifier Transistors
PNP Silicon
Features
This is a Pb−Free Device*
http://onsemi.com
COLLECTOR
1
MAXIMUM RATINGS
Rating
Collector
Emitter Voltage
Collector
Base Voltage
Emitter
Base Voltage
Collector Current
Continuous
Total Device Dissipation @ T
A
= 25°C
Derate above 25°C
Total Device Dissipation @ T
C
= 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
Symbol
V
CEO
V
CBO
V
EBO
I
C
P
D
P
D
T
J
, T
stg
Value
−45
−50
−5.0
−100
350
2.8
1.0
8.0
−55
to +150
Unit
Vdc
Vdc
Vdc
mAdc
mW
mW/°C
W
mW/°C
°C
1
TO−92
CASE 29
STYLE 17
2
BASE
3
EMITTER
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance, Junction−to−Ambient
Thermal Resistance, Junction−to−Case
Symbol
R
qJA
R
qJC
Max
357
125
Unit
°C/W
°C/W
3
BENT LEAD
TAPE & REEL
AMMO PACK
2
MARKING DIAGRAM
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
BC30
7B
AYWW
G
G
A
= Assembly Location
Y
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
BC307BRL1G
Package
TO−92
(Pb−Free)
Shipping
2000 / Tape & Reel
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2011
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Publication Order Number:
BC307/D
May, 2011
Rev. 5
1
