SaRonix
PrO
Programmable Clock Oscillator
TM
5V, HCMOS, TTL, SMD
Technical Data
Frequency Range:
Frequency Stability:
1MHz to 125MHz
PrO
TM
S8002 Plastic Series
±25*, ±50 or ±100 ppm over all conditions: calibration
tolerance, operating temperature, input voltage change, load
change, aging, shock and vibration.
Temperature Range:
Operating:
Storage:
Supply Voltage:
Recommended Operating:
Supply Current:
10TTL/5TTL Load:
50pF/20pF Load:
Standby Current:
Output Drive:
Symmetry:
-20 to +70°C:
-40 to +85°C:
Rise & Fall Times:
Logic 0:
Logic 1:
Load:
Period Jitter RMS:
-20 to +70°C or -40 to +85°C
-55 to +125°C
+5V ±10%
ACTUAL SIZE
40mA from 1 to 40MHz, 50mA from 40+ to 125MHz
40mA from 1 to 50MHz, 50mA from 50+ to 125MHz
50µA max (use option S, see part number builder)
@ 50% V
DD
@ 50% V
DD
@ 1.5V
@ 1.5V
HCMOS
HCMOS
TTL
TTL
1 to 50MHz
50+ to 125MHz
1 to 27MHz
27+ to 125MHz
45/55%
40/60%
45/55%
40/60%
40/60%
40/60%
40/60%
40/60%
5ns max 20% to 80% V
DD
, 0.8 to 2V (TTL)
10% V
DD
max, 0.5V max (TTL)
90% V
DD
min, 2.5V min (TTL)
50pF max 1 to 50MHz, 20pF max 50+ to 125MHz or
10TTL
1 to 40MHz, 5TTL 40+ to 125MHz
40ps max 33+ to 125MHz
100ps max 1 to 33MHz
Description
A crystal controlled, HCMOS/TTL com-
patible oscillator with an internal pro-
gramming feature that allows SaRonix to
supply any frequency in the 1 to 125MHz
range. This technology significantly re-
duces lead-times from weeks to days.
The parts are built and stocked un-pro-
grammed then programmed by SaRonix
to the frequency required by the cus-
tomer before final test and marking. The
parts exhibit the same low power, precise
rise and fall times, tight symmetry and
HCMOS/TTL compatible drive capabil-
ity as conventional SaRonix SMD oscil-
lators. The parts feature tri-state enable
or standby control on pin 1. The pack-
ages are fully compatible with standard
SO-J-20 footprints.
Applications & Features
• Quick delivery - days instead of weeks
for any frequency - standard or not -
between 1 and 125MHz.
• Suited for use with new HCMOS
MPU's.
• Tri-State output or standby mode
• High Drive HCMOS capability
• Stabilities of ±25, ±50, ±100ppm
• EIA standard SO-J-20 footprint
• Fully compatible with the Epson
SG-8002JA Series configurations.
• Other SaRonix products with com-
patible electrical and mechanical
specifications are available, please
see data sheets for the ST410H or
NTH/NTT H.
• Available on tape & reel; 24mm tape,
1000pcs per reel
Mechanical:
Shock:
Solderability:
Terminal Strength:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Environmental:
Thermal Shock:
Moisture Resistance:
Part Numbering Guide
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-202,
MIL-STD-202,
Method 2002, Condition B
Method 2003
Method 2004, Conditions B2
Method 2007, Condition A
Method 215
Method 210, Condition I or J
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
S8002
Series
SaRonix Programmable Oscillator
Package
H = Plastic SMD, J-lead
P = Output Enable
S = Standby
H S H B – 106.25
(T)
(T) = Tape & Reel
full reel increments only
Frequency
Stability Tolerance
*
A = ±25ppm, -20 to +70°C
B = ±50ppm, -20 to +70°C
C= ±100ppm, -20 to +70°C
E = ±50ppm, -40 to +85°C
F = ±100ppm, -40 to +85°C
DS-186
REV C
Example PN: S8002HSHB - 106.2500
Type
H = 5V, CMOS
T = 5V, TTL
*±25ppm is only available at certain frequencies,
please contact SaRonix.
SaRonix
141 Jefferson Drive • Menlo Park CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
SaRonix
PrO
Programmable Clock Oscillator
TM
5V, HCMOS, TTL, SMD

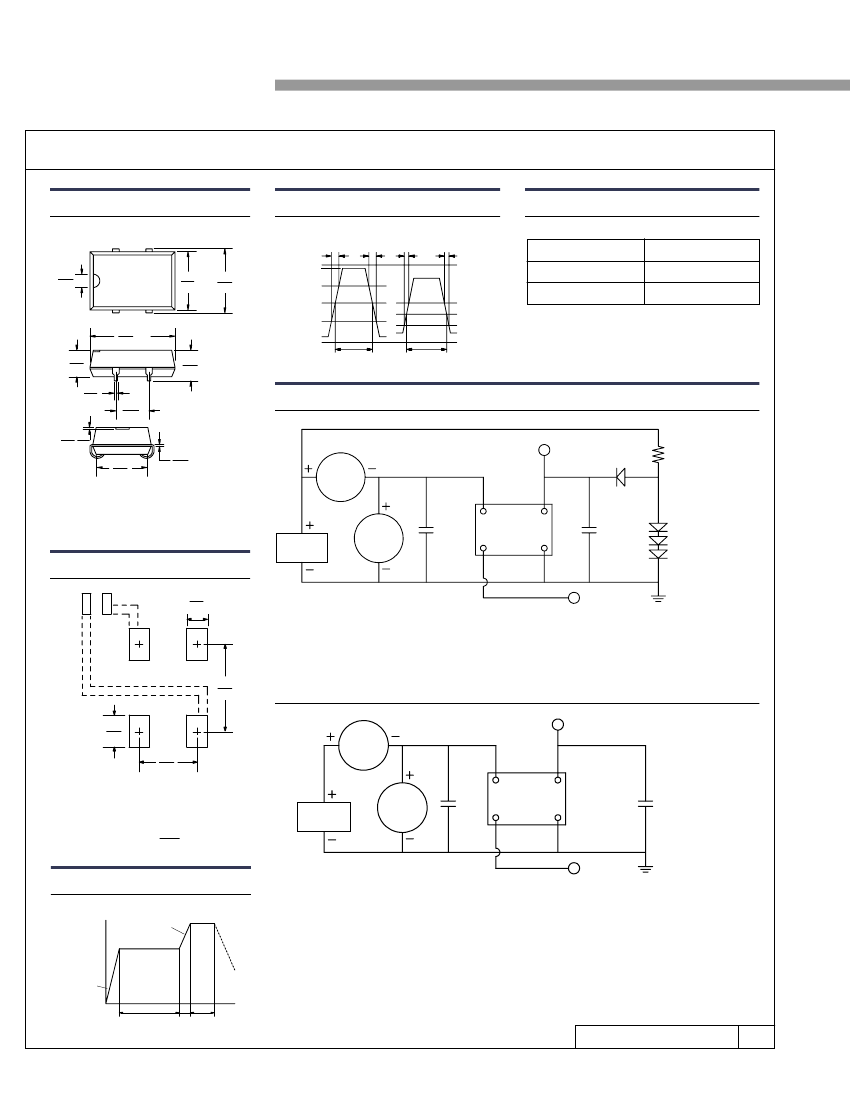

Technical Data
Package Details, Type H
4
3
LOGIC 1
8.95
.352
9.80
max
.386
80% V
DD
50% V
DD
20% V
DD
LOGIC 0
4.7
max
.185
0.51
.020
SYMMETRY
SYMMETRY
2.5 VDC
1.5 VDC
0.5 VDC
GND
PrO
TM
S8002 Plastic Series
Output Waveform
CMOS
T
r
T
f
T
r
TTL
T
f
V
DD
Tri-State or Standby Logic Table
Pin 1 Input
Logic 1 or NC
Logic 0 or GND
Pin 3 Output
Oscillation
High Impedance/Standby
SARONIX
YYWW
2.0
.079
50.0000 MHz
S8002HSHB
1
2
13.0
max
.512
4.10
.161
Required Input Levels on Pin 1:
Logic 1 = 2.0V min
Logic 0 = 0.8V max
5.08
.200
Test Circuits
0.15
.006
7.62
.300
0.25
.010
TEST
POINT
mA
M
Pin 4
Pin 3
OUT
V
CC
OSCILLATOR
GND
Pin 2
C
L
= 15pF
( Note A )
R
L
= 390Ω
1 to 40MHz
R
L
= 780Ω
40+ to 125MHz
Pin Function:
Pin 1: Tri-State Control
Pin 2: GND
Pin 3: Output
Pin 4: +5 VDC
POWER
SUPPLY
VM
.01µF
( Note B )
Pin 1
MMBD7000 or Equiv
Recommended Land Pattern
*
1.78
.070
TRI-STATE INPUT
NOTE: A. C
L
includes probe and fixture capacitance.
NOTE: B. An external .01µF bypass capacitor close to
package ground and V
CC
pin is required
4
3
7.80
.307
FIGURE 1 - TTL TEST CIRCUIT, 5V OPERATION
1
2.82
.111
5.08
.200
2
mA
M
Pin 4
V
CC
TEST
POINT
Pin 3
OUT
GND
Pin 2
C
L
= 50pF, 1 to 50MHz
C
L
= 20pF, 50+ to 125 MHz
( Note A )
*
External high frequency power supply
decoupling required.
Scale: None ( Dimensions in
mm
)
inches
POWER
SUPPLY
VM
.01µF
( Note B )
Pin 1
OSCILLATOR
Solder Reflow Guide
Temperature – °C
TRI-STATE INPUT
NOTE: A. C
L
includes probe and fixture capacitance.
NOTE: B. An external .01µF bypass capacitor close to
package ground and V
CC
pin is required
FIGURE 2 - HCMOS TEST CIRCUIT, 5V OPERATION
250
200
150
Reflow 240 max
4°C/sec max
Preheat 183 ±10°C
Cooling
4°C/sec max
All specifications are subject to change without notice.
Time
1 – 2 minutes
10 sec max
DS-186
REV C
SaRonix
141 Jefferson Drive • Menlo Park CA 94025 • USA • 650-470-7700 • 800-227-8974 • Fax 650-462-9894
