MDF7-46D-2.54DSA(01) datasheet, PDF

MDF7-46D-2.54DSA(01): Description46 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size797KB，7 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

MDF7-46D-2.54DSA(01) Overview

46 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
Other features	PACKAGING IN 100 PIECES
body width	0.394 inch
subject depth	0.197 inch
body length	2.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.3924 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	MDF7
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	8.509 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	46
UL Flammability Code	94V-0
Evacuation force-minimum value	.3892 N

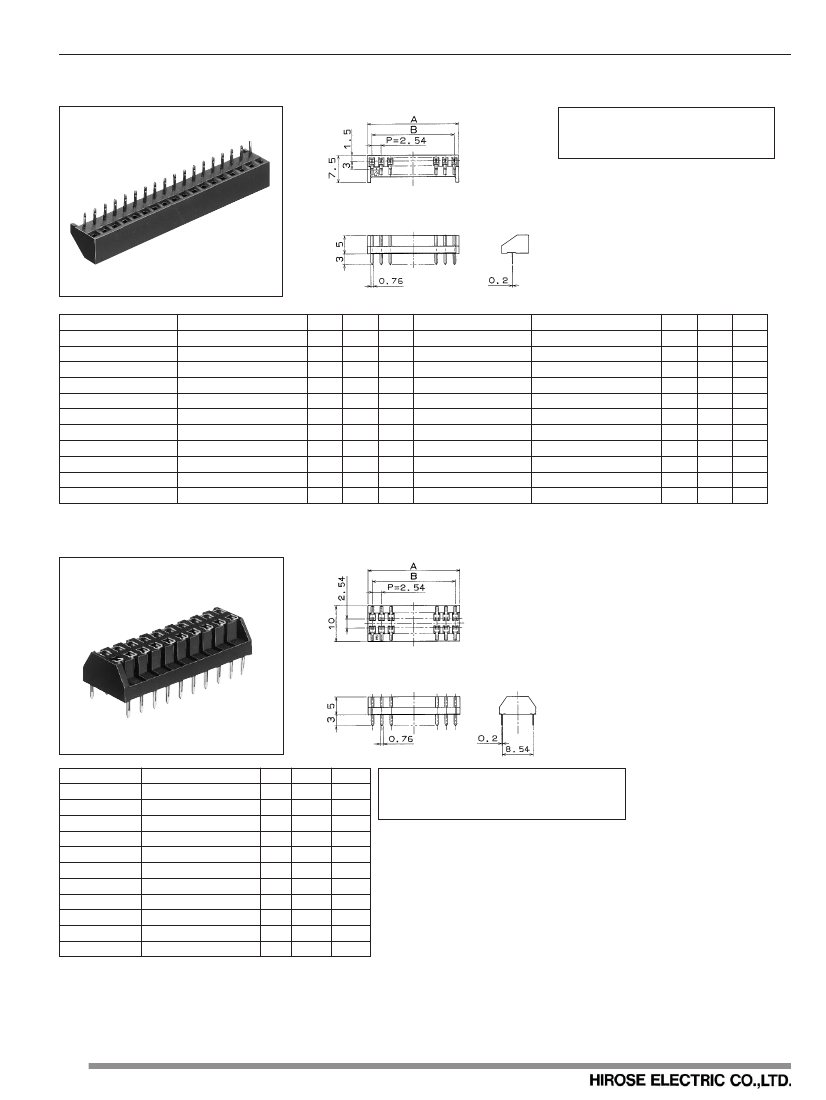

MDF7 Series (2.54mm Pitch)

Nylon Connectors

MDF7 SERIES

2.54 mm Pitch Bottom Entry Type Connector

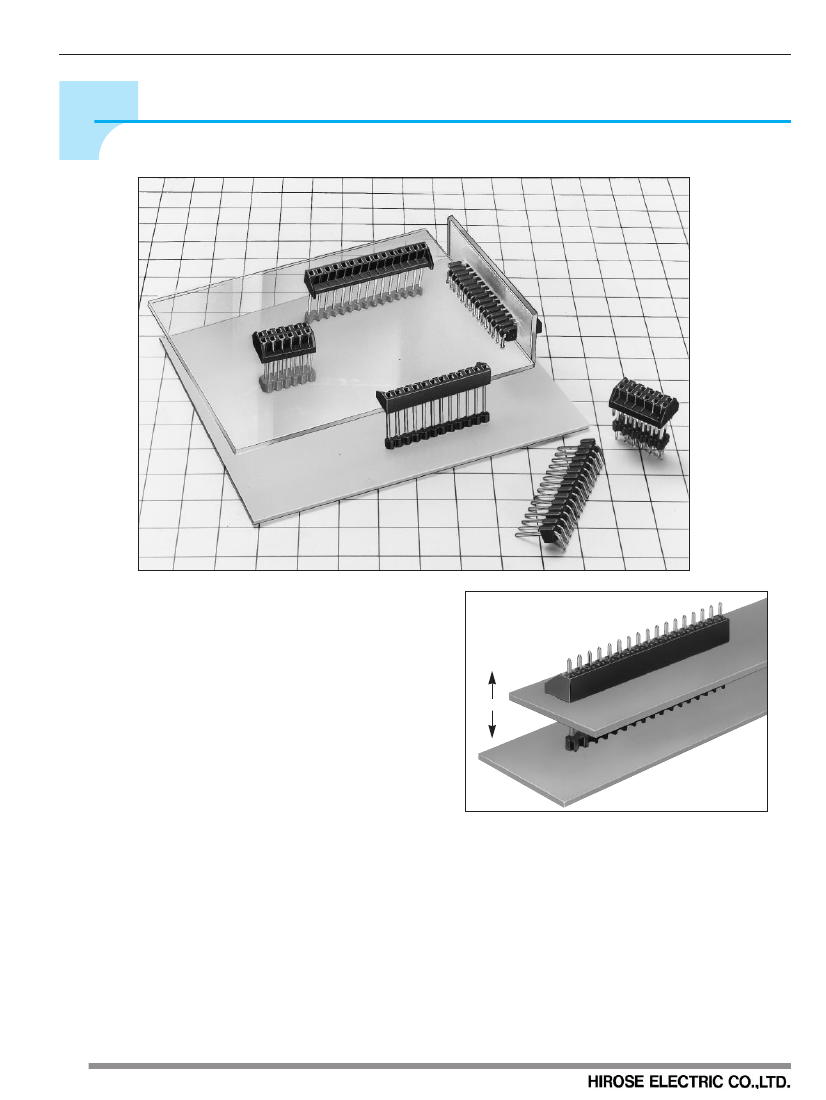

Features

1. Board-to-board distance can be freely set.

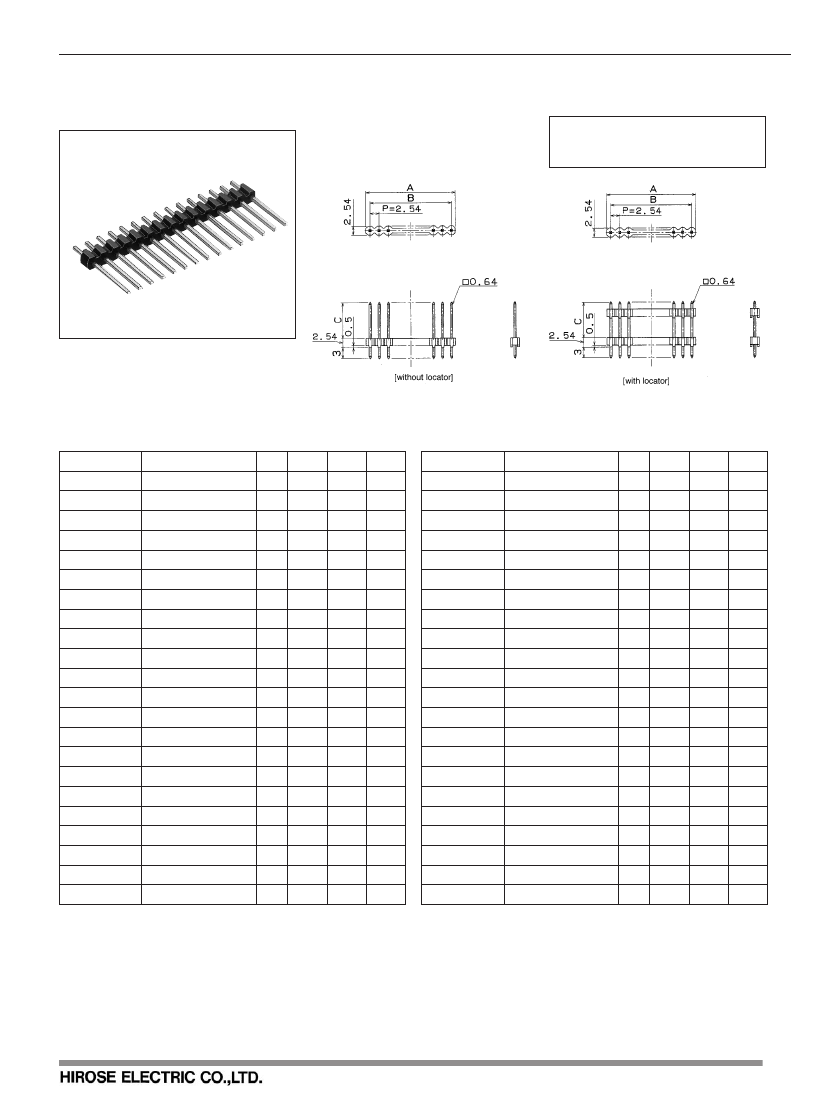

Pass-through construction header pins and many header variations

allow you set the board-to-board steplessly.

2. Arrangement of component sides

Components sides of two boards can be arranged on the same side,

without facing each other.

3. Many variations

Single-row, double-row, tin-plated, and gold-plated models are

available, as are various types of headers to suit board-to-board

distance requirements. For board-to-boards distances not specified

in our catalog, please contact us.

Board-to-board

distance can be

set steplessly.

Applications

Telephones, internal connections of OA/FA equipment, connection

of IPM and IGBT to boards
