M37500E5GP: DescriptionMicrocontroller, 8-Bit, OTPROM, MELPS740 CPU, 8MHz, CMOS, PQFP176, 24 X 24 MM, 0.50 MM PITCH, PLASTIC, QFP-176; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，41 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M37500E5GP Overview

Microcontroller, 8-Bit, OTPROM, MELPS740 CPU, 8MHz, CMOS, PQFP176, 24 X 24 MM, 0.50 MM PITCH, PLASTIC, QFP-176

M37500E5GP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	QFP
package instruction	LFQFP, QFP176,1.0SQ,20
Contacts	176
Reach Compliance Code	unknown
Has ADC	NO
Other features	2V DATA RETENTION; 2.5 TO 5.5 @ 650KH
Address bus width
bit size	8
boundary scan	NO
CPU series	MELPS740
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G176
JESD-609 code	e0
length	24 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	5
Number of I/O lines	42
Number of serial I/Os	2
Number of terminals	176
Number of timers	5
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP176,1.0SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	640
RAM (number of words)	640
rom(word)	20000
ROM programmability	OTPROM
Maximum seat height	1.7 mm
speed	8 MHz
Maximum slew rate	13 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

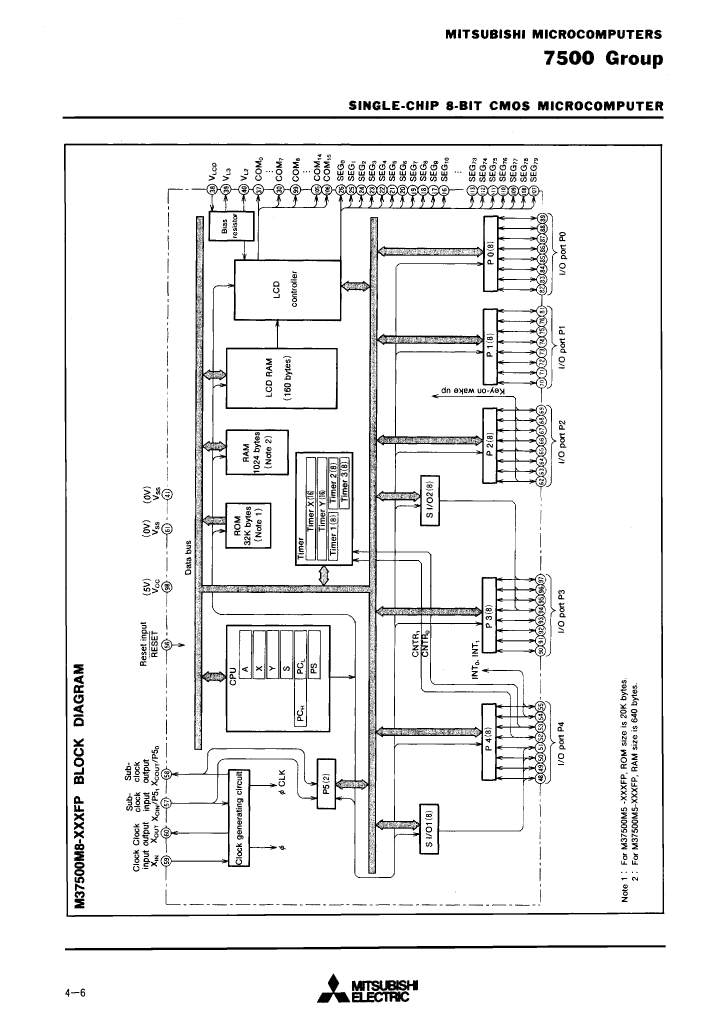

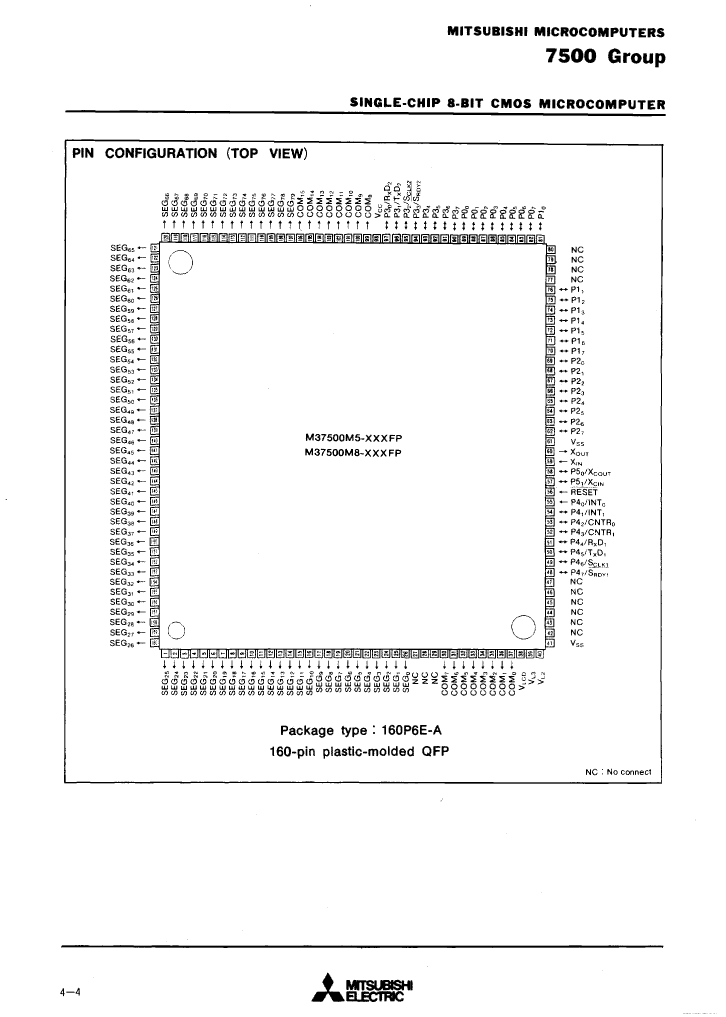

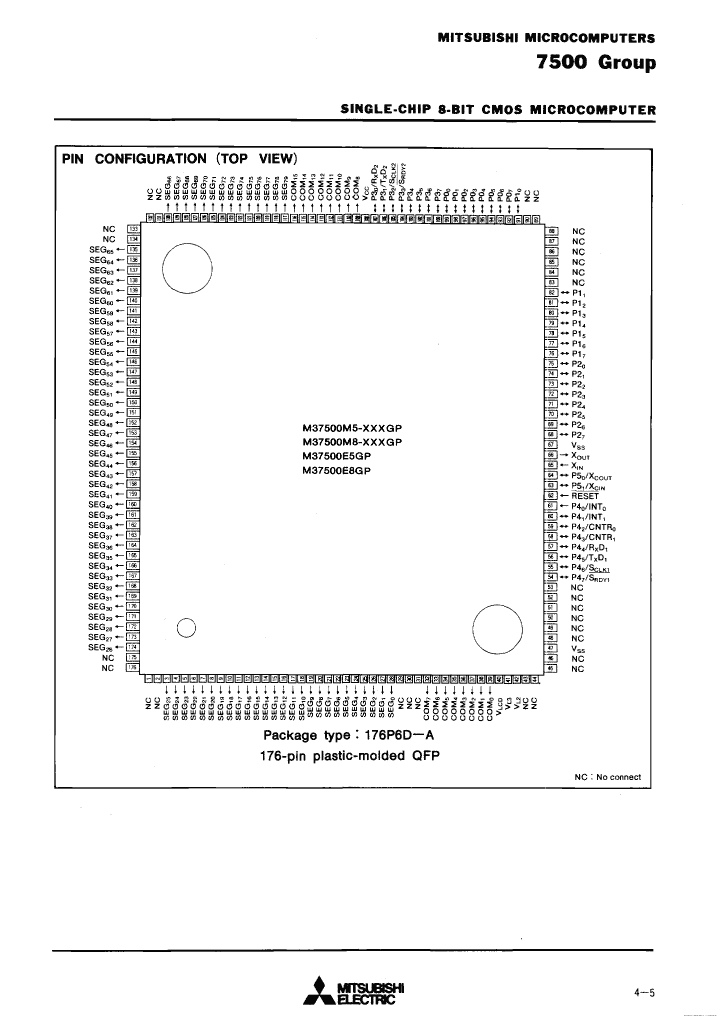

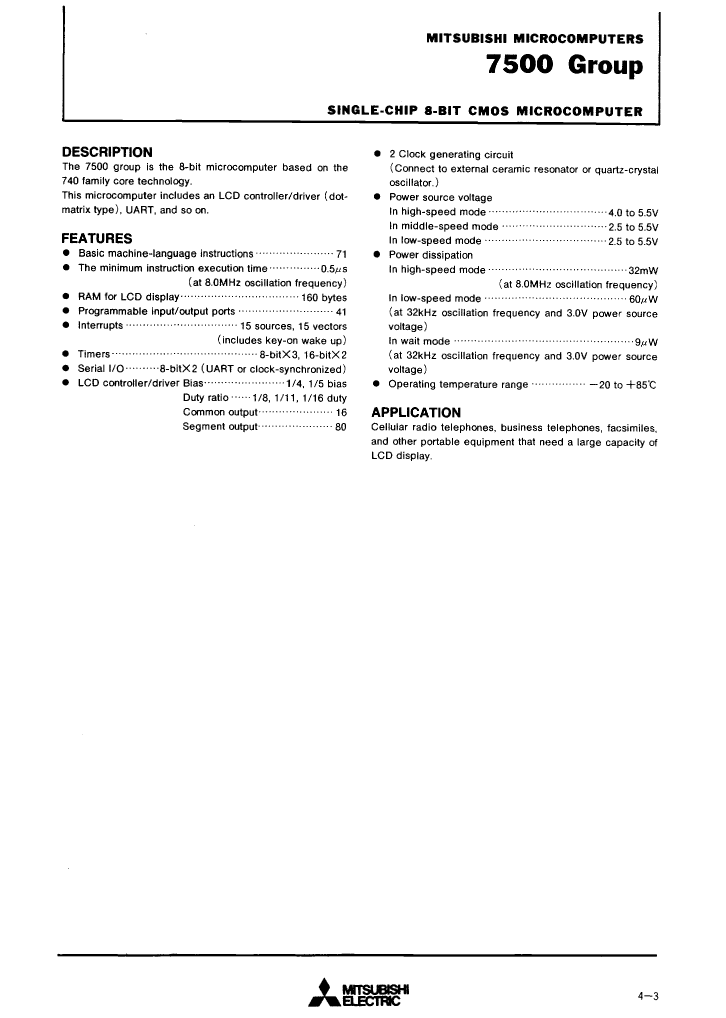

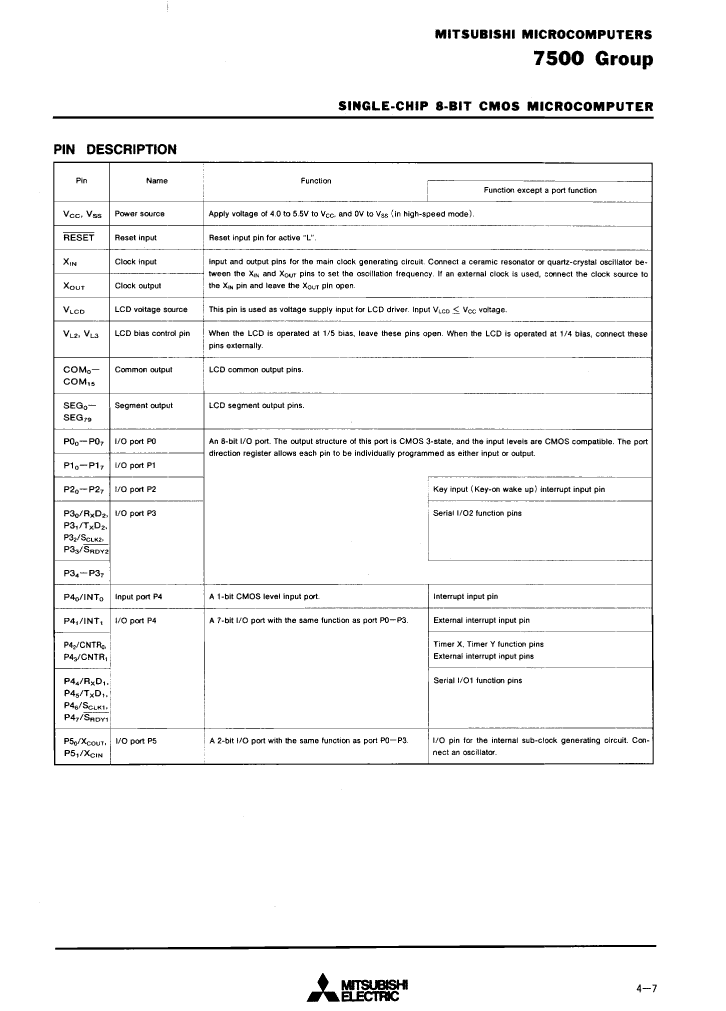

Preview

Download Datasheet

View All

M37500E5GP Related Products

	M37500E5GP	M37500E8-001GP	M37500E5-001GP
Description	Microcontroller, 8-Bit, OTPROM, MELPS740 CPU, 8MHz, CMOS, PQFP176, 24 X 24 MM, 0.50 MM PITCH, PLASTIC, QFP-176	Microcontroller, 8-Bit, OTPROM, 8MHz, CMOS, PQFP176, 24 X 24 MM, 0.50 MM PITCH, PLASTIC, QFP-176	Microcontroller, 8-Bit, OTPROM, 8MHz, CMOS, PQFP176, 24 X 24 MM, 0.50 MM PITCH, PLASTIC, QFP-176
Maker	Mitsubishi	Mitsubishi	Mitsubishi
Parts packaging code	QFP	QFP	QFP
package instruction	LFQFP, QFP176,1.0SQ,20	LFQFP,	LFQFP,
Contacts	176	176	176
Reach Compliance Code	unknown	unknown	unknown
Has ADC	NO	NO	NO
Other features	2V DATA RETENTION; 2.5 TO 5.5 @ 650KH	1 K BYTES RAM	640 BYTES RAM
bit size	8	8	8
maximum clock frequency	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	S-PQFP-G176	S-PQFP-G176	S-PQFP-G176
length	24 mm	24 mm	24 mm
Number of I/O lines	42	42	42
Number of terminals	176	176	176
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	LFQFP	LFQFP
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK, LOW PROFILE, FINE PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified
ROM programmability	OTPROM	OTPROM	OTPROM
Maximum seat height	1.7 mm	1.7 mm	1.7 mm
speed	8 MHz	8 MHz	8 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD
width	24 mm	24 mm	24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
