EZJ22HSCH datasheet, PDF - EEWORLD Datasheet

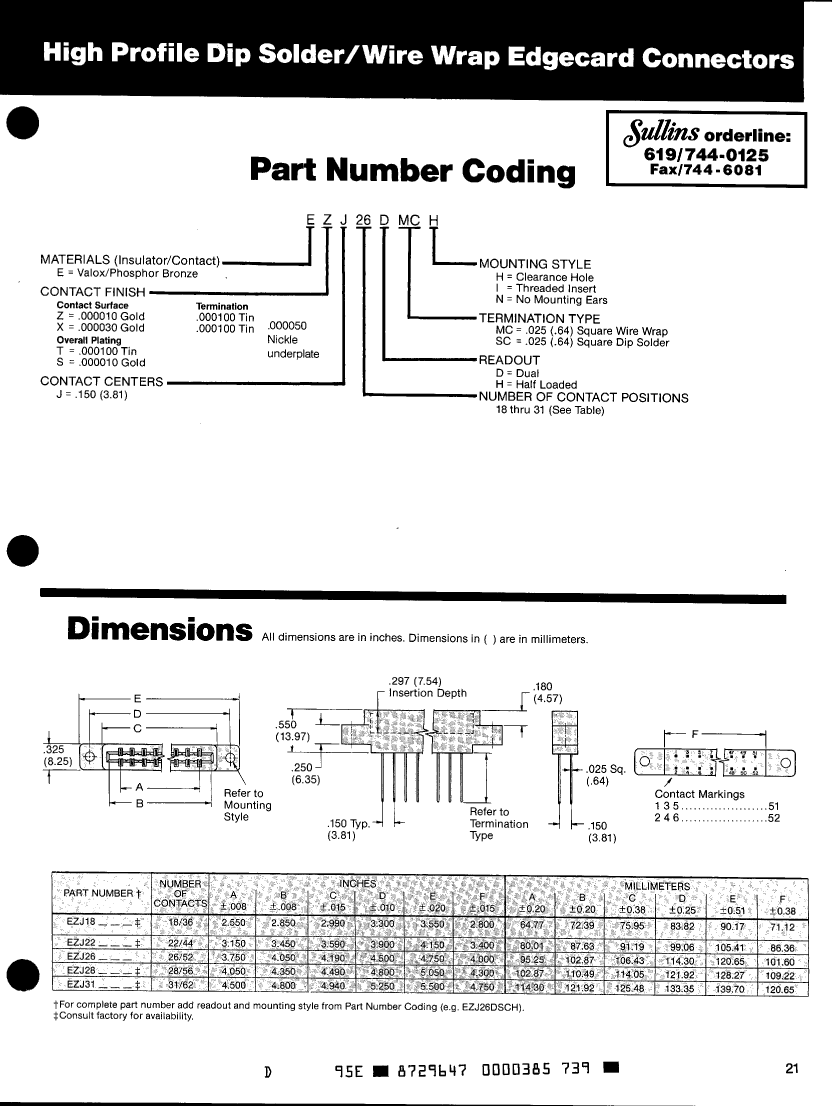

EZJ22HSCH: DescriptionCard Edge Connector, 22 Contact(s), 1/2 LOADED Row(s), Straight, 0.15 inch Pitch, Solder Terminal, Hole .125-.137, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size328KB，3 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric View All

EZJ22HSCH Overview

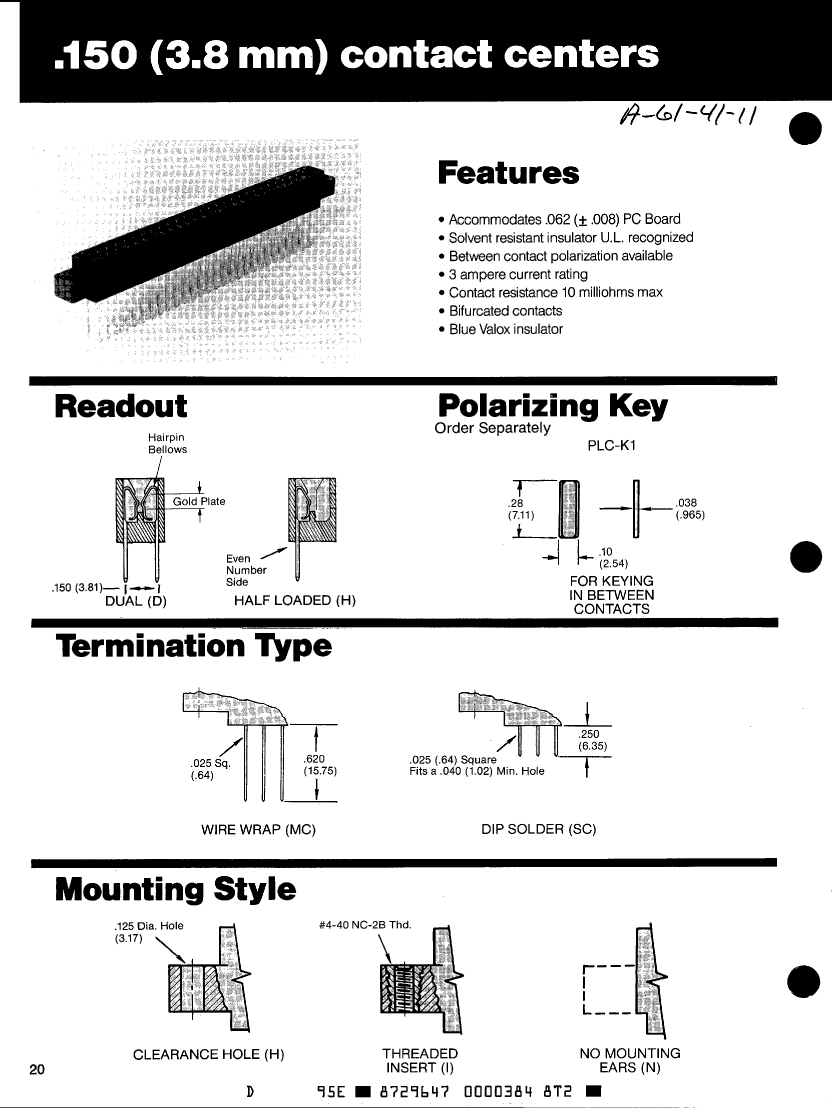

Card Edge Connector, 22 Contact(s), 1/2 LOADED Row(s), Straight, 0.15 inch Pitch, Solder Terminal, Hole .125-.137, Blue Insulator, Receptacle

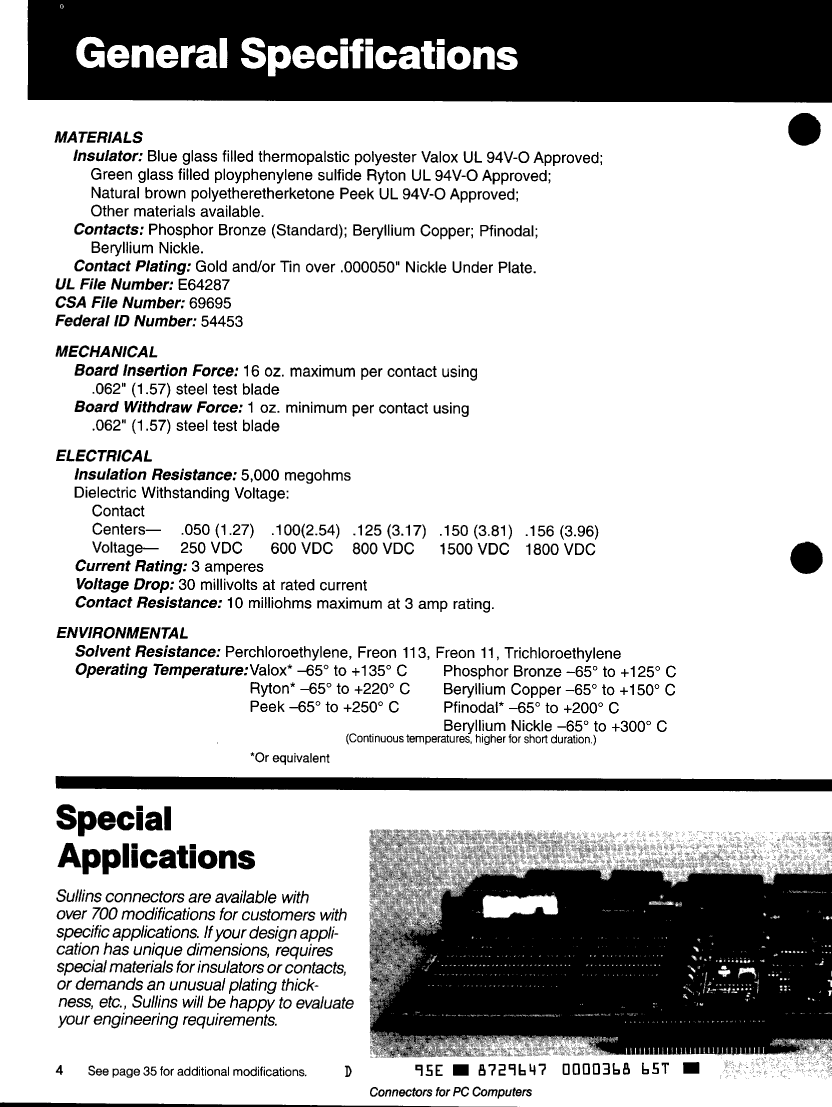

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	NONE
body width	0.325 inch
subject depth	0.55 inch
body length	4.15 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1500VDC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	EZJ
Plug contact pitch	0.15 inch
Match contact row spacing	0.15 inch
Installation option 1	HOLE .125-.137
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1,(1/2 LD)
Number of rows loaded	1/2 LOADED
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.25 inch
Terminal pitch	3.81 mm
Termination type	SOLDER
Total number of contacts	22
Evacuation force-minimum value	.278 N
Base Number Matches	1
