LS404D1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LS404D1

LS404D1: DescriptionQUAD OP-AMP, 1000uV OFFSET-MAX, 3MHz BAND WIDTH, PDSO14, SO-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size841KB，12 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

LS404D1 Overview

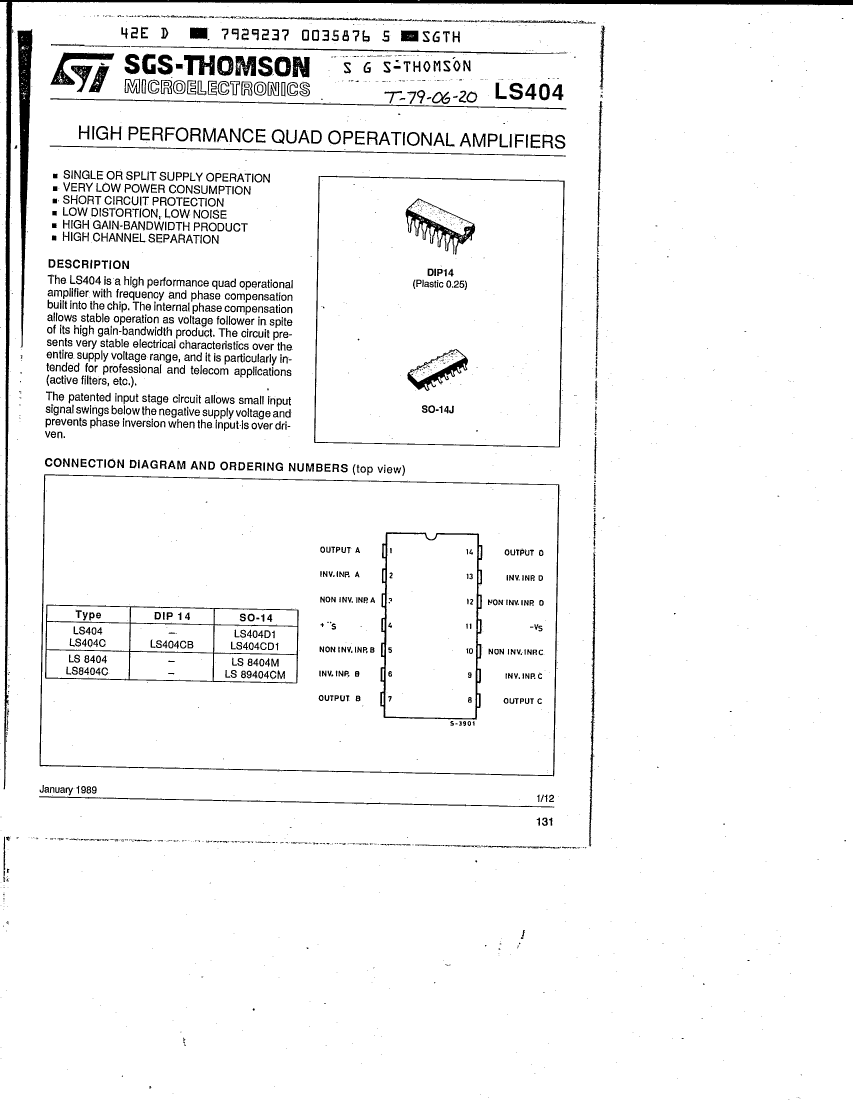

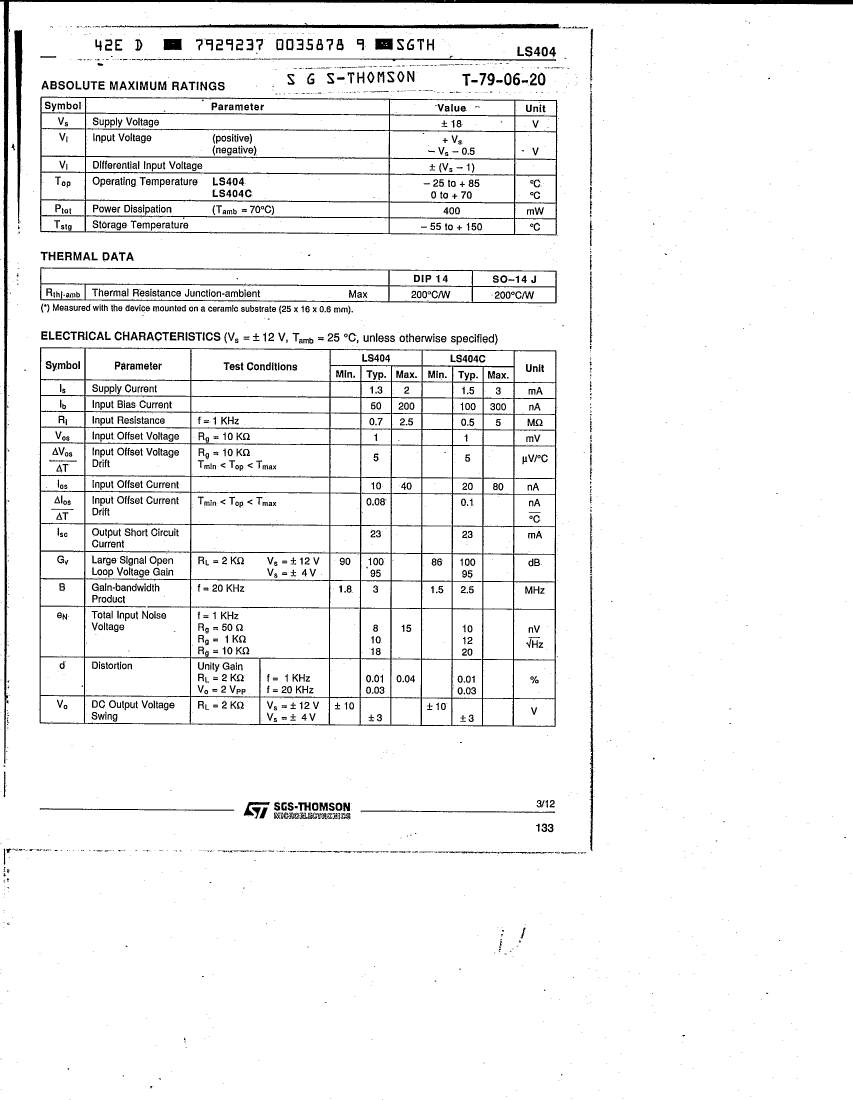

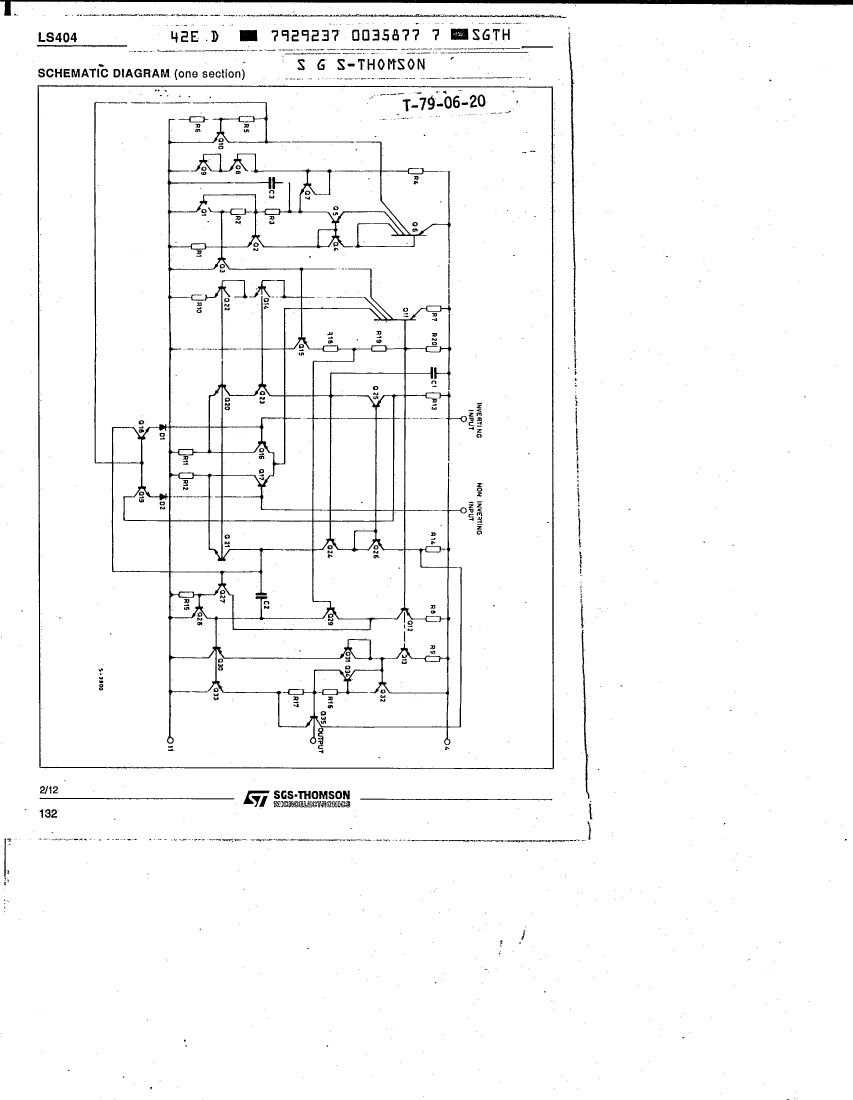

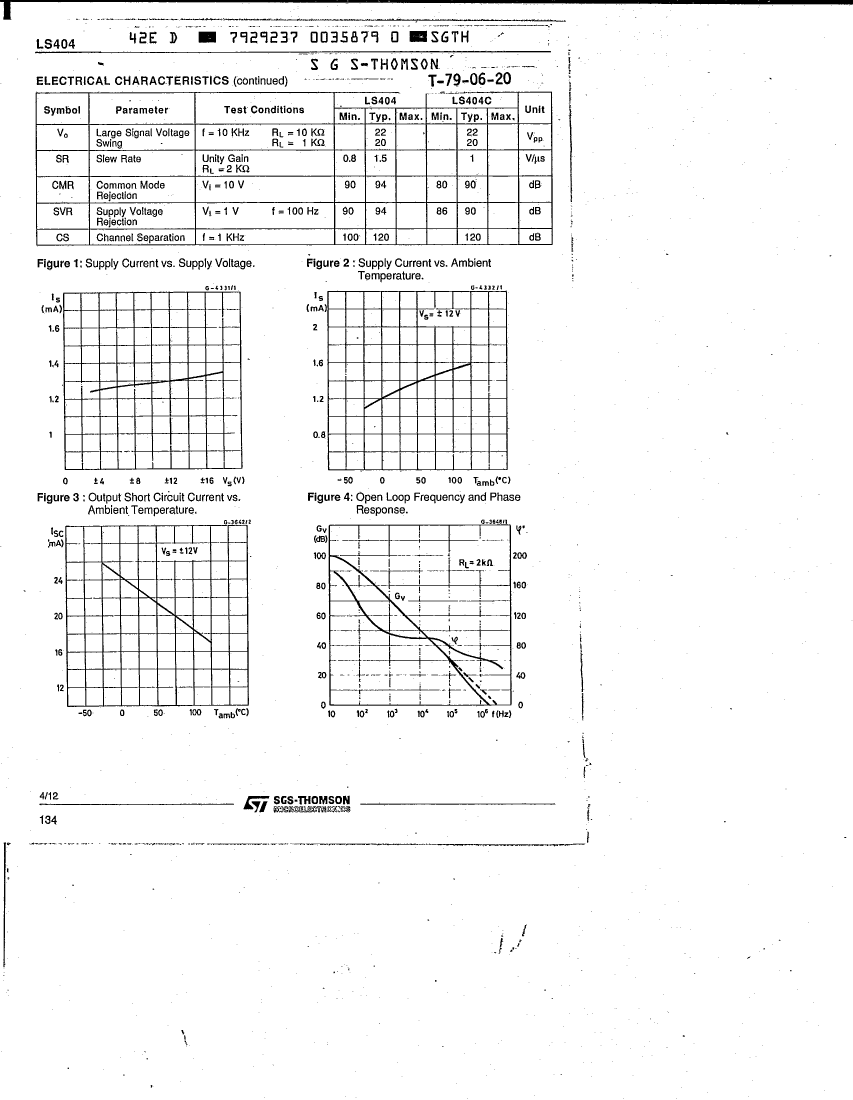

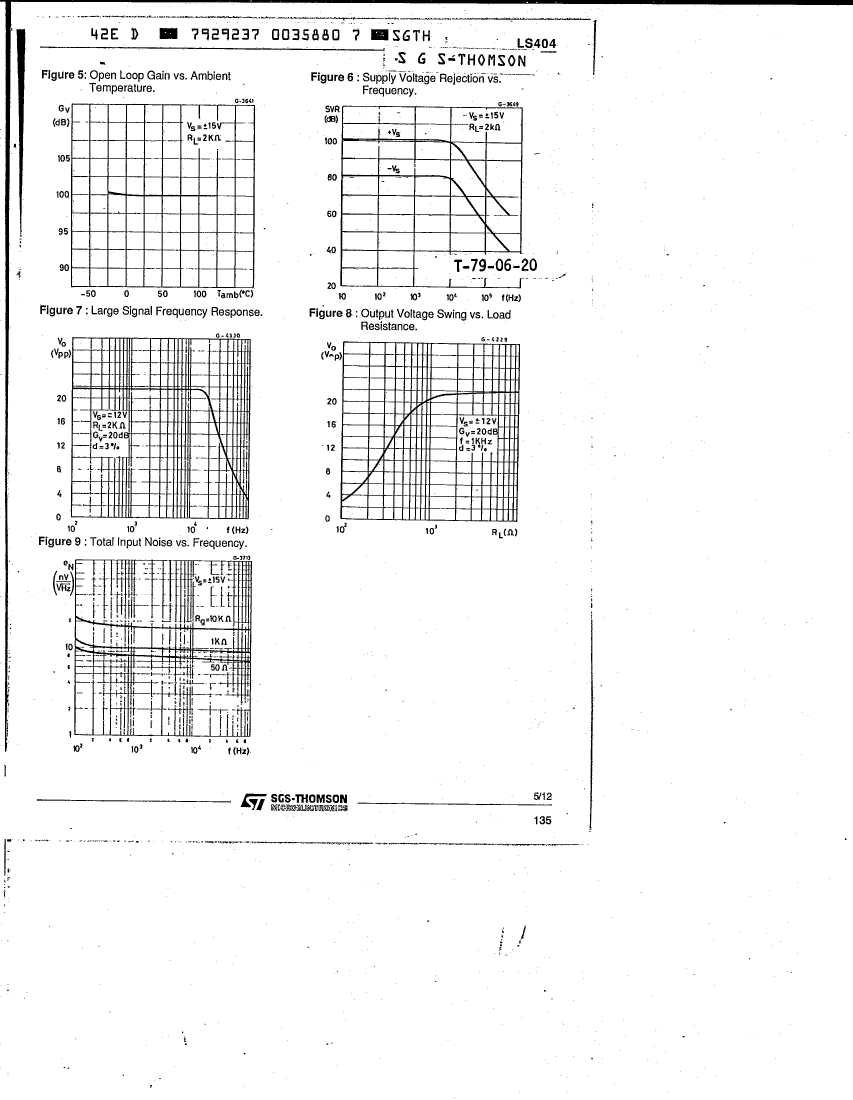

QUAD OP-AMP, 1000uV OFFSET-MAX, 3MHz BAND WIDTH, PDSO14, SO-14

LS404D1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SO-14
Contacts	14
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.2 µA
Maximum bias current (IIB) at 25C	0.2 µA
Nominal Common Mode Rejection Ratio	94 dB
frequency compensation	YES
Maximum input offset voltage	1000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
low-dissonance	NO
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-12 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-12 V
Certification status	Not Qualified
minimum slew rate	0.8 V/us
Nominal slew rate	1.5 V/us
Maximum slew rate	2 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	12 V
surface mount	YES
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	3000 kHz
Minimum voltage gain	31620

Preview

Download Datasheet

View All

LS404D1 Related Products

	LS404D1	LS8404CM	LS8404M	LS404CB	LS404CD1
Description	QUAD OP-AMP, 1000uV OFFSET-MAX, 3MHz BAND WIDTH, PDSO14, SO-14	QUAD OP-AMP, 1000uV OFFSET-MAX, 2.5MHz BAND WIDTH, PDSO14, SO-14	QUAD OP-AMP, 1000uV OFFSET-MAX, 3MHz BAND WIDTH, PDSO14, SO-14	QUAD OP-AMP, 1000uV OFFSET-MAX, 2.5MHz BAND WIDTH, PDIP14, 0.250 INCH, PLASTIC, DIP-14	QUAD OP-AMP, 1000uV OFFSET-MAX, 2.5MHz BAND WIDTH, PDSO14, SO-14
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	SOIC	SOIC	SOIC	DIP	SOIC
package instruction	SO-14	SO-14	SO-14	DIP, DIP14,.3	SO-14
Contacts	14	14	14	14	14
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.2 µA	0.3 µA	0.2 µA	0.3 µA	0.3 µA
Maximum bias current (IIB) at 25C	0.2 µA	0.3 µA	0.2 µA	0.3 µA	0.3 µA
Nominal Common Mode Rejection Ratio	94 dB	90 dB	94 dB	90 dB	90 dB
frequency compensation	YES	YES	YES	YES	YES
Maximum input offset voltage	1000 µV	1000 µV	1000 µV	1000 µV	1000 µV
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14
low-dissonance	NO	NO	NO	NO	NO
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-12 V	-12 V	-12 V	-12 V	-12 V
Number of functions	4	4	4	4	4
Number of terminals	14	14	14	14	14
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	DIP	SOP
Encapsulate equivalent code	SOP14,.25	SOP14,.25	SOP14,.25	DIP14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	225	225	NOT SPECIFIED	NOT SPECIFIED
power supply	+-12 V	+-12 V	+-12 V	+-12 V	+-12 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	1.5 V/us	1 V/us	1.5 V/us	1 V/us	1 V/us
Maximum slew rate	2 mA	3 mA	2 mA	3 mA	3 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	12 V	12 V	12 V	12 V	12 V
surface mount	YES	YES	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	COMMERCIAL	OTHER	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	3000 kHz	2500 kHz	3000 kHz	2500 kHz	2500 kHz
Minimum voltage gain	31620	20000	31620	20000	20000
Maker	STMicroelectronics	-	-	STMicroelectronics	STMicroelectronics
JESD-609 code	e0	-	-	e0	e0
Terminal surface	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
