B22PS-TBA: DescriptionBoard Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,; CategoryThe connector The connector; File Size155KB，1 Pages; ManufacturerJST

Download Datasheet Parametric View All

B22PS-TBA Overview

Board Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

B22PS-TBA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
Other features	SIDE ENTRY
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	TB
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	22
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

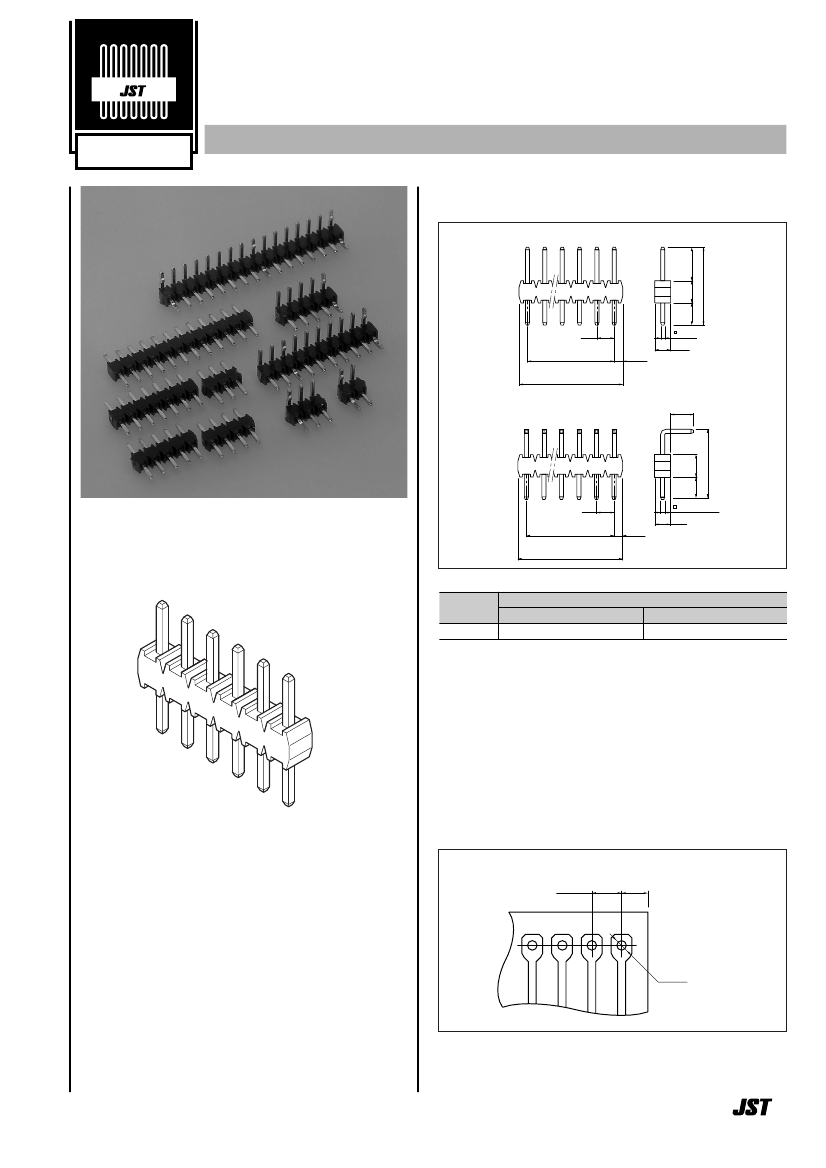

TB

HEADER

2.5mm

pitch

Headers

Header –––––––––––––––––––––––––––––

Top entry type

B

2.5

2.5x(N-1)

2.5xN

1.25

0.64

2.4

Side entry type

B

This header, measuring 2.5mm in pitch,

can be easily cut into any required length.

Thus, only one size needs to be stocked

for prototyping and preproduction

purposes.

2.5

2.5x(N-1)

2.5xN

1.25

0.64

2.4

Note: N --- Number of circuits

Circuits

2 to 24

Model No.

Top entry type

B ( )P-TB ( * )

Side entry type

B ( )PS-TB ( * )

RoHS compliance

This product displays (LF)(SN) on a label.

Note:

1. The number of circuits (2 to 24) will be filled in the parentheses above.

2. ( * ) differs according to the dimensions A, B & C, and to the post clinching

specification.

Contact JST for details.

Specifications –––––––––––––––––

• Current rating: 3A AC, DC

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Post: Brass, copper-undercoated tin-plated

(reflow treatment)

• Wafer: Glass-filled PBT, UL94V-0

• Pitch: 2.5mm

• Number of circuits: 2 to 24

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

PC board layout

(viewed from soldering side)

––

2.5±0.05

1.25min.

φ

0.9

+0.1

0

Specifications –––––––––––––––––

0

Recognized E60389

Note:

1. Tolerances are non-cumulative: ±0.05mm for all centers.

2. Hole dimensions differ according to the kind of PC board and piercing

method. The dimensions above should serve as a guideline.

Contact JST for details.

A

3.3

C

A

3.3

C

1

Recommended Resources

Synchronous counter circuit structure and signal waveform

Directly start the reactive power local compensation circuit

BL0509 type application connection circuit

Reference power supply circuit diagram using op amp

555 multi-purpose electronic therapy and health care device circuit

LD168 audio voltage controlled karaoke 0K lantern lighting control circuit
