B14P-TBC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> B14P-TBC

B14P-TBC: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerJST

Download Datasheet Parametric View All

B14P-TBC Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

B14P-TBC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
Other features	TOP ENTRY
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	TB
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

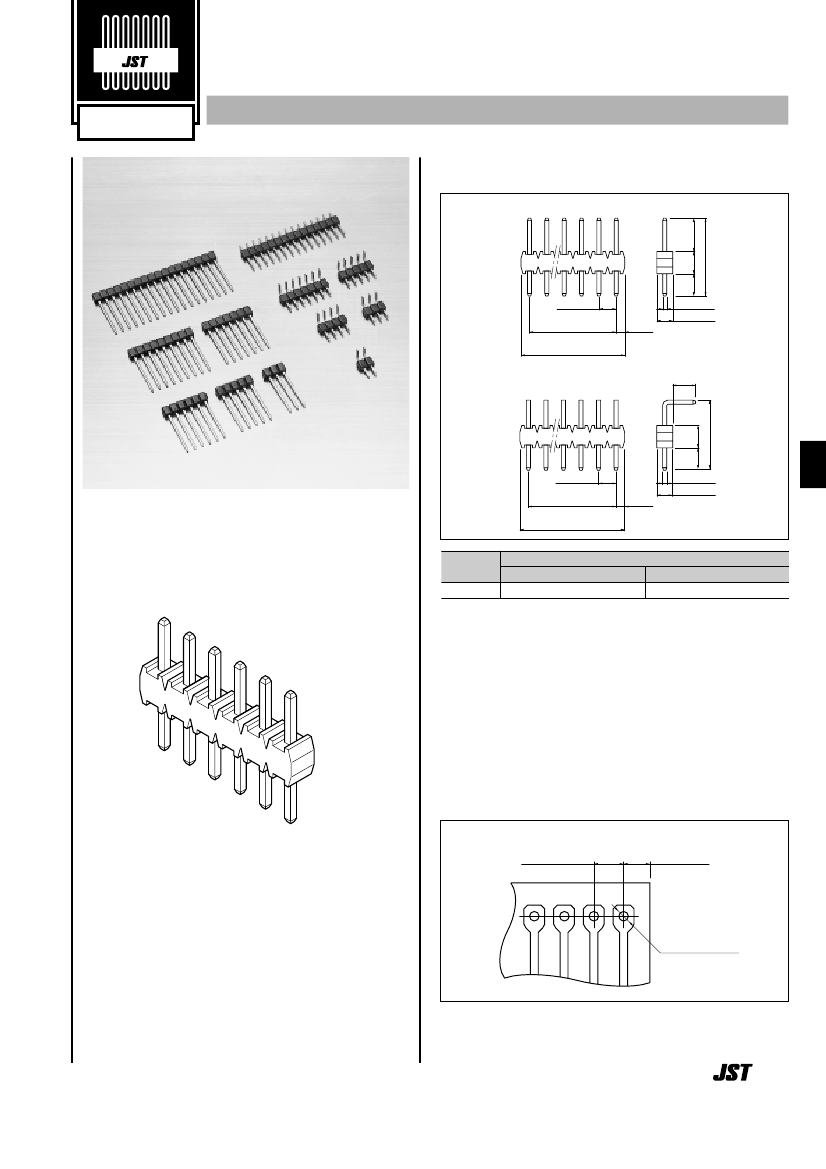

HEADER

2.5mm

(.098") pitch

Headers

Header –––––––––––––––––––––––––––––

Top entry type

2.5(.098)

2.5(.098) x (number

of circuits -1)

2.5(.098) x

number of circuits

1.25

(.049)

0.64 (.025)

2.4 (.094)

Side entry type

2.5(.098)

This header, measuring 2.5mm (.098") in

pitch, can be easily cut into any required

length. Thus, only one size needs to be

stocked for prototyping and

preproduction purposes.

2.5(.098)X (number

of circuits -1)

2.5(.098)x

number of circuits

1.25

(.049)

0.64 (.025)

2.4 (.094)

Circuits

2 to 24

Model No.

Top entry type

B ( )P-TB ( * )

Side entry type

B ( )PS-TB ( * )

Note:

1. The number of circuits (2 to 24)will be filled in the parentheses above.

2. ( * ) differs according to the dimensions A, B & C, and to the post clinching

specification.

PC board layout

(viewed from soldering side)

––

2.5

0.05

(.094

.002)

1.25

(.049)min.

Specifications –––––––––––––––––

• Number of circuits: 2 to 24

• Applicable PC board thickness: 1.6mm(.063")

• Post size:0.5mm(.020")square

• Material

Post: Brass, tin/lead plated, copper-undercoatd

Wafer: Grass-filled PBT, UL94V-0

* Contact JST for details.

0.9

+0.1

(.035

+.004

)

dia.

Specifications –––––––––––––––––

Recognized E60389

Note:

1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.

2. Hole dimensions differ according to the kind of PC board and piercing

method. The dimensions above should serve as a guideline.

Contact JST for details.

3.3

A (.130)

3.3

A (.130)

451

Recommended Resources

Power supply circuit of notebook computer using RT9181 chip

Timing control circuit (4)

TDA1516BTL power amplifier

Simple nickel-cadmium battery charging device

Unidirectional thyristor AC voltage regulating circuit

Continuous flash photography control circuit

Disassembling Sharp TV Remote Control: Before dismantlingFamily photo, the spring below is electroplated with vinegar, so it has a copper color.was quite dirty, so I used ultrasonic cleaning.Vinegar for electroplatingCleaned the spring and...; xutong Making friends through disassembly

5G → Original Space → chatGPT: [i=s]This post was last edited by btty038 on 2023-2-12 16:10[/i]Will this spark an industrial revolution?...; btty038 RF/Wirelessly

Circuit protection devices protect mobile devices from ESD: [i=s]This post was last edited by qwqwqw2088 on 2023-2-12 19:54[/i]The increasingly complex demands of mobile device users have led to the design of portable products integrating more input/output (I/...; qwqwqw2088 Analogue and Mixed Signal

【Xiaohua HC32F4A0】RTT command line lights up the LED: 【Xiaohua HC32F4A0】First look at the industrial-grade high-performance development board 【Xiaohua HC32F4A0】Zero code flashing light 【Xiaohua HC32F4A0】RTT —UART Hello world https://bbs.eeworld.com.cn/th...; lugl4313820 Domestic Chip Exchange

【Xiaohua HC32F4A0】RTT OLED Thermohygrometer: 【Xiaohua HC32F4A0】First look at the industrial-grade high-performance development board 【Xiaohua HC32F4A0】Zero code flashing light 【Xiaohua HC32F4A0】RTT command line lights up the LED 【Xiaohua HC32F4A...; lugl4313820 Domestic Chip Exchange

Infineon Motor Kit EVAL-IMOTION2GO Study Notes 4: [i=s]This post was last edited by my student number on 2023-2-12 23:31[/i]Since this evaluation will use the UART peripheral of the IMOTION2GO kit, here is a simple note Mainly refer to the official d...; 我的学号 Motor Drive Control（Motor Control）
