B4P-TBC: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size58KB，1 Pages; ManufacturerJST

Download Datasheet Parametric View All

B4P-TBC Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

B4P-TBC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
Other features	TOP ENTRY
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	TIN OVER COPPER
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	TB
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

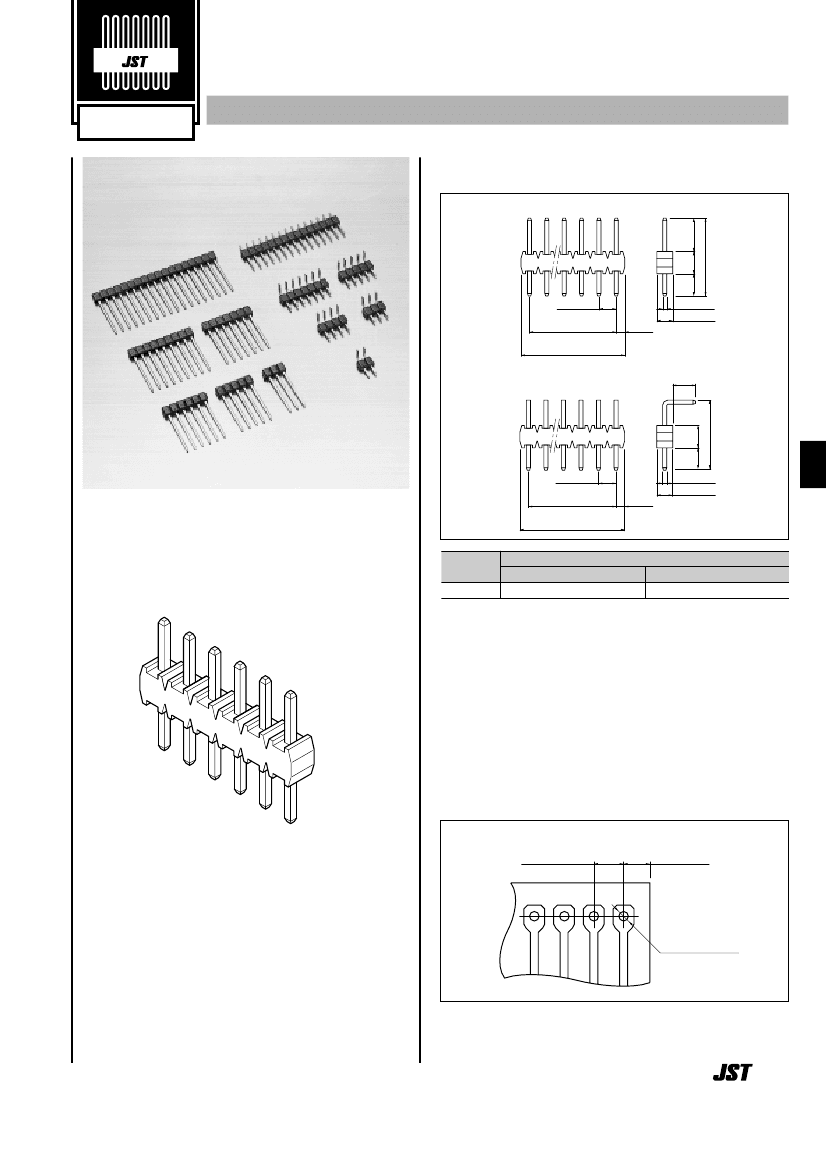

B4P-TBC Preview

TB

HEADER

2.5mm

(.098") pitch

Headers

Header –––––––––––––––––––––––––––––

Top entry type

B

2.5(.098)

2.5(.098) x (number

of circuits -1)

2.5(.098) x

number of circuits

1.25

(.049)

0.64 (.025)

2.4 (.094)

Side entry type

2.5(.098)

This header, measuring 2.5mm (.098") in

pitch, can be easily cut into any required

length. Thus, only one size needs to be

stocked for prototyping and

preproduction purposes.

2.5(.098)X (number

of circuits -1)

2.5(.098)x

number of circuits

1.25

(.049)

0.64 (.025)

2.4 (.094)

Circuits

2 to 24

Model No.

Top entry type

B ( )P-TB ( * )

Side entry type

B ( )PS-TB ( * )

Note:

1. The number of circuits (2 to 24)will be filled in the parentheses above.

2. ( * ) differs according to the dimensions A, B & C, and to the post clinching

specification.

PC board layout

(viewed from soldering side)

––

2.5

±

0.05

(.094

±

.002)

1.25

(.049)min.

Specifications –––––––––––––––––

• Number of circuits: 2 to 24

• Applicable PC board thickness: 1.6mm(.063")

• Post size:0.5mm(.020")square

• Material

Post: Brass, tin/lead plated, copper-undercoatd

Wafer: Grass-filled PBT, UL94V-0

* Contact JST for details.

0.9

+0.1

0

(.035

+.004

)

dia.

0

Specifications –––––––––––––––––

0

Recognized E60389

Note:

1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.

2. Hole dimensions differ according to the kind of PC board and piercing

method. The dimensions above should serve as a guideline.

Contact JST for details.

3.3

A (.130)

C

3.3

A (.130)

C

B

451
