D37S34A4GX00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D37S34A4GX00

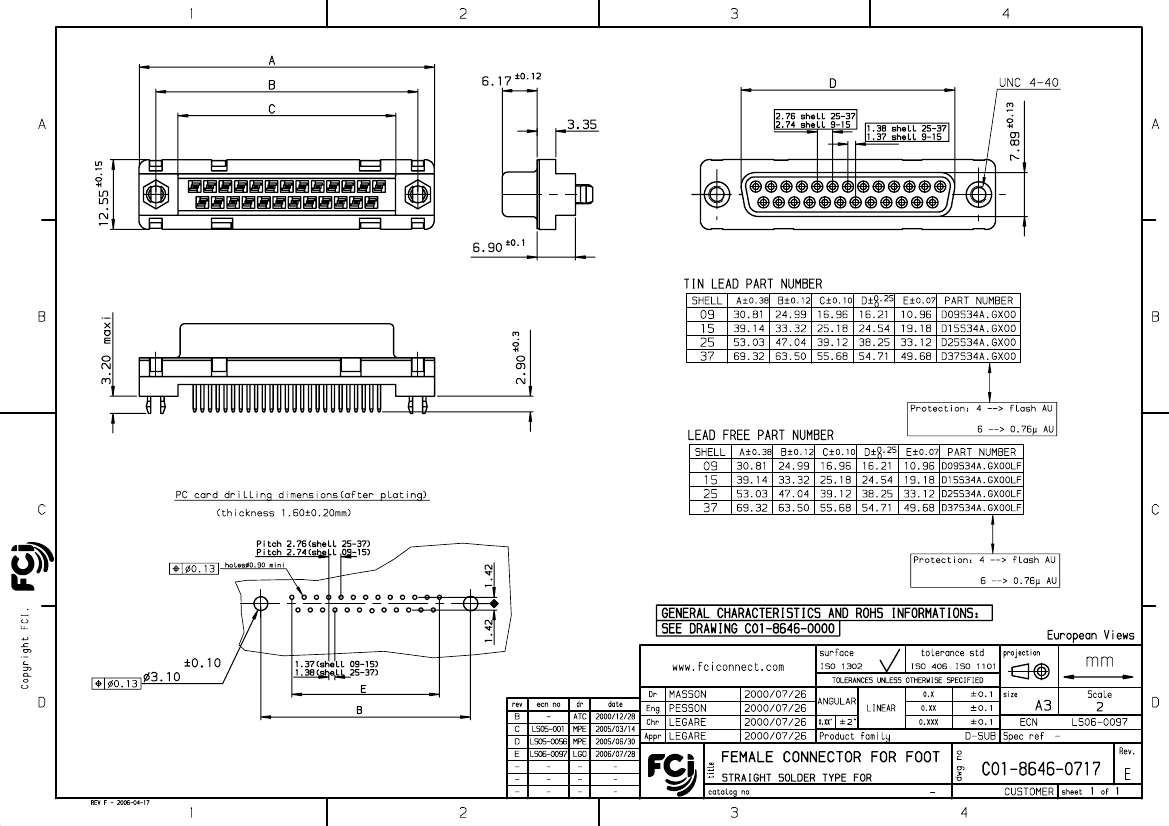

D37S34A4GX00: DescriptionD Subminiature Connector, 37 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D37S34A4GX00 Overview

D Subminiature Connector, 37 Contact(s), Female, Solder Terminal

D37S34A4GX00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	D
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:E

STATUS:

Released

Printed: Jan 18, 2011

D37S34A4GX00 Related Products

	D37S34A4GX00	D09S34A4GX00	D25S34A6GX00LF	D37S34A6GX00LF	D37S34A6GX00	D09S34A6GX00	D15S34A4GX00	D15S34A6GX00	D25S34A4GX00	D25S34A6GX00
Description	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant	unknown	unknown	unknown	unknown	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH	GOLD FLASH	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD FLASH	GOLD (30)	GOLD FLASH	GOLD (30)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	4/C	1/E	3/B	4/C	4/C	1/E	2/A	2/A	3/B	3/B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	37	9	25	37	37	9	15	15	25	25
Maker	Amphenol	Amphenol	-	-	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
Contact completed and terminated	TIN LEAD	TIN LEAD	-	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
insulator material	POLYETHYLENE	POLYETHYLENE	-	-	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e0	e0	-	-	e0	e0	e0	e0	e0	e0
Manufacturer's serial number	D	D	-	D	D	D	D	D	D	-
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Shell surface	TIN	TIN	-	-	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	-	-	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
UL Flammability Code	94V-0	94V-0	-	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
