PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | LEFT/Rt. ROD LOC,UPPER SHIELD |
| Board mount options | POSITIONING PIN |
| body width | 0.433 inch |
| subject depth | 3.902 inch |
| body length | 2.622 inch |
| Body/casing type | RECEPTACLE |
| Connector type | PCMCIA CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 60 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 250VAC V |
| Durability | 10000 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 40.032 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Manufacturer's serial number | 62216 |
| Plug contact pitch | 0.05 inch |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | TWO |
| PCB row number | 1+1 |
| Number of ports | 1 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 60 °C |
| Minimum operating temperature | -20 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Plating thickness | 8u inch |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1.27 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 136 |
| Evacuation force-minimum value | 6.672 N |

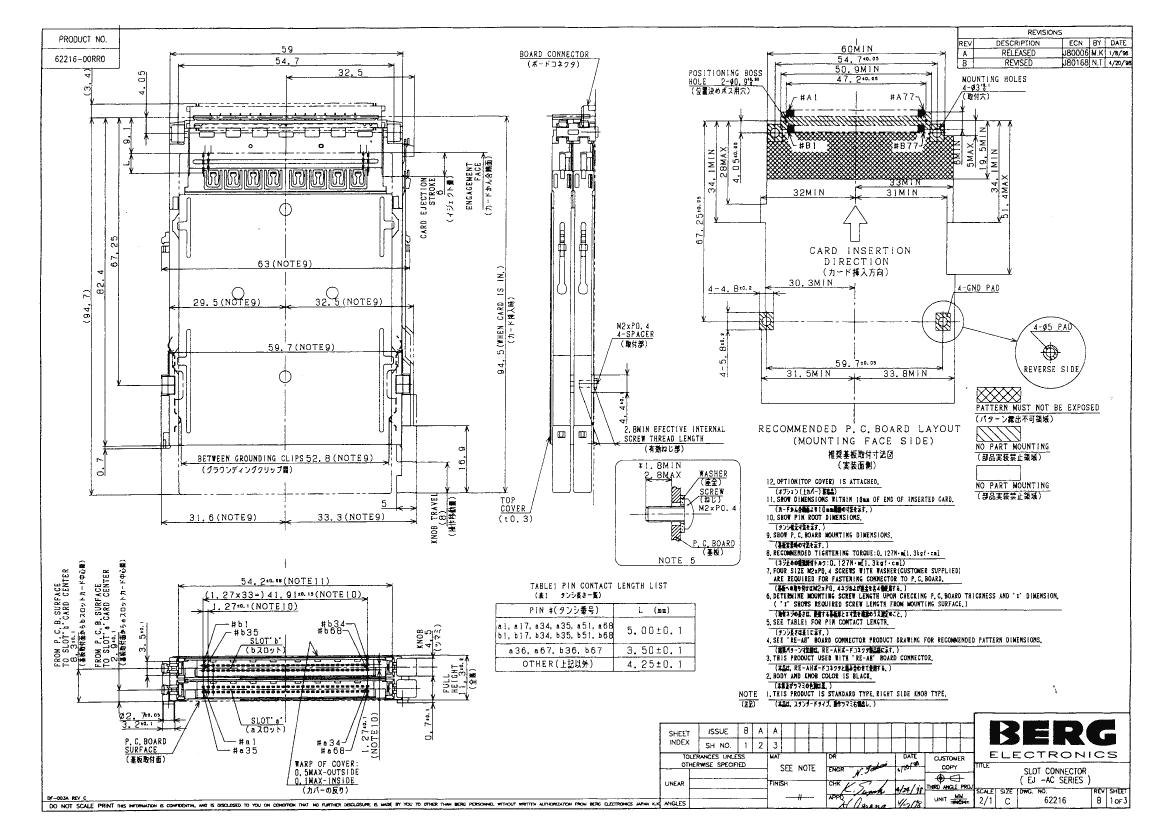

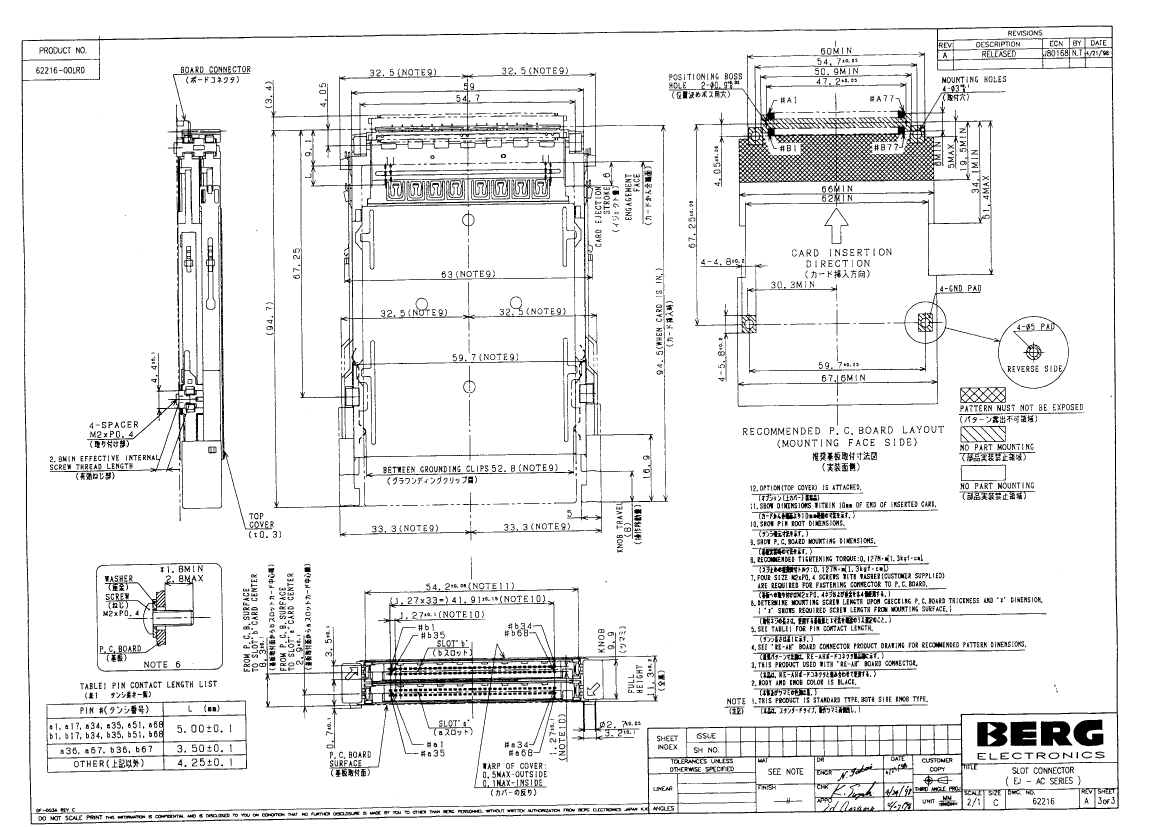

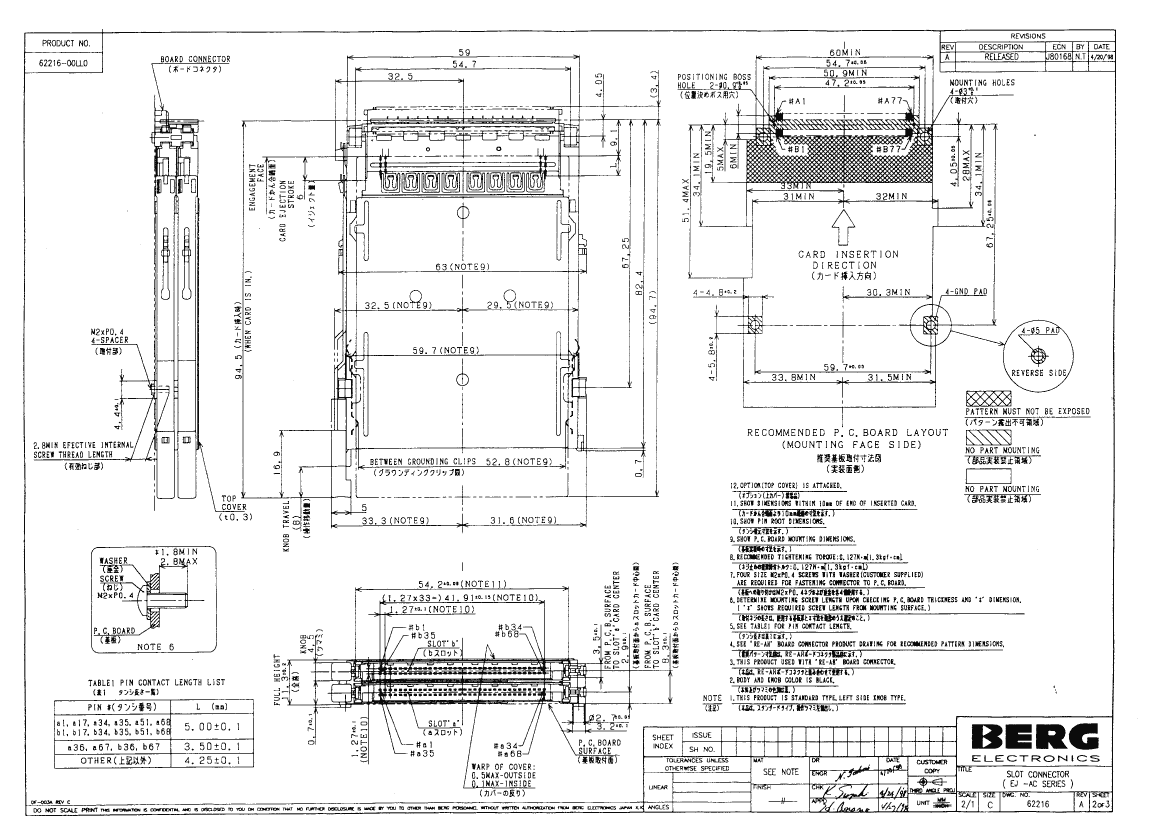

| 62216-00LR0 | 62216-00LL0 | 62216-00RR0 | |
|---|---|---|---|
| Description | PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle | PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle | PCMCIA Connector, 136 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle |
| Maker | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Other features | LEFT/Rt. ROD LOC,UPPER SHIELD | LEFT/LEFT ROD LOC,UPPER SHIELD | Rt./Rt. ROD LOC,UPPER SHIELD |
| Board mount options | POSITIONING PIN | POSITIONING PIN | POSITIONING PIN |
| body width | 0.433 inch | 0.433 inch | 0.433 inch |
| subject depth | 3.902 inch | 3.862 inch | 3.862 inch |
| body length | 2.622 inch | 2.555 inch | 2.555 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | PCMCIA CONNECTOR | PCMCIA CONNECTOR | PCMCIA CONNECTOR |
| Contact to complete cooperation | AU ON NI | NOT SPECIFIED | AU ON NI |
| Contact point gender | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | NOT SPECIFIED | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 60 mΩ | 60 mΩ | 60 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO |
| Dielectric withstand voltage | 250VAC V | 250VAC V | 250VAC V |
| Durability | 10000 Cycles | 10000 Cycles | 10000 Cycles |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| maximum insertion force | 40.032 N | 40.032 N | 40.032 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 62216 | 62216 | 62216 |
| Plug contact pitch | 0.05 inch | 0.05 inch | 0.05 inch |
| Mixed contacts | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | TWO | TWO | TWO |
| PCB row number | 1+1 | 1+1 | 1+1 |
| Number of ports | 1 | 1 | 1 |
| Number of rows loaded | 4 | 4 | 4 |
| Maximum operating temperature | 60 °C | 60 °C | 60 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Plating thickness | 8u inch | 8u inch | 8u inch |
| Rated current (signal) | 0.5 A | 0.5 A | 0.5 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 136 | 136 | 136 |
| Evacuation force-minimum value | 6.672 N | 6.672 N | 6.672 N |
