REVISION CL
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: 1LB.
No OF POSITIONS
3. COPLANARITY TO BE:
-02 THRU -36
-DH: -36 THRU -28 POS: .008[0.20]
(SEE NOTE 8)
-02 THRU -27 POS: .006[0.15]
-SV, SH: .006[0.15].
PLATING SPECIFICATION
4. PACKAGE IN TUBES PER SHT 3, TABLE 2. ALL OTHER POSITIONS BULK PACKAGE.
-S: 30µ" SELECTIVE GOLD IN CONTACT
5. MAXIMUM CUT FLASH: .015[0.38].
AREA, MATTE TIN ON TAIL.
6. NOTCH OF PPP-12 TO BE ORIENTED TOWARD SAME END AS POSITION 1.
-L: 10µ" SELECTIVE GOLD IN CONTACT
7. ROWS TO BE WITHIN .004[0.10] OF ONE ANOTHER.
AREA, MATTE TIN ON TAIL.
8. -36 MAX POSITION AVAILABLE, -50 FOR STOCK ONLY.
-T: MATTE TIN ON CONTACT AND TAIL.
9. ENDWALL AFTER CUTTING: .033[0.84]±.005[0.13]
-F: 3µ" SELECTIVE GOLD IN CONTACT
10. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION
AREA, MATTE TIN ON TAIL.
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
-STL: 30µ" SELECTIVE GOLD IN CONTACT
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
AREA, TIN/LEAD (90/10) ON TAIL.
11. FOR -SV TAIL STYLE: EVEN CUTS LOSE 2 POSITIONS PER CUT; ODD CUTS
-H: 30µ" SELECTIVE GOLD IN CONTACT
LOSE 1 POSITION PER CUT.
AREA, 3µ" SELECTIVE GOLD ON TAIL.
12.
IF POLARIZATION OCCURS AT CENTER POSITION(S) OF BODY, MOVE PICK &
-LM: 10µ" SELECTIVE GOLD IN CONTACT
PLACE PAD LEFT OR RIGHT TO NEXT AVAILABLE POSITION.
AREA, MATTE TIN ON TAIL.
-TM: MATTE TIN ON CONTACT AND TAIL.
-FM: 3µ" SELECTIVE GOLD IN CONTACT
TAIL SPECIFICATION
SSM-1XX-XXX-XX-XX-XX-X-XX-XX
OPTION
-TR: TAPE AND REEL
(SEE FIG 8, SHT 3)
(29 POSITIONS MAX)
OPTION
-P: PICK AND PLACE PAD
(ONLY AVAILABLE ON -SV,
USE PPP-12, SEE FIG 6, SHT 2)
(SEE NOTE 12)
-K: POLYIMIDE FILM PAD
(SEE FIG 5, SHT 2)
(USE K-500-S00)
(NOT AVAILABLE ON -SH AND -DH)
POLARIZATION OPTION
-XX: POSITION TO BE POLARIZED
(USE PK-06-N, SEE FIG 7, SHT 2
FOR POLARIZATION POSITIONS)
(NOT AVAILABLE FOR -BE OPTION)
MOUNTING OPTION
-LC: LOCKING CLIP
(USE LC-05-TM, SEE NOTE 10)
(FOR -SH AND -DH USE MOLDED TO
POSITION BODIES)
OPTION
-BE: BOTTOM ENTRY
(ONLY AVAILABLE ON -SV)
(USE SSM-XX-S-BE)
(SEE FIG 2, SHT 2)
(NO OF POS x .100[2.54]) -.100[2.54]
.050 1.27
REF
-SV: SINGLE VERTICAL (SEE FIG 1)
(USE SSM-XX-S)
-SH: SINGLE HORIZONTAL (SEE FIG 3, SHT 2)
(USE SSM-XX-SH)
-DH: DOUBLE HORIZONTAL (SEE FIG 4, SHT 2)
(USE BCH-XX-D)
(NO OF POS x .100[2.54])
±.008[0.20] (CUT TOLERANCE, SEE NOTE 11)
±.005[0.13] (MOLDED BODY TOLERANCE)
02
36
.100 2.54 REF
SSM-XX-S
FLUSH TO .005[0.13] MAX
01
C
35
2 MAX SWAY
(EITHER DIRECTION)
.18 4.6
CONTACT #1
.290 7.37 REF
C
SEE NOTE 3
.050 1.27
C
90°
- 0°
+4°
"A"
DETAIL 'D'
SCALE 8 : 1
"A"
SEE NOTE 9
(NO OF POS x .100[2.54]) -.200[5.08]
LC-05-TM
'D'
2 MAX SWAY
(EITHER DIRECTION)
C
.043
- .005
1.09
- 0.127
+.002
+0.051
-SV: SINGLE VERTICAL ROW
(SSM-1XX-XXX-SV-LC SHOWN)
FIG 1
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
-SV IN-PROCESS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE

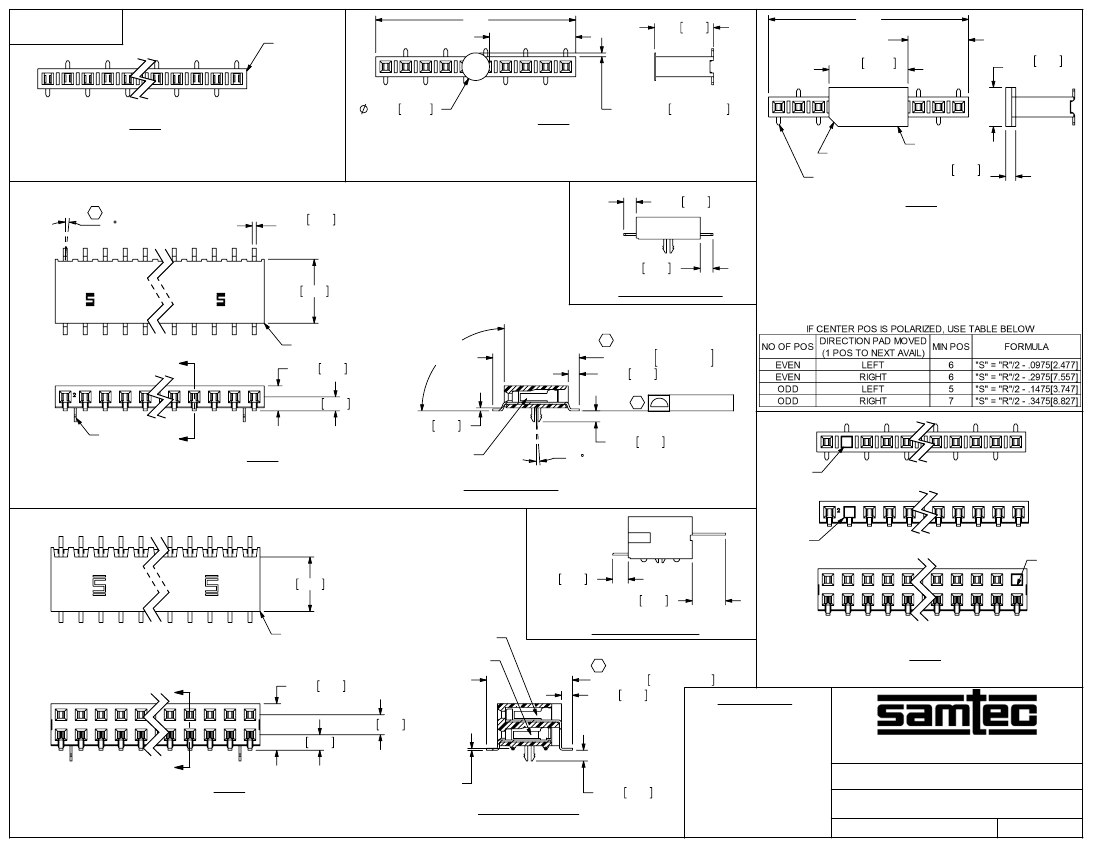

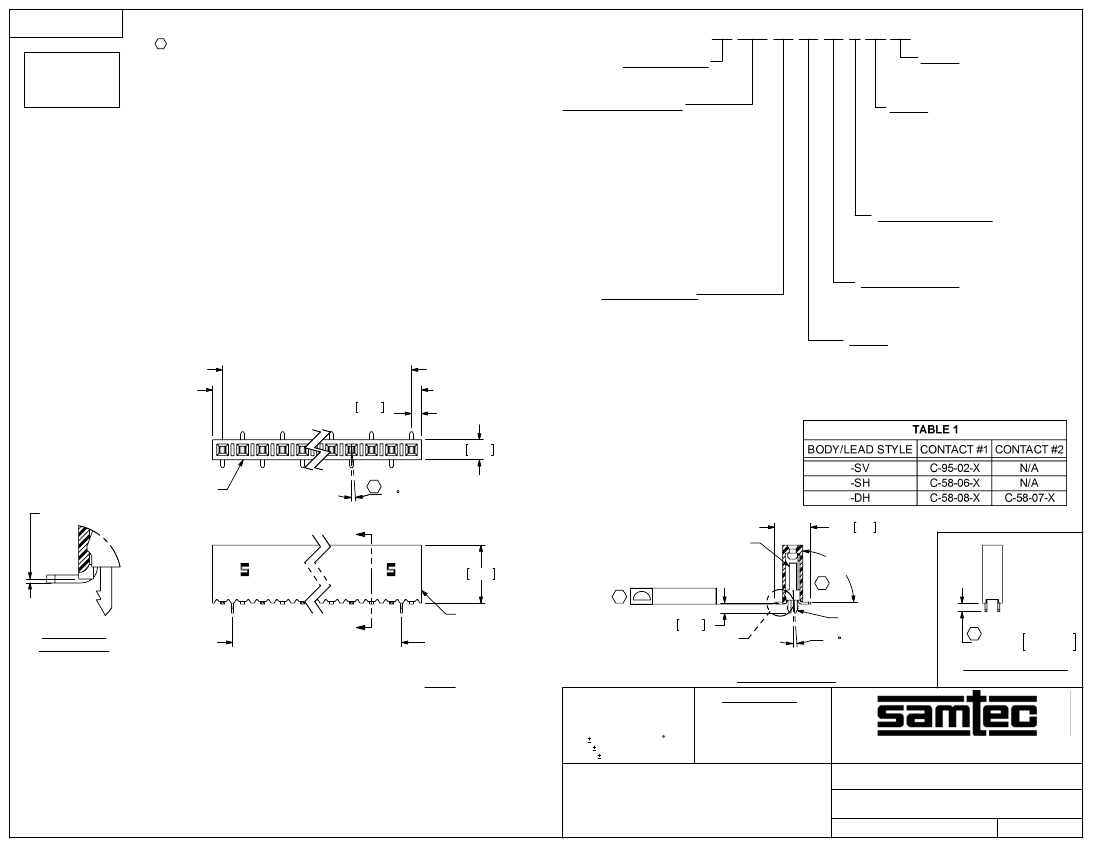

.100[2.54] C.L. SURFACE MOUNT SOCKET STRIP
SSM-1XX-XXX-XX-XX-XX-X-XX-XX
09/11/1998
SHEET
1
OF
3
F:\DWG\MISC\MKTG\SSM-1XX-XXX-XX-XX-XX-X-XX-XX-MKT.SLDDRW
BY:
KOLB
REVISION CL
"R"
SSM-XX-S-BE
"S" ±.010[0.25]
.295 7.49
"R"
"S"±.010[0.25]
.395 10.03
REF
.195 4.95
REF
-SV-BE: SINGLE VERTICAL ROW BOTTOM ENTRY
(SSM-1XX-XXX-SV-BE SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 2
01
.1378 3.500
-K: KAPTON PAD
(SSM-110-XXX-SV-K SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"R" = SEE FIG 1, SHEET 1 FOR OAL
"S" = "R"/2 - .0689[1.750]
.063 1.60
.020 0.51
REF
.064 1.63
.320 8.13 REF
FIG 5
.019±.010 0.48±0.254
PPP-12
.050 1.27
REF
SEE NOTE 6
POS 1
C
2 MAX SWAY
(EITHER DIRECTION)
-SH IN-PROCESS
-P: PICK AND PLACE PAD
(SSM-110-XXX-SV-P SHOWN)
-02 AND -03 POS NOT AVAILABLE WITH POLARIZATION
-04 POS - CANNOT OFFER IF POLARIZATION IS POS 2 OR 3
-05 POS - CANNOT OFFER IF POLARIZATION IS POS 3
*MUST USE TR ON POS 2 & 3
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"R" = SEE FIG 1, SHEET 1 FOR OAL
"S" = IF NO OF POS IS EVEN: "R"/2 - .1975[5.017]
IF NO OF POS IS ODD: "R"/2 - .2475[6.287]
FIG 6
"B"
SSM-XX-SH
.125 3.18
.070 1.78 REF
90°±3°
(TYP)
C
.053 1.35 REF
C
.433
- .020
11.00
- 0.508
+.010
+0.254
01
LC-05-TM
36
SEE NOTE 3
01
"B"
.015 0.38
CONTACT #1
.055 1.40
2 MAX SWAY
(EITHER DIRECTION)
PK-06-N
-SH: SINGLE HORIZONTAL
(SSM-136-XXX-SH-LC SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
02
SSM-136-XXX-SV-02 SHOWN
01
02
SSM-136-XXX-SH-02 SHOWN
36
SECTION "B"-"B"
PK-06-N
72
.272 6.91 REF
.078 1.98
.167 4.24
BCH-XX-D
CONTACT #1
CONTACT #2
72
36
02
PK-06-N
-DH IN-PROCESS
C
.430±.020 10.92±0.508
.055 1.40 REF
71
SSM-136-XXX-DH-02 SHOWN
01
"C"
02
.233 5.92
.100 2.54
POLARIZATION
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
PROPRIETARY NOTE
FIG 7
71
"C"
01
.070 1.78 REF
FLUSH TO .008[0.20] MAX
(SEE NOTE 7)
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
-DH: DOUBLE HORIZONTAL
(SSM-1XX-XXX-DH-LC SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 3)
FIG 4
DO NOT SCALE DRAWING
SECTION "C"-"C"
.055 1.38
.100[2.54] C.L. SURFACE MOUNT SOCKET STRIP
SHEET SCALE: 2:1
SSM-1XX-XXX-XX-XX-XX-X-XX-XX
BY:
KOLB
F:\DWG\MISC\MKTG\SSM-1XX-XXX-XX-XX-XX-X-XX-XX-MKT.SLDDRW
09/11/1998
SHEET
2
OF
3
REVISION CL
MATING SIDE
OF CONNECTOR
POS 1
CONTACT ENTRY
SIDE FOR ASSEMBLY
POS 1
SSM-110-XXX-SV-TR SHOWN
USER DIRECTION OF UNREELING
SSM-110-XXX-SH-TR SHOWN
USER DIRECTION OF UNREELING
SSM-110-XXX-DH-TR SHOWN
USER DIRECTION OF UNREELING
-TR: TAPE AND REEL
SCALE 1:1
FIG 8
STANDOFF
SIDE OF BODY
SSM-1XX-XXX-SV-LC-P SHOWN
(SSM-1XX-XXX-SV-LC-K SIMILAR)
CORE LEAD IN
SIDE OF BODY
SSM-1XX-XXX-DH-LC SHOWN
POS 1
SSM-1XX-XXX-SV-LC SHOWN
CORE LEAD IN
SIDE OF BODY
1ST POSITION WITH TUBE LOGO
STANDOFF SIDE
OF BODY
SSM-1XX-XXX-SH-LC SHOWN
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.

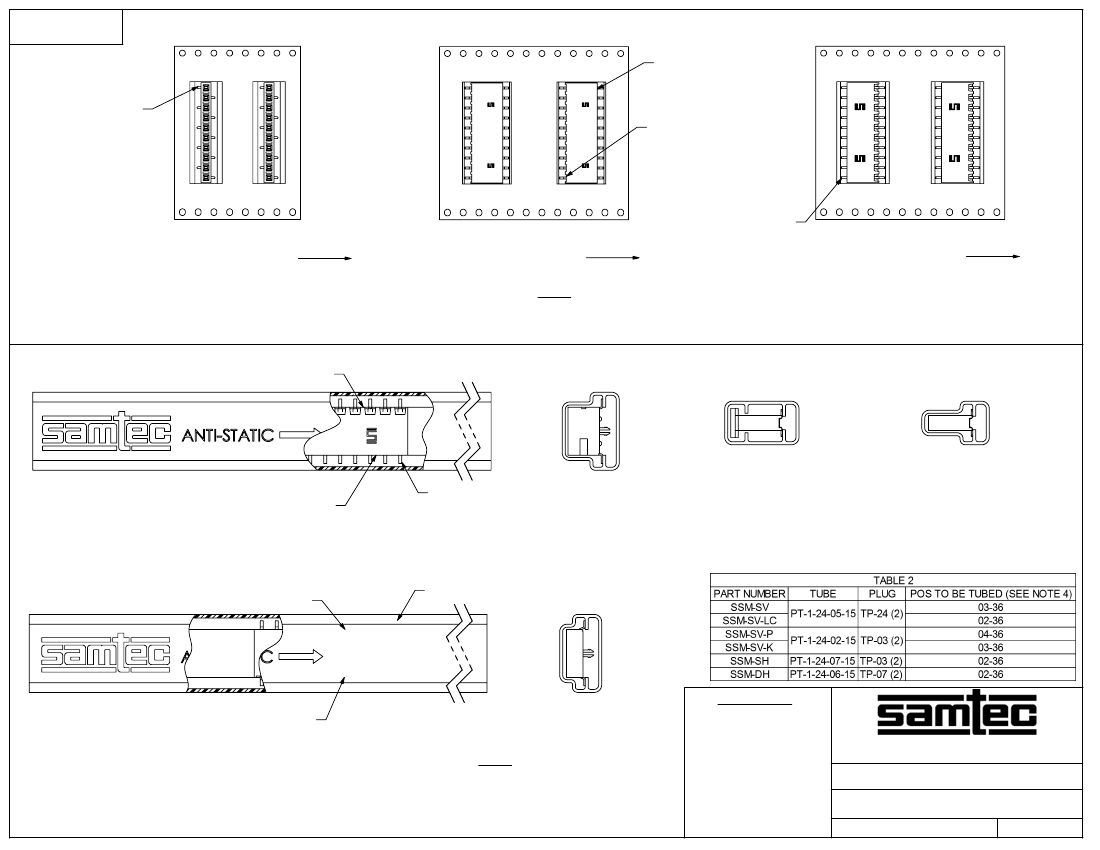

TUBE VIEWS
FIG 9
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:2
.100[2.54] C.L. SURFACE MOUNT SOCKET STRIP
SSM-1XX-XXX-XX-XX-XX-X-XX-XX
BY:
KOLB
F:\DWG\MISC\MKTG\SSM-1XX-XXX-XX-XX-XX-X-XX-XX-MKT.SLDDRW
09/11/1998
SHEET
3
OF
3
