BL-HX133A-TR

Description
Single Color LED, High Efficiency Green, Water Clear, 1.8mm, 3.20 X 1.60 MM, 1.40 MM HEIGHT, SMT, 2 PIN
CategoryLED optoelectronic/LED    photoelectric
File Size225KB,7 Pages
ManufacturerBRIGHT
Websitehttp://www.brightled.co.kr/
Download Datasheet Parametric View All

BL-HX133A-TR Overview

Single Color LED, High Efficiency Green, Water Clear, 1.8mm, 3.20 X 1.60 MM, 1.40 MM HEIGHT, SMT, 2 PIN

BL-HX133A-TR Parametric

Parameter NameAttribute value
MakerBRIGHT
package instruction3.20 X 1.60 MM, 1.40 MM HEIGHT, SMT, 2 PIN
Reach Compliance Codeunknown
colorHIGH EFFICIENCY GREEN
ConfigurationSINGLE
Maximum forward current0.03 A
Lens typeWATER CLEAR
Nominal luminous intensity40.0 mcd
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature80 °C
Minimum operating temperature-25 °C
Optoelectronic device typesSINGLE COLOR LED
total height1.4 mm
method of packingTAPE AND REEL
peak wavelength568 nm
shapeRECTANGULAR
size1.8 mm
surface mountYES
Terminal pitch3.5 mm
perspective60 deg

BL-HX133A-TR Preview

BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HX133A-TR
Features:
1. Emitted Color : Hi-Eff Green
2. Lens Appearance : Water Clear.
3. Mono-color type.
4. 3.2x1.6x1.4mm(1206) standard package.
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
Package Dimensions:
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ±0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
*1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
100
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Unit
mW
mA
mA
V
-
-
-
*1
Condition for
I
FP
is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HX133A-TR
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
12.3
-
-
566
-
-
Typ.
2.2
40
-
568
-
30
60
Max.
2.6
-
100
-
576
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. wavelength
1.0
60
Fig.2 Forward current derating curve
vs. ambient temperature
50
Relative radiant intensity
Forward current (mA)
40
0.5
30
20
10
0
610
660
710
0
20
40
60
80
100
Wavelength (nm)
Ambient temperature Ta( C)
Fig.3 Forward current vs. forward voltage
50
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
Forward current (mA)
Relative Luminous intensity
(Normalized @20mA)
40
2.5
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta( C)
Fig.5 Relative luminous intensity
vs. forward current
4.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity (@20mA)
3.0
Relative radiant intensity
40
1.0
0.9
0.8
0.7
80
90
50
60
70
2.0
1.0
0
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.0 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HX133A-TR

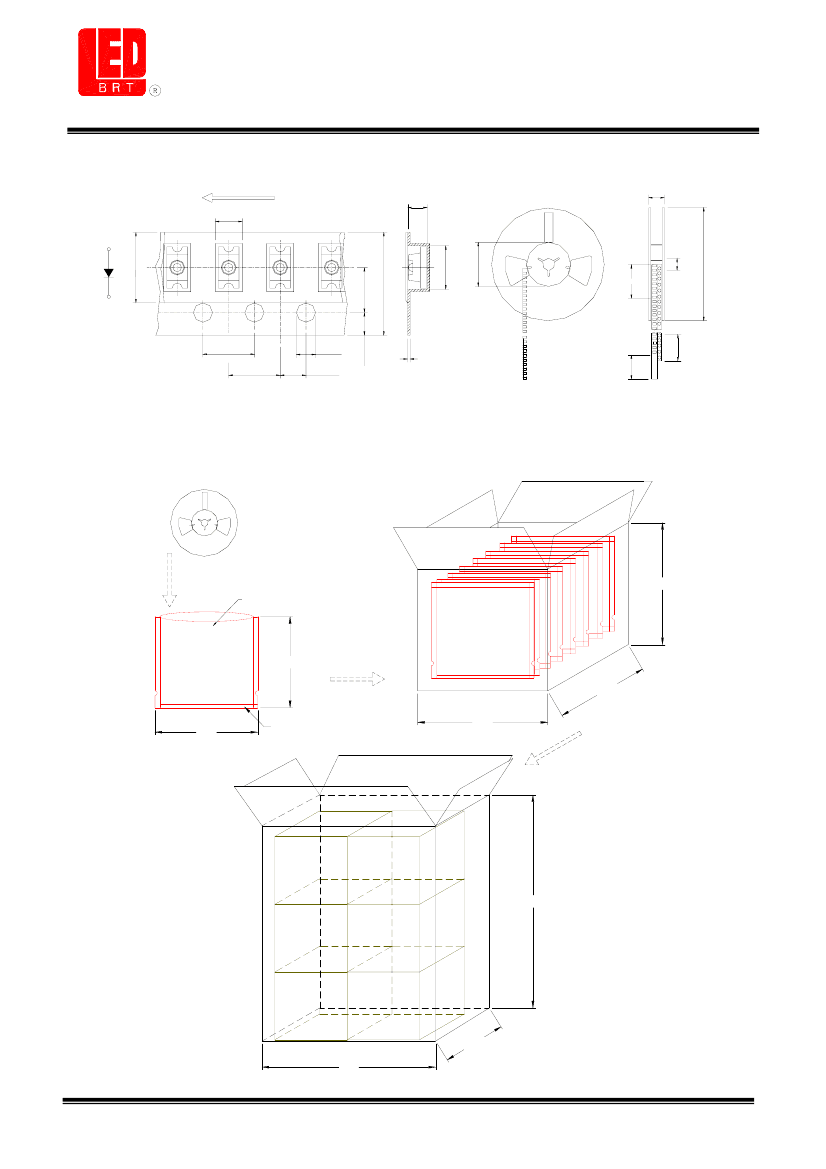

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
1.46 ± 0.1
ANODE
START
13.0± 0.5
1.98 ± 0.1
END
71.0± 1
13.0± 0.5
5.3 ± 0.05
3.5 ± 0.05
8.0 ± 0.3
3.47± 0.1
TRAILER
CATHODE
1.75 ± 0.1
4.0 ± 0.1
4.0 ± 0.1
1.5± 0.1
2.0± 0.05
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
Package Method:(unit:mm)
10 bag/box
3000 pcs/reel
215
Bar Code Label
245
230
167
220
Aluminum Foil Bag
645
6 box/carton
230
334
Ver.1.0 Page 3 of 7
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HX133A-TR
Bin Limits
I n t e n s i t y B i n L i m i ts ( A t 2 0 m A )
BIN CODE
Min. (mcd)
K
M
N
P
11 . 0
24.0
37.0
55.0
Max. (mcd)
21.0
48.0
72.0
11 0 . 0
C o l o r B i n L i m i ts ( A t 2 0 m A )
BIN CODE
4
5
6
7
8
Min. (nm)
565
567
569
571
573
Max. (nm)
569
571
573
575
577
B IN:
x
x
Color BIN CODE
Intensity BIN CODE
Ver.1.0 Page 4 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HX133A-TR
Reliability Test
Classification
Test Item
Reference Standard
Test Conditions
Result
Operation Life MIL-STD-750:1026
MIL-STD-883:1005
JIS-C-7021
:B-1
High
Temperature MIL-STD-202:103B
High Humidity JIS-C-7021
:B-11
Endurance
Storage
Test
High
MIL-STD-883:1008
Temperature
JIS-C-7021
:B-10
Storage
Low
Temperature JIS-C-7021
:B-12
Storage
Temperature MIL-STD-202:107D
Cycling
MIL-STD-750:1051
MIL-STD-883:1010
JIS-C-7021
:A-4
Thermal Shock MIL-STD-202:107D
Environmental
MIL-STD-750:1051
Test
MIL-STD-883:1011
Solder
MIL-STD-202:201A
Resistance
MIL-STD-750:2031
JIS-C-7021
:A-1
Connect with a power If=20mA
Ta=Under room temperature
Test time=1,000hrs
Ta=+65℃±5℃
RH=90%-95%
Test time=240hrs
High Ta=+85℃±5℃
Test time=1,000hrs
Low Ta=-35℃±5℃
Test time=1,000hrs
-35℃ ~ +25℃ ~ +85℃ ~ +25℃
60min 20min
60min
20min
Test Time=5cycle
-35℃±5℃ ~+85℃±5℃
20min
20min
Test Time=10cycle
Preheating:
140℃-160℃,within 2 minutes.
Operation heating:
235℃(Max.), within 10seconds. (Max.)
0/20
0/20
0/20
0/20
0/20
0/20
0/20
Judgment criteria of failure for the reliability
Measuring items
Forward voltage
Reverse current
Luminous intensity
Symbol
V
F
( V)
I
R
(uA)
Iv ( mcd )
Measuring conditions
I
F
=20mA
V
R
=5V
I
F
=20mA
Judgement criteria for failure
Over Ux1.2
Over Ux2
Below SX0.5
Note:
1.U means the upper limit of specified characteristics.
S means initial value.
2.Measurment shall be taken between 2 hours and after the test pieces have been returned to
normal ambient conditions after completion of each test.
Ver.1.0 Page 5 of 7
