BL-R3137 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> BL-R3137

BL-R3137: DescriptionSingle Color LED, Yellow, Diffused, 4.8mm, L-095, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size248KB，2 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-R3137 Overview

Single Color LED, Yellow, Diffused, 4.8mm, L-095, 2 PIN

BL-R3137 Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	L-095, 2 PIN
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	3.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	7 mm
method of packing	BULK
peak wavelength	585 nm
shape	RECTANGULAR
size	4.8 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	120 deg

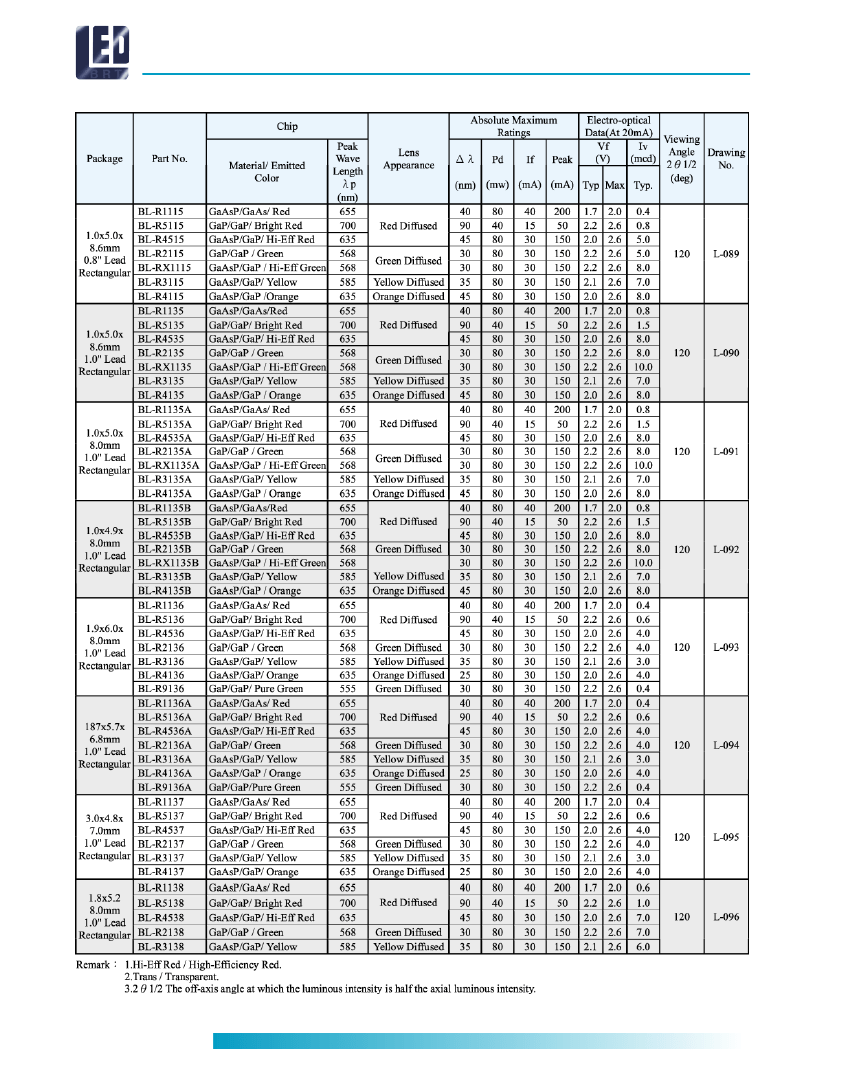

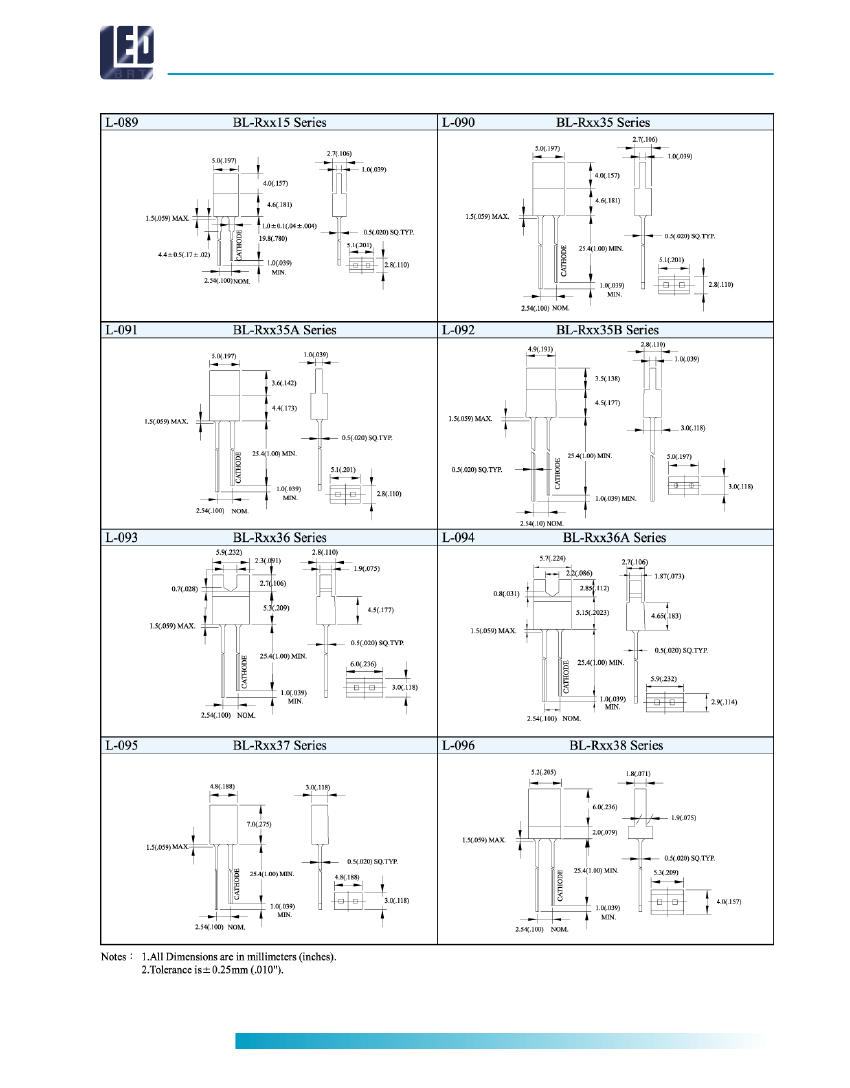

Preview

Download Datasheet

View All

Standard LED Lamps

BL-R Series

Rectangular Types

AMERICAN BRIGHT

w w w. a m e r i c a n b r i g h t l e d . c o m

BL-R3137 Related Products

	BL-R3137	BL-R4136A	BL-R2137	BL-R4136	BL-R4135A	BL-R4135B	BL-R4536	BL-R4536A	BL-R5136	BL-R4535A
Description	Single Color LED, Yellow, Diffused, 4.8mm, L-095, 2 PIN	Single Color LED, Orange, Diffused, 5.7mm, L-094, 2 PIN	Single Color LED, Green, Diffused, 4.8mm, L-095, 2 PIN	Single Color LED, Orange, Diffused, 5.9mm, L-093, 2 PIN	Single Color LED, Orange, Diffused, 5mm, L-091, 2 PIN	Single Color LED, Orange, Diffused, 4.9mm, L-092, 2 PIN	Single Color LED, High Efficiency Red, Diffused Red, 5.9mm, L-093, 2 PIN	Single Color LED, High Efficiency Red, Diffused Red, 5.7mm, L-094, 2 PIN	Single Color LED, Bright Red, Diffused Red, 5.9mm, L-093, 2 PIN	Single Color LED, High Efficiency Red, Diffused Red, 5mm, L-091, 2 PIN
package instruction	L-095, 2 PIN	L-094, 2 PIN	L-095, 2 PIN	L-093, 2 PIN	L-091, 2 PIN	L-092, 2 PIN	L-093, 2 PIN	L-094, 2 PIN	L-093, 2 PIN	L-091, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	YELLOW	ORANGE	GREEN	ORANGE	ORANGE	ORANGE	HIGH EFFICIENCY RED	HIGH EFFICIENCY RED	BRIGHT RED	HIGH EFFICIENCY RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.015 A	0.03 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED RED	DIFFUSED RED	DIFFUSED RED	DIFFUSED RED
Nominal luminous intensity	3.0 mcd	4.0 mcd	4.0 mcd	4.0 mcd	8.0 mcd	8.0 mcd	4.0 mcd	4.0 mcd	0.6 mcd	8.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	7 mm	8 mm	7 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm	8 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	585 nm	635 nm	568 nm	635 nm	635 nm	635 nm	635 nm	635 nm	700 nm	635 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	4.8 mm	5.7 mm	4.8 mm	5.9 mm	5 mm	4.9 mm	5.9 mm	5.7 mm	5.9 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Maker	BRIGHT	BRIGHT	-	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT
