S-29U194ADFE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> S-29U194ADFE

S-29U194ADFE: Description64X16 3-WIRE SERIAL EEPROM, PDSO8, SOP-8; Categorystorage storage; File Size152KB，6 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

S-29U194ADFE Overview

64X16 3-WIRE SERIAL EEPROM, PDSO8, SOP-8

S-29U194ADFE Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	DATA RETENTION 10 YEARS; 100K ENDURANCE CYCLES
Maximum clock frequency (fCLK)	0.25 MHz
Data retention time - minimum	10
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
length	5.2 mm
memory density	1024 bi
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	64 words
character code	64
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64X16
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	1.7 mm
Serial bus type	3-WIRE
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	0.9 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	4.4 mm
Maximum write cycle time (tWC)	10 ms
Base Number Matches	1

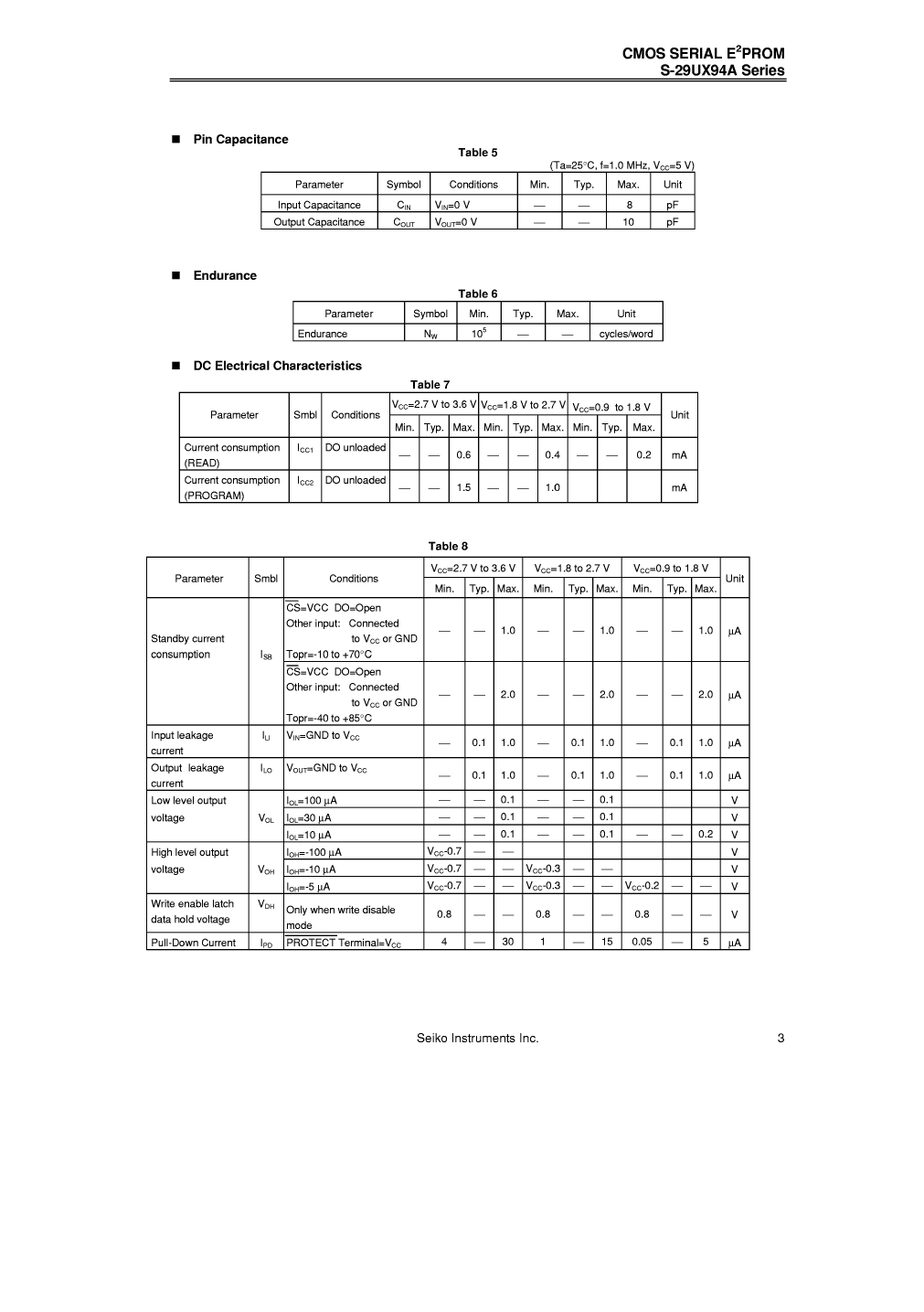

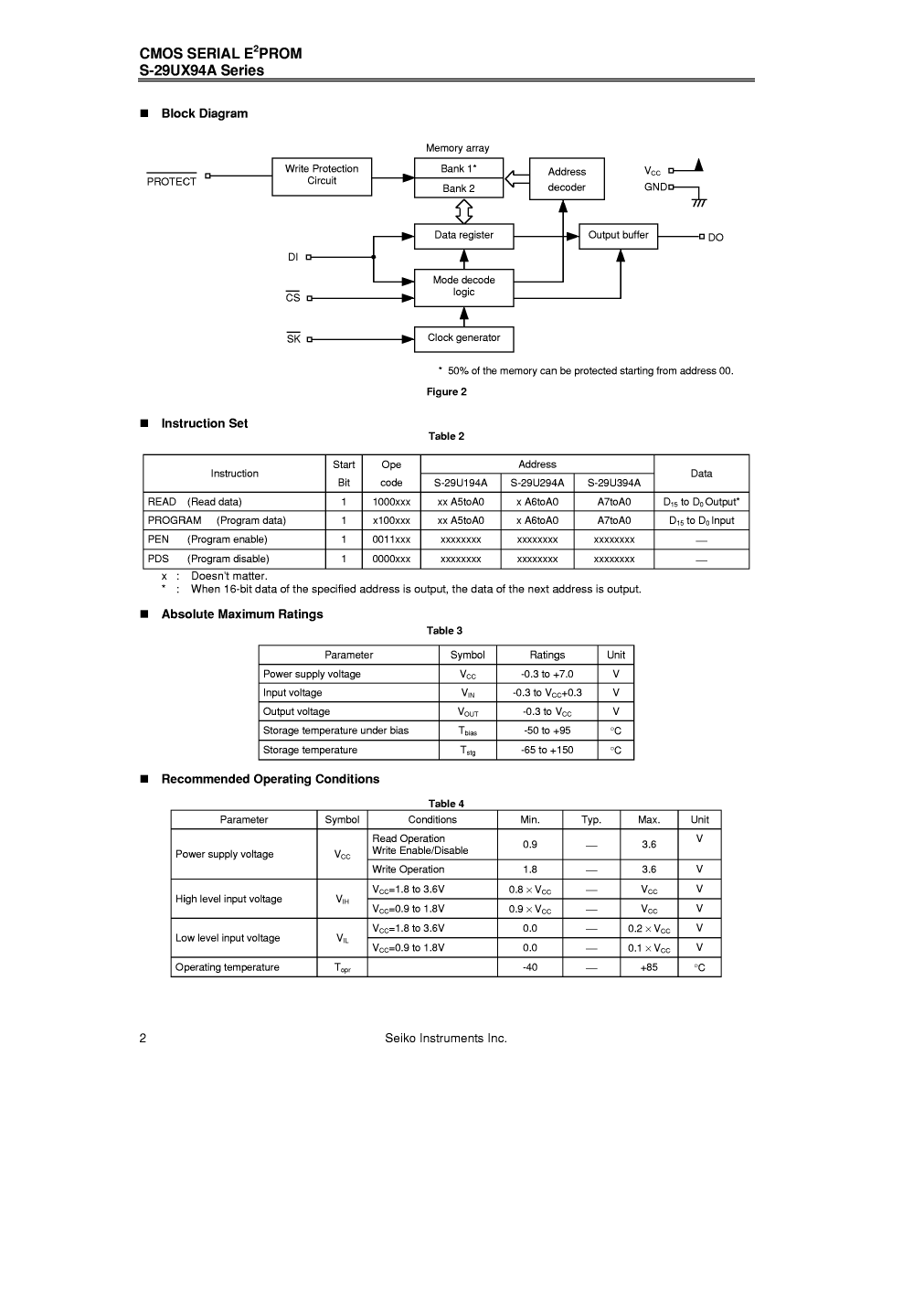

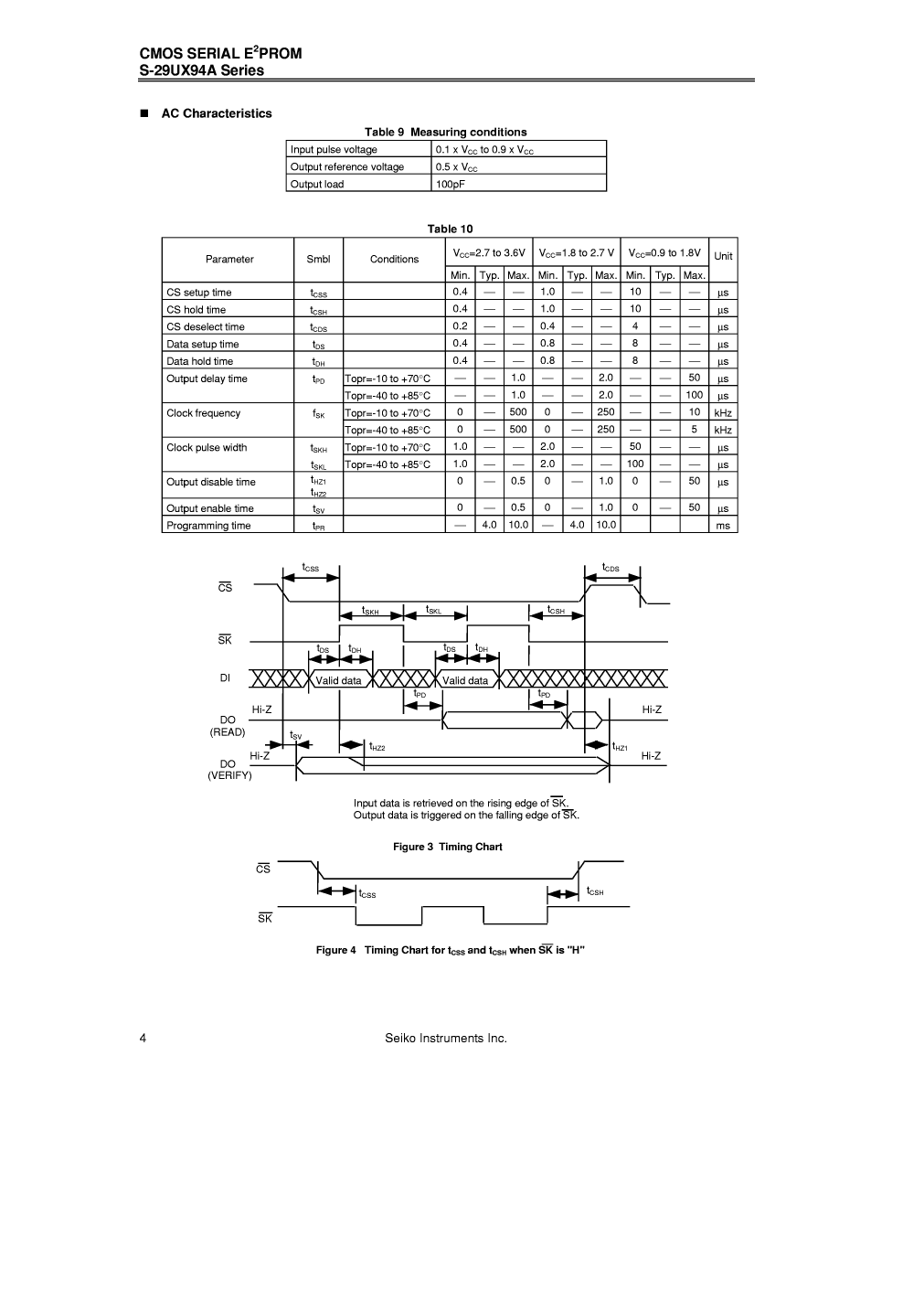

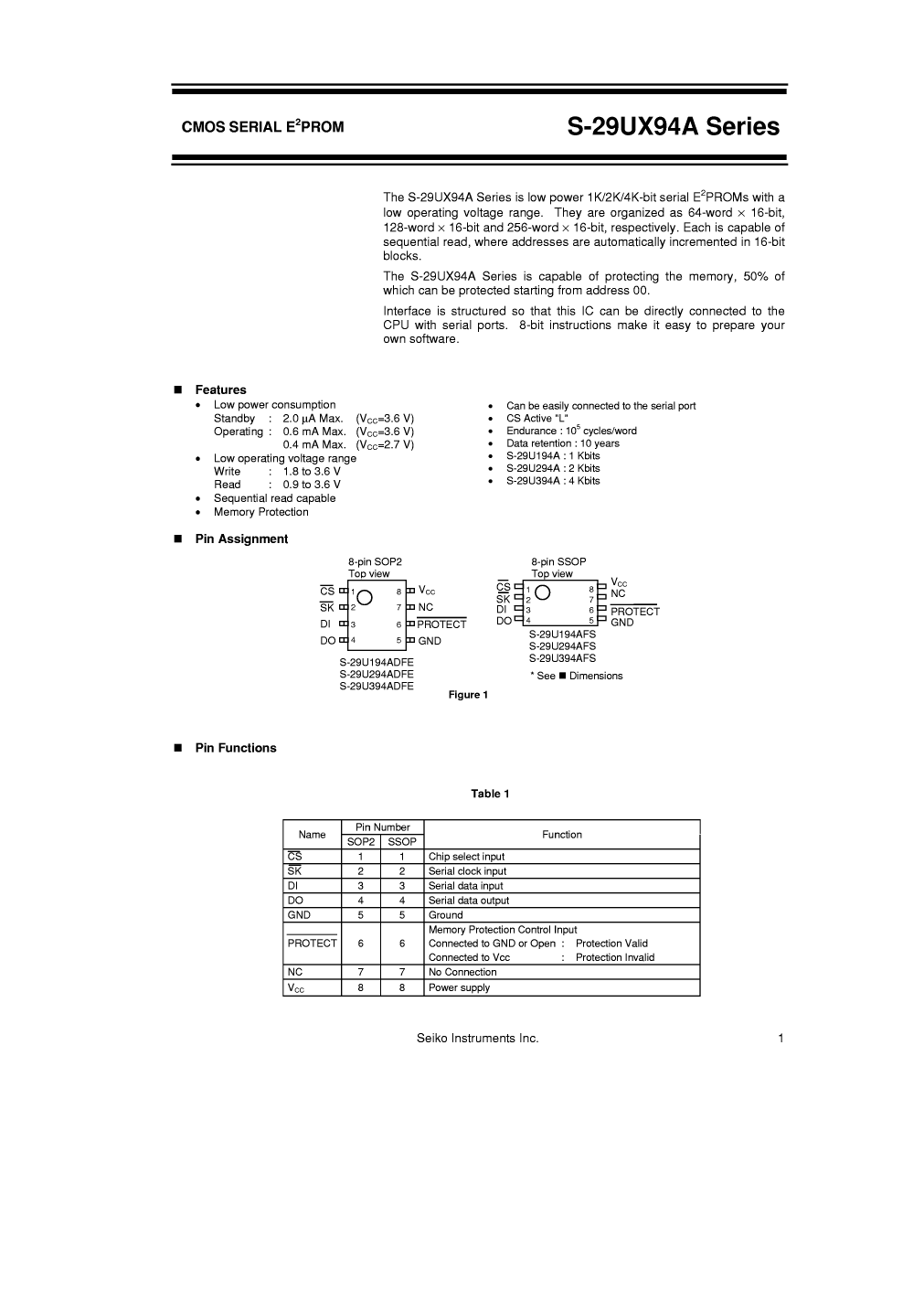

Preview

Download Datasheet

View All

S-29U194ADFE Related Products

	S-29U194ADFE	S-29U194AFS	S-29U294ADFE	S-29U294AFS	S-29U394ADFE	S-29U394AFS
Description	64X16 3-WIRE SERIAL EEPROM, PDSO8, SOP-8	64X16 3-WIRE SERIAL EEPROM, PDSO8, SSOP-8	128X16 3-WIRE SERIAL EEPROM, PDSO8, SOP-8	128X16 3-WIRE SERIAL EEPROM, PDSO8, SSOP-8	256X16 3-WIRE SERIAL EEPROM, PDSO8, SOP-8	256X16 3-WIRE SERIAL EEPROM, PDSO8, SSOP-8
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	LSOP,	LSSOP,	LSOP,	LSSOP,	LSOP,	LSSOP,
Contacts	8	8	8	8	8	8
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DATA RETENTION 10 YEARS; 100K ENDURANCE CYCLES	DATA RETENTION 10 YEARS; 100K ENDURANCE CYCLES	DATA RETENTION 10 YEARS; 100K ENDURANCE CYCLES	DATA RETENTION 10 YEARS; 100K ENDURANCE CYCLES	DATA RETENTION 10 YEARS; 100K ENDURANCE CYCLES	DATA RETENTION 10 YEARS; 100K ENDURANCE CYCLES
Maximum clock frequency (fCLK)	0.25 MHz	0.25 MHz	0.25 MHz	0.25 MHz	0.25 MHz	0.005 MHz
Data retention time - minimum	10	10	10	10	10	10
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	5.2 mm	4.4 mm	5.2 mm	4.4 mm	5.2 mm	4.4 mm
memory density	1024 bi	1024 bi	2048 bi	2048 bi	4096 bi	4096 bi
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
word count	64 words	64 words	128 words	128 words	256 words	256 words
character code	64	64	128	128	256	256
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	64X16	64X16	128X16	128X16	256X16	256X16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSSOP	LSOP	LSSOP	LSOP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.3 mm	1.7 mm	1.3 mm	1.7 mm	1.3 mm
Serial bus type	3-WIRE	3-WIRE	3-WIRE	3-WIRE	3-WIRE	3-WIRE
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	0.9 V	0.9 V	0.9 V	0.9 V	0.9 V	0.9 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	1.27 mm	0.65 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	4.4 mm	3.12 mm	4.4 mm	3.12 mm	4.4 mm	3.12 mm
Maximum write cycle time (tWC)	10 ms	10 ms	10 ms	10 ms	10 ms	10 ms
Base Number Matches	1	1	1	1	1	1
