Card Edge Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

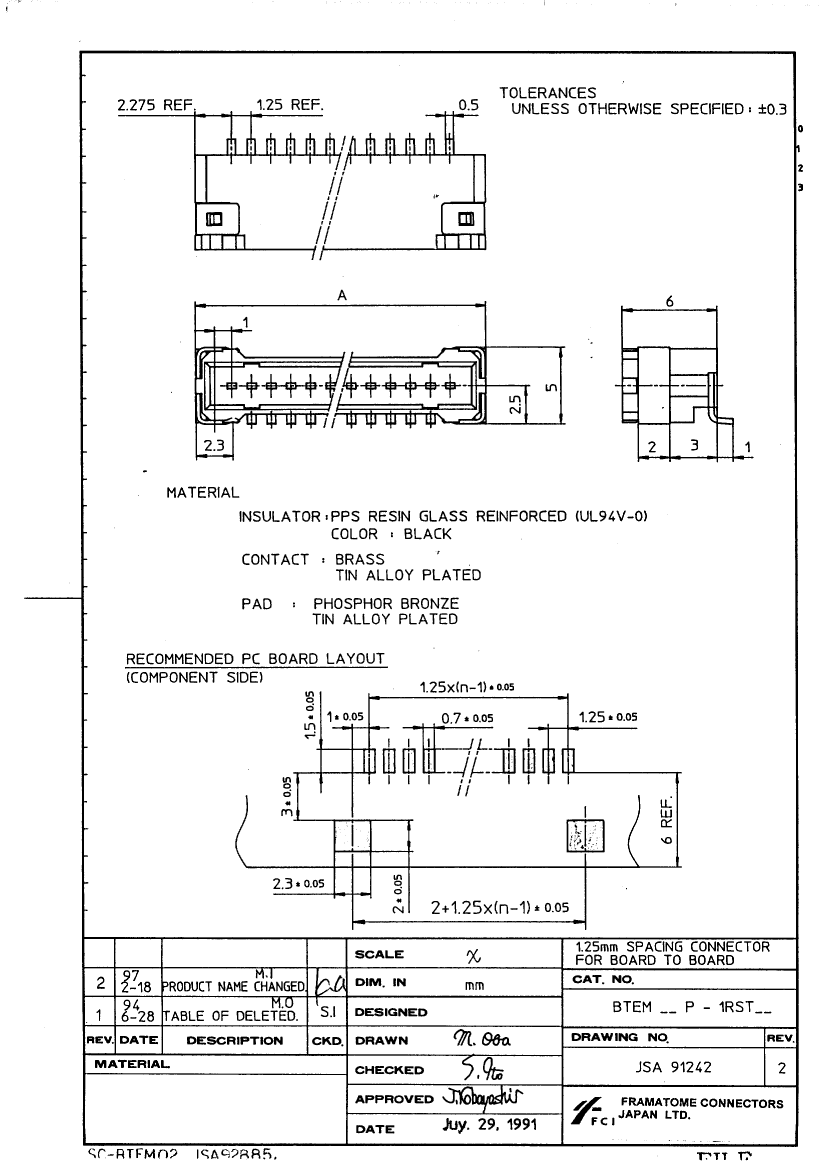

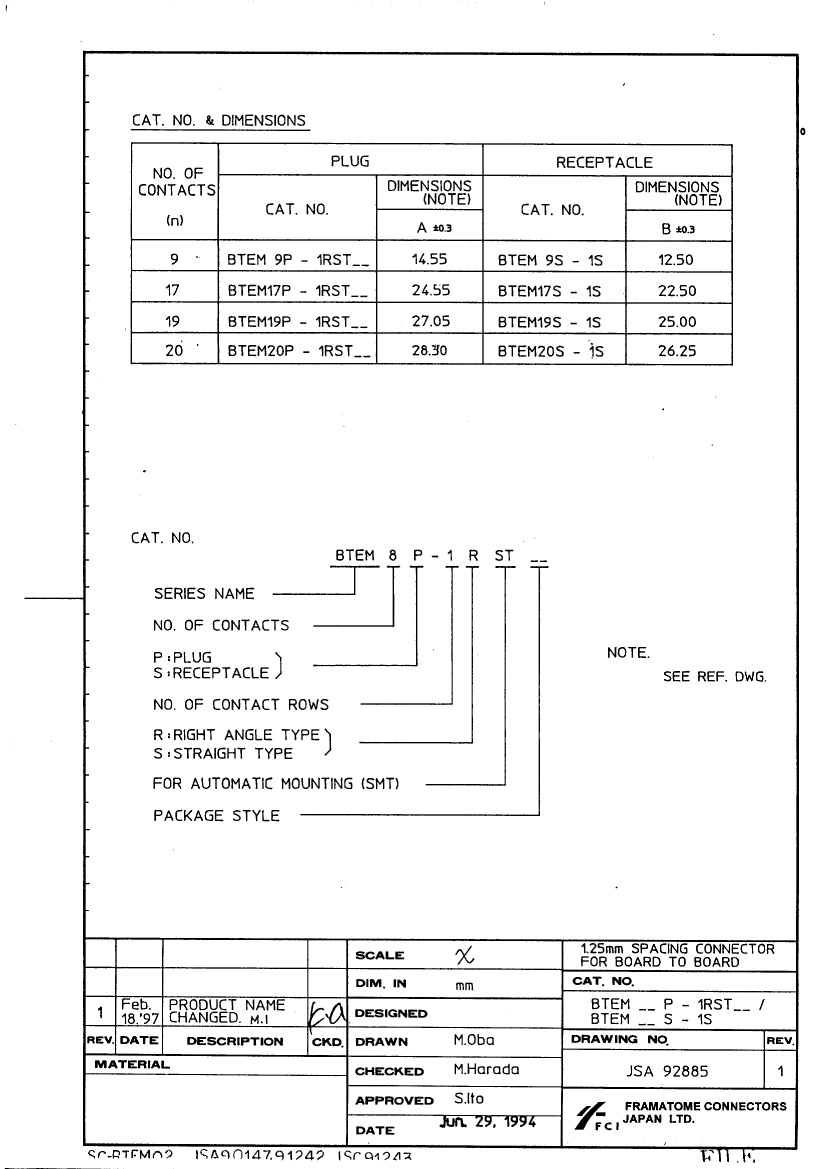

| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | EMBOSSED TAPE PACKAGING |
| Board mount options | SOLDER HOLDING POSTS |
| body width | 0.197 inch |
| subject depth | 0.236 inch |
| body length | 1.606 inch |
| Body/casing type | PLUG |
| Connector type | FFC/FPC CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | TIN |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE |
| MIL compliance | NO |
| Plug contact pitch | 0.049 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 1 |
| Number of rows loaded | 1 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 1.25 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 30 |
| UL Flammability Code | 94V-0 |
| BTEM30P-1RSTE1 | BTEM17P-1RSTE | BTEM19P-1RSTE | BTEM20P-1RSTE | BTEM30P-1RST | BTEM9P-1RSTE | |
|---|---|---|---|---|---|---|
| Description | Card Edge Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug | Card Edge Connector, 17 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug | Card Edge Connector, 19 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug | Card Edge Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug | Card Edge Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, Plug | Card Edge Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Connector type | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR | FFC/FPC CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 1 | 1 | 1 | 1 | 1 | 1 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm | 1.25 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 30 | 17 | 19 | 20 | 30 | 9 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 |
| Other features | EMBOSSED TAPE PACKAGING | EMBOSSED TAPE PACKAGING | EMBOSSED TAPE PACKAGING | EMBOSSED TAPE PACKAGING | - | EMBOSSED TAPE PACKAGING |
| Board mount options | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | SOLDER HOLDING POSTS | - | SOLDER HOLDING POSTS |
| body width | 0.197 inch | 0.197 inch | 0.197 inch | 0.197 inch | - | 0.197 inch |
| subject depth | 0.236 inch | 0.236 inch | 0.236 inch | 0.236 inch | - | 0.236 inch |
| body length | 1.606 inch | 1.606 inch | 1.606 inch | 1.606 inch | - | 1.606 inch |
| Contact to complete cooperation | SN | SN | SN | SN | - | SN |
| Contact completed and terminated | TIN | TIN | TIN | TIN | - | TIN |
| Contact material | BRASS | BRASS | BRASS | BRASS | - | BRASS |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Insulator color | BLACK | BLACK | BLACK | BLACK | - | BLACK |
| insulator material | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | - | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Plug contact pitch | 0.049 inch | 0.049 inch | 0.049 inch | 0.049 inch | - | 0.049 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | - | LOCKING |
| Number of connectors | ONE | ONE | ONE | ONE | - | ONE |
| PCB row number | 1 | 1 | 1 | 1 | - | 1 |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Guideline | UL | UL | UL | UL | - | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
