2N3871 Overview

Silicon Controlled Rectifier, 11000mA I(T), 200V V(DRM),

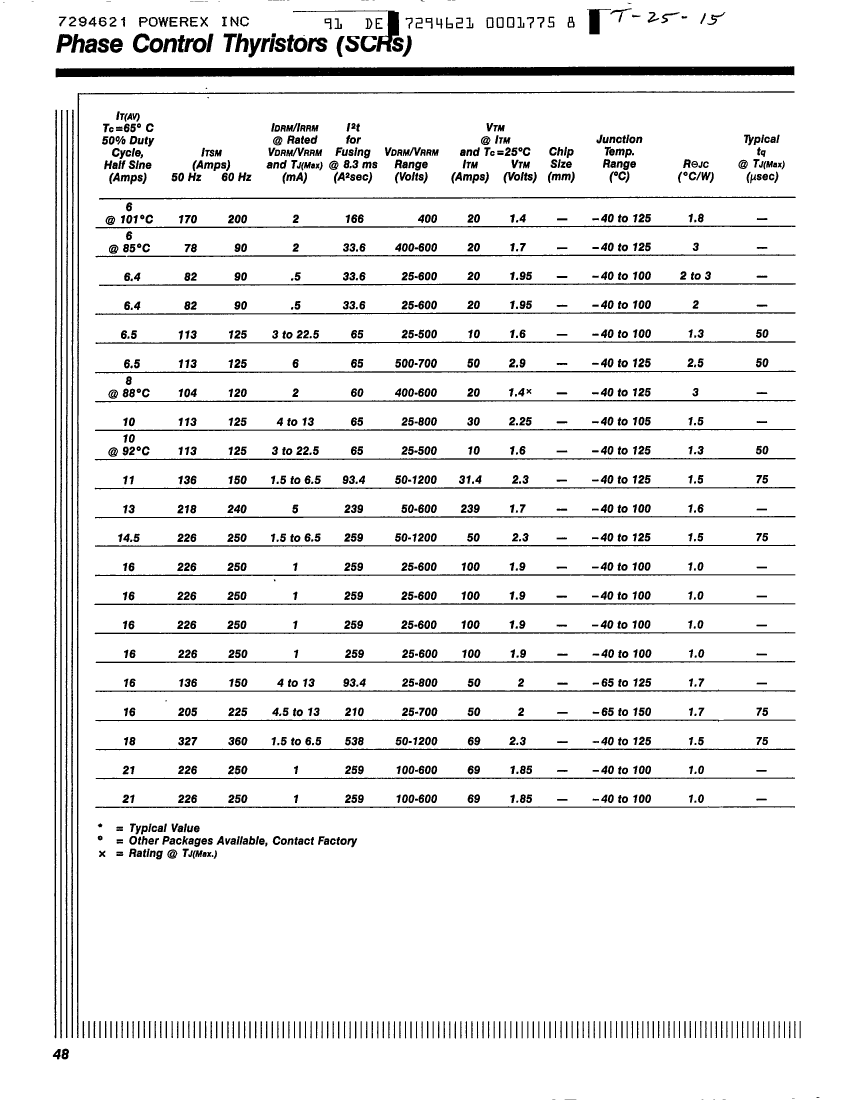

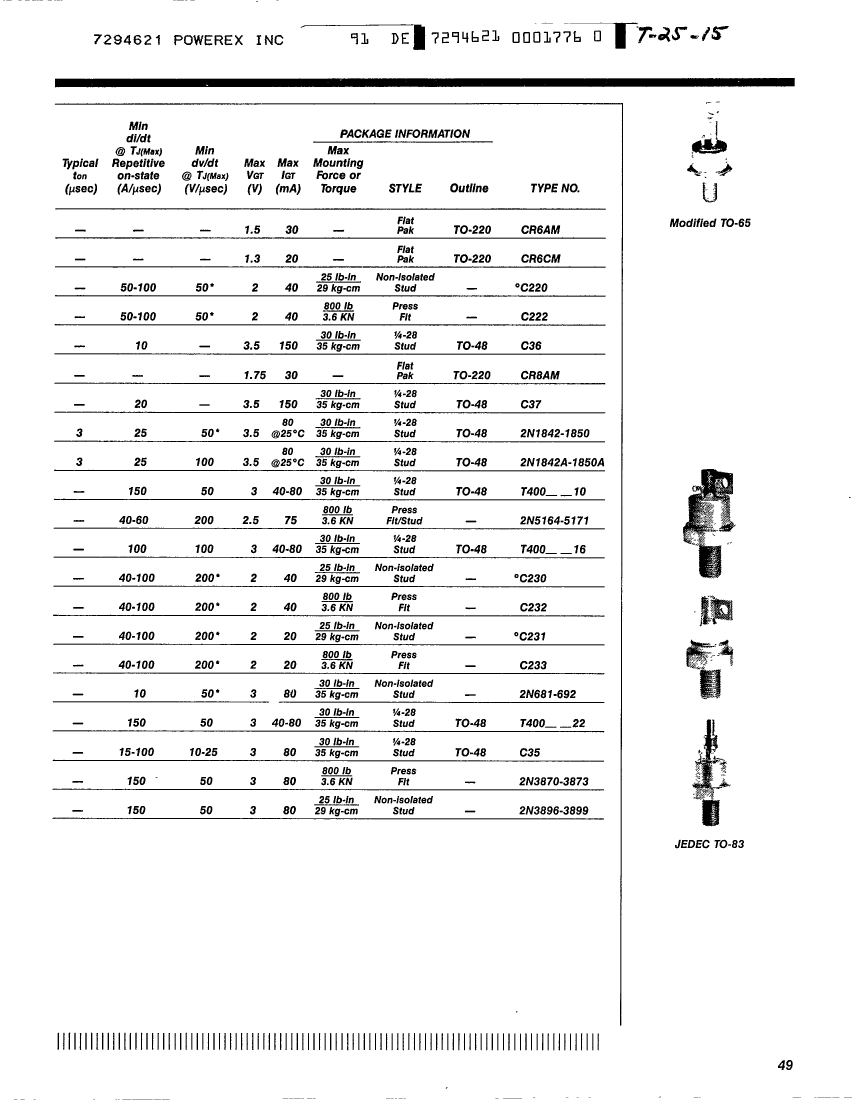

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Nominal circuit commutation break time	40 µs
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	80 mA
Maximum DC gate trigger voltage	3 V
Maximum leakage current	2.5 mA
On-state non-repetitive peak current	350 A
Maximum on-state current	11000 A
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	200 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1
