BOCS7-XXXMXX-XXCT
–
Crystal Oscillator
✓
SMD Construction
✓
Standard 5X7mm Package Size
✓
Mil-Std-202 Compliant
✓
CMOS/TTL Output
FEATURES
Crystal Oscillator
#blileytakesyoufurther
Part Number Configuration
*Not all combinations of options may be possible
**Other options may be available
BOCS7
–
M
–
CT
Center
Supply
Frequency
Operating
Output
Frequency
Voltage Control
Stability
Temperature
32.768kHz
B: 1.8Vdc N: N/A
A: ±25ppm B: -20°C to +70C
1MHz to 150MHz D: 3.3Vdc E: Enable B: ±50ppm C: -40°C to +85C
E: 5.0Vdc T: Tri-state C: ±100ppm

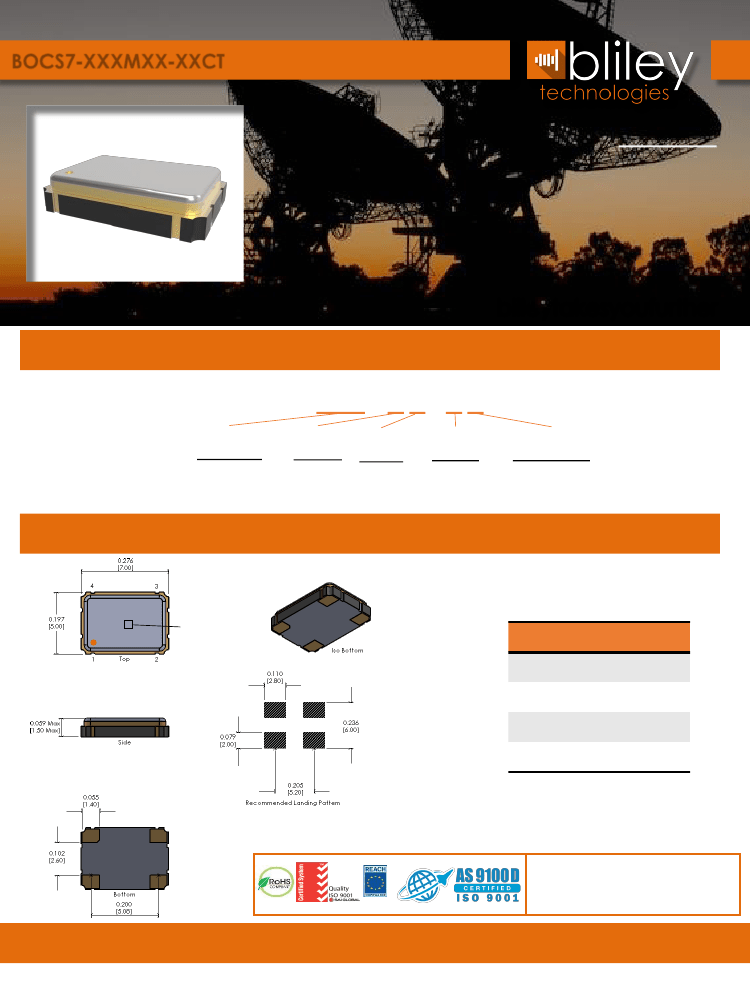

Physical Specifications
Bliley
BOC-XX
XXXM-XXCT
YYWW
Traceability
Code
PIN
1
2
3
4
FUNCTION
Output Control
Ground
RF Output
Supply Voltage
Tolerances (mm) .X = ± 0.5, .XX = ±0.2 unless otherwise specified
Notes
1)
Connection Pads: Gold(10-40 µ in.)
over Nickel (100-250 µ in.)
2)
Weight = 1.5gms typical
DISCLAIMER:
Bliley Technologies, Inc. reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is
assumed as a result of their use or application. No intellectual property rights accompany the sale or delivery of any such product(s) or information.
Bliley Technologies, Inc. • 2545 W. Grandview Blvd, Erie, PA 16506 • 1-814-838-3571 •
bliley.com
•
info@bliley.com
REV 2.0 2018
BOCS7-XXXMXX-XXCT
–
Crystal Oscillator
Performance Specifications
Parameter
General
Frequency Range
Frequency Stability
(and 32.768kHz)
Over Temperature Range
Option B
Option D
Option E
Current Consumption
@10MHz
@100MHz
Output Control
Startup Time
Parameter
Output Characteristics
(CMOS/TTL)
High Output Level
Low Output Level
Rise/Fall Time
Duty Cycle
Load
CMOS
Logic 1
Logic 0
10% ↔ 90%
Conditions
MIN
1.0
10%
Vdd
Enabled-High
Disabled-Low
10
Values
TYP
MAX
Vdc
Vdc
nSec
%
pF
mSec
Unit
Conditions
MIN
1.0
±25, ±50, ±100
Values
TYP
MAX
150.0
Unit
Vdc
MHz
ppm
Supply Voltage(Vdd)
1.62
2.97
4.5
1.8
3.3
5.0
15
45
1.98
3.63
5.5
20
60
Vdc
Vdc
Vdc
mA
mA
1.62
2.97
4.5
8
50
15
10
60
TTL
Parameter
Environmental
Operating Temperature
Operating Temperature
Storage Temperature
Seal
MIL-STD-202 Method 112
Test Condition C & D
Option B
Option C
Conditions
MIN
-20
-40
-55
10
Values
TYP
MAX
+70
+85
+125
pF
Unit
C
C
C
DISCLAIMER:
Bliley Technologies, Inc. reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is
assumed as a result of their use or application. No intellectual property rights accompany the sale or delivery of any such product(s) or information.
Bliley Technologies, Inc. • 2545 W. Grandview Blvd, Erie, PA 16506 • 1-814-838-3571 •
bliley.com
•
info@bliley.com
BOCS7-XXXMXX-XXCT
–
Crystal Oscillator
Tape and Reel

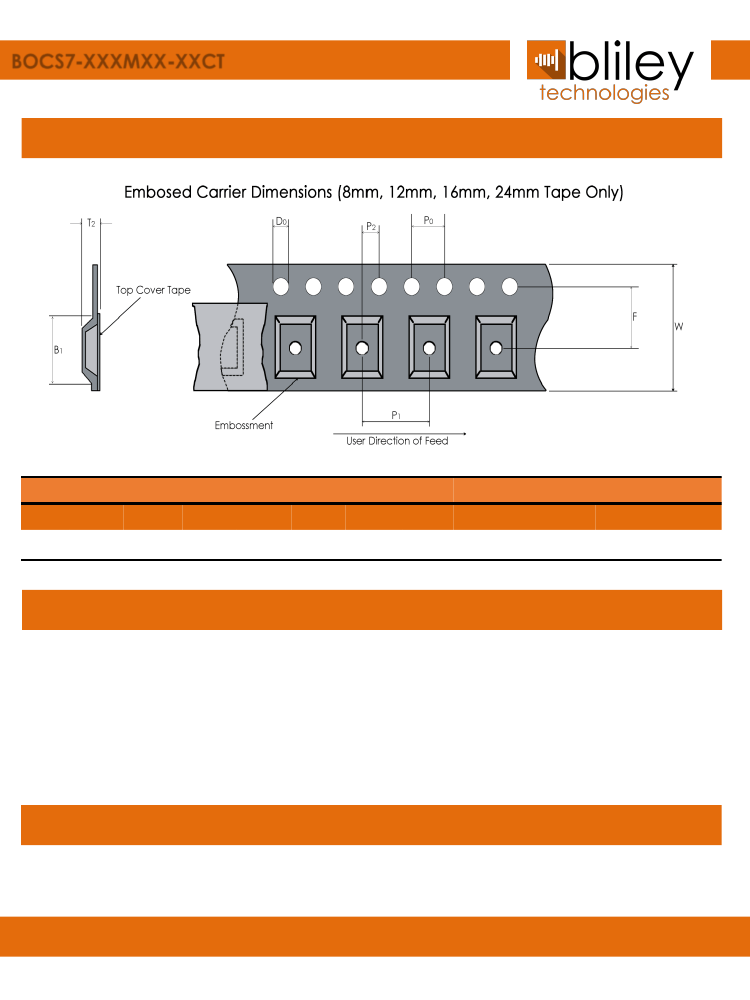

Tape Dimensions (mm)
W
16
F
7.5
Do
1.5
Po
4.0
P1
8
P2
2.0
B1
7.3
T2
1.8
Reel Dimensions (mm)
Outside Dia.
180
Parts / Reel
1,000
Recommended Reflow Profile
Reflow Profile:
in accordance to IPC/JEDEC J-STD-020 (Latest Revision)
Additional Notes:
•
This part has been designed for pick and place reflow soldering
•
This part may be reflowed once
•
This part should not be reflowed in the inverted position
Packaging
Packaging:
All packaging must conform to ESD Controls detailed in ANSI/ESD
S20.20 (Latest Revision)
DISCLAIMER:
Bliley Technologies, Inc. reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is
assumed as a result of their use or application. No intellectual property rights accompany the sale or delivery of any such product(s) or information.
Bliley Technologies, Inc. • 2545 W. Grandview Blvd, Erie, PA 16506 • 1-814-838-3571 •
bliley.com
•
info@bliley.com
