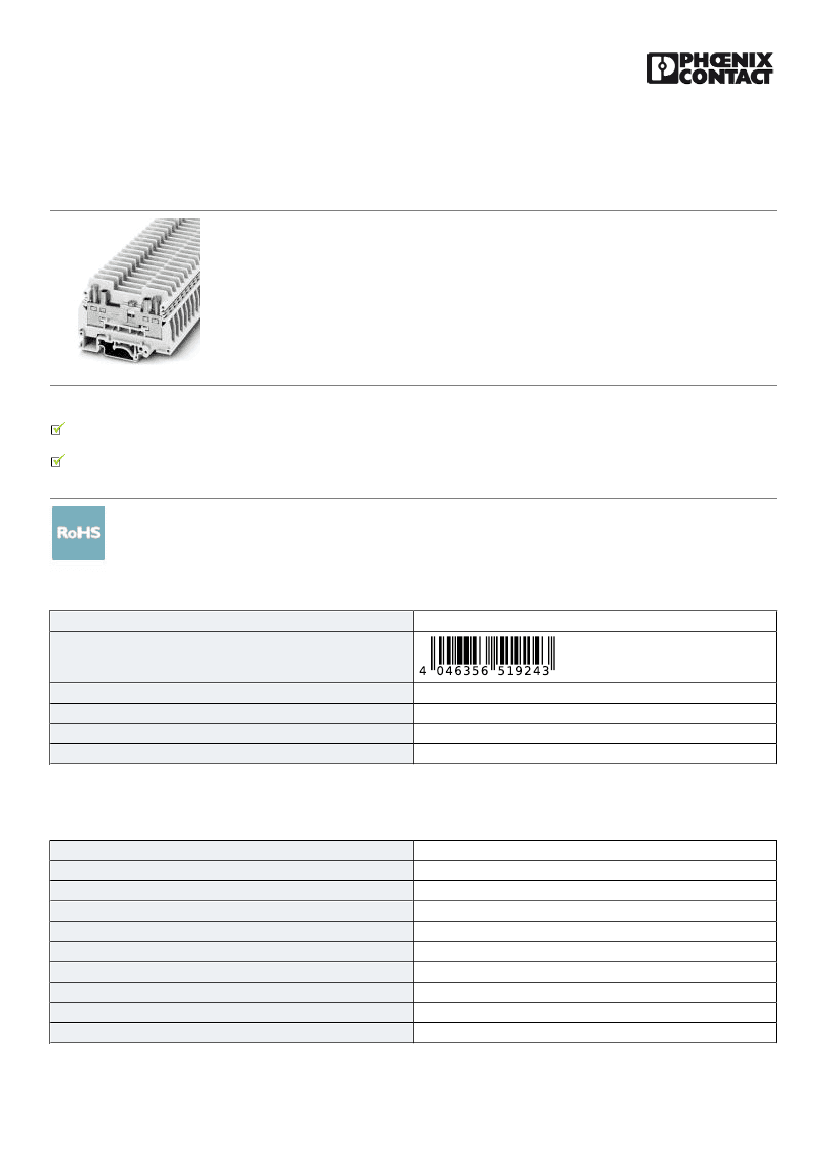

Disconnect terminal block - URTK/S-IB WH - 3057364
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Disconnect terminal block, connection method: Screw connection, cross section: 0.5 mm² - 10 mm² , AWG: 20
- 10, width: 8.2 mm, mounting type: NS 35/7,5, NS 35/15, NS 32, color: white
Your advantages
Easy and clear testing in current transformer secondary circuits can be performed using the test disconnect terminal blocks of the URTK/S
range
On both sides of the disconnect point, the terminal block has a test socket which can also be used to switch across to neighboring terminal
blocks
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356519243
34.190 g
85369010
China
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
1
2
1
6 mm²
white
PA
V0
6 kV
3
III
01/22/2019 Page 1 / 18
https://www.phoenixcontact.com/in/products/3057364
Disconnect terminal block - URTK/S-IB WH - 3057364
Technical data
General
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
I
1.31 W
57 A (with 10 mm² conductor cross section)
41 A
400 V
Yes
IEC 60529:2001-02
guaranteed
Test passed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.5 mm² / 0.3 kg
6 mm / 1.4 kg
10 mm² / 2 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Relative insulation material temperature index (Elec., UL 746 B)
Test passed
0.5 mm²
20 N
6 mm²
60 N
10 mm²
90 N
Test passed
NS 32/NS 35
5N
Test passed
≤ 6,4 mV
Test passed
Test passed
6 mm²
0.72 kA
10 mm²
1.2 kA
Test passed
30 s
130 °C
01/22/2019 Page 2 / 18
2
https://www.phoenixcontact.com/in/products/3057364
Disconnect terminal block - URTK/S-IB WH - 3057364
Technical data
General
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
8.2 mm
2.2 mm
72 mm
51.5 mm
59 mm
56.5 mm
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
Terminal point
Screw connection
IEC 60947-7-1
0.5 mm²
10 mm²
20
8
0.5 mm²
6 mm²
20
10
0.5 mm²
0.5 mm²
4 mm²
0.5 mm²
01/22/2019 Page 3 / 18
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
https://www.phoenixcontact.com/in/products/3057364
Disconnect terminal block - URTK/S-IB WH - 3057364
Technical data
Connection data
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
2.5 mm²
0.5 mm²
6 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
13 mm
A5
M4
1.2 Nm
1.5 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141127
27141127
27141127
27141100
27141100
27141126
01/22/2019 Page 4 / 18
https://www.phoenixcontact.com/in/products/3057364
Disconnect terminal block - URTK/S-IB WH - 3057364
Classifications
eCl@ss
eCl@ss 8.0
eCl@ss 9.0
27141126
27141126
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC000489
EC000489
EC000902
EC000902
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC
EAC-Zulassung
Accessories
Accessories
Cover profile
Cover profile - AP-ME METER - 3034361
Cover profile, for covering terminal strips, snapped onto APT-ME cover profile carrier or APH-ME end bracket. A
cover profile carrier should be positioned at the ends and at intervals of around 40 cm. Length supplied: 1 m
