LPHS-44S5-VM-032-FG datasheet, PDF

Datasheet> All Categories > The connector> The connector> LPHS-44S5-VM-032-FG

LPHS-44S5-VM-032-FG: DescriptionBoard Connector, 44 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerAptos Technology; Environmental Compliance

Download Datasheet Parametric View All

LPHS-44S5-VM-032-FG Overview

Board Connector, 44 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

LPHS-44S5-VM-032-FG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aptos Technology
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (5)
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	LPHS
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0

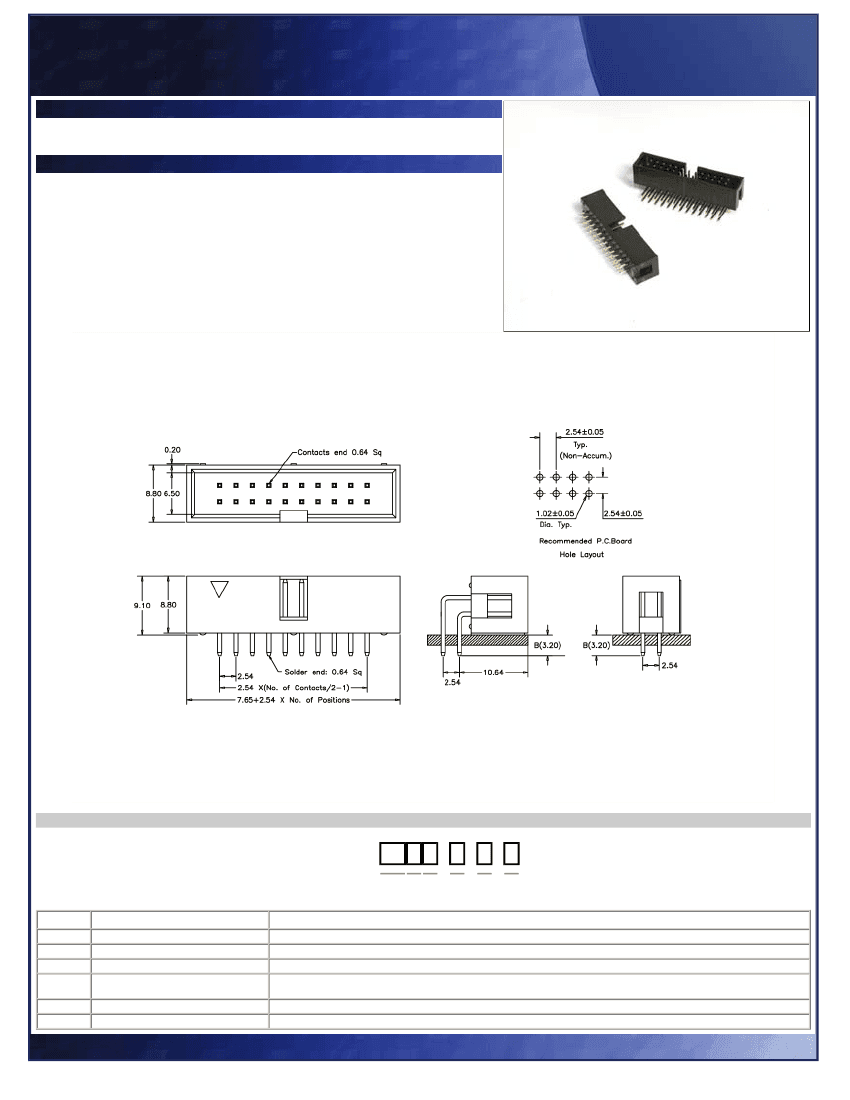

LPHS-44S5-VM-032-FG Preview

LPHS - LPHS Series

2.54mm (0.1 in.) Box Header

Dual Row Straight and Right Angle Options for Four Wall Shrouded

Application and Features

Assures reliable Flat Cable-to-PC Board interconnection.

Low-Profile Pin Headers

Recommended Part Mating: BPHFZ PFCS QPHFZ

Aptos Technology

Phone: (831) 688-0881

www.aptostechnology.com

Specifications

Contact Material

Current Rating

Dielectric Withstanding

Duplex Plating

Environmental

Finish

Insulator Material

Insulator Resistance

Operating Temperature

Standard

Brass

3 Amps

AC 500 V

Gold plated on Contact Area, Tin on Solder Area

RoHS Compliant

Tin, Gold or Duplex plated

Polyester, UL 94V-0 @ Standard:Nylon-6T

1000 Megohms min

-40° ~ +105° C

Gold flash all over

How to Order

unit:mm

Please replace "X" with appropriate coding listed in the tables below.

LPHS - XX X X - X - X - X

Item

Description

Number of Contacts

Connector Type1

Pin Type

Contact Plating

Pin Length

Environment Type

Straight=S, Right Angle=R

Blunt Cut (Standard)=5, Formed Pins=6

Options

06, 08, 10, 14, 16, 18, 20, 24, 26, 30, 34, 40, 44, 48, 50, 60, 64

Tin Plated=VA, Gold Flash=VB, Gold 3u"=VC, Gold 5u"=VD, Gold 10u"=VE, Gold 15u"=VF, Gold 30u"=VJ, Duplex

Flash=VK, Duplex 3u"=VL, Duplex 5u"=VM, Duplex 10u"=VN, Duplex 15u"=VP, Duplex 30u"=VU

Straight 3.2mm=032, Right Angle 3.2mm=032

High Temp RoHS Compliant=FG

Products specifications are subject to be changed without notice.

Please contact your local Aptos Technology sales office for further confirmation.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
