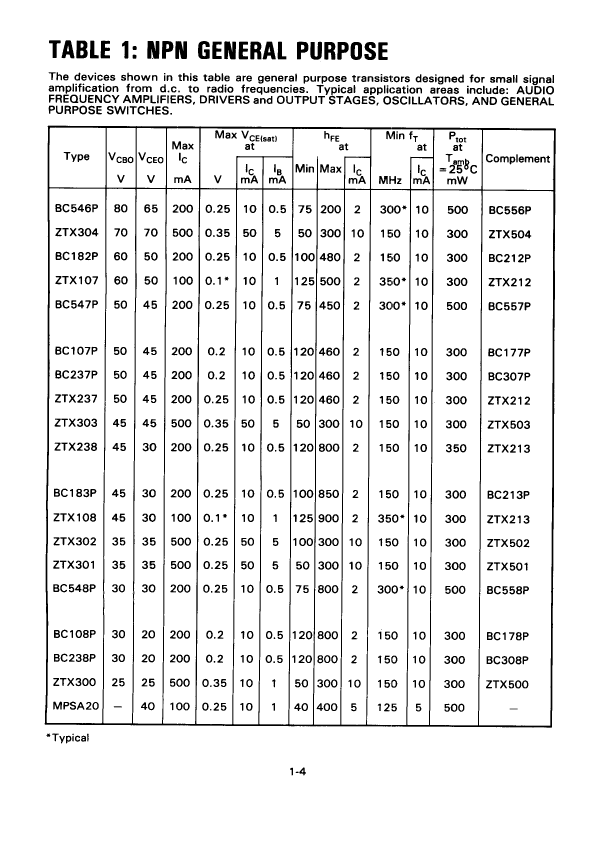

BC547P: DescriptionSmall Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size33KB，1 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/

Download Datasheet Parametric Compare View All

BC547P Overview

Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3

BC547P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zetex Semiconductors
package instruction	IN-LINE, R-PSIP-W3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.2 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	75
JESD-30 code	R-PSIP-W3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	200 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	235
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.5 W
Certification status	Not Qualified
Guideline	CECC
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	300 MHz
VCEsat-Max	0.25 V

Preview

Download Datasheet

View All

BC547P Related Products

	BC547P	BC238P	BC108P	BC182P	BC183P	BC546P	BC107P
Description	Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.2A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.2A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.2A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.2A I(C), 65V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 STYLE, E-LINE PACKAGE-3
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Collector-emitter maximum voltage	45 V	20 V	20 V	50 V	30 V	65 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	75	120	120	100	100	75	120
JESD-30 code	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	235	235	235	235	235	235	235
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	0.5 W	0.3 W	0.3 W	0.3 W	0.3 W	0.5 W	0.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Guideline	CECC	CECC	CECC	CECC	CECC	CECC	CECC
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	300 MHz	150 MHz	150 MHz	150 MHz	150 MHz	300 MHz	150 MHz
VCEsat-Max	0.25 V	0.2 V	0.2 V	0.25 V	0.25 V	0.25 V	0.2 V
Maker	Zetex Semiconductors	Zetex Semiconductors	-	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
