HP Series
!
NEW
Hall Effect Pushbutton Switch
A
Features/Benefits
•
IP68 sealed
•
10,000,000 life cycle
•
Multiple colored caps
•
Redundant output available
Typical Applications
•
Harsh environments
•
Off-Road
•
Industrial
•
Medical
•
Transportation
•
Joystick control modules
•
Gaming
•
Military
Materials
CASE / BUSHING: Anodized Aluminum
INSIDE HOUSING: PBT
CAP: PBT
ACTUATOR: PBT
Pushbutton
Specifications
FUNCTION: Linear output (See chart on next page)
MOUNTING TYPE: Front mount, Rear mount
Mechanical
MECHANICAL TRAVEL: 0.150 (3.81mm)
SHOCK: 60g 11ms sawtooth wave
VIBRATION: 10-500Hz 10g max.
Operating Environment
OPERATING TEMPERATURE: -40˚C to 85˚C
OPERATING LIFE: 10,000,000 cycles
SEALING: IP68S
Electrical
SUPPLY VOLTAGE: 5 ± 0.5 VDC
SUPPLY CURRENT: 10mA max.
OUTPUT CURRENT: 1mA max.
OUTPUT VOLTAGE: Programable from 0.5 -4.5V
ESD PROTECTION: 16kV per EIA-545
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box.
H
Designation
HP
HP Series
Bushing / Mounting Style
1
Front mount, 5/8-24 thread
2
Rear mount, 5/8-24 thread
3
Rear mount, 15/32-32 thread
Cap Style
1
ø .625 Dome (front mount only)
2
ø .370 Flat
Sensor Configuration
S
Single Output
D
Dual Output,
Output 2 mirrors Output 1

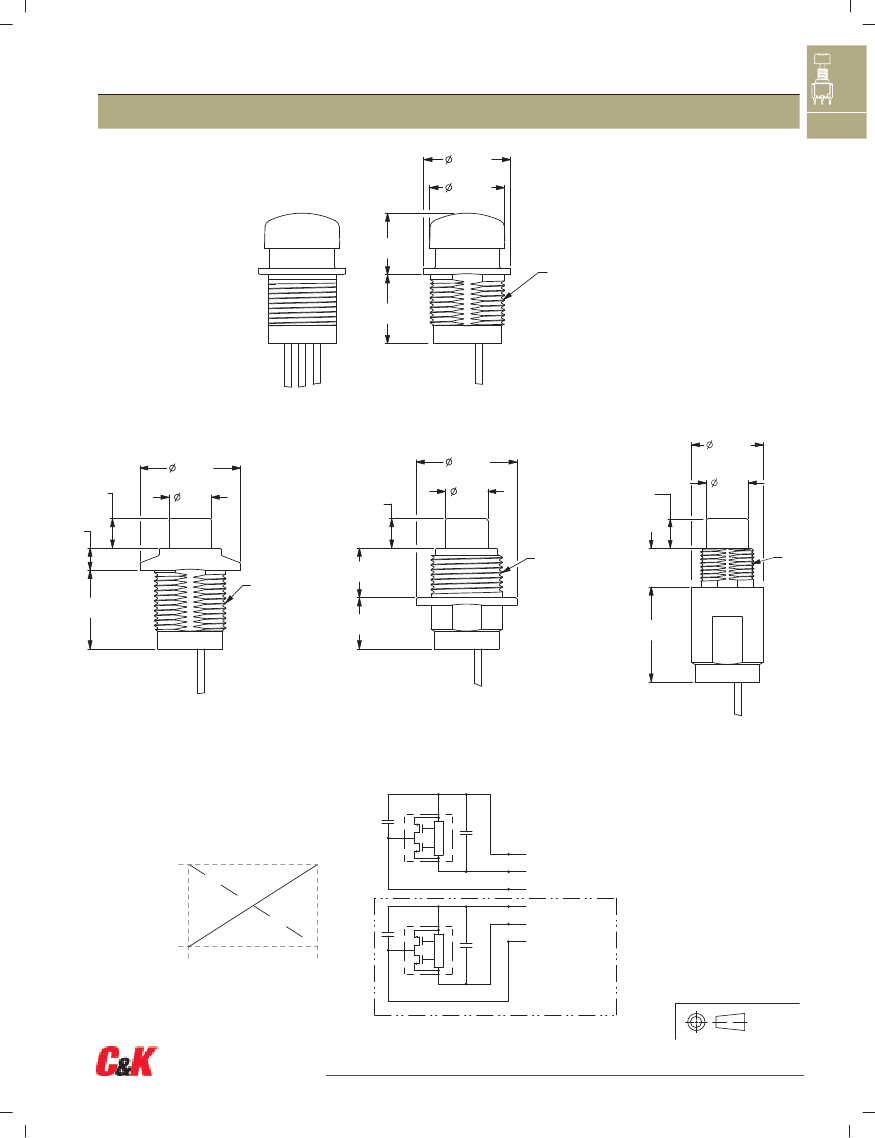

(see figure 1)
P
Hardware
0
No hardware
1
Plated hardware (STD)
2
Stainless hardware
Bushing Finish
1
Clear anodize
2
Black anodize (STD)
Cap Color
1
White
2
Black (STD)
3
Red
4
Orange
5
Yellow
Termination Style
W
12” wire leads, 22 AWG XLPE (26 AWG for Dual Output)
Actuation Force
S
2.7lb (12N)
Please contact Customer
Service for additional options.
Output Voltage Code
V1= 1.0V, V2= 4.0V
1
2
V1= 4.0V, V2= 1.0V
3
V1= 0.5V, V2= 4.5V
4
V1= 4.5V, V2= 0.5V
Specifications and dimensions subject to change
A-116
www.ck-components.com
