PXD303/550/01/1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> PXD303/550/01/1

PXD303/550/01/1: DescriptionMains Power Connector, 10A, 250VAC, Female, ROHS COMPLIANT; CategoryThe connector The connector; File Size150KB，2 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

PXD303/550/01/1 Overview

Mains Power Connector, 10A, 250VAC, Female, ROHS COMPLIANT

PXD303/550/01/1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Manufacturer's serial number	PXD303
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	ABS
Total number of contacts	3

Preview

Download Datasheet

View All

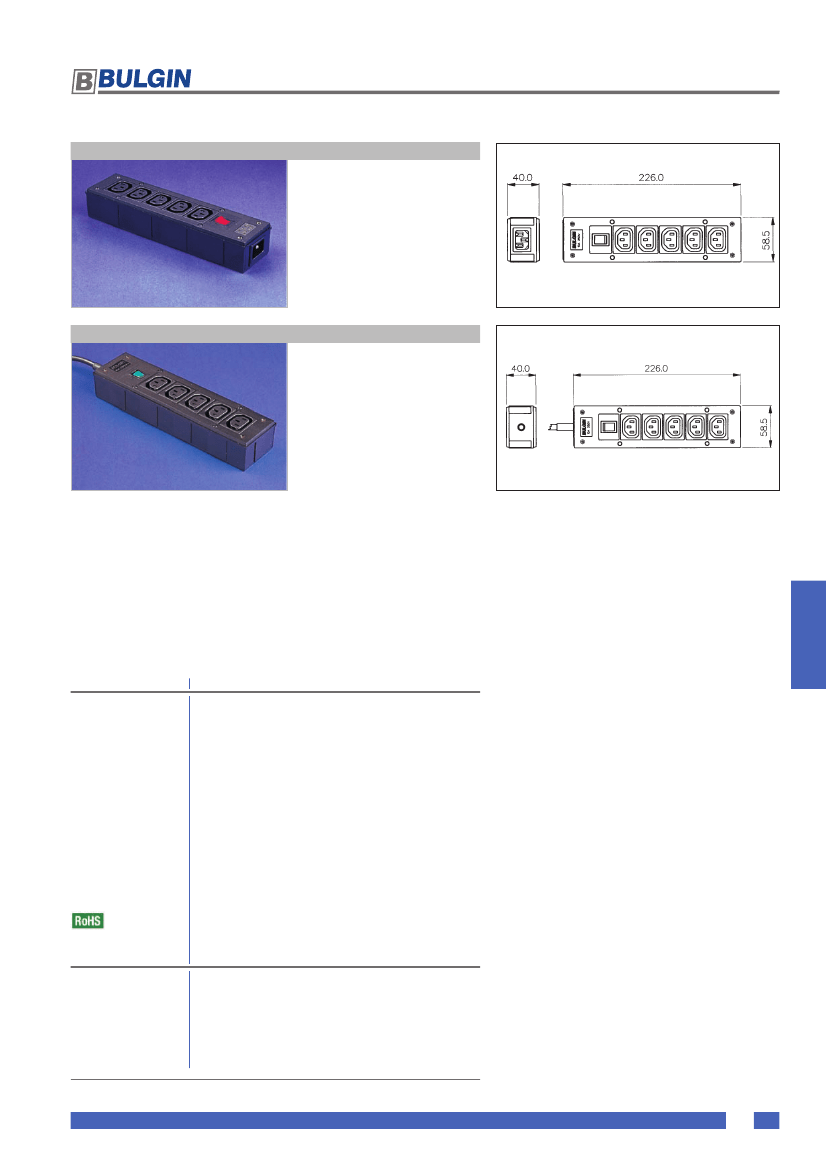

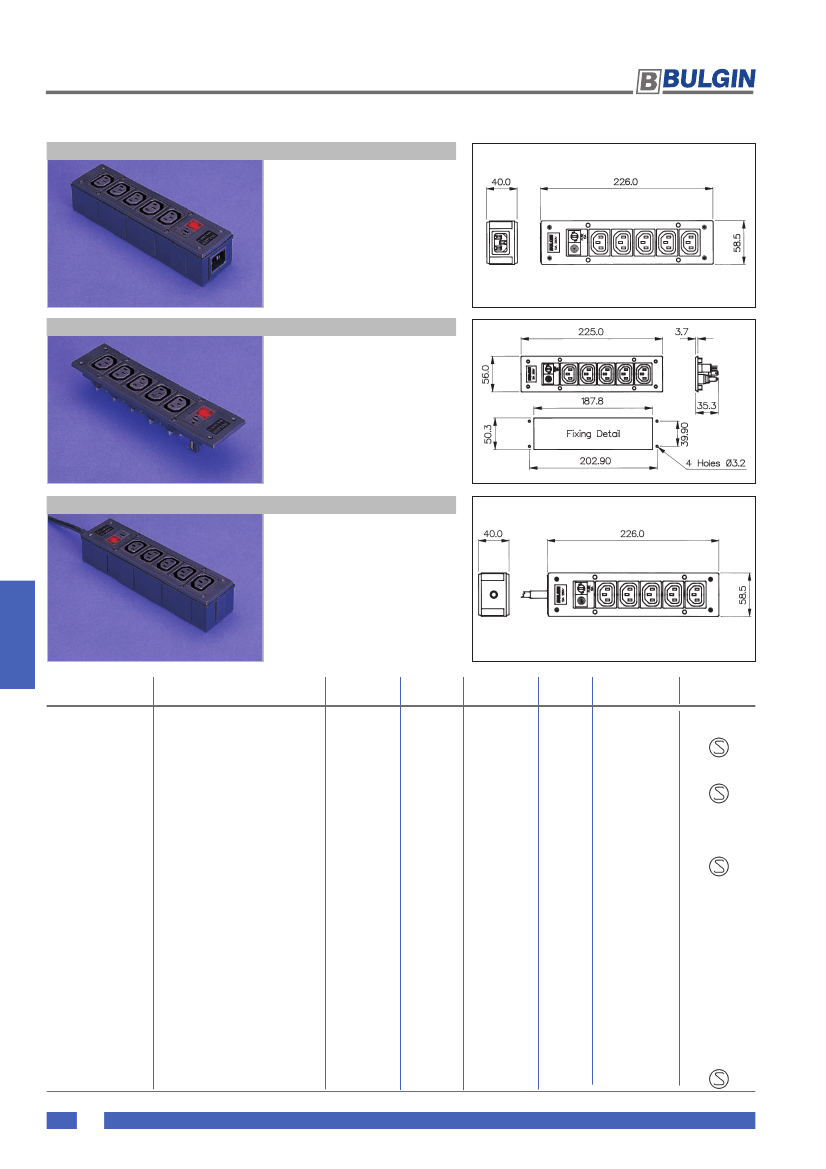

IEC DISTRIBUTION UNITS

IEC Rectangular Distribution Units

IEC DISTRIBUTION UNIT

Five Shuttered Outlets

5 x 20mm Fuseholder

Neon Indicator

Filtered or Non-filtered

EN60320 Inlet

10A, 250V a.c.

PXD301/050/01/1

IEC PANEL MOUNT DISTRIBUTION UNIT

Five Shuttered Outlets

5 x 20mm Fuseholder

Neon Indicator

Screw Fit to Panel

10A, 250V a.c.

PXD100/050/01/1

IEC DISTRIBUTION UNIT

Five Shuttered Outlets

5 x 20mm Fuseholder

Neon Indicator

Filtered or Non-filtered

2 Metre Cable with BS1363

Plug

10A, 250V a.c.

IEC CONNECTORS

PXD303/050/01/1

PXD306/050/01/1

Part No.

Panel Style:

PXD100/050/01/1

Box Style:

PXD301/050/01/1

PXD301/050/07/1

PXD301/050/08/1

PXD301/550/01/1

PXD301/550/07/1

PXD301/550/08/1

PXD303/050/01/1

PXD303/050/07/1

PXD303/050/08/1

PXD303/550/01/1

PXD303/550/07/1

PXD303/550/08/1

PXD306/050/01/1

Inlet

Outlet

EMI

Filter

Neon

Indicator

Fuse

Illuminated

Switch

Approvals

5 Shuttered

2m cable with BS1363 plug

2m cable with CEE7 Sheet VII plug

5 Shuttered

Red

Green

Red

Green

Red

Green

Red

Green

100

www.elektron-bulgin.com
