SML32-082KLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SML32-082KLF

SML32-082KLF: DescriptionGeneral Purpose Inductor, 0.082uH, 10%, 1 Element, Phenolic-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，2 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric View All

SML32-082KLF Overview

General Purpose Inductor, 0.082uH, 10%, 1 Element, Phenolic-Core, SMD, ROHS COMPLIANT

SML32-082KLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Gowanda Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
core material	PHENOLIC
DC Resistance	0.4 Ω
Nominal inductance(L)	0.082 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	27
Maximum rated current	0.551 A
self resonant frequency	900 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	10%

Preview

Download Datasheet

View All

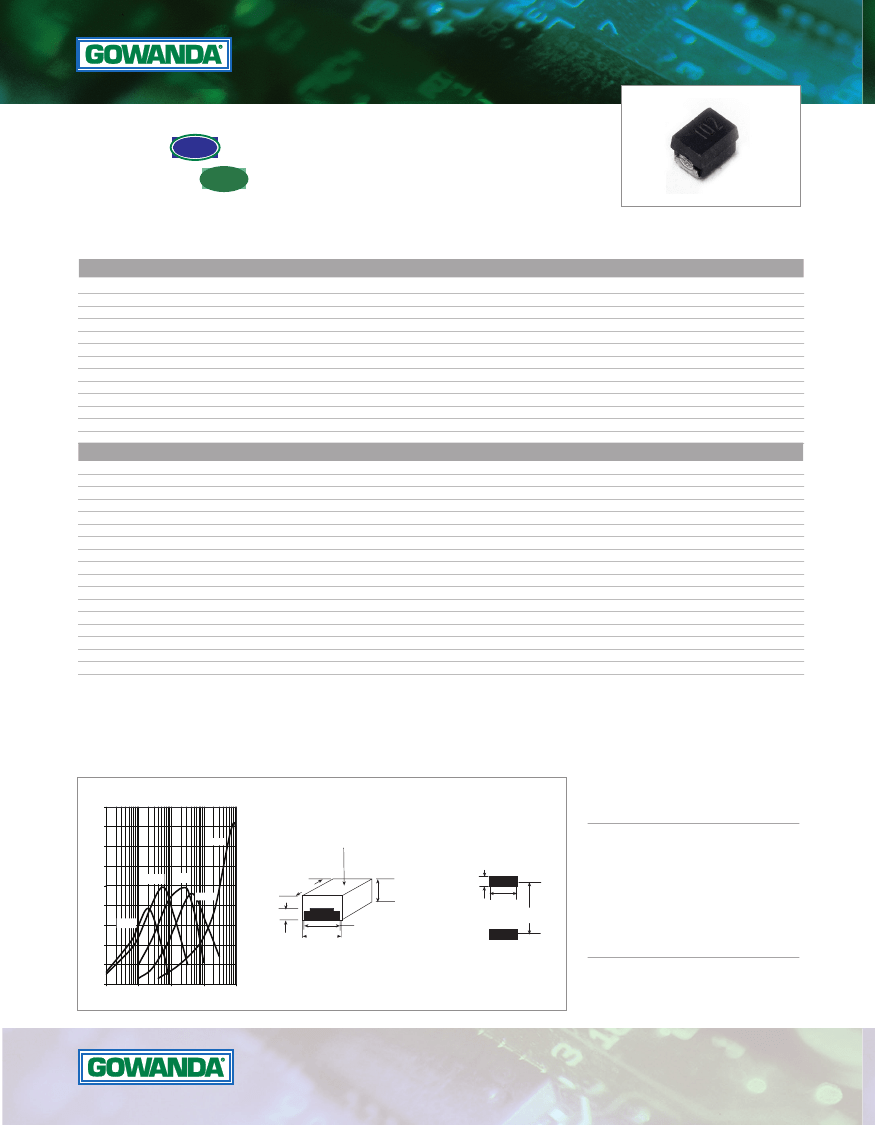

STANDARD RF INDUCTORS - SURFACE MOUNT

SML32

SML32LF

PART

NUMBER

SML32-010K

SML32-012K

SML32-015K

SML32-018K

SML32-022K

SML32-027K

SML32-033K

SML32-039K

SML32-047K

SML32-056K

SML32-068K

SML32-082K

SML32-100K

TRADITIONAL

COMPLIANT

RoHS

Wirewound, Molded

µH

0.010

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.100

MIN

L&Q

TEST FREQ

MHz

PHENOLIC CORE

100

>1800

1700

1500

1400

1300

1200

1100

1000

900

700

500

450

400

350

320

300

250

220

180

160

140

120

100

0.13

0.14

0.16

0.18

0.20

0.22

0.24

0.27

0.33

0.36

0.40

0.44

0.22

0.25

0.28

0.32

0.36

0.40

0.45

0.50

0.55

0.60

0.67

0.70

0.75

0.85

0.90

1.00

1.10

966

931

871

821

779

743

711

670

636

606

580

551

525

971

910

860

805

749

720

679

644

614

588

556

544

526

494

480

455

434

SRF

MHz

MIN

DCR

OHMS

MAX

CURRENT

RATING

mA DC

SML32-120K

0.120

25.2

SML32-150K

0.150

25.2

SML32-180K

0.180

25.2

SML32-220K

0.220

25.2

SML32-270K

0.270

25.2

SML32-330K

0.330

25.2

SML32-390K

0.390

25.2

SML32-470K

0.470

25.2

SML32-560K

0.560

25.2

SML32-680K

0.680

25.2

SML32-820K

0.820

25.2

SML32-101K

1.0

7.96

SML32-121K

1.2

7.96

SML32-151K

1.5

7.96

SML32-181K

1.8

7.96

SML32-221K

2.2

7.96

SML32-271K

2.7

7.96

All part numbers provide 10% tolerance on inductance

Optional tolerances are available; please contact factory

Custom designs are available to meet your specific requirements; please contact factory

POWDERED IRON CORE

continued next page

*Add “LF” suffix for RoHS requirement. Example: SML32-010KLF

0.118/0.134

(2.98/3.40)

Ex:

part number.

101 = 1.0 µH

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the

102 = 10 µH

These LF components meet the ≤ .1% lead requirement and they are compatible with

103 = 100 µH

soldering processes.

260°C

MARKING: L in µH

Q VS. FREQUENCY

SML32 SERIES

0.086/0.102 (2.18/2.59)

OVER TERMINAL

0.055 (1.40) REF

0.01µH

MARKING: L in µH

Ex: 101 = 1.0 µH

102 = 10 µH

103 = 100 µH

0.118/0.134

(2.98/3.40)

0.086/0.102 (2.18/2.59)

OVER TERMINAL

0.090/0.106

(2.29/2.70)

NOTES:

0.066/0.074 (1.68/1.88) WIDE

0.016/0.024 (0.41/0.61) DEEP

• Operating Temperature Range:

-55°C to +125°C

RECOMMENDED FOOT PRINT

0.070

(1.78)

0.120

(3.05)

0.130

(3.30)

10 µH

1.2 µH

0.15 µH

• Current Rating is based on a 35°C temperature

rise at an ambient temperature of 90°C

• Epoxy-encapsulated for environmental

protection and superior strength to withstand all

types of reflow soldering

0.1

100 µH

0.055 (1.40) REF

0.066/0.074 (1.68/1.88) WIDE

0.016/0.024 (0.41/0.61) DEEP

0.090/0.106

(2.29/2.70)

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter:

2000

8 mm

7 in.

RECOMMENDED FOOT PRINT

100

Frequency in MHz

1000

0.070

(1.78)

0.120

(3.05)

0.130

(3.30)

in. (mm)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

www.gowanda.com

022614
