W3H32M64E-667SBI: DescriptionDDR DRAM, 32MX64, 0.65ns, CMOS, PBGA208, 16 X 20 MM, 1 MM PITCH, PLASTIC, BGA-208; Categorystorage storage; File Size1MB，25 Pages; ManufacturerMercury Systems Inc

Download Datasheet Parametric Compare View All

W3H32M64E-667SBI Overview

DDR DRAM, 32MX64, 0.65ns, CMOS, PBGA208, 16 X 20 MM, 1 MM PITCH, PLASTIC, BGA-208

W3H32M64E-667SBI Parametric

Parameter Name	Attribute value
Maker	Mercury Systems Inc
package instruction	BGA,
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Maximum access time	0.65 ns
Other features	AUTO/SELF REFRESH
JESD-30 code	R-PBGA-B208
memory density	2147483648 bit
Memory IC Type	DDR DRAM
memory width	64
Number of functions	1
Number of ports	1
Number of terminals	208
word count	33554432 words
character code	32000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	32MX64
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	RECTANGULAR
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
self refresh	YES
Maximum supply voltage (Vsup)	1.9 V
Minimum supply voltage (Vsup)	1.7 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal location	BOTTOM
Maximum time at peak reflow temperature	30

W3H32M64E-667SBI Preview

W3H32M64E-XSBX

256MB – 32M x 64 DDR2 SDRAM 208 PBGA Multi-Chip Package

FEATURES



Data rate = 667, 533, 400 Mb/s



Package:

• 208 Plastic Ball Grid Array (PBGA), 16 x 20mm

• 1.0mm pitch



Supply Voltage = 1.8V ± 0.1V



Differential data strobe (DQS, DQS#) per byte



Internal, pipelined, double data rate architecture



4-bit prefetch architecture



DLL for alignment of DQ and DQS transitions with clock

signal



Four internal banks for concurrent operation

(Per DDR2 SDRAM Die)



Programmable Burst lengths: 4 or 8



Auto Refresh and Self Refresh Modes



On Die Termination (ODT)



Adjustable data – output drive strength



Programmable CAS latency: 3, 4 or 5



Posted CAS additive latency: 0, 1, 2, 3 or 4



Write latency = Read latency - 1* t



Commercial, Industrial and Military Temperature Ranges



Organized as 32M x 64, user conﬁgurable as 2 x 32M x 32



Weight: W3H32M64E-XSBX - 2.5 grams typical

* This product is subject to change without notice.

BENEFITS



62% Space savings vs. FBGA



Reduced part count



42% I/O reduction vs FBGA



Reduced trace lengths for lower parasitic capacitance



Suitable for hi-reliability applications



Upgradeable to 64M x 64 density (contact factory for

information)

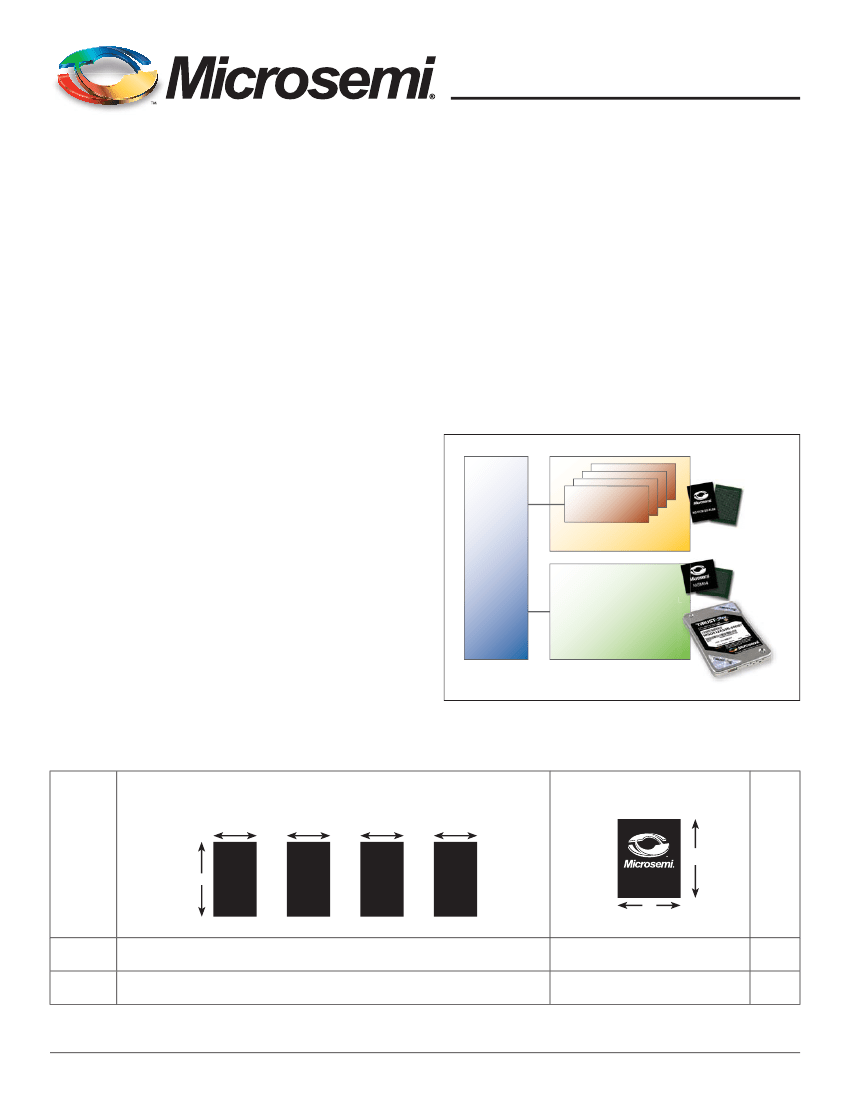

TYPICAL APPLICATION

RAM

Host

FPGA/

Processor

DDR2/DDR3

W3X128M72-XBI

SSD (SLC)

MSM32/MSM64 (SATA BGA)

W7N16GVHxxBI (PATA BGA)

M512/M256/M128 (SATA, 2.5in)

FIGURE 1 – DENSITY COMPARISONS

CSP Approach (mm)

11.0

W3H32M64E-XSBX

19.0

FBGA

W3H32M64E-XSBX

62%

42%

Area

I/O Count

4 x 209mm

= 836mm

4 x 90 balls = 360 balls

320mm

208 Balls

Microsemi Corporation reserves the right to change products or speciﬁcations without notice.

August 2013

Rev. 16

Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp

W3H32M64E-XSBX

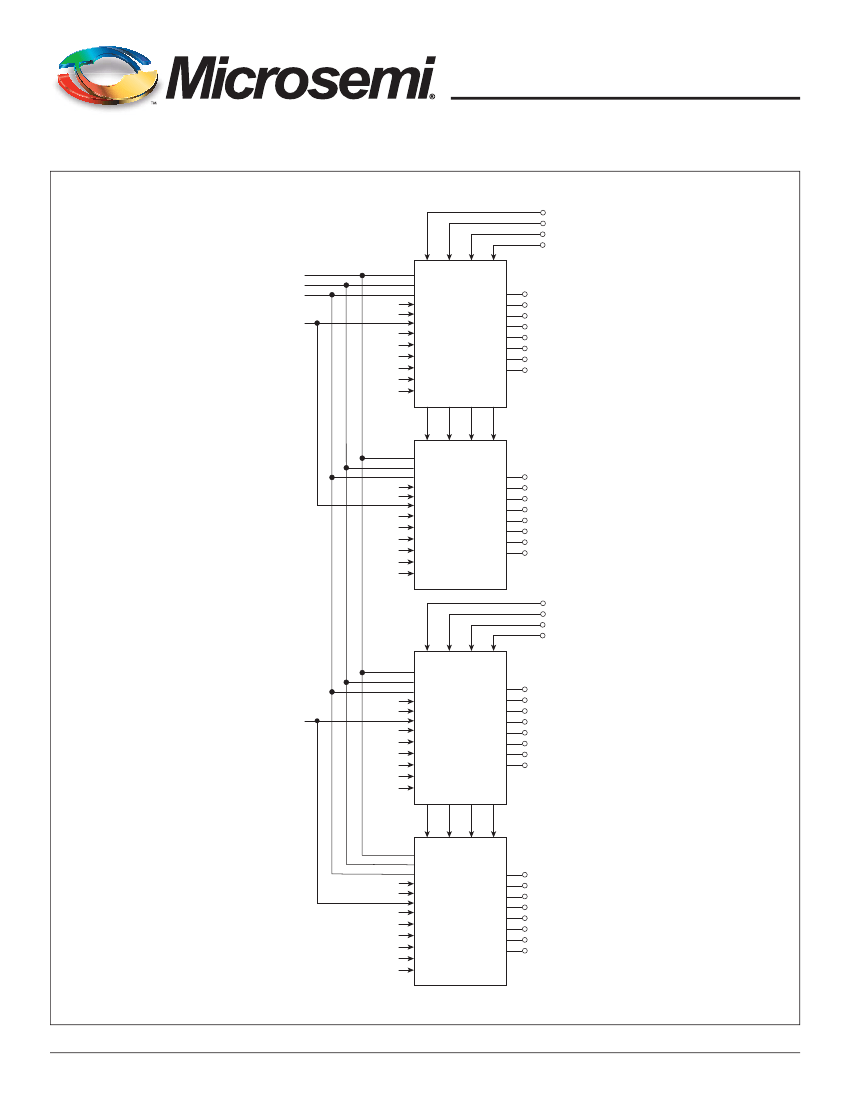

FIGURE 2 – FUNCTIONAL BLOCK DIAGRAM

WEA#

RASA#

CASA#

CSA#

WE# RAS# CAS#

CS#

ODT

A0-12

DQ0

BA0-1

•

CK#

•

CKE

•

IC1

LDM

•

UDM

•

LDQS

•

LDQS#

DQ15

UDQS

UDQS#

ODT

A0-12

BA0-1

CK0

CK0#

CKEA

LDM0

UDM0

LDQS0

LDQS0#

UDQS#

UDQS0#

DQ0

•

DQ15

CK1

CK1#

LDM1

UDM1

LDQS1

LDQS1#

UDQS1

UDQS1#

WE# RAS# CAS#

CS#

ODT

A0-12

BA0-1

DQ0

•

CK#

•

CKE

•

IC2

LDM

•

UDM

•

LDQS

•

LDQS#

DQ15

UDQS

UDQS#

DQ16

•

DQ31

WEB#

RASB#

CASB#

CSB#

WE# RAS# CAS#

CS#

ODT

A0-12

BA0-1

CK#

CKE

LDM

UDM

LDQS

LDQS#

UDQS

UDQS#

CK2

CK2#

CKEB

LDM2

UDM2

LDQS2

LDQS2#

UDQS2

UDQS2#

IC3

DQ0

•

DQ15

DQ32

•

DQ47

CK3

CK3#

LDM3

UDM3

LDQS3

LDQS3#

UDQS3

UDQS3#

WE#RAS# CAS#

CS#

ODT

A0-12

BA0-1

DQ0

•

CK#

•

CKE

•

IC4

LDM

•

UDM

•

LDQS

•

LDQS#

DQ15

UDQS

UDQS#

DQ48

•

DQ63

Microsemi Corporation reserves the right to change products or speciﬁcations without notice.

August 2013

Rev. 16

Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp

W3H32M64E-XSBX

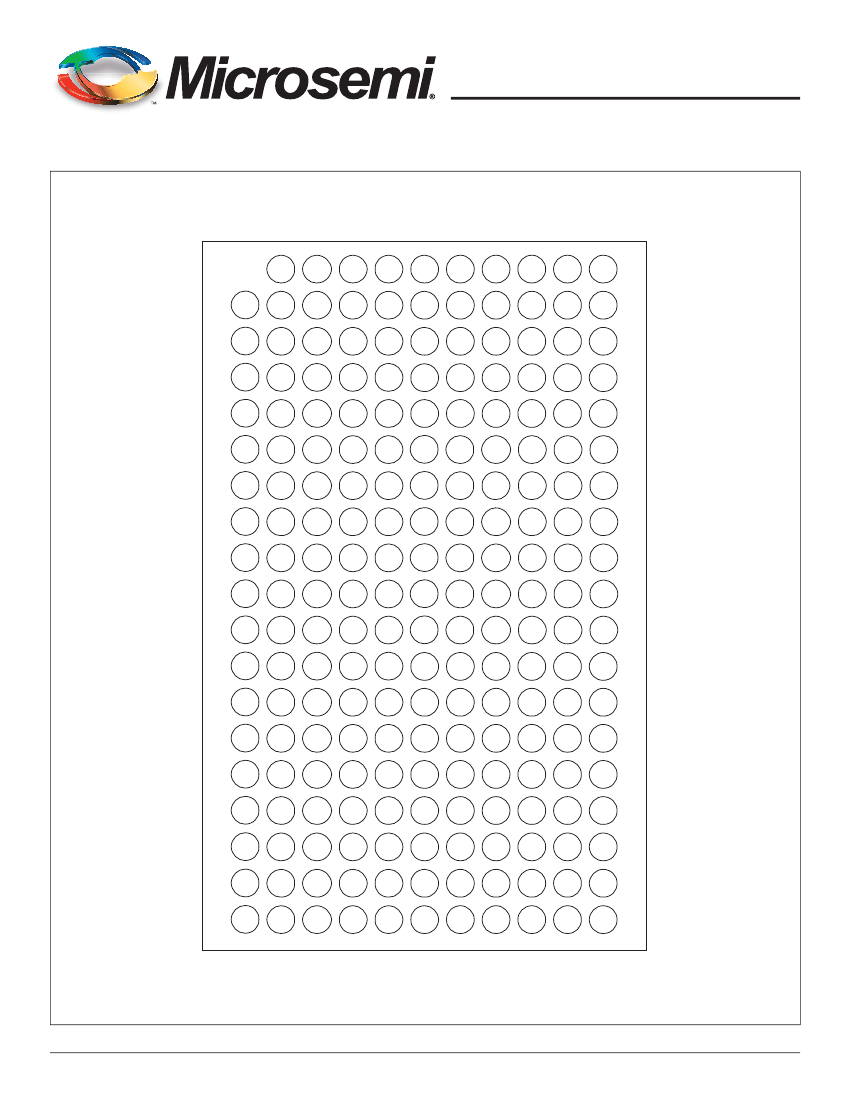

FIGURE 3 – PIN CONFIGURATION

TOP VIEW

10 11

CSB#

CASB#

RASB#

DQ34

CK3

CK3#

DQ35

DQ51

WEB#

CKEB

DQ50

DQ53

DQ37

CK2#

CK2

DQ52

DQ36

DQ33

DNU**

DNU

DQ39

LDQS2

LDQS3

DQ48

DQ32

LDM3

LDM2

DQ49

DQ43

DQ59

DNU

DQ55

DQ58

DQ42

LDQS2#

LDQS3#

DQ38

DQ54

DQ60

DQ57

UDM2

DQ63

DQ56

DQ40

DQ61

DQ45

UDM3

DQ44

DQ41

DQ46

DQ62

UDQS2#

DQ47

UDQS2

UDQS3

UDQS3#

A10

A12

DNU*

A11

REF

BA1

BA0

UDQS1#

UDQS1

UDQS0

DQ15

UDQS0#

DQ30

DQ14

DQ9

DQ12

UDM1

DQ13

DQ29

DQ8

DQ24

DQ31

UDM0

DQ25

DQ28

DQ22

DQ6

LDQS1#

LDQS0#

DQ10

DQ26

DQ23

ODT

DQ27

DQ11

DQ17

LDM0

LDM1

DQ0

DQ16

LDQS1

LDQS0

DQ7

DQ1

DQ4

DQ20

CK0

CK0#

DQ5

DQ21

DQ18

CKEA

WEA#

DQ19

DQ3

CK1#

CK1

DQ2

RASA#

CASA#

CSA#

Vcc

10 11

* Pin J10 is reserved for signal A13 on future upgrades

** Ball E5 is reserved for signal BA2 on 64Mx64 and higher densities.

Microsemi Corporation reserves the right to change products or speciﬁcations without notice.

August 2013

Rev. 16

Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp

W3H32M64E-XSBX

TABLE 1 – BALL DESCRIPTIONS

Symbol

ODT

CK, CK#

Type

Input

Description

On-Die termination: ODT (registered HIGH) enables termination resistance internal to the DDR2 SDRAM. When enabled, ODT is only

applied to each of the following balls: DQ0–DQ3, LDM, UDM, LDQS, LDQS#, UDQS, and UDQS#. The ODT input will be ignored if

disabled via the LOAD MODE command.

Clock: CK and CK# are differential clock inputs. All address and control input signals are sampled on the crossing of the positive edge

of CK and negative edge of CK#. Output data (DQS and DQS/DQS#) is referenced to the crossings of CK and CK#.

Clock enable: CKE (registered HIGH) activates and CKE (registered LOW) deactivates clocking circuitry on the DDR2 SDRAM. The

speciﬁc circuitry that is enabled/disabled is dependent on the DDR2 SDRAM conﬁguration and operating mode. CKE LOW provides

PRECHARGE power-down mode and SELF-REFRESH action (all banks idle), or ACTIVE power-down (row active in any bank). CKE

is synchronous for power-down entry, Power-down exit, output disable, and for self refresh entry. CKE is asynchronous for self refresh

exit. Input buffers (excluding CKE, and ODT) are disabled during power-down. Input buffers (excluding CKE) are disabled during

self refresh. CKE is an SSTL_18 input but will detect a LVCMO SLOW level once V

is applied during

ﬁ

rst power-up. After V

REF

has

become stable during the power on and initialization sequence, it must be maintained for proper operation of the CKE receiver. For

proper SELF-REFRESH operation, V

REF

must be maintained.

Chip select: CS# enables (registered LOW) and disables (registered HIGH) the command decoder. All commands are masked when

CS# is registered HIGH.

Command inputs: RAS#, CAS#, WE# (along with CS#) deﬁne the command being entered.

Input data mask: DM is an input mask signal for write data. Input data is masked when DM is concurrently sampled HIGH during a

WRITE access. DM is sampled on both edges of DQS. Although DM balls are input-only, the DM loading is designed to match that of

DQ and DQS balls. LDM is DM for lower byte DQ0–DQ7 and UDM is DM for upper byte DQ8–DQ15, of each of IC1-4

Bank address inputs: BA0–BA1 deﬁne to which bank an ACTIVE, READ, WRITE, or PRECHARGE command is being applied. BA0–

BA1 deﬁne which mode register including MR, EMR, EMR(2), and EMR(3) is loaded during the LOAD MODE command.

Address inputs: Provide the row address for ACTIVE commands, and the column address and auto precharge bit (A10) for READ/

WRITE commands, to select one location out of the memory array in the respective bank. A10 sampled during a PRECHARGE

command determines whether the PRECHARGE applies to one bank (A10 LOW, bank selected by BA1–BA0) or all banks (A10

HIGH) The address inputs also provide the op-code during a LOAD MODE command.

Data input/output: Bidirectional data bus

Data strobe for upper byte: Output with read data, input with write data for source synchronous operation. Edge-aligned with read

data, center-aligned with write data. UDQS# is only used when differential data strobe mode is enabled via the LOAD MODE

command.

Data strobe for lower byte: Output with read data, input with write data for source synchronous operation. Edge-aligned with read

data, center-aligned with write data. UDQS# is only used when differential data strobe mode is enabled via the LOAD MODE

command.

Power Supply:

Power Supply: I/O; V

CCQ

is common to V

SSTL_18 reference voltage.

Ground

No connect: These balls should be left unconnected.

Future use

CKEA, CKEB

Input

CSA#, CSB#

RASA#, CASA#,

WEA#

RASB#, CASB#,

WEB#

LDM, UDM

BA0–BA1

Input

A0-A12

DQ0-63

UDQS, UDQS#

Input

I/O

LDQS, LDQS#

CCQ

REF

DNU

I/O

Supply

Microsemi Corporation reserves the right to change products or speciﬁcations without notice.

August 2013

Rev. 16

Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp

W3H32M64E-XSBX

DESCRIPTION

The 2Gb DDR2 SDRAM is a high-speed CMOS, dynamic random-

access memory containing 2,147,483,648 bits. Each of the four

chips in the MCP are internally conﬁgured as 4-bank DRAM. The

block diagram of the device is shown in Figure 2. Ball assignments

and are shown in Figure 3.

The 2Gb DDR2 SDRAM uses a double-data-rate architecture to

achieve high-speed operation. The double data rate architecture is

essentially a 4n-prefetch architecture, with an interface designed

to transfer two data words per clock cycle at the I/O balls. A single

read or write access for the 2Gb DDR2 SDRAM effectively consists

of a single 4n-bit-wide, one-clock-cycle data transfer at the internal

DRAM core and four corresponding

n-bit-wide,

one-half-clock-cycle

data transfers at the I/O balls.

A bidirectional data strobe (DQS, DQS#) is transmitted externally,

along with data, for use in data capture at the receiver. DQS is a

strobe transmitted by the DDR2 SDRAM during READs and by

the memory controller during WRITEs. DQS is edge-aligned with

data for READs and center-aligned with data for WRITEs. There

are strobes, one for the lower byte (LDQS, LDQS#) and one for

the upper byte (UDQS, UDQS#).

The 2Gb DDR2 SDRAM operates from a differential clock (CK and

CK#); the crossing of CK going HIGH and CK# going LOW will

be referred to as the positive edge of CK. Commands (address

and control signals) are registered at every positive edge of CK.

Input data is registered on both edges of DQS, and output data is

referenced to both edges of DQS, as well as to both edges of CK.

Read and write accesses to the DDR2 SDRAM are burst oriented;

accesses start at a selected location and continue for a programmed

number of locations in a programmed sequence. Accesses begin

with the registration of an ACTIVE command, which is then followed

by a READ or WRITE command. The address bits registered

coincident with the ACTIVE command are used to select the bank

and row to be accessed. The address bits registered coincident

with the READ or WRITE command are used to select the bank

and the starting column location for the burst access.

The DDR2 SDRAM provides for programmable read or write

burst lengths of four or eight locations. DDR2 SDRAM supports

interrupting a burst read of eight with another read, or a burst

write of eight with another write. An auto precharge function may

be enabled to provide a self-timed row precharge that is initiated

at the end of the burst access.

As with standard DDR SDRAMs, the pipelined, multibank

architecture of DDR2 SDRAMs allows for concurrent operation,

thereby providing high, effective bandwidth by hiding row precharge

and activation time.

A self refresh mode is provided, along with a power-saving power-

down mode.

All inputs are compatible with the JEDEC standard for SSTL_18.

All full drive-strength outputs are SSTL_18-compatible.

•

Throughout the data sheet, the various

ﬁ

gures and text refer

to DQs as “DQ.” The DQ term is to be interpreted as any

and all DQ collectively, unless speciﬁcally stated otherwise.

Additionally, each chip is divided into 2 bytes, the lower byte

and upper byte. For the lower byte (DQ0–DQ7), DM refers

to LDM and DQS refers to LDQS. For the upper byte (DQ8–

DQ15), DM refers to UDM and DQS refers to UDQS.

Complete functionality is described throughout the

document and any page or diagram may have been

simpliﬁed to convey a topic and may not be inclusive of all

requirements.

Any speciﬁc requirement takes precedence over a general

statement.

•

INITIALIZATION

DDR2 SDRAMs must be powered up and initialized in a

predeﬁned manner. Operational procedures other than those

speciﬁed may result in undeﬁned operation. The following

sequence is required for power up and initialization and is

shown in Figure 4 on page 6.

Applying power; if CKE is maintained below 0.2 x

CCQ

, outputs remain disabled. To guarantee R

(ODT

resistance) is off, V

REF

must be valid and a low level

must be applied to the ODT ball (all other inputs may be

undeﬁned, I/Os and outputs must be less than V

CCQ

during

voltage ramp time to avoid DDR2 SDRAM device latch-up).

At least one of the following two sets of conditions (A or B)

must be met to obtain a stable supply state (stable supply

deﬁned as V

, V

CCQ

, V

REF

, and V

are between their

minimum and maximum values as stated in Table 5):

(single power source) The V

voltage ramp from

300mV to V

(MIN) must take no longer than 200ms;

during the V

voltage ramp, |V

CC -

CCQ

≤

0.3V.

Once supply voltage ramping is complete (when V

CCQ

crosses V

(MIN)), Table20 speciﬁcations apply.

• V

, V

CCQ

are driven from a single power converter

output

• V

is limited to 0.95V MAX

• V

REF

tracks V

CCQ/2

; V

REF

must be within ±0.3V with

respect to V

CCQ/2

during supply ramp time

• V

CCQ

≥

REF

at all times

(multiple power sources) V

≥

CCQ

must be

maintained during supply voltage ramping, for both AC

and DC levels, until supply voltage ramping completes

CCQ

crosses V

[MIN]). Once supply voltage

ramping is complete, Table 5 speciﬁcations apply.

• Apply V

before or at the same time as V

CCQ

; V

voltage ramp time must be

≤

200ms from when V

ramps from 300mV to V

(MIN)

• Apply V

CCQ

before or at the same time as V

; the

CCQ

voltage ramp time from when V

(MIN) is

achieved to when V

CCQ

(MIN) is achieved must

≤

500ms; while V

is ramping, current can be

supplied from V

through the device to V

CCQ

Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp

GENERAL NOTES

•

The functionality and the timing speciﬁcations discussed in

this data sheet are for the DLL-enabled mode of operation.

Microsemi Corporation reserves the right to change products or speciﬁcations without notice.

August 2013

Rev. 16

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

W3H32M64E-667SBI Related Products

	W3H32M64E-667SBI	W3H32M64E-533SBI	W3H32M64E-533SBM	W3H32M64E-400SBI	W3H32M64E-400SBM	W3H32M64E-667SBM
Description	DDR DRAM, 32MX64, 0.65ns, CMOS, PBGA208, 16 X 20 MM, 1 MM PITCH, PLASTIC, BGA-208	DDR DRAM, 32MX64, 0.65ns, CMOS, PBGA208, 16 X 20 MM, 1 MM PITCH, PLASTIC, BGA-208	DDR DRAM, 32MX64, 0.65ns, CMOS, PBGA208, 16 X 20 MM, 1 MM PITCH, PLASTIC, BGA-208	DDR DRAM, 32MX64, 0.6ns, CMOS, PBGA208, 16 X 20 MM, 1 MM PITCH, PLASTIC, BGA-208	DDR DRAM, 32MX64, 0.6ns, CMOS, PBGA208, 16 X 20 MM, 1 MM PITCH, PLASTIC, BGA-208	DDR DRAM, 32MX64, 0.65ns, CMOS, PBGA208, 16 X 20 MM, 1 MM PITCH, PLASTIC, BGA-208
Maker	Mercury Systems Inc	Mercury Systems Inc	Mercury Systems Inc	Mercury Systems Inc	Mercury Systems Inc	Mercury Systems Inc
package instruction	BGA,	16 X 20 MM, 1 MM PITCH, PLASTIC, BGA-208	BGA,	BGA,	BGA,	BGA,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	0.65 ns	0.65 ns	0.65 ns	0.6 ns	0.6 ns	0.65 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
JESD-30 code	R-PBGA-B208	R-PBGA-B208	R-PBGA-B208	R-PBGA-B208	R-PBGA-B208	R-PBGA-B208
memory density	2147483648 bit	2147483648 bit	2147483648 bit	2147483648 bit	2147483648 bit	2147483648 bi
Memory IC Type	DDR DRAM	DDR DRAM	DDR DRAM	DDR DRAM	DDR DRAM	DDR DRAM
memory width	64	64	64	64	64	64
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	208	208	208	208	208	208
word count	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words	33554432 words
character code	32000000	32000000	32000000	32000000	32000000	32000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	125 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-40 °C	-55 °C	-55 °C
organize	32MX64	32MX64	32MX64	32MX64	32MX64	32MX64
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BGA	BGA	BGA	BGA	BGA	BGA
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY	GRID ARRAY
Peak Reflow Temperature (Celsius)	225	225	225	225	225	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
self refresh	YES	YES	YES	YES	YES	YES
Maximum supply voltage (Vsup)	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V
Minimum supply voltage (Vsup)	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V
Nominal supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY
Terminal form	BALL	BALL	BALL	BALL	BALL	BALL
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	30	30	30	30	30	30

Recommended Resources

Power supply circuit of notebook computer using RT9181 chip

Use KD-1001 to make lantern controller

Simple music lantern controller circuit

Temperature sensor resistance compensation circuit

Coil identical end discriminator

LA4192 power amplifier circuit

Analysis of build.prop generation process of Android properties: [p=26, null, left][color=#000][font=Arial][color=#ca00][url=http://blog.csdn.net/thl789/]Tian Haili[/url][/color][/font][/color][/p][p=26, null, left][color=#000][font=Arial]2011-11-26[/font][/color][...; Wince.Android Linux and Android

Getting Started with AVR: Does anyone have good video learning materials?...; 无泪的哭泣 Microchip MCU

Internal Hardware Resources of PIC 16F84 Microcontroller (Part 2): 3 Data memory 　　In the PIC16F84 microcontroller, in addition to the program memory for storing programs, there is also a data memory. When executing a program, the microcontroller often needs to input...; rain Microchip MCU

【Question】Where can I download repllog.exe?: I want to synchronize my PPC with my PC via serial port (I use a CF to RS232 card on my PPC) but I can't find repllog.exe on my PPC. Where can I download it? (I can currently synchronize files via USB...; zhfxuyg Embedded System

C28 stack addressing: When using assembly programming, a temporary register is used to store intermediate results. There are many ways to achieve this goal. The most convenient and quickest way is to use its internal regis...; dontium Microcontroller MCU

AD conversion problem in continuous conversion mode of DSP2407A: [i=s] This post was last edited by dontium on 2015-1-23 13:29 [/i] I am using the DSP2407A EVM simulation board, and all the AD conversion pins are suspended. When the continuous conversion mode is us...; jhy3251956 Analogue and Mixed Signal

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
