PTF-120-03-S-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PTF-120-03-S-D

PTF-120-03-S-D: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size187KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

PTF-120-03-S-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PTF-120-03-S-D	-	-	View	Buy Now

PTF-120-03-S-D Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

PTF-120-03-S-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
body width	0.158 inch
subject depth	0.36 inch
body length	0.799 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PTF
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	LATCH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	40

Preview

Download Datasheet

View All

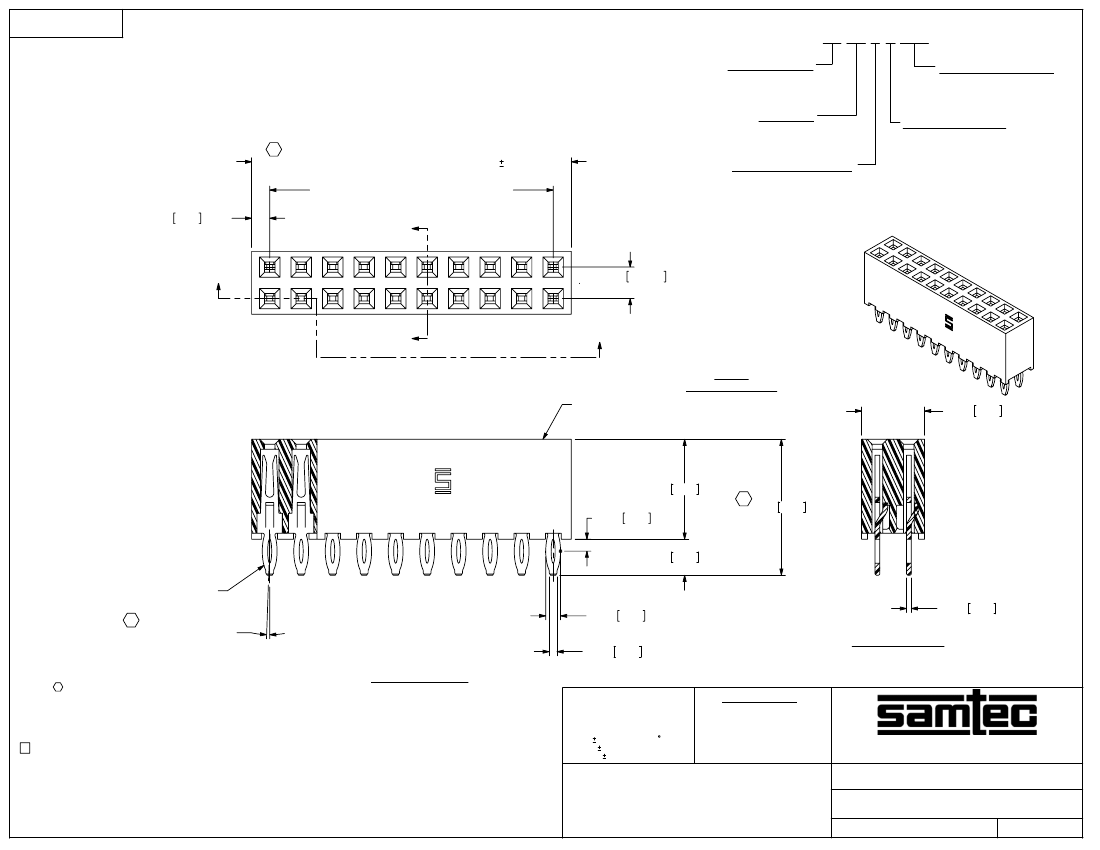

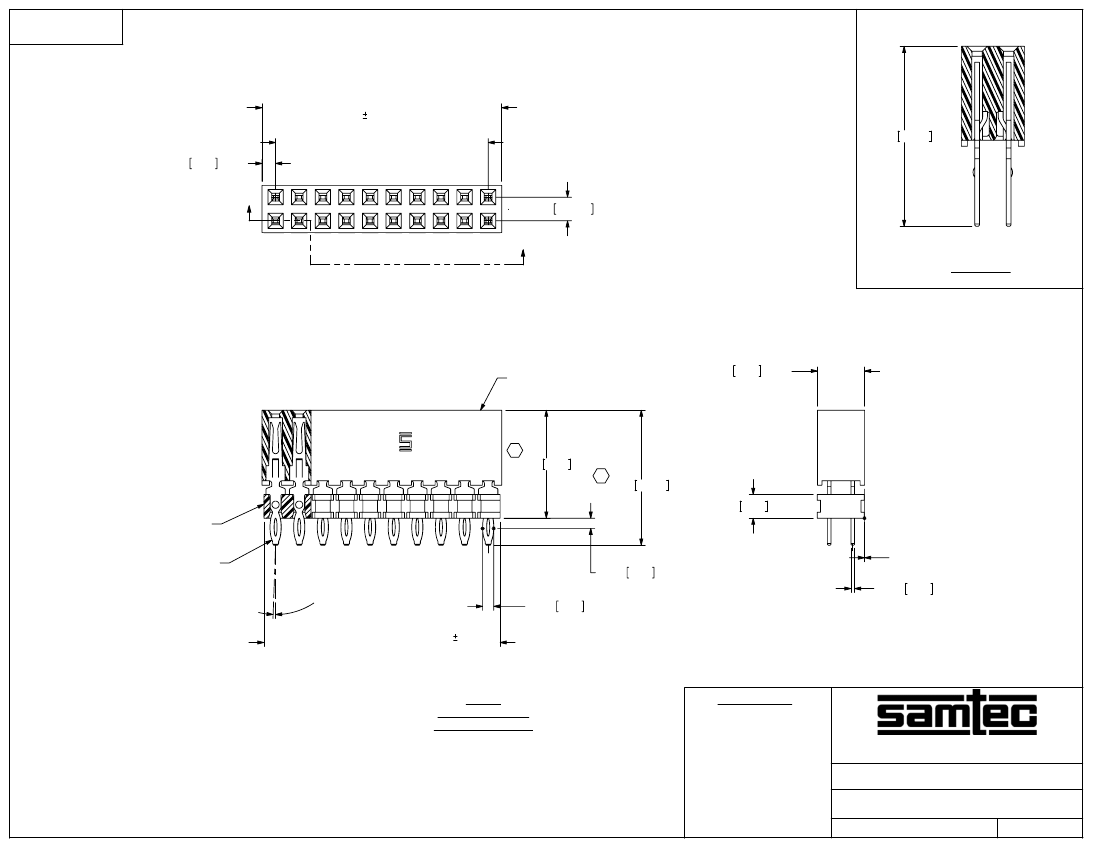

REVISION G

PTF-1XX-XX-X-D-XXX

No OF POSITIONS

-02 THRU -50

(PER ROW)

LEAD STYLE

-01: USE C-159-01-XX

-03: USE C-159-03-XX

POLARIZATION OPTION

-XXX INDICATES POSITION

(USE PK-07 TO POLARIZE)

ROW SPECIFICATION

-D: DOUBLE ROW

-01 (USE PTF-62-D)

-03 (USE PTF-62-D & PTEF-50-D)

((No OF POS x .07874[2.0000]) + .0117[.297]) .010 [.25]

((No OF POS -1) x .07874[2.0000]) REF

.045 1.15 REF

"B"

PLATING SPECIFICATION

-S: SELECTIVE GOLD

(USE C-159-XX-S)

-SM: SELECTIVE GOLD; MATTE TIN TAIL

(USE C-159-XX-S)

-L: LIGHT SELECTIVE GOLD; MATTE TIN TAIL

(USE C-159-XX-L)"

"A"

.07874 2.0000

TYP

"B"

"A"

FIG. 1

-01 LEAD STYLE

PTF-XX-D

.157 4.00 REF

.250 6.35 REF

.030 0.76 REF

.090 2.29 REF

C-159-01-XX

.340 8.64

2° MAX SWAY

(ANY DIRECTION)

.037 0.94 REF

.020 0.50 REF

.012 0.30 REF

SECTION "B"-"B"

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. MAXIMUM CUT FLASH: .020 [.51].

3. MINIMUM CONTACT RETENTION: .5 LB PER PIN.

4. PARTS MAY BE CUT TO POS. ONE POS LOST PER CUT.

5. ALL POSITIONS TO BE LAYER PACKAGED.

6. MAX ALLOWABLE BOW .0015" IN/IN.

7. NOTE DELETED.

8. USED FOR CUTTING PTEF BODY

9. PTEF BODY IS NOT TO BE MORE THAN +/-.005[.13] FROM

PLANE SET BY PTF BODY.

SECTION "A"-"A"

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XXX: .005 [.13]

.XXXX: .0020 [.051]

.XXXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 4:1

INSULATOR: LCP

COLOR: BLACK

CONTACT: PHOS BRONZE

F:\DWG\MISC\MKTG\PTF-1XX-XX-X-D-XXX-MKT.SLDDRW

2mm PRESS FIT SOCKET ASSEMBLY

PTF-1XX-XX-X-D-XXX

4/3/2000

SHEET

BY:

KEVIN B
