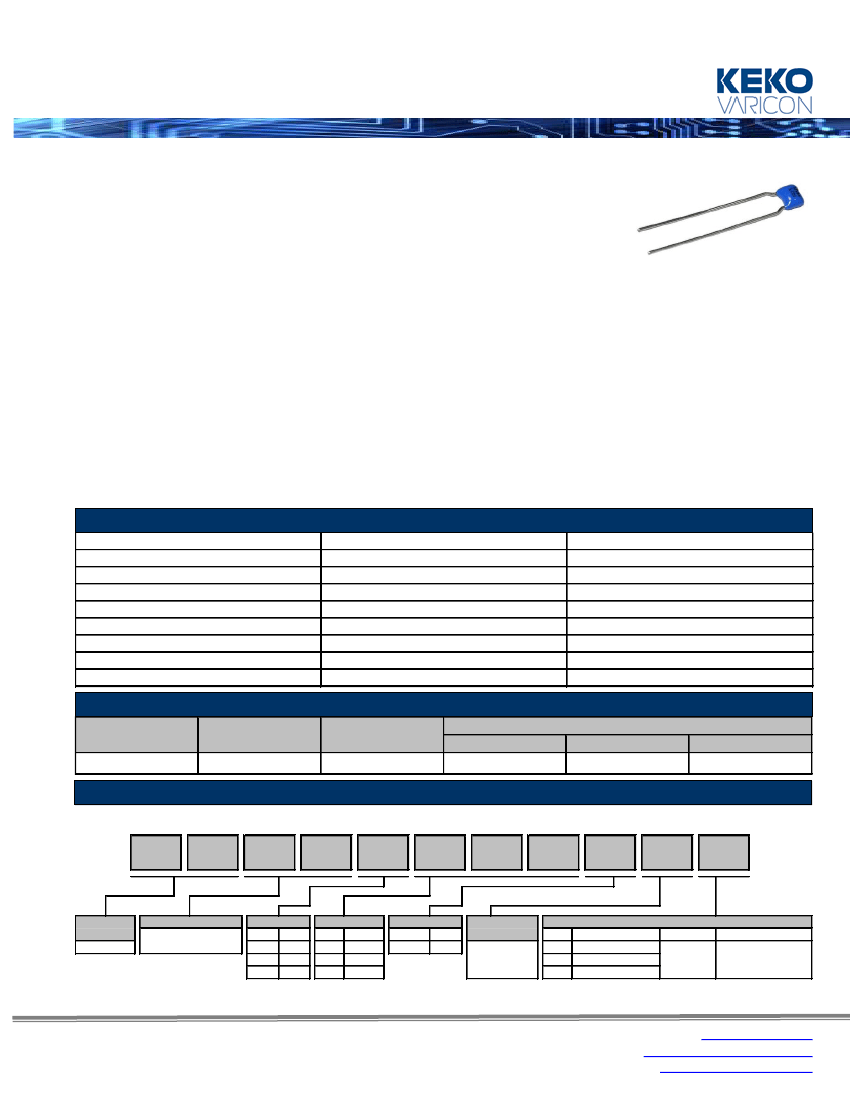

Stackpole Electronics, Inc.
MV Series
Low Voltage Leaded Dual Function Varistor / RFI Suppressor
A Keko-Varicon Product
Resistive Product Solutions
Description
MV Series varistors/suppressors are dual function devices that protect electronic
equipment operating in the low voltage region against voltage surges and high-
frequency noise, replacing two components: a low voltage varistor and a capacitor.
The MV Series incorporates a varistor function in the DC voltage range from 3V to
125V and the function of a high-frequency by-pass capacitor operating in the
capacitance range from 10nF to 1,000nF. They are intended for protection of all
sensitive electronic devices experiencing both voltage transient and high-frequency
noise produced by electromechanical devices such as buzzers, relays, etc.
MV varistors/suppressors are square shaped components with in-line leads, which require at least 30% less mounting
space than the two components they replace.
Features
•
•
•
•
AC operating voltage (Vrms) from 2V to 95V
(up to 130V – contact factory)
DC operating voltage (Vdc) from 3V to 125V
(up to 170V – contact factory)
Capacitance range (@ 1kHz) from 10nF to 1,000nF
(lower capacitance values available – contact factory)
Capacitor temperature characteristic X7R or Z5U
•
•
•
•
•
•
Protects against voltage transients and
suppresses high-frequency interference
Dimensional and weight savings on PC board
One model size available 6x9 mm
In-line leads
Available with crimped leads
Lead-free – RoHS compliant
General Technical Data
Capacitance Range
Capacitor Temperature Characteristic
Operating Temperature
Storage Temperature Range
Threshold Voltage Temperature Coefficient
Insulation Resistance
Isolation Voltage Capability
Response Time
Climatic Category
10nF to 1,000nF
X7R or Z5U
-40ºC to +85ºC
-40ºC to +125ºC
< -0.05%/ºC
> 1Gohm
> 1.25 kV
< 25 nS
40/85/56
In accordance with CECC 42 000
Standard Packaging Options
Series
MV
Voltage Range
(Vrms)
2 - 95
Model Size
6 X 9mm
Packaging Options: 7mm, 10mm, 14mm, 20mm and 23mm
B = Bulk
2,000
R = Reel
2,000
A = Ammo Pack
2,500
How to Order
1
2
4
5
6
7
8
9
10
11
12
M
V
2
0
K
1
0
4
M
Z
T
Product
Series
MV
Vrms
See Device Ratings
and Dimensions
Tolerance
Code Tol
K
10%
L
15%
M
20%
Capacitance
Code Value
103 10nF
104 100nF
105 1000nF
Capacitance
Code
Tol
M
20
Dielectric
Material
"Z" stands for
Z5U/Y5V (*)
Code
B
T
A
Description
Bulk
Tape and Reel
Ammo Pack
Packaging
Size
All sizes
Quantity
See Standard
Packaging Options
(*) Note: X = X7R temperature characteristics is also available.
Rev Date: 04/01/2014
1
Stackpole Electronics is Keko-Varicon’s exclusive marketing partner in North America.
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
www.seielect.com
www.keko-varicon.si/home/
marketing@seielect.com
Stackpole Electronics, Inc.
MV Series
Low Voltage Leaded Dual Function Varistor / RFI Suppressor
A Keko-Varicon Product
Resistive Product Solutions

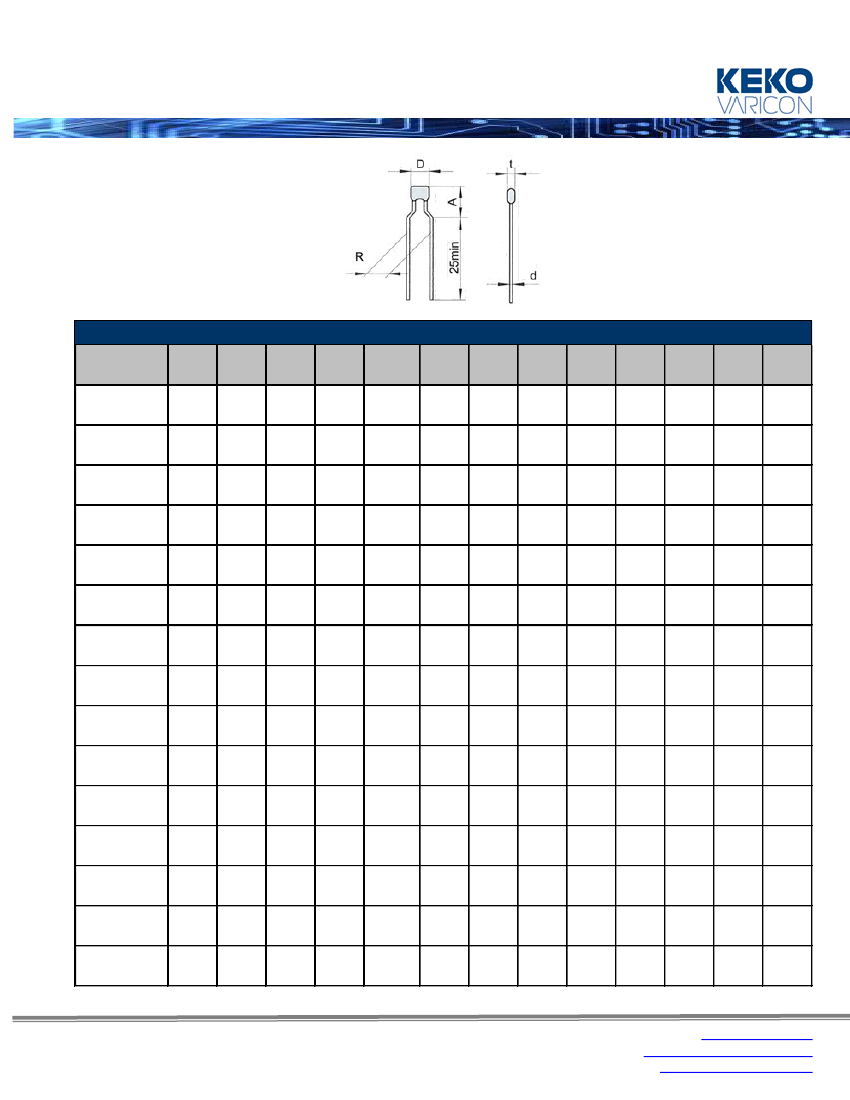

Device Ratings Dimensions
Part Number
MV2M103MZ
MV2M104MZ
MV2M105MZ
MV4M103MZ
MV4M104MZ
MV4M105MZ
MV6M103MZ
MV6M104MZ
MV6M105MZ
MV8L103MZ
MV8L104MZ
MV8L105MZ
MV11K103MZ
MV11K104MZ
MV11K105MZ
MV14K103MZ
MV14K104MZ
MV14K105MZ
MV17K103MZ
MV17K104MZ
MV17K105MZ
MV20K103MZ
MV20K104MZ
MV20K105MZ
MV25K103MZ
MV25K104MZ
MV25K105MZ
MV30K103MZ
MV30K104MZ
MV30K105MZ
MV35K103MZ
MV35K104MZ
MV35K105MZ
MV40K103MZ
MV40K104MZ
MV40K105MZ
MV50K103MZ
MV50K104MZ
MV50K105MZ
MV60K103MZ
MV60K104MZ
MV60K105MZ
MV95K103MZ
MV95K104MZ
MV95K105MZ
V
RMS
(volts)
2
2
2
4
4
4
6
6
6
8
8
8
11
11
11
14
14
14
17
17
17
20
20
20
25
25
25
30
30
30
35
35
35
40
40
40
50
50
50
60
60
60
95
95
95
V
DC
(volts)
3
3
3
5.5
5.5
5.5
8
8
8
11
11
11
14
14
14
18
18
18
22
22
22
26
26
26
31
31
31
38
38
38
45
45
45
56
56
56
65
65
65
85
85
85
125
125
125
Vn
@ 1 mA
(volts)
4
4
4
8
8
8
11
11
11
15
15
15
18
18
18
22
22
22
27
27
27
33
33
33
39
39
39
47
47
47
56
56
56
68
68
68
82
82
82
100
100
100
150
150
150
V
C
@1 A
(volts)
10
10
10
14
14
14
21
21
21
25
25
25
35
35
35
38
38
38
49
49
49
54
54
54
65
65
65
77
77
77
90
90
90
110
110
110
135
135
135
165
165
165
250
250
250
Wmax
10/1000μs
(joules)
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.2
0.2
0.3
0.3
0.3
0.8
0.8
0.8
0.9
0.9
0.9
1.1
1.1
1.1
1.3
1.3
1.3
1.7
1.7
1.7
2.0
2.0
2.0
2.2
2.2
2.2
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.3
2.5
2.5
2.5
P
max
(watts)
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
I
MAX
8/20μs
(amps)
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
C
@1kHz
(nF)
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
10
100
1,000
D
max
(mm)
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
A
max
(mm)
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
R
(mm)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
d
(mm)
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
t
max
(mm)
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
Other capacitance values >1,000nF are also available. Contact factory.
