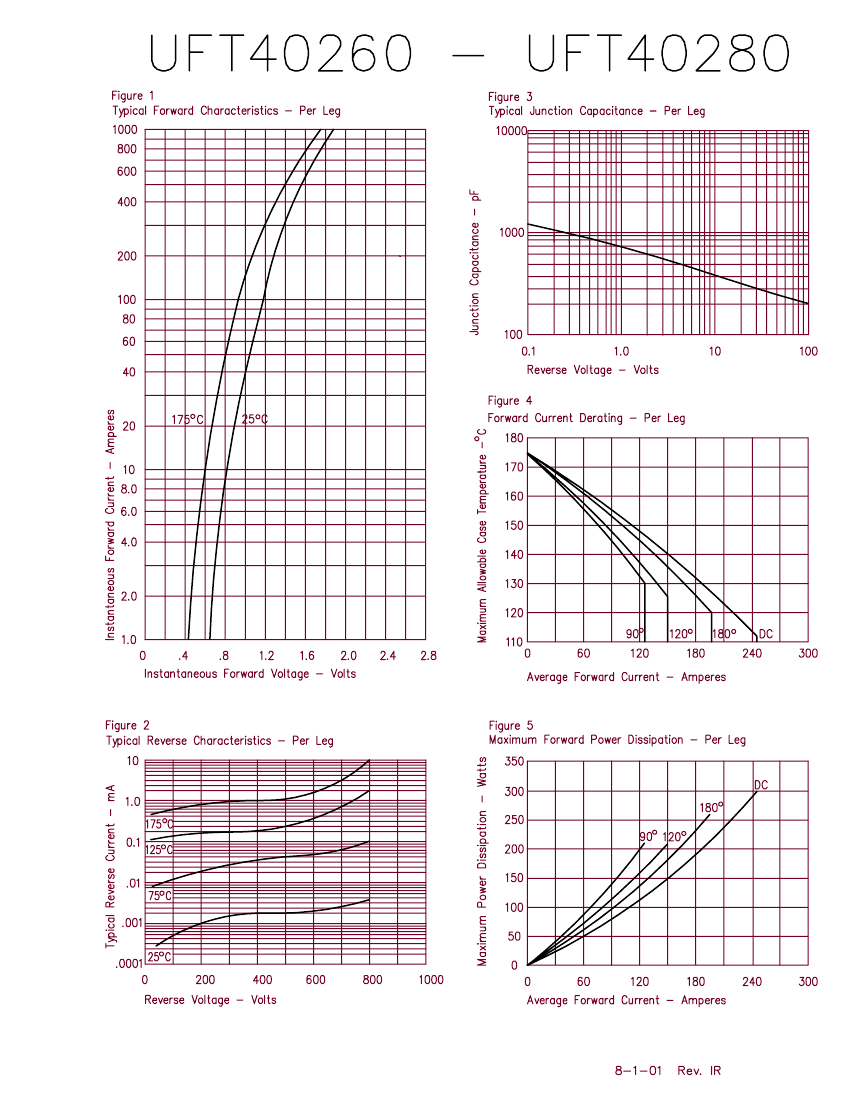

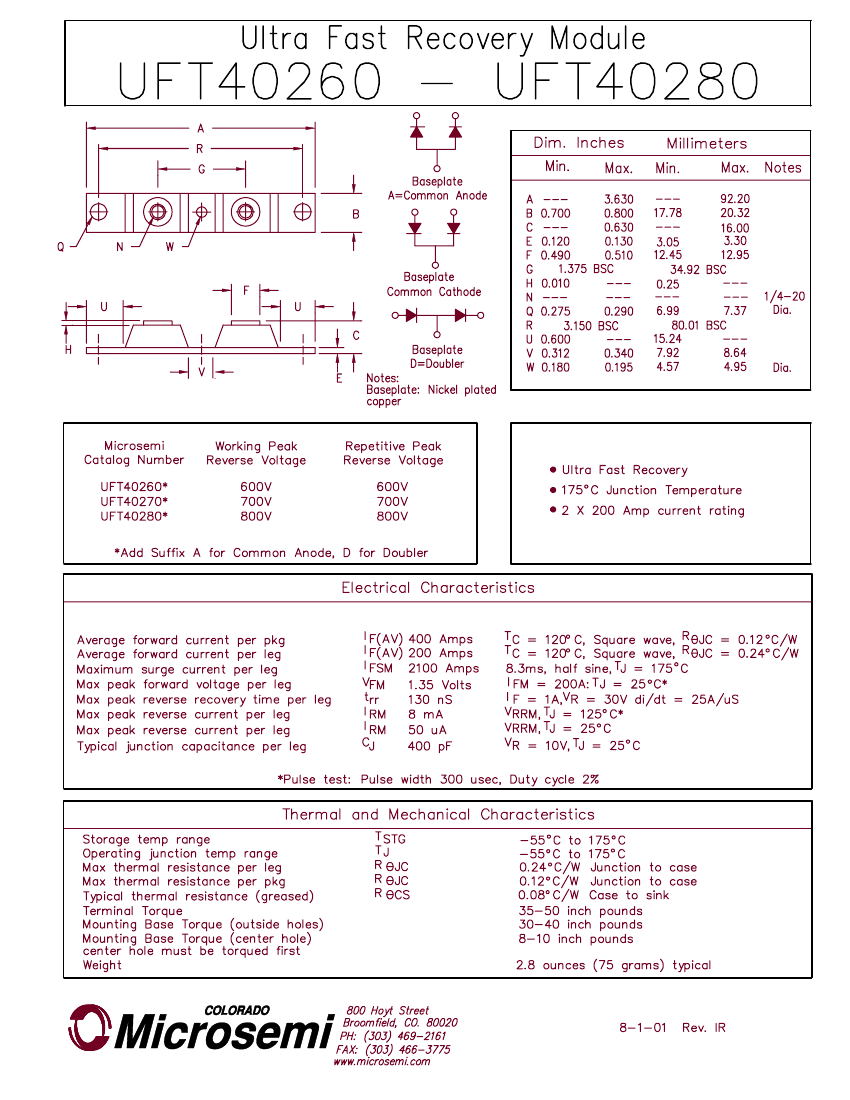

UFT40280D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UFT40280D

UFT40280D: DescriptionRectifier Diode, 1 Phase, 2 Element, 200A, 800V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size140KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFT40280D Overview

Rectifier Diode, 1 Phase, 2 Element, 200A, 800V V(RRM), Silicon,

UFT40280D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	ANODE AND CATHODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V
JESD-30 code	R-XUFM-X2
Maximum non-repetitive peak forward current	2100 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	200 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	0.13 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

UFT40280D Related Products

	UFT40280D	UFT40260A	UFT40260D	UFT40270A	UFT40280A
Description	Rectifier Diode, 1 Phase, 2 Element, 200A, 800V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 200A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 200A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 200A, 700V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 200A, 800V V(RRM), Silicon,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ANODE AND CATHODE	ANODE	ANODE AND CATHODE	ANODE	ANODE
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.35 V	1.35 V	1.35 V	1.35 V	1.35 V
JESD-30 code	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2	R-XUFM-X2
Maximum non-repetitive peak forward current	2100 A	2100 A	2100 A	2100 A	2100 A
Number of components	2	2	2	2	2
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	200 A	200 A	200 A	200 A	200 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	600 V	600 V	700 V	800 V
Maximum reverse recovery time	0.13 µs	0.13 µs	0.13 µs	0.13 µs	0.13 µs
surface mount	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contacts	2	2	-	2	2
Objectid	-	1938922687	-	1938922690	1938922693
