SMDR1206-100M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SMDR1206-100M

SMDR1206-100M: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, SMD, 3216, CHIP, 3216, ROHS COMPLIANT; CategoryPassive components inductor; File Size1010KB，4 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com; Environmental Compliance

Download Datasheet Parametric View All

SMDR1206-100M Overview

General Purpose Inductor, 10uH, 20%, 1 Element, SMD, 3216, CHIP, 3216, ROHS COMPLIANT

SMDR1206-100M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Meritek Electronics
package instruction	3216
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	3216
DC Resistance	0.031 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	4.3 A
self resonant frequency	30 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

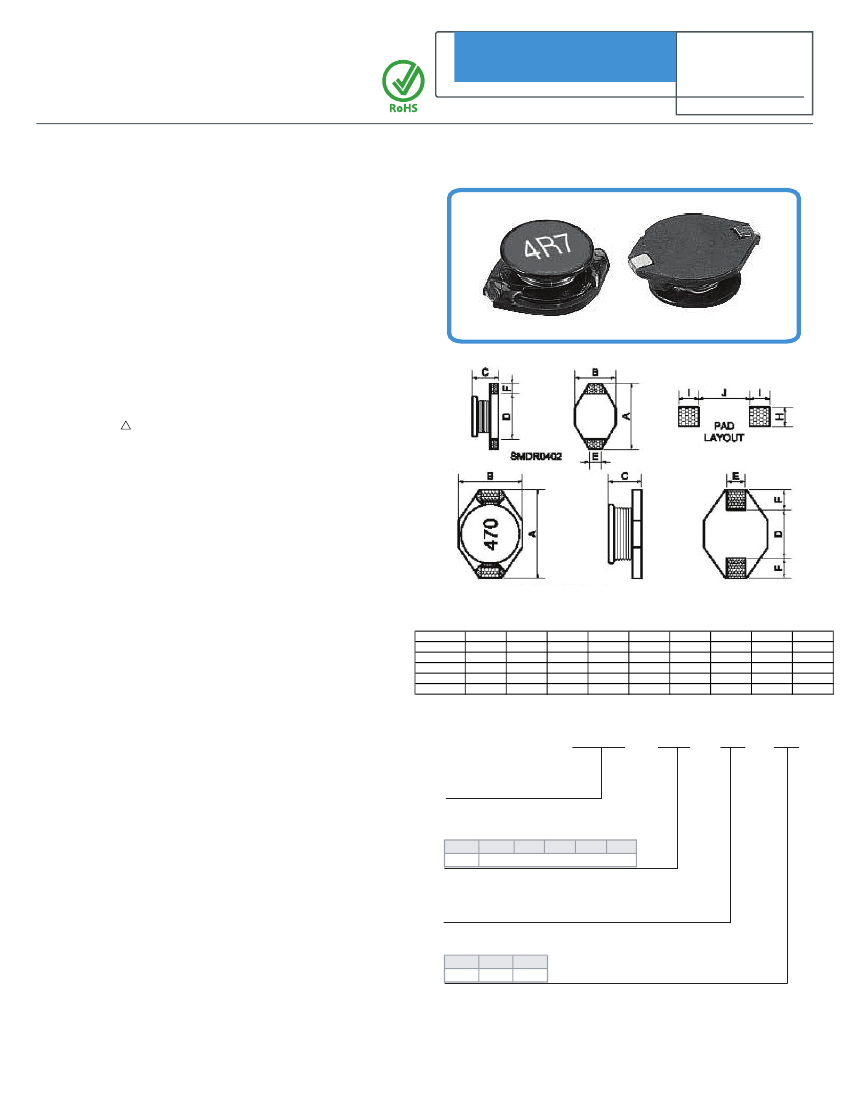

Unshielded SMT Power Inductors

SMDR 0402/0802/0804/0810/1206 TYPE

SMDR

Series

MERITEK

FEATURES

• High power, high saturation, low resistence

• Ideal inductors for DC-DC conversion in notebook

computer, PDAs, Step-up or step-down converters, ﬂash

memory programmers, etc.

• SMDR0402 used ceramic base with gold-planting

• The others used LCP plastic base

CHARACTERISTICS

• I sat: The current when the inductance becomes 10%

lower than its initial value. (Ta = 20 ºC)

• I rms: The current when temperature of coil increases up

to Max. T = 40 ºC (Ta = 20 ºC)

• Operating temperature: -40 to 85 ºC

APPLICATIONS

• Portable telephones

• Personable computers

• DC/DC converters, etc.

• Other various electronic appliances

INDUCTANCE AND RATED CURRENT RANGES

SMDR0402..........1.0 ~ 1000 uH.............2.9 ~ 0.07A

SMDR0802..........10 ~ 1000 uH..............2.0 ~ 0.05A

SMDR0804..........1.0 ~ 1000 uH.............6.8 ~ 0.030A

SMDR0810..........10 ~ 1000 uH..............3.5 ~ 0.10A

SMDR1206..........1.0 ~ 1000 uH.............8.6 ~ 0.56A

Test Equipments:

• L: Agilent 4284A LCR meter @ 100kHz 0.1V

• DC Resistance: Milli - ohm meter or equivalent

• SRF: Agilant 4291 B RF Impedance Analyzer

• Electrical speciﬁcations at 25 ºC

Shape and Size: (Dimensions are in mm)

ITEM

A (MAX) B (MAX) C (MAX)

SMDR0402

6.60

4.45

2.82

SMDR0802

12.95

9.40

3.50

SMDR0804

12.95

9.40

5.21

SMDR0810

12.95

9.40

11.43

SMDR1206

18.54

15.24

7.11

4.32

7.62

12.70

1.27

2.54

1.02

2.54

3.56

2.79

1.40

2.92

4.06

7.37

12.45

PART NUMBERING SYSTEM

SMDR

0802

470

Meritek Series

Size (in mm)

ORDERING INFORMATION

(1)

DR0804

(2)

- 470

(3)

(4)

Code

0402

0802

0804

0810

1206

See corresponded dimensions chart

(1) Type:

Surface Mount

(2) Style:

Core

=8.5mm

H=4.0mm

(3) Inductance:

470

for

47uH

(4) Inductance Tolerance:

10%;

20%

First two digits are signiﬁcant ﬁgures

Third Digit denotes number of Zeros

Inductance (uH)

Tolerance

Code

10%

20%
