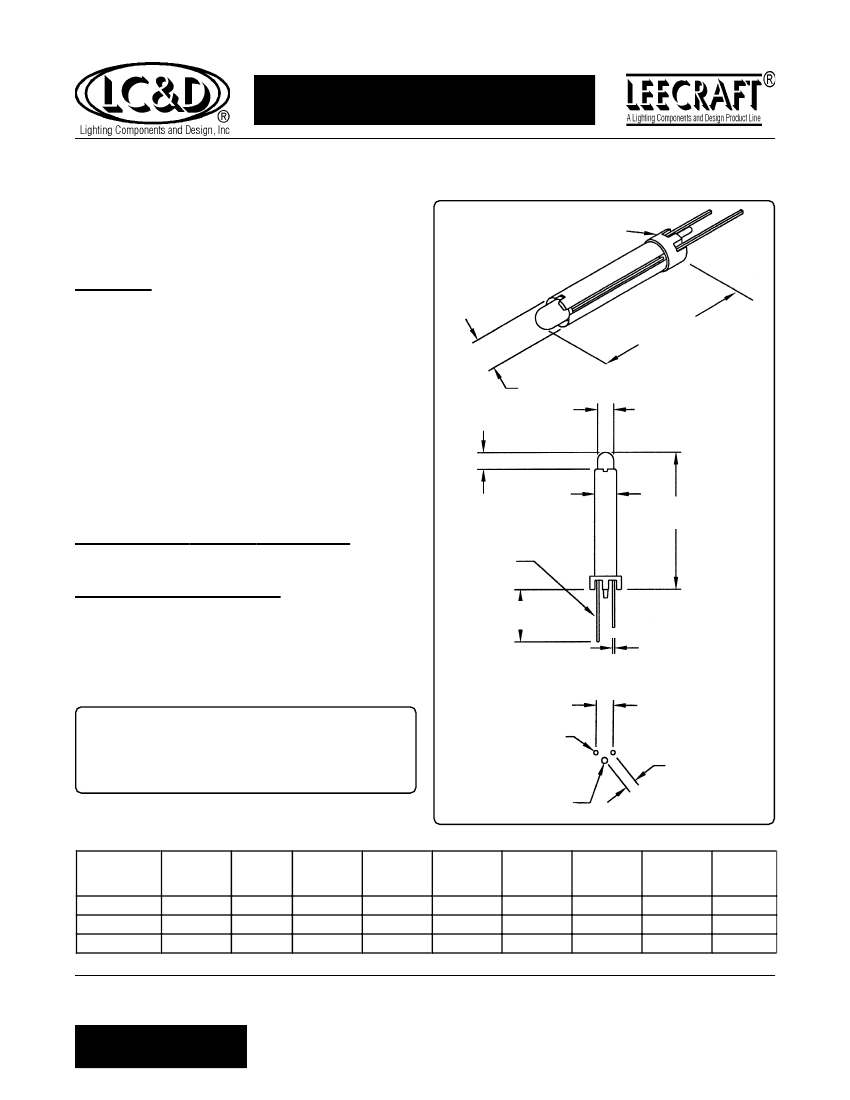

LED CIRCUIT BOARD INDICATORS
L2154 SERIES
·
RIGHT ANGLE LED CIRCUIT BOARD INDICATORS
·
T-1 (3MM) SIZE
·
DIFFUSED LENS
·
2, 5 OR 12 VOLTS, OR LOW CURRENT LEDS
Overview
The L2154 Series of circuit board indicators is
constructed with a right angle housing and diffused,
T-1 (3mm) LEDs. The black nylon housing assures
proper LED alignment and enhances contrast while
resisting vibration and shock. Units operate on DC
voltage.
Other LEDs are available including:
ultra bright,
high brightness or clear.
Custom lead forming and cutting services are
available.
0.29"(7.36)
0.174"(4.41)
0.250"(6.35)
0.174"(4.41")
0.13" MIN.
(3.30)
0.11" DIA.
(2.79)
(6.35)
0.250"
Operating & Storage Temperature
Temp. Range: -40°C to +85°C.
0.29"(7.36)
Lead Solder Temperature
0.20"(5.08)
ANODE(+)
0.10"(2.54)
Soldering temp. 260°C max. Solder time for 3
seconds for distance from solder case to joint > 2mm
or 5 seconds with distance from solder case to joint
> 4mm.
Inches(mm)
Can't find it here? We have many more standard and custom solutions.
For information phone Customer Service at 954-425-0123 or complete the "Fast FAX" form on Appendix, page A-1.
Typical
Intensity
mcd
30
10
30
30
40
30
30
40
30
4
5
4
Test
Current mA
10
20
10
12
12
12
11
11
12
2
2
2
Forward
Voltage
Typical
2.2
2
2.1
5
5
5
12
12
12
1.9
1.7
1.8
Typical
Forward
Reverse
Wavelength
Voltage Max Voltage Max
(nm)
2.5
2.5
2.5
7.5
7.5
7.5
15
15
15
2.2
2
2.1
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
565
625
590
565
625
590
565
625
590
625
565
590
Viewing
Angle
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
Part Number
L2154-DG
L2154-DR
L2154-DY
L2154-DG5
L2154-DR5
L2154-DY5
L2154-DG12
L2154-DR12
L2154-DY12
L2154-DGL
L2154-DRL
L2154-DYL
Color
Green
Red
Yellow
Green
Red
Yellow
Green
Red
Yellow
Green
Red
Yellow
Lens Type
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
DIffused
Diffused
Diffused
Diffused
Diffused
Diffused
Lighting Components & Design, Inc.
®
·
692 S. Military Trail, Deerfield Bch., FL 33442
·
TEL: (954)-425-0123 FAX: (954)-425-0110
Revised July, 1997
Circuit Board
Indicators
C-15
Circuit Board
Indicators
LED CIRCUIT BOARD INDICATORS
L2305 SERIES
·
·
·
·
VERTICAL LED CIRCUIT BOARD INDICATORS
T-1 (3MM) SIZE
·
DIFFUSED LENS
Inches(mm)
STANDARD EFFICIENCY LEDS
2 VOLT LEDS
·
OTHERS AVAILABLE
The L2305 Series of circuit board indicators is
constructed with a vertical housing and diffused, T-1
(3mm) LEDs. The black nylon housing assures proper
LED alignment and enhances contrast while resisting
vibration and shock. A press-in pin secures the unit
to the PC circuit board to facilitate soldering. Units
operate on DC voltage.
Other LEDs are available including:
ultra bright,
high brightness or clear.
Custom lead forming and cutting services are
available.
0.23" DIA.(5.84)
Overview
1.37(34.80)
0.21" DIA. (5.33)
0.12" DIA.(3.0)
0.18"(4.57)
0.21" DIA.(5.33)
1.37"(34.80)
Operating & Storage Temperature
Temp. Range: -40°C to +85°C.
ANODE(+)
Lead Solder Temperature
Soldering temp. 260°C max. Solder time for 3
seconds for distance from solder case to joint > 2mm
or 5 seconds with distance from solder case to joint
> 4mm.
0.40" MIN (10.16)
0.02" SQ.(0.5)
MOUNTING HOLE PATTERN
0.140"(3.56)
Can't find it here? We have many more standard and
custom solutions.
For information phone Customer Service at 954-425-0123
or complete the "Fast FAX" form on Appendix, page A-1.
ANODE(+)
0.100"(2.54)
0.049" DIA.(1.24)
Part Number
L2305-DG
L2305-DR
L2305-DY
Color
Green
Red
Yellow
Lens Type
Diffused
Diffused
DIffused
Typical
Intensity
mcd
20
10
30
Test
Current mA
10
20
10
Forward
Voltage
Typical
2.2
2
2.1
Typical
Forward
Reverse
Wavelength
Voltage Max Voltage Max
nm
2.5
2.5
2.5
5V
5V
5V
565
700
590
Viewing
Angle
60°
60°
60°
Lighting Components & Design, Inc.
®
·
692 S. Military Trail, Deerfield Bch., FL 33442
·
TEL: (954)-425-0123 FAX: (954)-425-0110
C-16
Circuit Board
Indicators
Revised July, 1997
LED CIRCUIT BOARD INDICATORS
L3151 SERIES
·
RIGHT ANGLE LED CIRCUIT BOARD INDICATORS
·
T-1 3/4(5MM) SIZE
·
DIFFUSED LENS
·
2, 5 OR 12 VOLTS, OR LOW CURRENT LEDS
Overview
The L3151 Series of circuit board indicators is
constructed with a right angle housing and diffused,
T-1-3/4 (5mm) LEDs. The black nylon housing
assures proper LED alignment and enhances contrast
while resisting vibration and shock. Units operate
on DC voltage.
Other LEDs are available including:
ultra bright,
high brightness or clear.
Custom lead forming and cutting services are
available.
0.250"(6.35)
0.250"(6.35)
(6.35)
0.250"
0.187"(4.74)
(6.35)
0.250"
Operating & Storage Temperature
Temp. Range: -40°C to +85°C.
(6.35)
0.250"
0.196" DIA.(5)
0.135"MIN.
Lead Solder Temperature
Soldering temp. 260°C max. Solder time for 3
seconds for distance from solder case to joint > 2mm
or 5 seconds with distance from solder case to joint
> 4mm.
Typical
Intensity
mcd
30
60
30
30
60
30
30
60
30
4
5
4
Test
Current mA
10
10
10
12
12
12
11
11
12
2
2
2
ANODE(+)
0.10"(2.54)
0.30"(7.62")
Inches(mm)
Part Number
L3151-DG
L3151-DR
L3151-DY
L3151-DG5
L3151-DR5
L3151-DY5
L3151-DG12
L3151-DR12
L3151-DY12
L3151-DGL
L3151-DRL
L3151-DYL
Color
Green
Red
Yellow
Green
Red
Yellow
Green
Red
Yellow
Green
Red
Yellow
Lens Type
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Forward
Voltage
Typical
2.2
2
2.1
5
5
5
12
12
12
1.9
1.7
1.8
Typical
Forward
Reverse
Wavelength
Voltage Max Voltage Max
nm
2.5
2.5
2.5
7.5
7.5
7.5
15
15
15
2.2
2
2.1
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
565
625
590
565
625
590
565
625
590
565
625
590
Viewing
Angle
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
Lighting Components & Design, Inc.
®
·
692 S. Military Trail, Deerfield Bch., FL 33442
·
TEL: (954)-425-0123 FAX: (954)-425-0110
Revised July, 1997
Circuit Board
Indicators
C-17
Circuit Board
Indicators
LED CIRCUIT BOARD INDICATORS
L3251 SERIES
·
RIGHT ANGLE LED CIRCUIT BOARD INDICATORS
·
T-1 3/4(5MM) SIZE
·
DIFFUSED LENS
·
2, 5 OR 12 VOLTS, OR LOW CURRENT LEDS
Overview
The L3251 Series of circuit board indicators is
constructed with a right angle housing and diffused,
T-1-3/4 (5mm) LEDs. The black nylon housing
assures proper LED alignment and enhances contrast
while resisting vibration and shock. A press-in
secures the unit to the printed circuit board to facilitate
soldering. Units operate on DC voltage.
Other LEDs are available including:
ultra bright,
high brightness or clear.
Custom lead forming and cutting services are
available.
0.250"(6.35)
0.36"(9.14)
0.250"
(6.35)
0.197"(5)
0.36"(9.14)
0.250"(6.35)
0.40" MIN.
(10.16)
0.196" DIA.(5)
ANODE(+)
0.020" SQ.(0.5)
MOUNTING HOLE PATTERN
ANODE(+)
PRESS-IN PIN HOLE
0.049"(1.24) DIA.
0.045(1.14)
0.11"(2.79)
Operating & Storage Temperature
Temp. Range: -40°C to +85°C.
Lead Solder Temperature
Soldering temp. 260°C max. Solder time for 3
seconds for distance from solder case to joint > 2mm
or 5 seconds with distance from solder case to joint
> 4mm.
0.100"(2.54)
0.100"(2.54)
Inches(mm)
Viewing
Angle
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
Part Number
L3251-DG
L3251-DR
L3251-DY
L3251-DG5
L3251-DR5
L3251-DY5
L3251-DG12
L3251-DR12
L3251-DY12
L3251-DGL
L3251-DRL
L3251-DYL
Color
Green
Red
Yellow
Green
Red
Yellow
Green
Red
Yellow
Green
Red
Yellow
Lens Type
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Typical
Intensity
mcd
30
60
30
30
60
30
30
60
30
4
5
4
Test
Current mA
10
10
10
12
12
12
11
11
12
2
2
2
Forward
Voltage
Typical
2.2
2
2.1
5
5
5
12
12
12
1.9
1.7
1.8
Typical
Forward
Reverse
Wavelength
Voltage Max Voltage Max
nm
2.5
2.5
2.5
7.5
7.5
7.5
15
15
15
2.2
2
2.1
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
565
625
590
565
625
590
565
625
590
565
625
590
Lighting Components & Design, Inc.
®
·
692 S. Military Trail, Deerfield Bch., FL 33442
·
TEL: (954)-425-0123 FAX: (954)-425-0110
C-18
Circuit Board
Indicators
Revised July, 1997
LED CIRCUIT BOARD INDICATORS
L3301 SERIES
·
VERTICAL LED CIRCUIT BOARD INDICATORS
·
T-1 3/4(5MM) SIZE
·
DIFFUSED LENS
·
2, 5 OR 12 VOLTS, OR LOW CURRENT LEDS
Overview
Inches(mm)
0.29"DIA.(7.36)
0.46"(11.68)
0.197" DIA.(5.0)
The L3301 Series of circuit board indicators is
constructed with a vertical housing and diffused,
T-1-3/4 (5mm) LEDs. The black nylon housing
assures proper LED alignment and enhances contrast
while resisting vibration and shock. A press-in pin
secures the unit to the printed circuit board to facilitate
soldering. Units operate on DC voltage.
Other LEDs are available including:
ultra bright,
high brightness or clear.
Custom lead forming and cutting services are
available.
0.46"(11.68)
0.15" MIN. (3.81)
0.02" (0.5) STANDOFF
ANODE(+)
0.020" SQ.(.5)
MOUNTING HOLE PATTERN
0.065"/0.061" DIA.
(1.65/1.54)
Operating & Storage Temperature
Temp. Range: -40°C to +85°C.
Lead Solder Temperature
Soldering temp. 260°C max. Solder time for 3
seconds for distance from solder case to joint > 2mm
or 5 seconds with distance from solder case to joint
> 4mm.
ANODE(+)
0.046" DIA. (1.16)
0.100"(.254)
0.100"(.254)
Part Number
L3301-DG
L3301-DR
L3301-DY
L3301-DG5
L3301-DR5
L3301-DY5
L3301-DG12
L3301-DR12
L3301-DY12
L3301-DGL
L3301-DRL
L3301-DYL
Color
Green
Red
Yellow
Green
Red
Yellow
Green
Red
Yellow
Green
Red
Yellow
Lens Type
Diffused
Diffused
Diffused
Diffused
DIffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Diffused
Typical
Intensity
mcd
30
60
30
30
60
30
30
60
30
4
5
4
Test
Current mA
10
10
10
12
12
12
11
11
12
2
2
2
Forward
Voltage
Typical
2.2
2
2.1
5
5
5
12
12
12
1.9
1.7
1.8
Typical
Forward
Reverse
Wavelength
Voltage Max Voltage Max
nm
2.5
2.5
2.5
7.5
7.5
7.5
15
15
15
2.5
2.5
2.5
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
565
625
590
565
625
590
565
625
590
565
625
590
Viewing
Angle
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
60°
Lighting Components & Design, Inc.
®
·
692 S. Military Trail, Deerfield Bch., FL 33442
·
TEL: (954)-425-0123 FAX: (954)-425-0110
Revised July, 1997
Circuit Board
Indicators
C-19
Circuit Board
Indicators

L2154-DG Related Products

L2154-DG L2154-DGL L2154-DY12 L2154-DR12 L2154-DY L2154-DRL
Description Visible LED Visible LED Visible LED Visible LED Visible LED Visible LED
Maker Lighting Components & Design Lighting Components & Design Lighting Components & Design Lighting Components & Design Lighting Components & Design Lighting Components & Design
Reach Compliance Code unknown unknown unknown unknown unknown unknown
7nm lithography machine was used to pay off debts, hundreds of employees were laid off, and the 100 billion chip project came to an end!!!
Since the second half of 2020, the chip supply has been tight; insufficient manufacturing capacity, insufficient packaging and testing capacity, insufficient inventory; car companies, mobile phone man...
成都亿佰特 Talking
STM32F103 interrupt nesting cannot be entered
I set it as follows:/* Configure the NVIC Preemption Priority Bits */NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);// Enable the TIM2 global InterruptNVIC_InitStructure.NVIC_IRQChannel = TIM2_IRQChan...
maiwenjian stm32/stm8
Can anyone help me understand the meaning of some statements in the 430 official library?
This is the external interrupt function in the TI official library. Can anyone tell me the function of these statements? #if defined(__TI_COMPILER_VERSION__) || defined(__IAR_SYSTEMS_ICC__) #pragma ve...
flashtt Microcontroller MCU
Calculating the inclination angle using LIS3DSH accelerometer
Use the 3-axis accelerometer lis3dsh to read acceleration data and convert it into inclination. The program MCU uses MSP430FR5969 soft I2CMCU program [code]/*******************************************...
littleshrimp MEMS sensors
ULINK2 debugging issues
Why can't I recognize the MCU when I use ulink2 to debug lm3S8962?...
zhang1234bbcc Microcontroller MCU
When the motor is turning, the waveform of the DC-DC power supply SW pin is questionable.
DC-DC powers the motor. Figure 3 shows the waveform of the SW pin of the DC-DC when the motor is powered on but not rotating; Figure 4 shows the waveform of the SW pin of the DC-DC at the moment when ...
xiaxingxing Analog electronics

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 902  1472  1625  1257  1988  19  30  33  26  41
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
