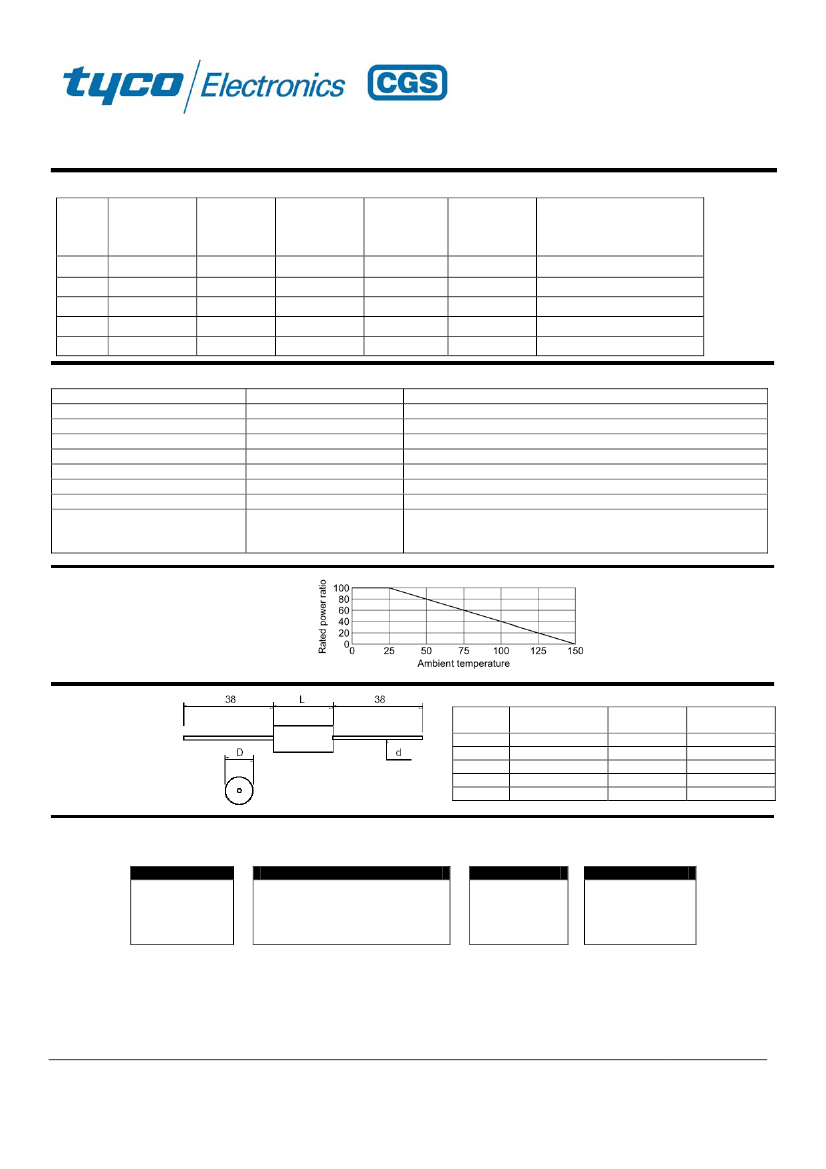

Product – Specification
TYPE HJ SERIES
1
st
April 2003
ISSUE 1

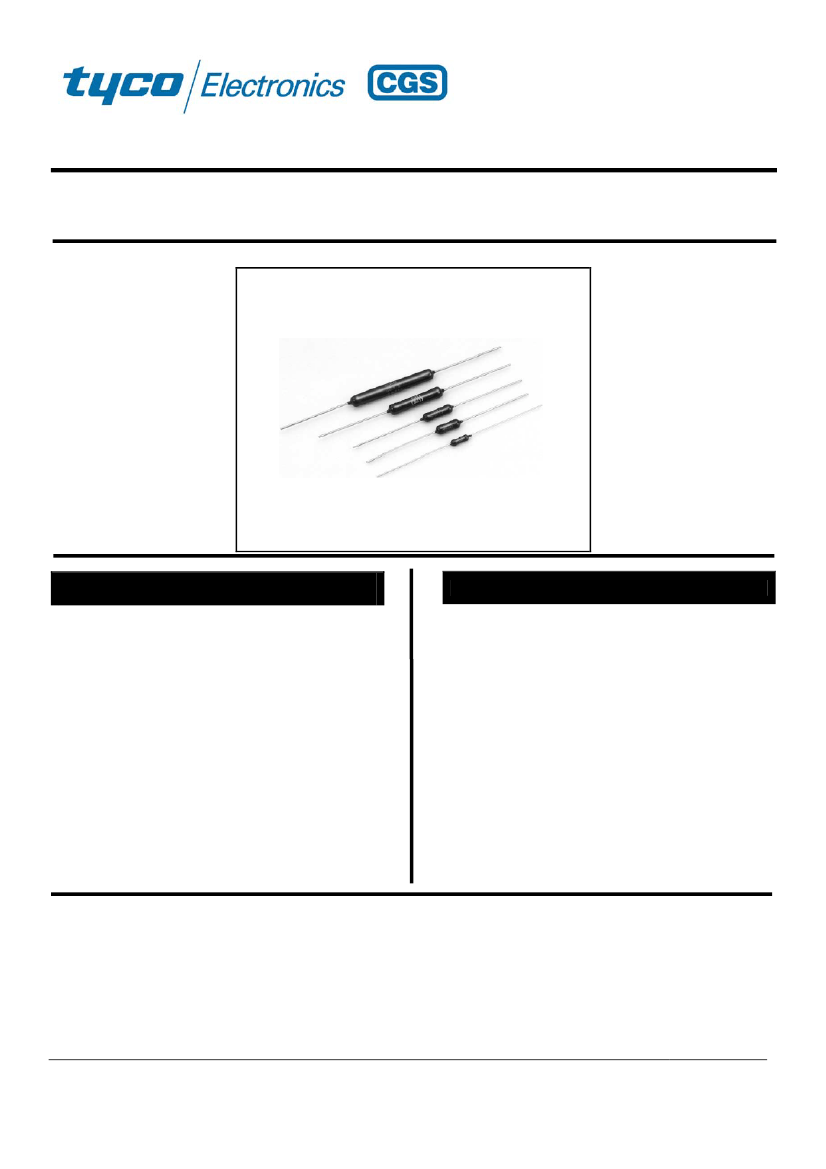

High Precision / High Voltage Resistors
TYPE HJ SERIES
KEY FEATURES
The HJ type resistors have higher reliability
when they are mounted on board, and excellent
long term stability.
These are used mainly in semiconductor
equipments, X-ray apparatus, and many other
measuring instruments.
•
•
•
•
•
•
•
•
Low TCR’s
Low Resistance Tolerances
Small compact size
High Reliability
Excellent long-term stability
High resistance to pulse voltages
Special Coatings for High Humidity
High thermal shock resistance when
mounted to PCB
STOCKISTS:
This product is not stocked in Distribution.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 1 of 2
Website – passives.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE HJ SERIES
ELECTRICAL
TYPE
Power Rating
@ 25°C
(Watts)
0.25W
0.5W
1.0W
2.0W
3.0W
1
st
April 2003
ISSUE 1
Impulse
Voltage (kV)
1.2 x 50
micro-seconds
1.5
3
4
10
20
Maximum
Working
Voltage
DC (kV)
0.75
1.5
2
5
10
Resistance
Range
(Ohms)
100K - 100M
100K - 100M
100K - 100M
100K - 100M
1M – 100M
Resistance
Tolerance
(%)
0.1, 0.25
0.1, 0.25
0.1, 0.25
0.1, 0.25
0.1, 0.25
Temperature Coefficient
(ppm)
±25, ±50, ±100
±25, ±50, ±100
±25, ±50, ±100
±25, ±50, ±100
±25, ±50, ±100
HJ55
HJ60
HJ65
HJ70
HJ80
ENVIRONMENTAL
Test Item
Operating Temperature Range
Short Term Overload
Resistance to Soldering Heat
Thermal Shock
Long Term Stability
Moisture Resistance
Load Life
Temperature Coefficient
Characteristics
-55°C to +150°C
±0.1%
±0.1%
±0.1%
±0.3%
±0.3%
±0.5%
“D” ±25ppm
“C” ±50ppm
“Z” ±100ppm
Test Method
Rated Voltage x 2.5 applied for 5 seconds
260°C for 10 seconds or 380°C for 3 seconds
-55°C to +150°C, 5 cycles
At normal temperature and humidity for 10,000hours without load
40°C 90 ~ 95%RH for 1,000 hours exposure without load
25°C Rated power x ½ for 1,000 hours
The test data is based on a temperature difference of 50°C (reference
temperature 25°C; measurement temperature, 75°C)
POWER DERATING CURVE
DIMENSIONS
TYPE
HJ55
HJ60
HJ65
HJ70
HJ80
Body Diameter
(D ±1.0)
3.0
4.5
4.5
5.5
5.5
Body Length
(L±1.0)
9.0
13.0
14.5
26.5
42.0
Lead Diameter
(d±0.05)
0.6
0.8
0.8
1.0
1.0
All Dimensions are nominal
and in 'mm' unless otherwise
stated. Do not Scale.
HOW TO ORDER
HJ55
COMMON PART
HJ55
HJ60
HJ65
HJ70
HJ80
100K
RESISTANCE VALUE
100K Ohm (100,000 Ohms)
100K
1 Meg Ohm (1,000,000 Ohms) 1M0
B
TOLERANCE
B – 0.1%
C – 0.25%
B
T.C.R.
D - ±25ppm
C - ±50ppm
Z - ±100ppm
This publication is issued to provide outline information only and (unless specifically agreed to the contrary by the Company in writing) is not to form part of any order or be
regarded as a representation relating to the products or service concerned. We reserve the right to alter without notice the specification, design, price or conditions of
supply of any product or service. Whilst Tyco Electronics Components products are of the very highest quality and reliability, all electronic components can occasionally
be subject to failure. Where failure of a Tyco Electronics Components product could result in life threatening consequences, then the circuit and application must
be discussed with the Company. Such areas might include ECG, respiratory and other medical and nuclear applications and any non fail-safe applications circuit.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 2 of 2
Website – passives.tycoelectronics.com
Email – passivesales@tycoelectronics.com
